Wharfedale Pro DP2200 Power Amplifier
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsApp
Secure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
Choose options
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppSecure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppSecure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
Download Product Data Sheet
DESCRIPTION:
STABLE DOWN TO 2 OHMS
Stable down to 2 Ohms (*except DP-4030) and with huge power output.
The power output figures of DP series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
Power Factor Correction
Lets make it easy…. and call it PFC instead!
PFC, combined with the Switching mode power supplies inside DP series amps, increases the amplifier efficiency and regulates to ensure smooth power delivery even with huge fluctuations in the AC supply.
In the real world, it makes a big difference to amplifier performance and stability.
FEATURES:
- 2 channels
- 8 Ohm 2 x 2000 Watts
- 4 Ohm 2 x 3400 Watts
- 2 Ohm 2 x 4760 Watts
- 16 Ohm Bridged 1 x 4000 Watts
- 8 Ohm Bridged 1 x 6800 Watts
- 4 Ohm Bridged 1 x 9520 Watts
- 100 V Hi-Z : 2 x 3400 Watts
- 70 V Hi-Z : 2 x 2400 Watts
SPECIFICATIONS:
| Power Output | |
| Stereo power output 8Ω x 2 | 2000w |
| 4Ω x 2 | 3400w |
| Bridged mono output 16Ω | 4000w |
| Bridged mono output 8Ω | 6800w |
| Input sensitivity & Impedance | |
| Sensitivity | selectable 41/38/35/32dB |
| Balanced XLR input | 20kΩ |
| Max input level | 22dBu (9.7Vrms) |
| Voltage gain | 41dB |
| Slew rate | >50V / μs |
| Crosstalk | <-90dB |
| S/N | >112dB |
| Distortion (1W) | <0.02% |
| Frequency response | |
| +/-1dB @ 8Ω | 20Hz – 20kHz |
| +/-3dB @ 8Ω | 20Hz – 30kHz |
| Damping factor | >5000 |
| Topology | Class D |
| Connectors | |
| Signal input | Female & Male XLR jacks |
| Power output | speakON compatible |
| Controls | |

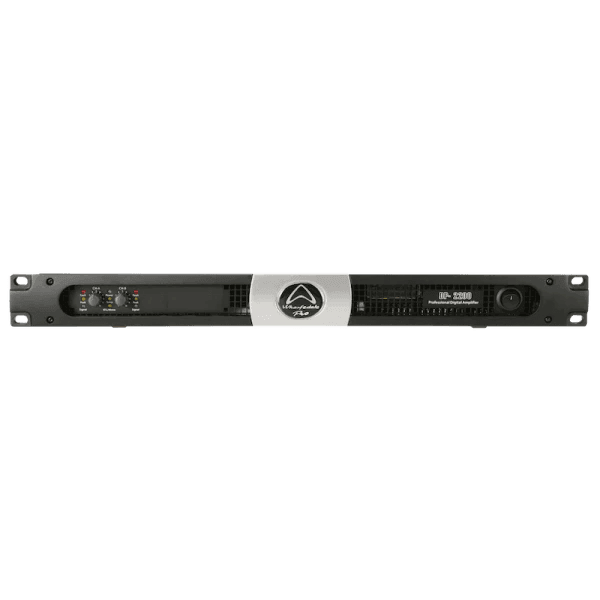

| Front panel | AC Switch, CH and CH2 gain knobs |

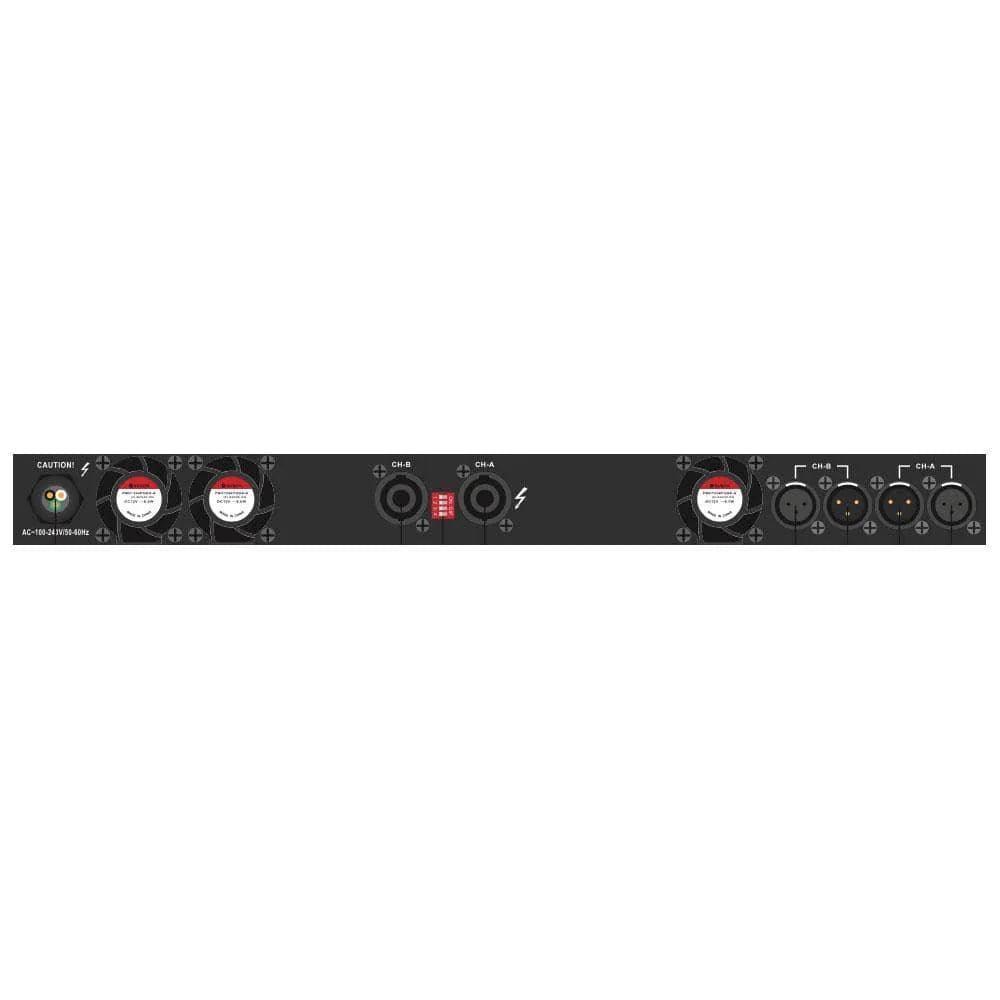

| Rear panel | Parallel, Stereo & Bridge mode switch, Limiter switch |
| Thermal, Over-current, Output DC, Output short protect | |
| Indicators | Power, Protect, Signal, Limiter |
| Cooling | Variable speed fan |
| AC Power | 90 ~ 260VAC, 50 ~ 60Hz |
| Dimensions | 44 * 485 * 370mm |
| Weight (Net) | 9.28kg |
HOW IT WORKS:
The Wharfedale Pro DP2200 Power Amplifier provides two channels with 3400 watts at 4 ohms or 2000 watts at 8 ohms. In bridged mono mode, the DP-2200 is capable of delivering 6800 watts at 4 ohms and 4000 watts at 16 ohms. The Class D amplifier topology ensures consistent power delivery and high headroom. The DP-2200 is seamlessly integrated within any professional sound system thanks to the XLR input connectors and SpeakON-compatible output connectors. Built-in protection circuitry prevents both the amplifier and your speaker system from being damaged during operation.
FAQ:
