Description:-

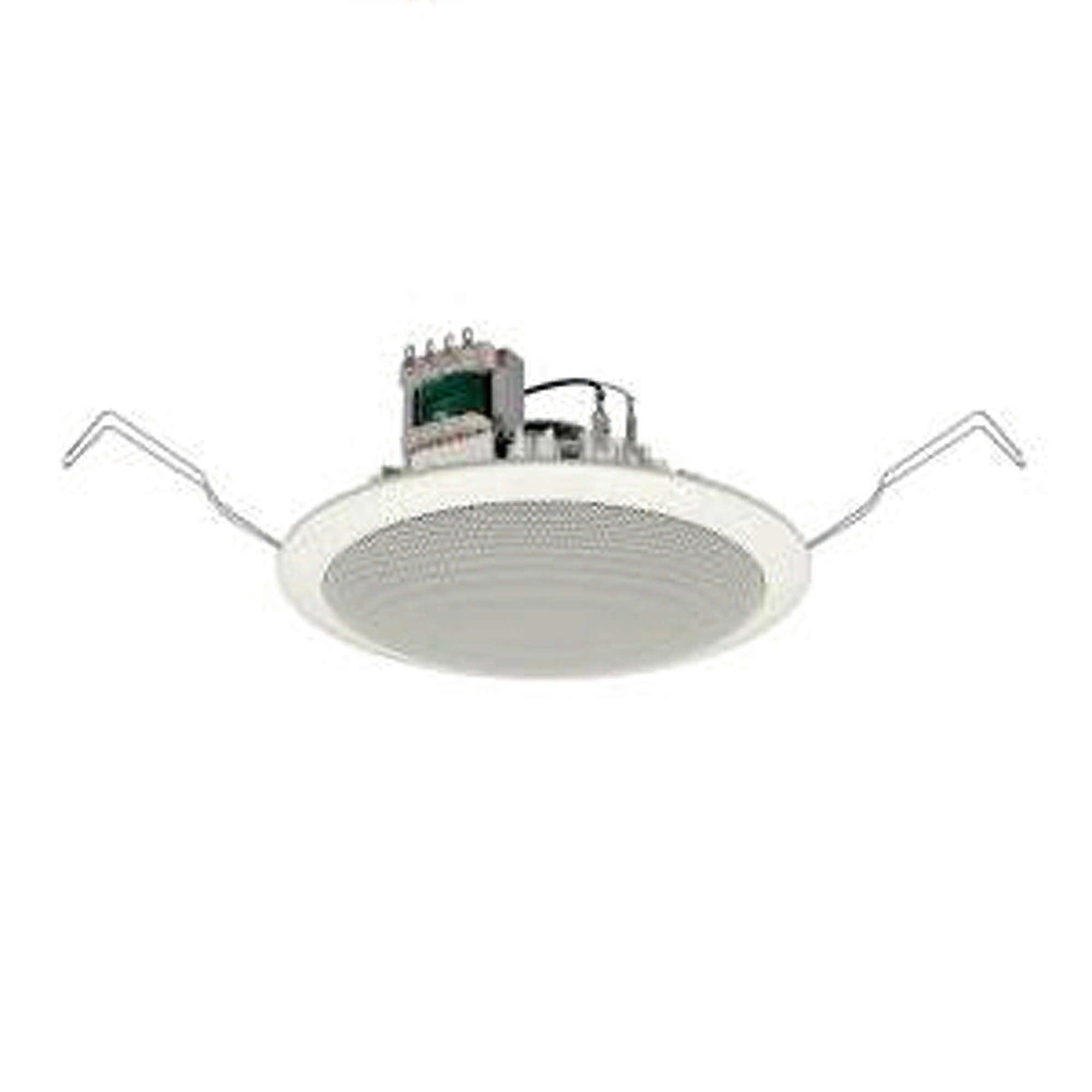

The PC-658R is a ceiling-mount speaker with a resin panel and speaker frame. It features a spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by adjusting the tap position of the transformer.

• Special design for thin ceiling
• Spring clamp mechanism for easy speaker mounting to the ceiling

The ceiling mount loudspeaker shall be an integrated cone driver, line transformer and baffle (grille) assembly. The driver shall be a 16cm (6") diameter cone type with 8 ohm nominal impedance and a ferrite magnet. Power handling shall be 6 W (15 W program) with a frequency response from 65 – 18 KHz and sensitivity of 90 dB SPL at 1 W input measured at a distance of 1m. The line transformer shall accept 70 V and 100V inputs with taps for 1 W, 3 W and 6 W with an output impedance of 8 ohms. The baffle shall be made of polypropylene resin and grille shall be surface-treated steel plate net with an off-white color (RAL9010). With two spring clamps mounted at the opposite side of the baffle for easily assembly.

The dimension of the speaker shall be Φ192mm x D 73mm and weight shall be 500g.
The ceiling mount loudspeaker shall be TOA model PC-658R.

Specifications:
