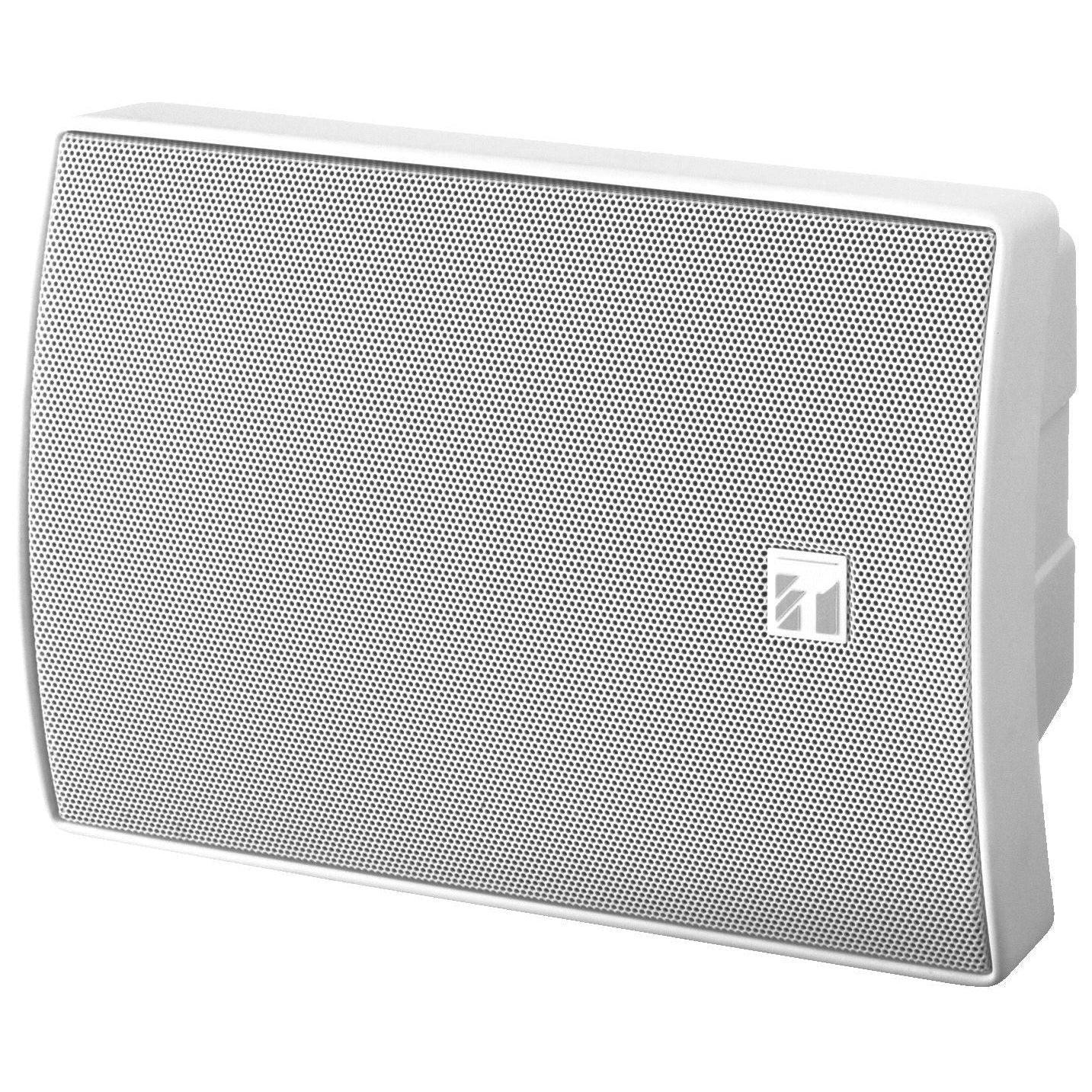

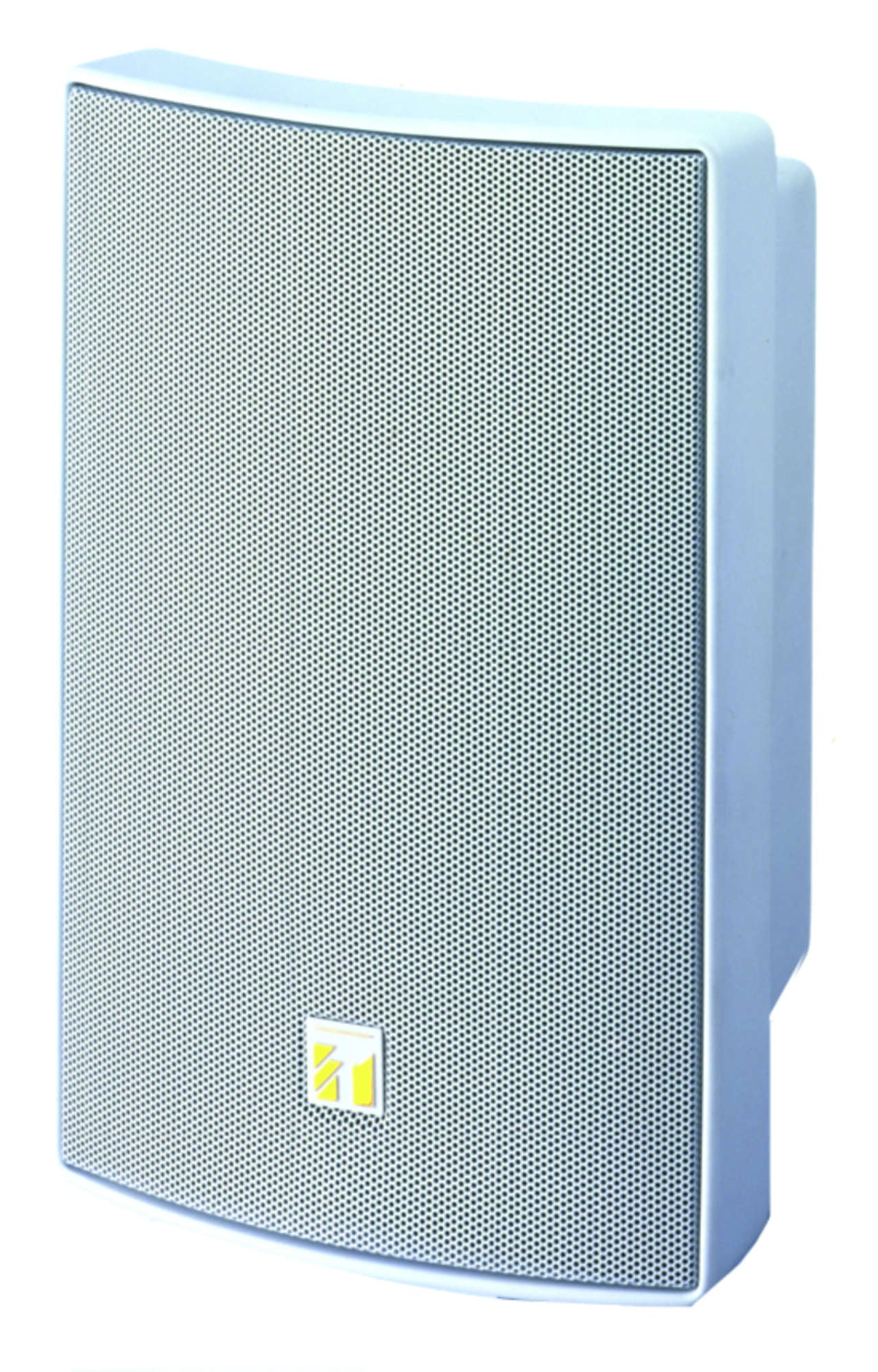

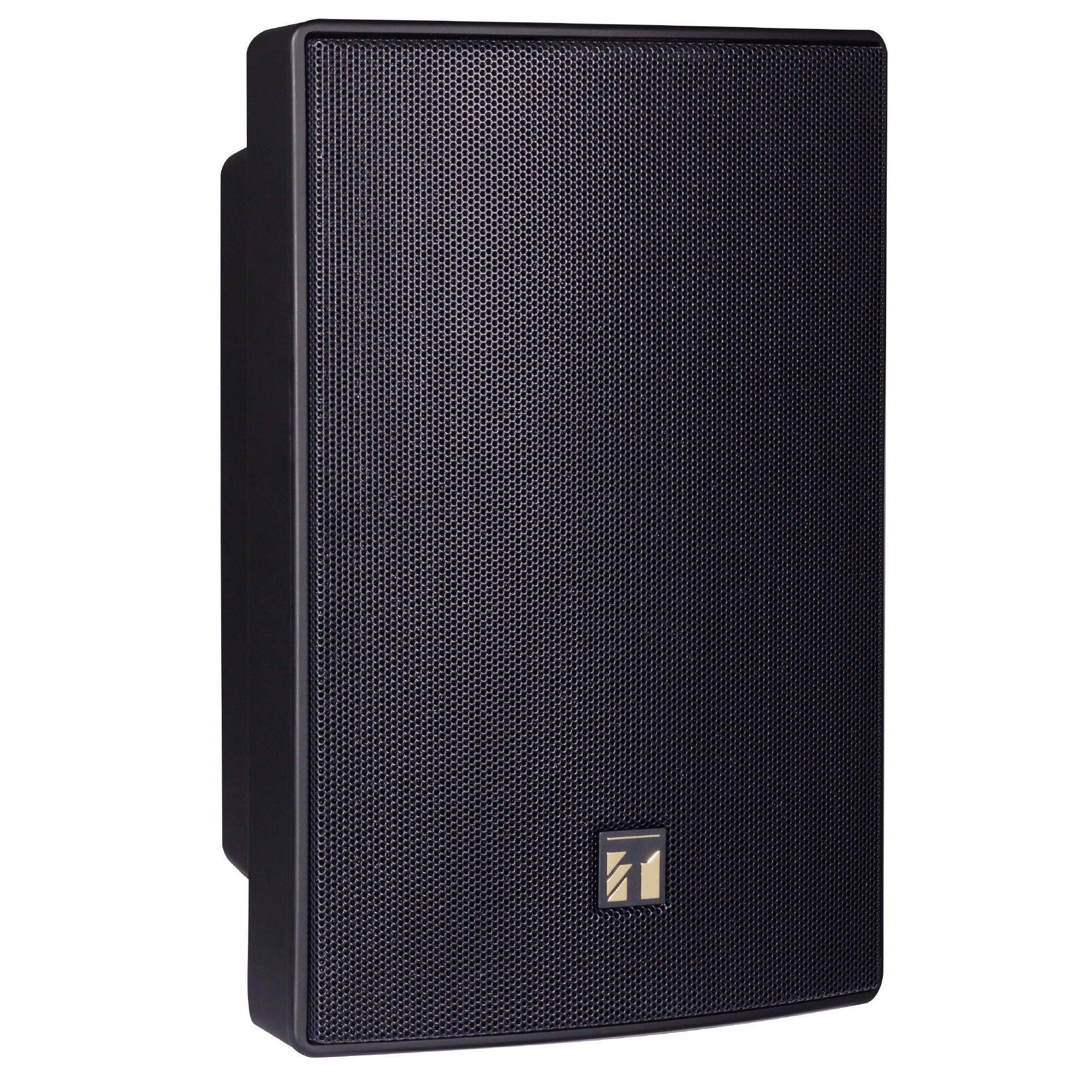

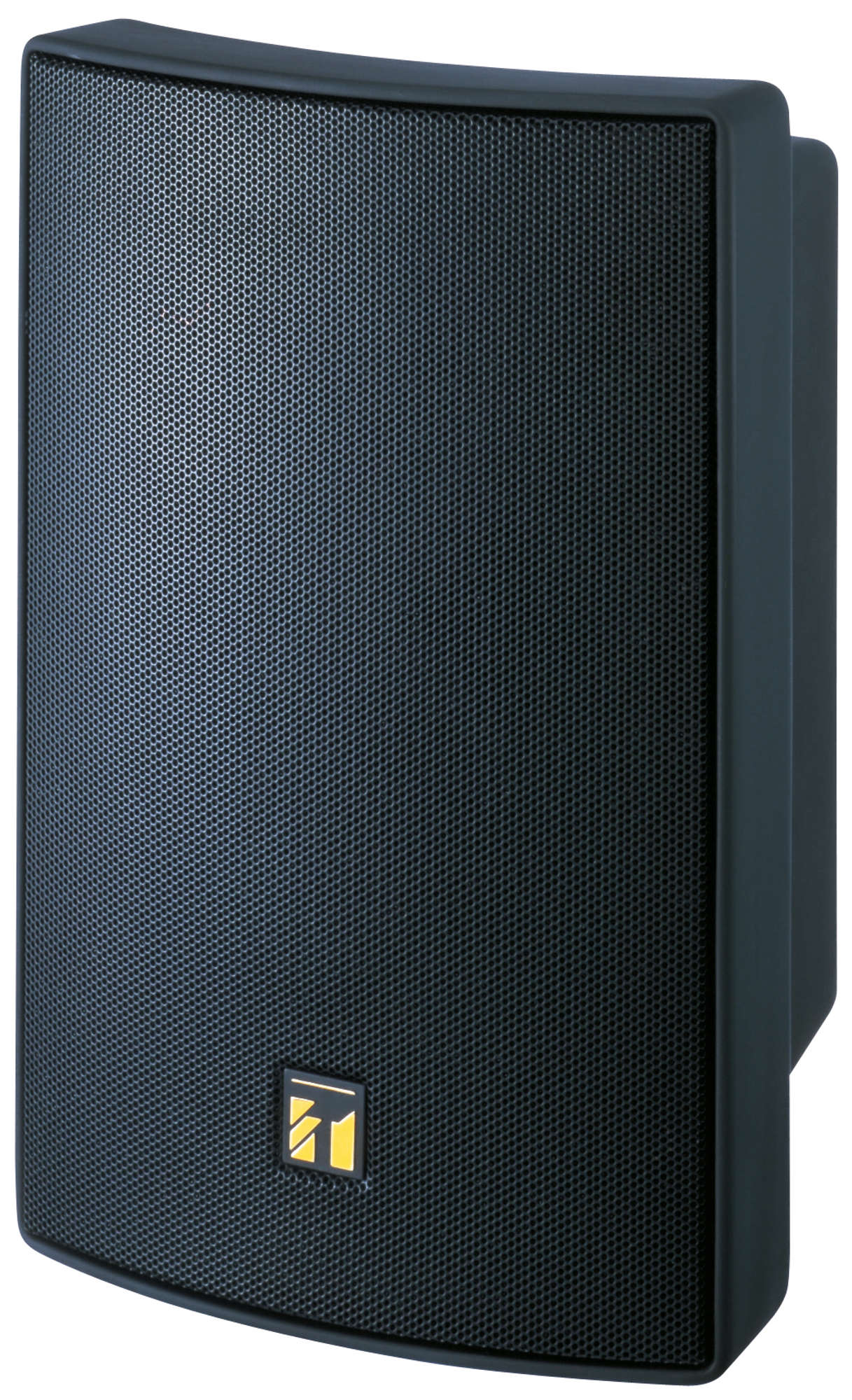

TOA BS1030 Wallmount Speaker
Color
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
TOA BS1030 Wallmount Speaker
Black
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 101.0625\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.

Note: This is a B2B Product
-Prices are indicative and discounts available based on quantities
-Design services available for these systems. Please contact our team for support on WhatsApp, Call Us or Email Us.
DESCRIPTION
Multi-use High Performance Speaker Designed to Fit Any Atmosphere
The BS-1030 is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030W can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.
FEATURES
- 2-way bass reflex speaker
- Cost-effective high power PA box speaker
- Various installation options
- Low impedance (8Ω) or high impedance (100V) selectable by rotary switch
- Splashproof construction in compliance with IPX3
SPECIFICATIONS
Specification | Details |
---|---|
Enclosure | 2-way bass-reflex type |
Rated Input | 30 W |
Rated Impedance | 8 Ω |
100 V Line | 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) |
70 V Line | 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W) |
Sound Pressure Level | 90 dB (1 W, 1 m) |
Frequency Response | 80 Hz - 20 kHz |
Speaker Component | 12 cm cone-type + dome-type |
Speaker Cable | 2-core cabtyre cord with diameter of 6 mm |
Water Protection | IPX4 (can be installed vertically or horizontally*) |
Operating Temperature | -10 °C to +50 °C |
Finish | - Enclosure: ABS resin, black (RAL9011 GRAPHITE BLACK), paint - Net: Surface treated steel plate, powder coating - Bracket: Surface treated steel plate, powder coating, black (RAL9011 equivalent) |
Dimensions (W x H x D) | 196 x 290 x 150 mm (unit only) |
Weight | 2.5 kg (unit only) |
Included Accessories | Bracket x 1, Bracket mounting screw x 2, Bracket mounting washer x 2 |
Optional Accessories | Applicable bracket: WCB-13B, SP-410 Applicable stand: ST-16A |
