STK LMS Line Series Line Array

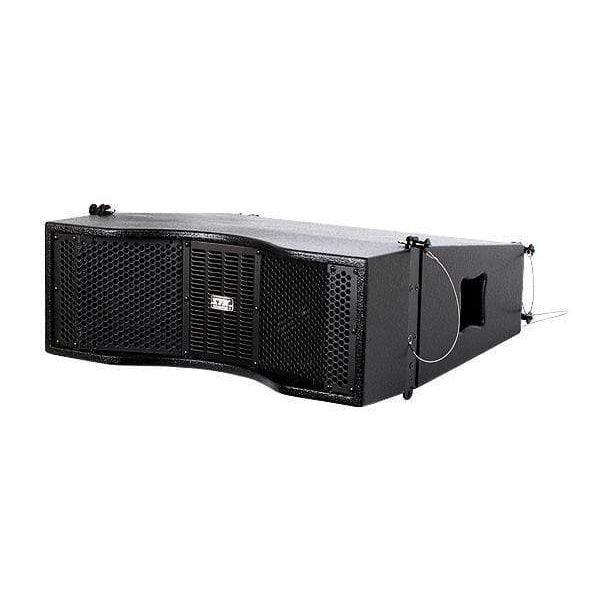

LMS-62P line array

2 Way Passive Full Range Bi System. Used double PCS of 12mm birch plywood materials to making a super-durable enclosure. High-quality components with an environmentally friendly, lightweight, and field-repairable waterborne polymer finished with scratchproof finished suspension materials. Have a dual 2 pairs of powerful 6.5‚" low-frequency drivers. Both have wide 110 horizontal coverage at the crossover with extends the mid-range. High frequencies handled by SK-70D HF drivers with a converging lens of SFG10 for ultimate sound reproduction.

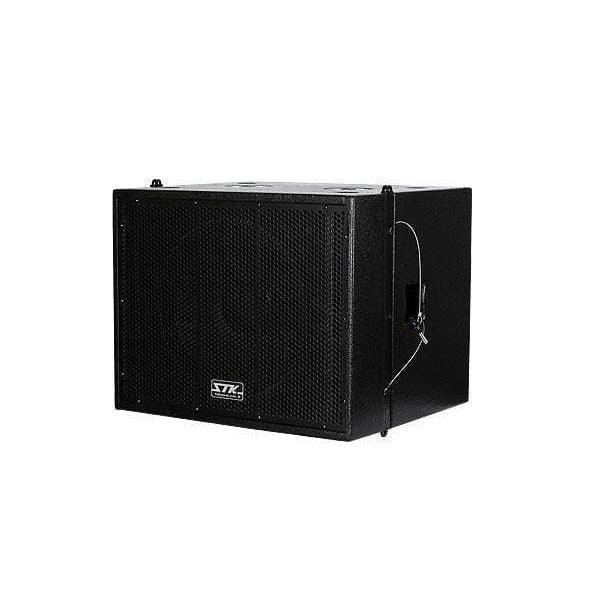

LMS-6015P subwoofer
Passive single 15" Sub Woofer System, the systems can be readily integrated into arrays of full range LMS-62P line array elements. Ported + vented rectangular enclosure. SK 15600 15" high power transducers provide to solid sounding output.
"Used 12mm birch plywood materials by double PCS to making a super-durable enclosure. High-quality components with an environmentally friendly, lightweight field-repairable waterborne polymer finished with scratchproof finished suspension materials.

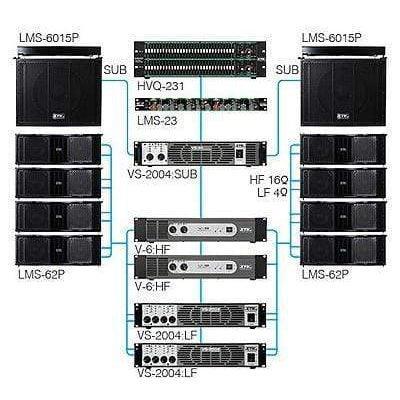

Combined LMS-62 and LMS-6015 arrays making suspension with optinal array frame(B6015 LMH), can also be used to ground-sacked for extended range front of house system with optional U-FRAME(B62 LMU) with 2 of SPM-35150 speaker poles.





Model LMS-62P
Configuration 2-way Full-Range, Bi-amp
High-frequency Transducer SK-70D HF Driver on SFG 10(Converging Lens)
Low-frequency Transducer SK65200FP, 6.5"(162mm) woofer x 4.
Frequency Response (3dB) 80 Hz - 20kHz
Frequency Range (-10dB) 65Hz - 23kHz
Nominal Impedance LF : 16 Selectable / HF : 16 Fixed
Continuous Power Capacity HF : 70W/280W PEAK
LF : 360W/1440WPEAK
Sensitivity (SPL, 1 W at 1 m) HF : 105dB
LF : 100dB
Recommended Power HF : 140W
LF : 720W
Maximum Output, Continuous/Peak
(dB SPL at 1 m)
HF: 123.47dB /129.47dB
LF: 125.58dB /131.58dB
Nominal Coverage H : 110
V: Dependent on the number of elements used
Enclosure Type Ported, trapezoidal
Enclosure Material 2 x 12 mm birch plywood
Finish Available in black or White(Option), paintable
Grille Perforated, powder-coated 16AWG steel,

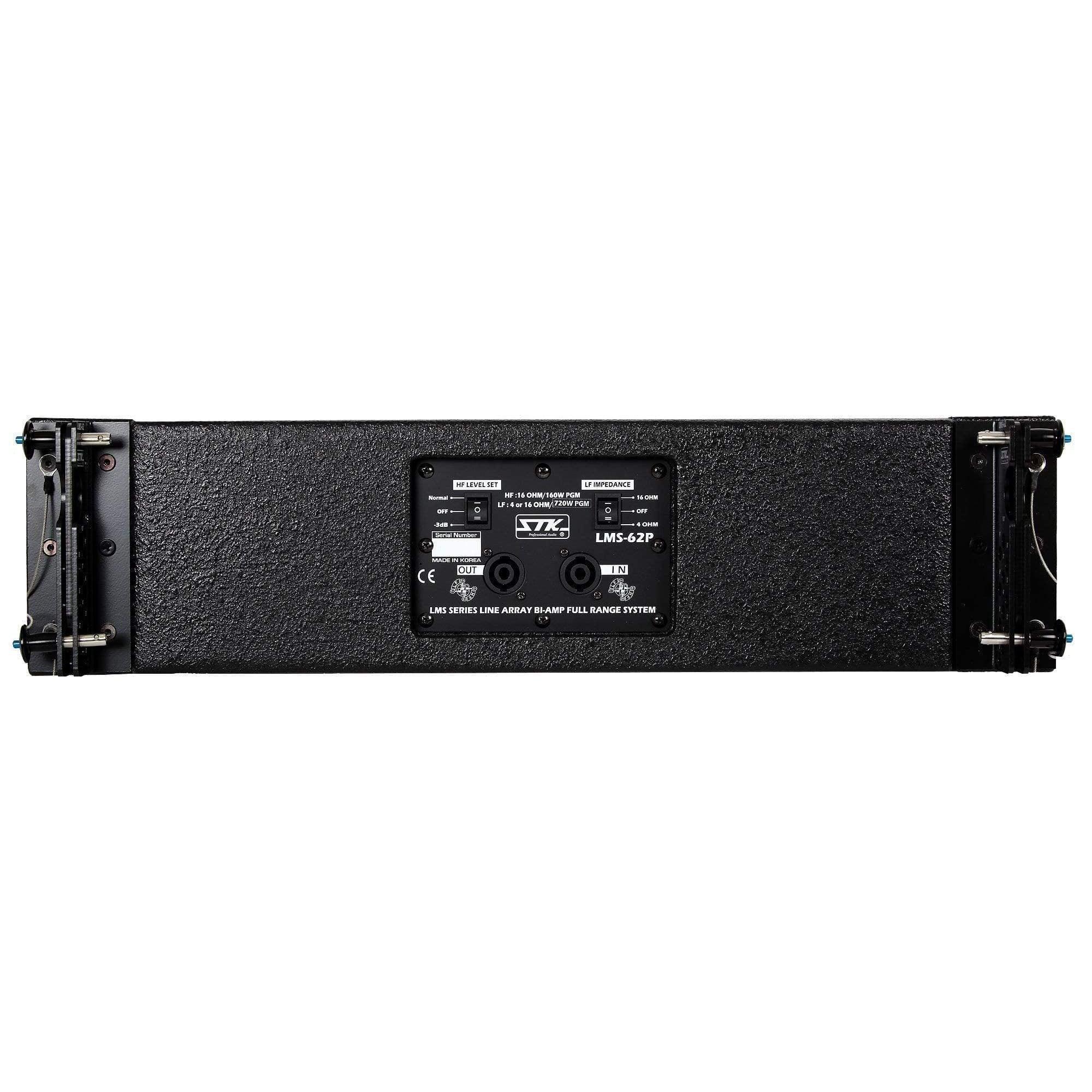

Connectors For Amplifiers 2x Neutrik Speakon in parallel
Pins: 1+/1- LF
Pins: 2+/2- HF
Controls for Select LF Impedance 4 ohm/off/16 ohm by up-down switch
Controls for Select HF Sound Level Normal/off/-3dB by up-down switch
Attachment Points Integral, "I" plate adjustable rigging system, vertical
splay adjustable in 1 increment from 0-10



Model LMS-6015P
Configuration Sub Woofer: Line Array
Transducer one SK15600 15"
Frequency Response (± 3dB) 40Hz - 200Hz
Frequency Range (-10dB) 35Hz - 500Hz
Nominal Impedance 8
Continuous Power Capacity 600W/2400W PEAK
Sensitivity (SPL, 1 W at 1 m) 99 dB
Recommended Power 1200W
Maximum Output,Continuous/Peak(dB 126.80dB /132.80dB
SPL at 1 m)
Enclosure Type Ported + Vented subwoofer rectangular type
Enclosure Material 2 x 12 mm birch plywood
Finish Available in black or White(Option), paintable
Grille Perforated, powder-coated 16AWG steel,

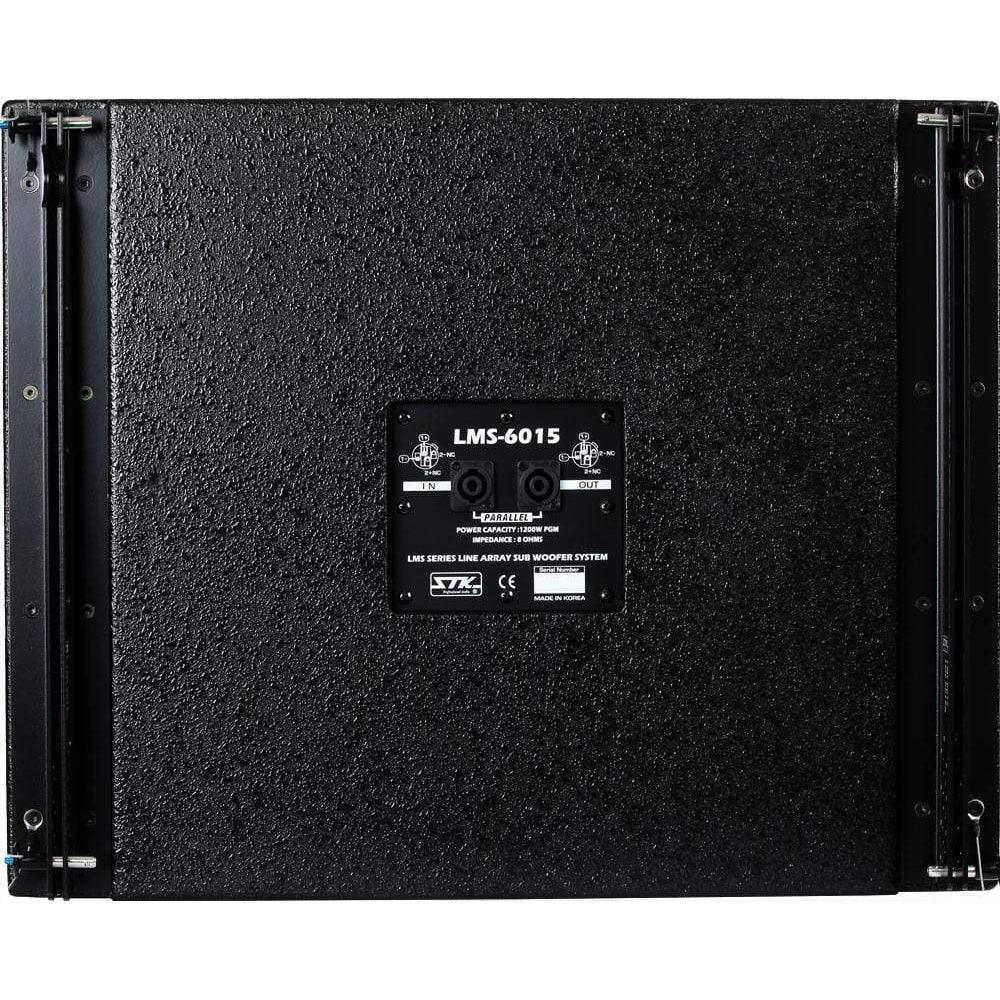

Connectors For Amplifiers 2x Neutrik Speakon in parallel
Pins: 1+/1- SUB
Pins: 2+/2- NC
Attachment Points Integral, non-adjustable.straight array on
