Seeburg

S1300

Seeburg Acoustic Line S 1300 High Quality 550 W Power Amplifier

Modern electronics, classical design and excellent audio qualities are combined in the SEEBURG power amplifiers to provide a reliable work horse equally suited to installations and mobile systems. A 2 stage switching mode power supply ensures low weight and high efficiency. The highly effective copper heat sink cooling system and easily accessible high capacity air filters provide for easy and minimal maintenance.

Tech Specs

Weight
Description 2-Channel Audioamp
Power EIA both channels driven (0.1% THD, 20 Hz - 20 kHz) 2 x 550 Watt / 4 Ω 2 x 350 Watt / 8 Ω
Power EIA bridge mode 1100 Watt / 8 Ω
Peak Output Voltage bridge mode 250 V
Signal to noise ratio 100 dp
Channel separation @ 1000 Hz 60 dp
Input Impedance 20 k
Slew Rate 45 Volts / us
Damping Factor 500
Gain 26 dp / 32 dB / 1.4 V
Cooling 3 x fans, front to rear airflow, temperature controlled speed
Mode Switch stereo / mono / bridge

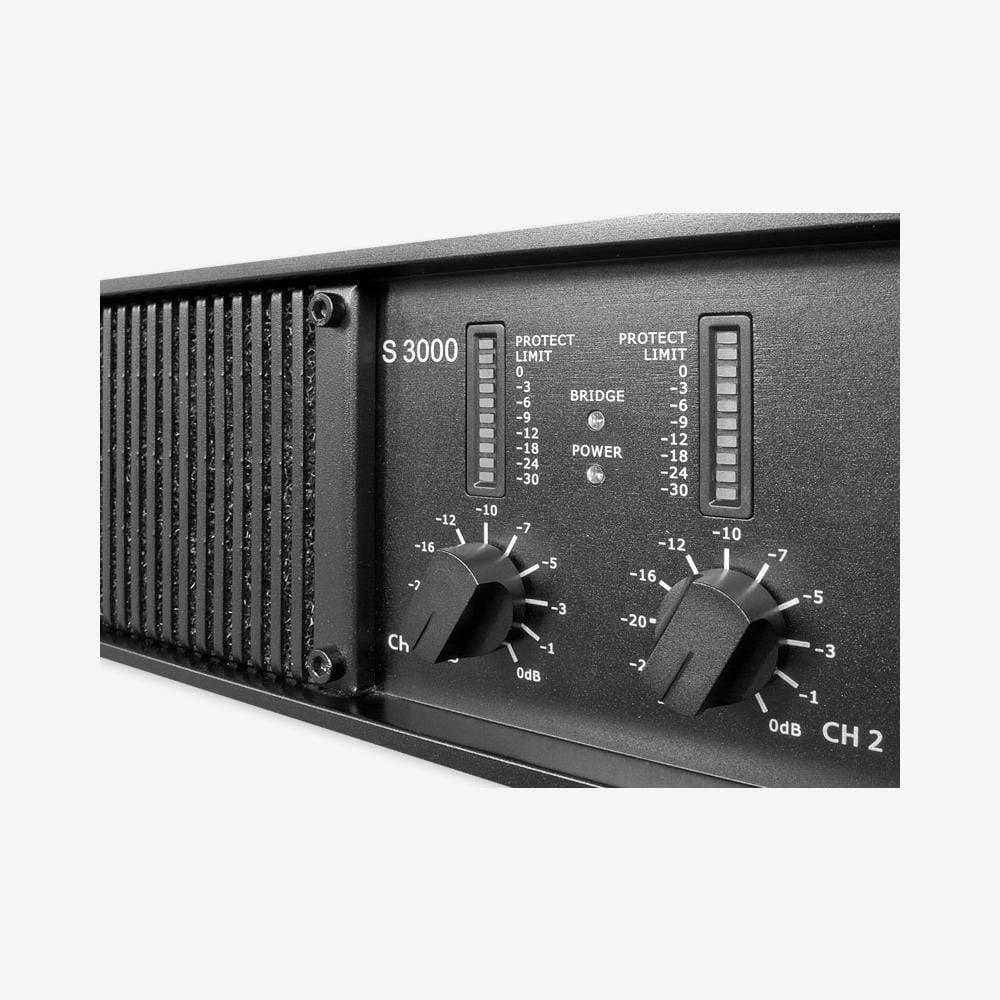

Indicators Power / Bridge / 8 x Gain / Limit / Protect

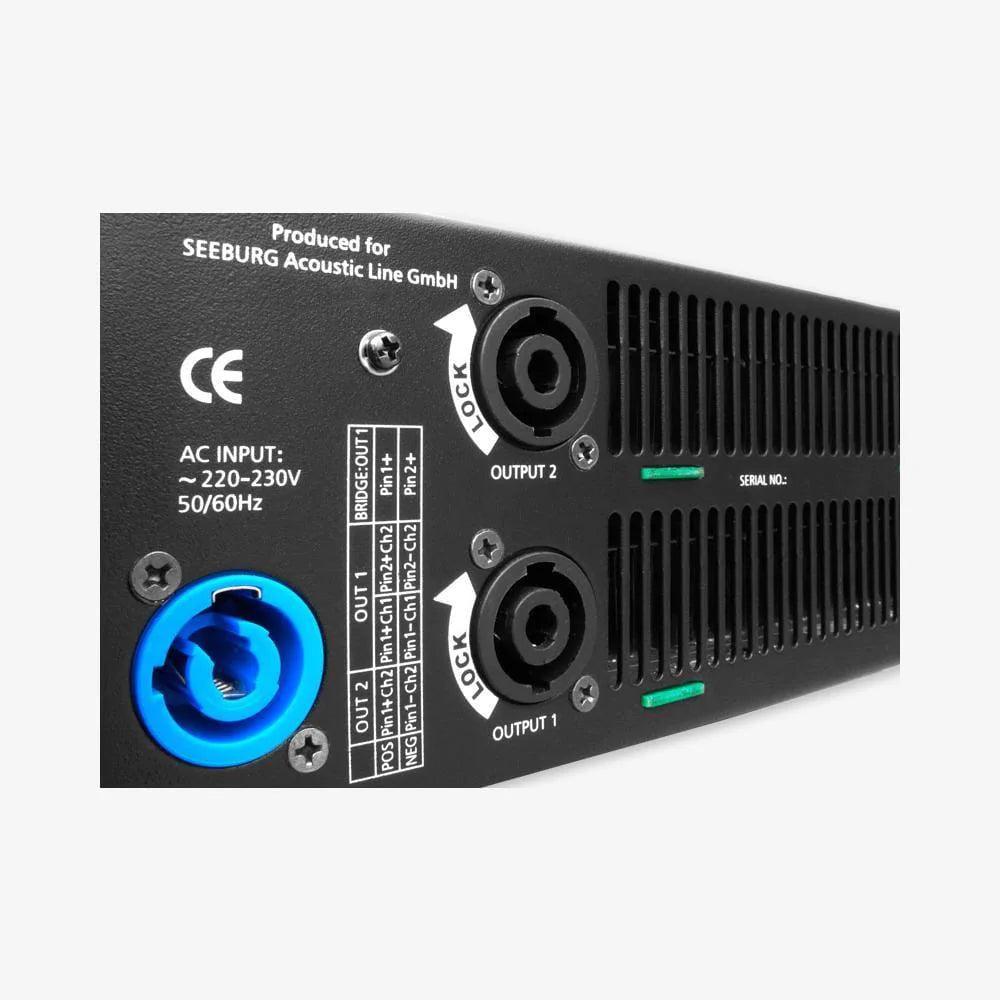

Inputs XLR in / loop thru
Outputs Speakon A: 1+/-A, 2+/-B
Speakon B: 1+/-B
11,4 kg
Size height x width x depth (mm) 88 (2 HE) x 483 (19") x 453 / 413
