Seeburg

M1dp

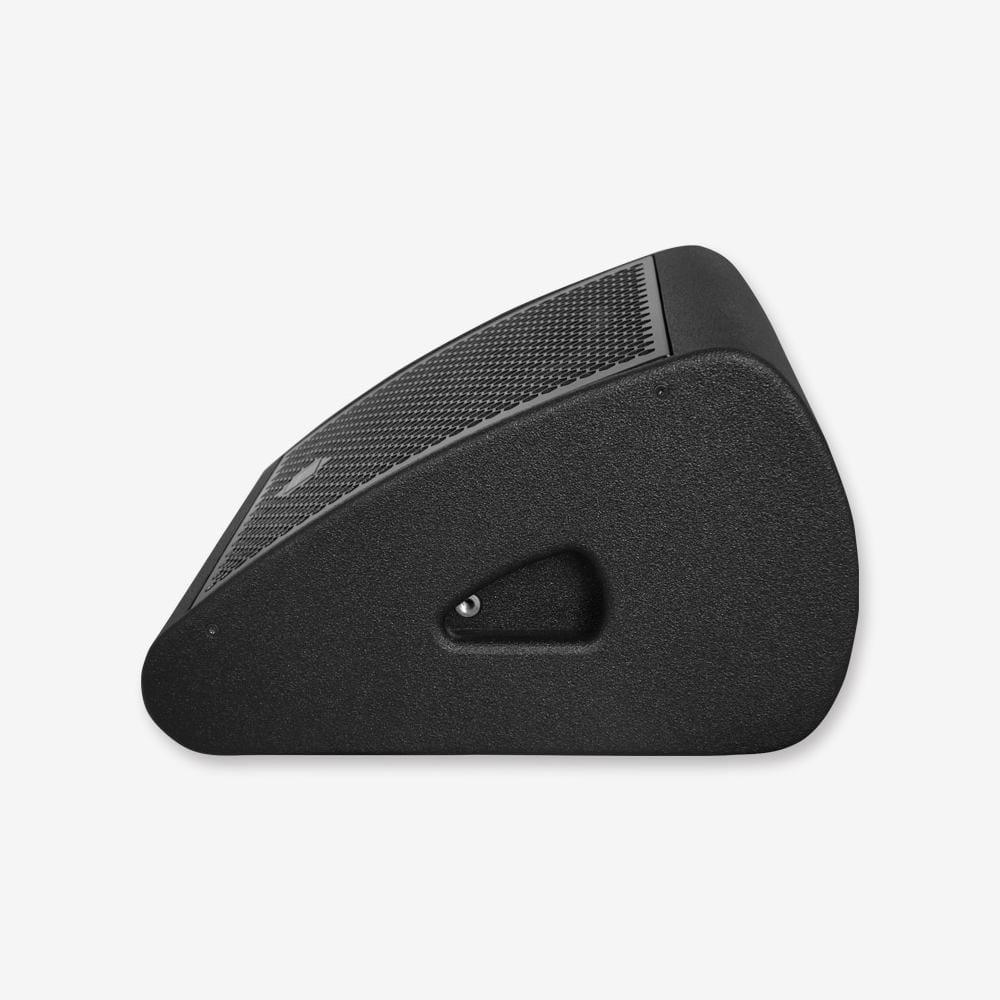

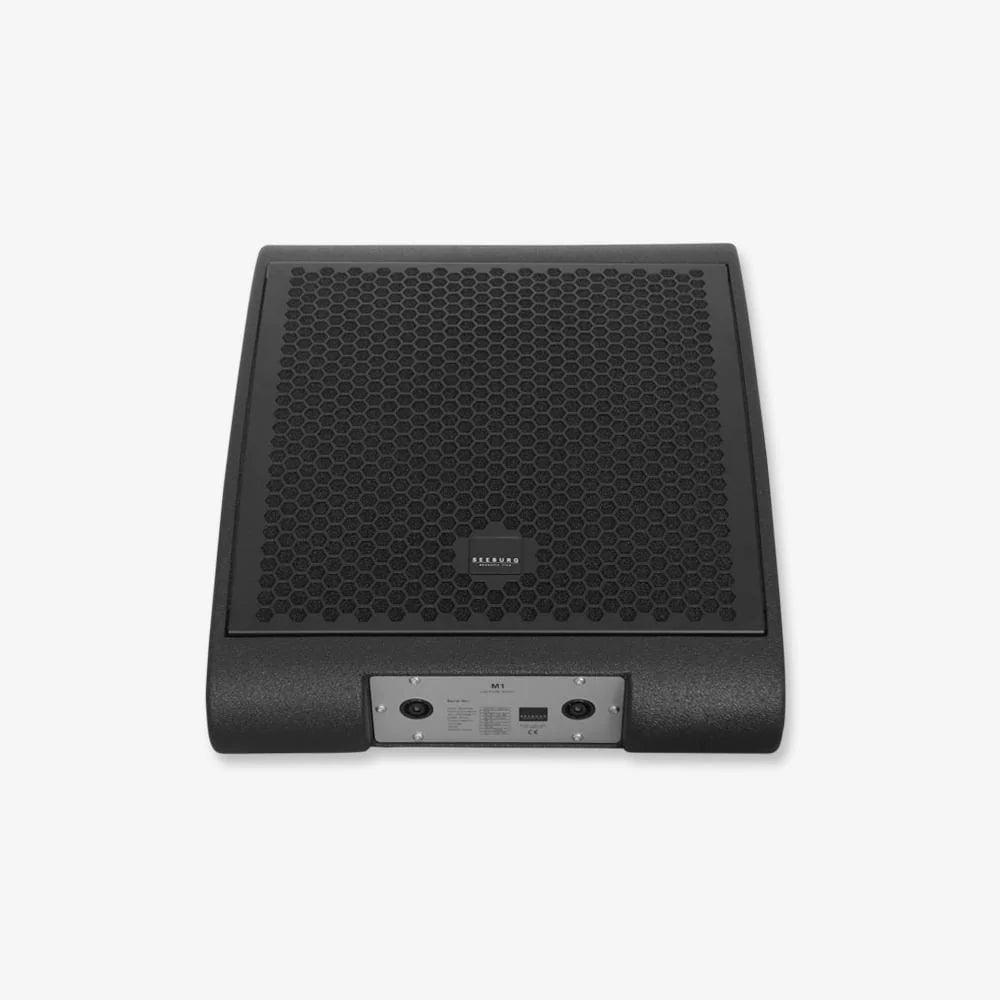

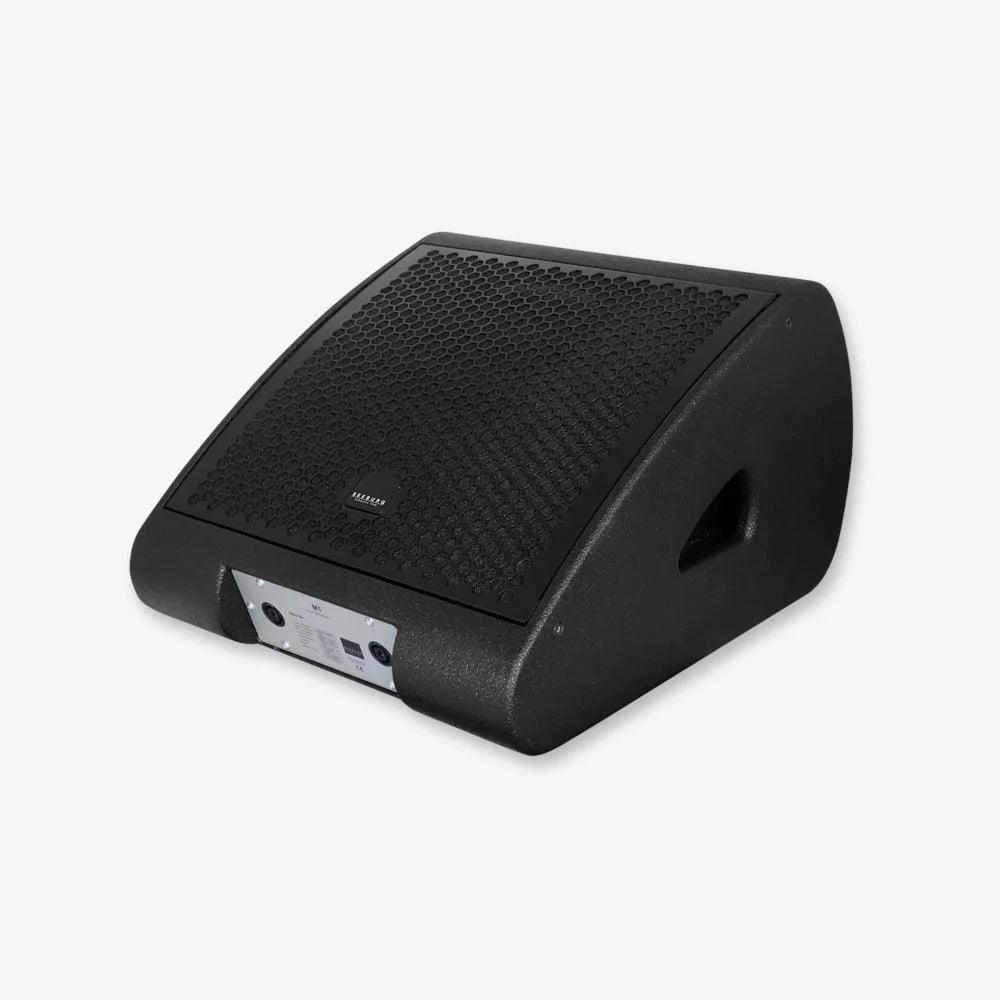

Seeburg Acoustic Line M1dp Digitally Powered Low Profile Stage Monitor

Ultra flat stage monitor fitted with lightweight coaxial 12” /1.4” Neodymium drivers. With high power reserves, homogeneous sound distribution and low tendency to feedback, the M 3 is a tool that will greatly simplify a sound engineer’s job. Combined with the optional flying bracket, the system can also be used both as a downfill and as a universal sound system.

Tech Specs

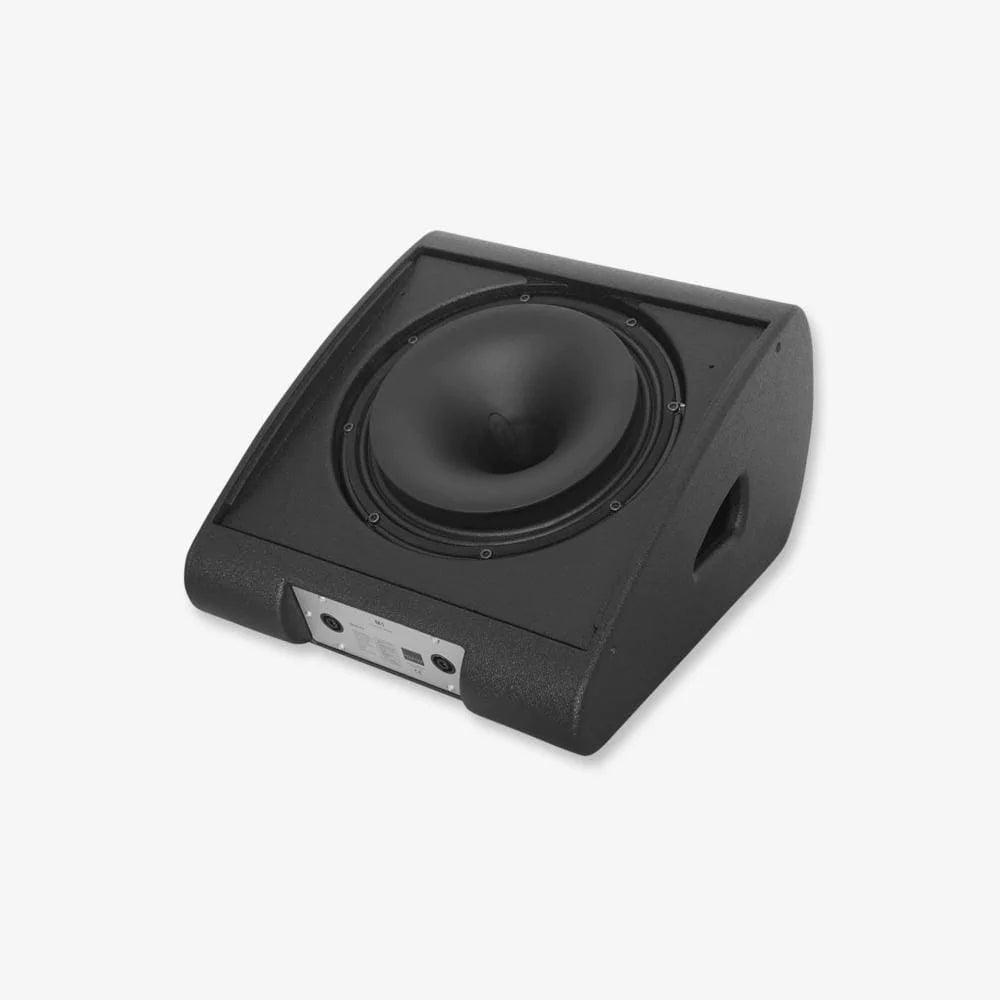

Speaker Components 12“ Nd / 1,4“ Nd Coaxial
Description Low Profile Monitor
Power AES / Peak 500 W / 1500 W
Impedance nominal 8 Ω
SPL 1 W / Peak @ 1m 98 dB / 133 dB
SPL Peak@1m - - -
Max. Input Signal - -
DSP - - -
AD / DA - - -
Latency - - -
Usable Range 80 Hz - 19 kHz (-6 dB)
Tuning Frequency excursion minimum 90 Hz
X - Overpoint acoustica l 1,2 kHz
Coverage horizontal / vertical 60° conical
Max. Splay Angle

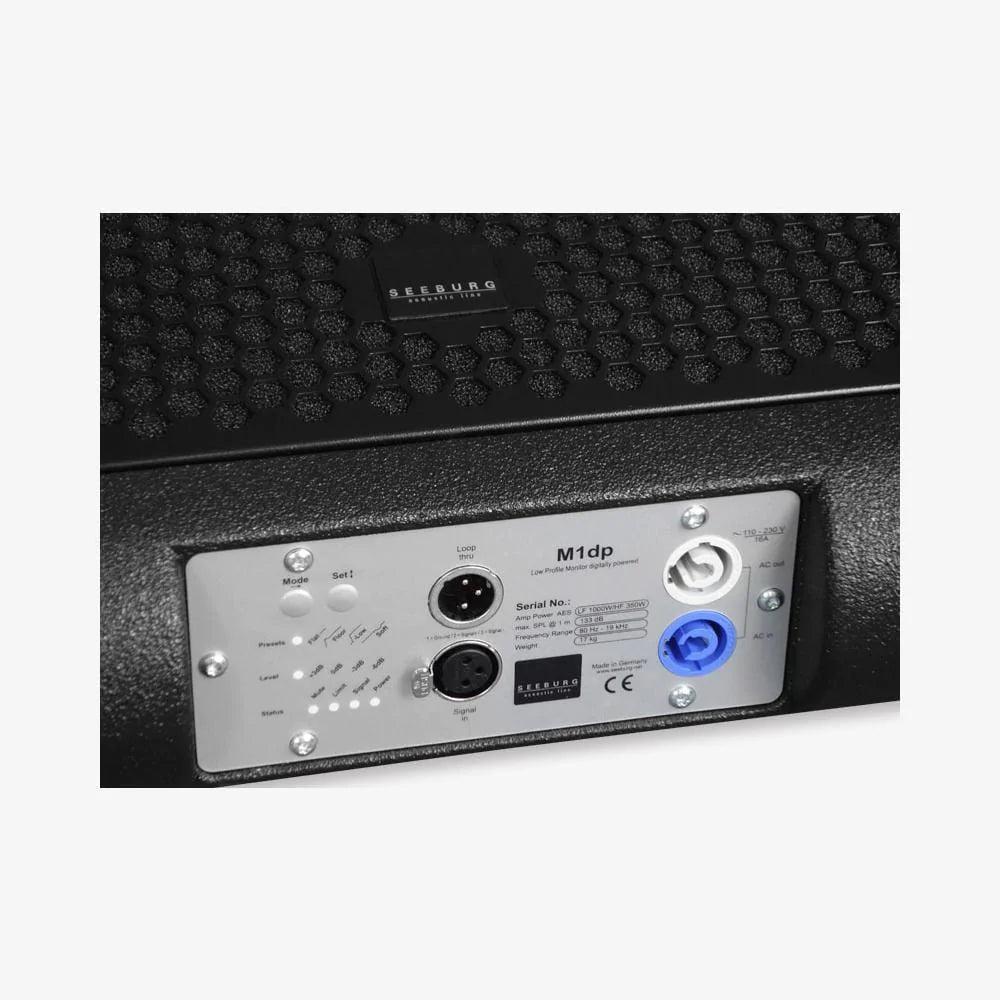

Connectors 2 x Neutrik Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop thru
Handles 2 x
Rigging / Fittings 2 x M10
Weight 16 kg
Size height x width x depth 27,4 x 40,0 x 47,0 cm
