Seeburg

I4

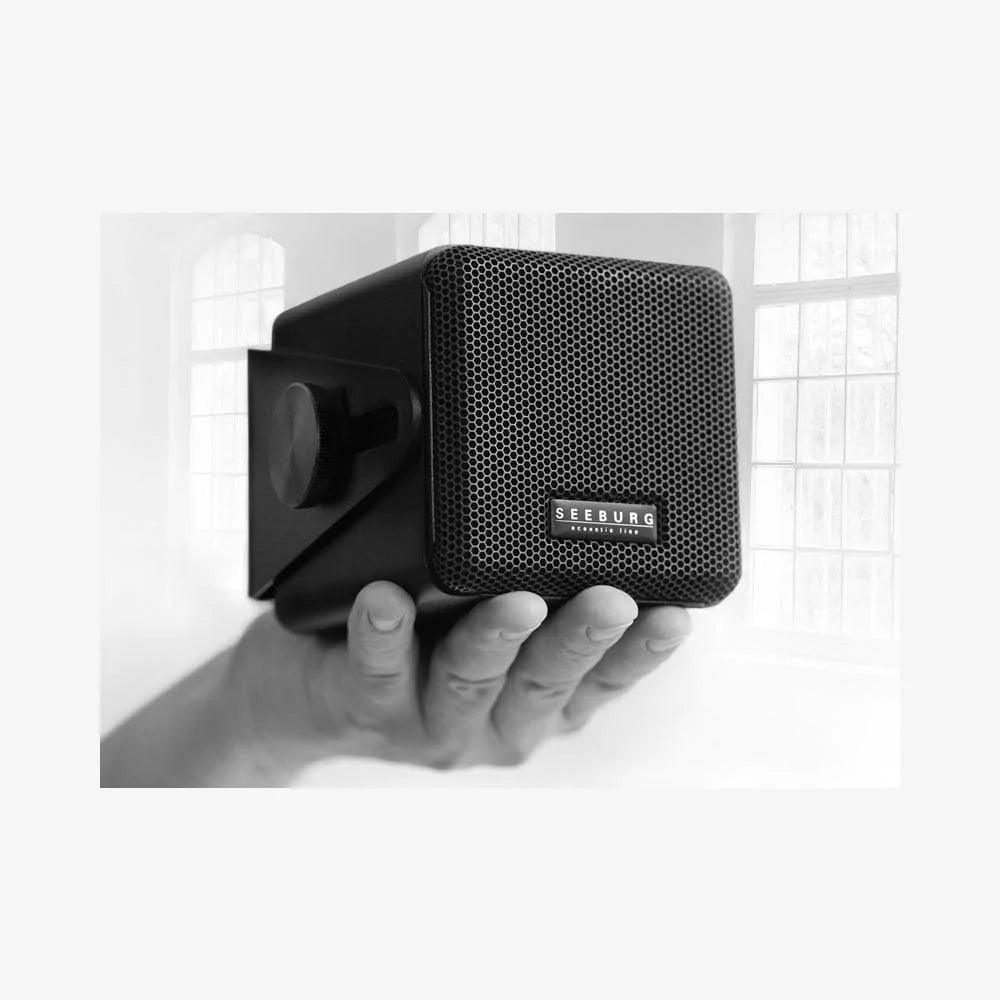

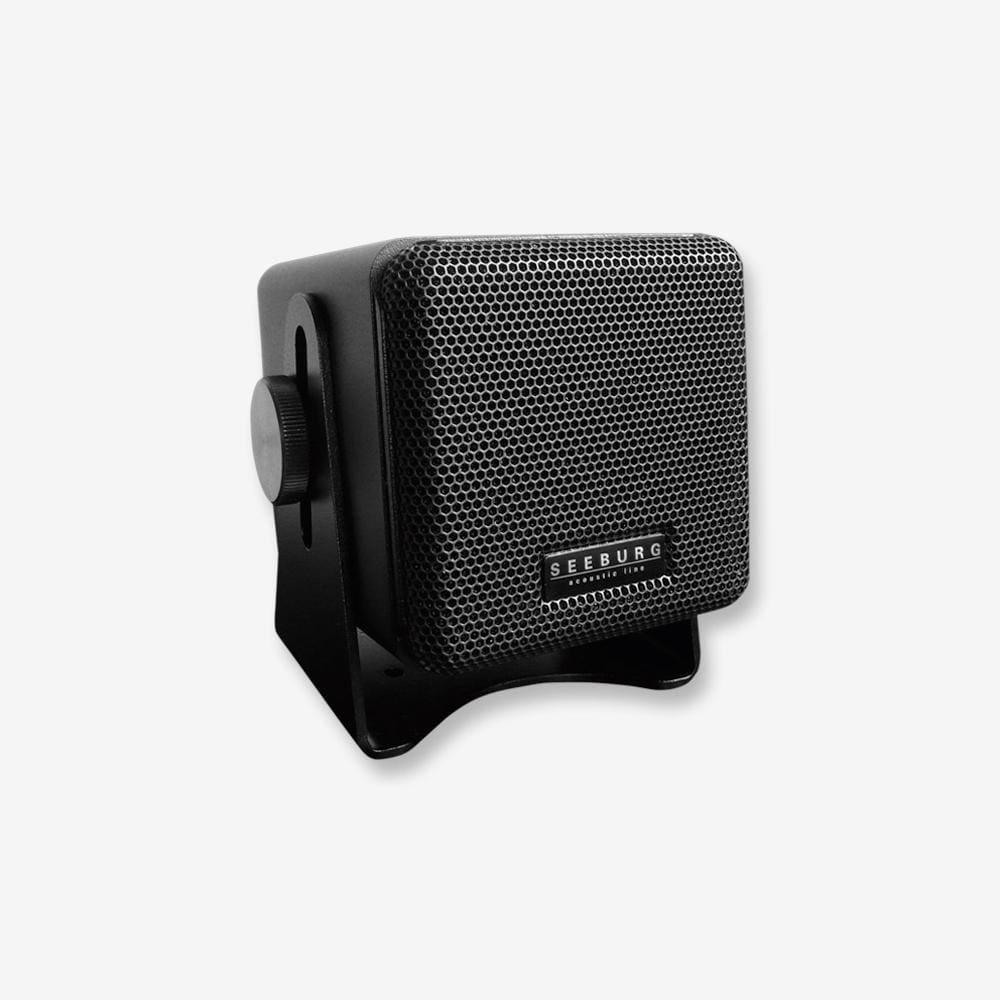

Seeburg Acoustic Line i4 Miniature Broadband Speaker

Miniature loudspeaker for applications which require a good sounding system with a low profile. The powerful 4“ wide-range cone driver is capable of distortion free operation up to 113 dB SPL (1W/Peak@1m). Flexible mounting options and the standard flying bracket make the i4 system a universal tool for nearfield applications.

Tech Specs

Speaker Components 4“ wideband
Description Multi Media Sound System
Power AES / Peak 100 W / 300 W
Impedance nominal 16 Ω
SPL 1 W / Peak @ 1 m
91 dB / 113 dB
Usable Range - 6 dB 150 Hz - 16 kHz
Coverage horizontal / vertical 80° x 80° - conical
Max. Splay Angle - - -
Connectors 2 x Neutrik Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop thru
1 x Phoenix
Handles - - -
Rigging / Fittings 3 x M10 / 1 x M6
Weight 1,6 kg
Size height x width x depth 10,3 x 10,3 x 11,6 cm
