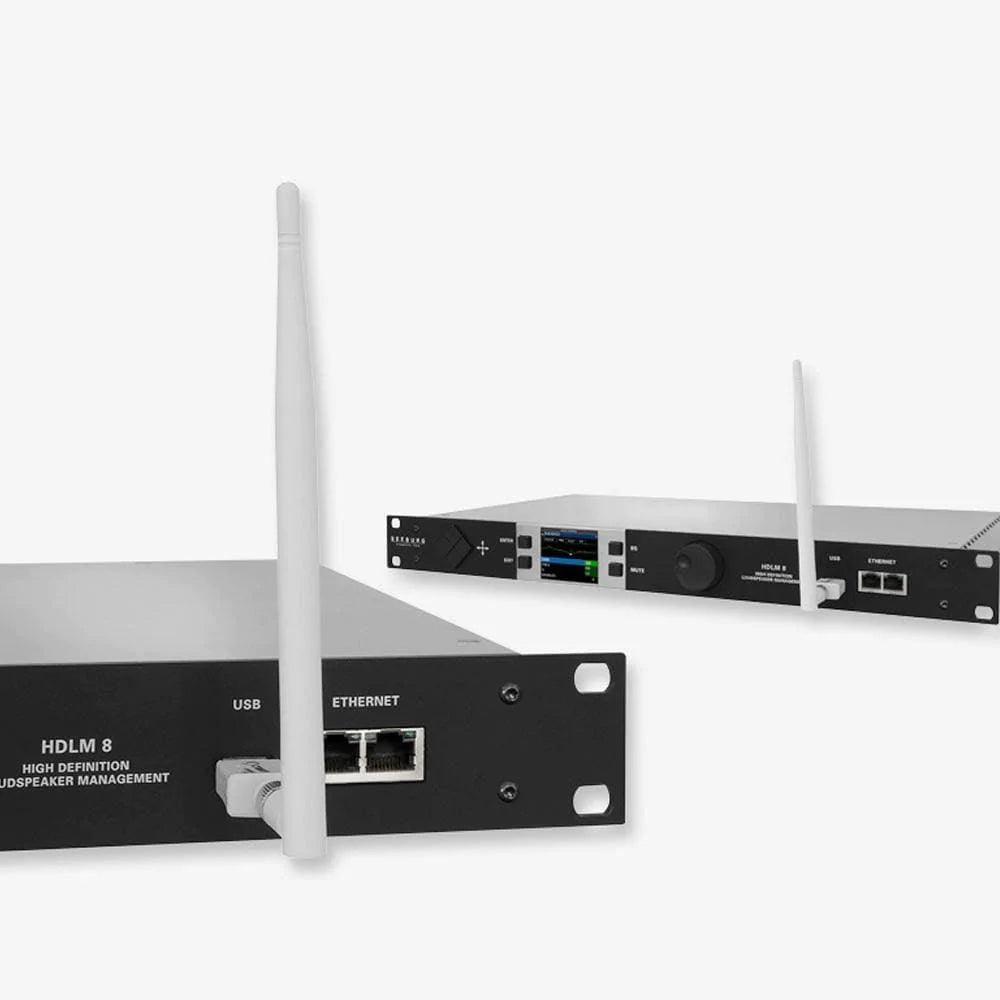

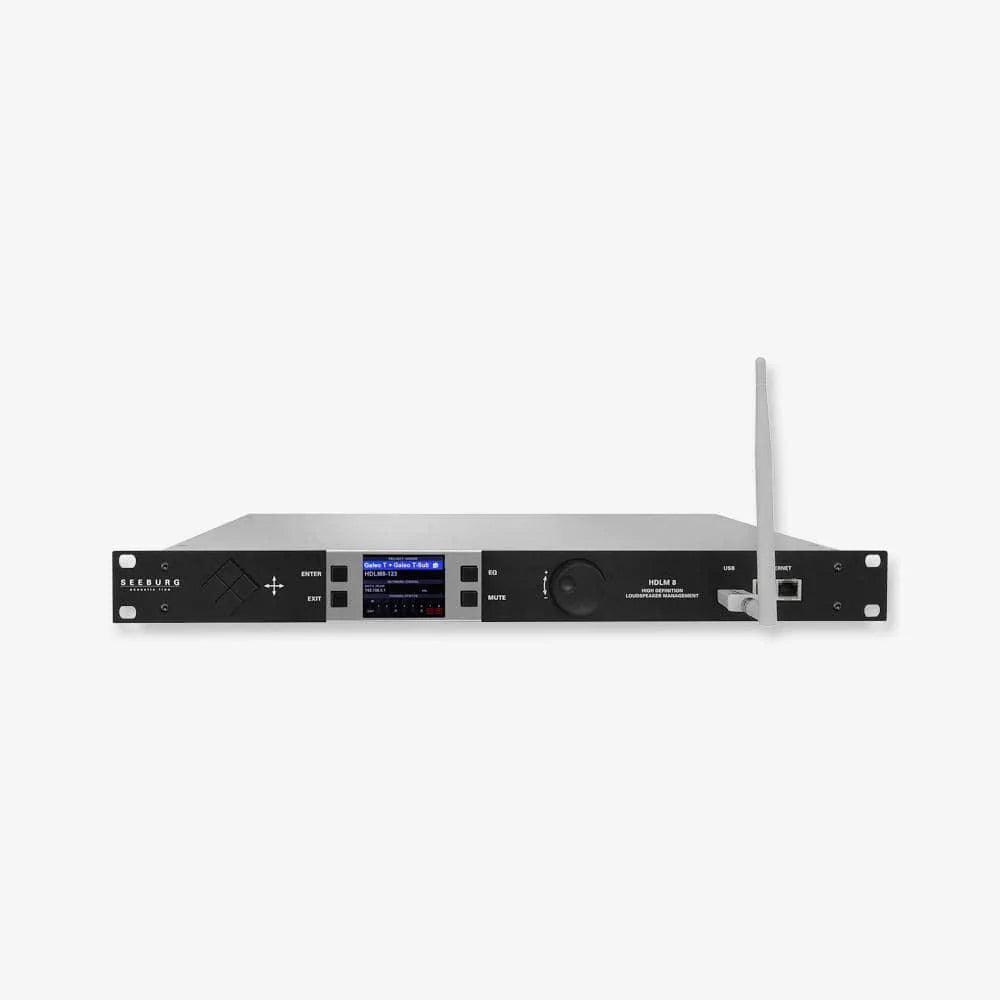

The HDLM 8 Loudspeaker Management Controller is capable of managing more complex sound reinforcement systems. A web browser-based user interface with multi-client capability allows real-time access from a PC or a Mac to user-critical parameters for multiple users simultaneously. Excellent dynamics, a low distortion factor and filters with outstanding sound properties ensure first-class audio quality.

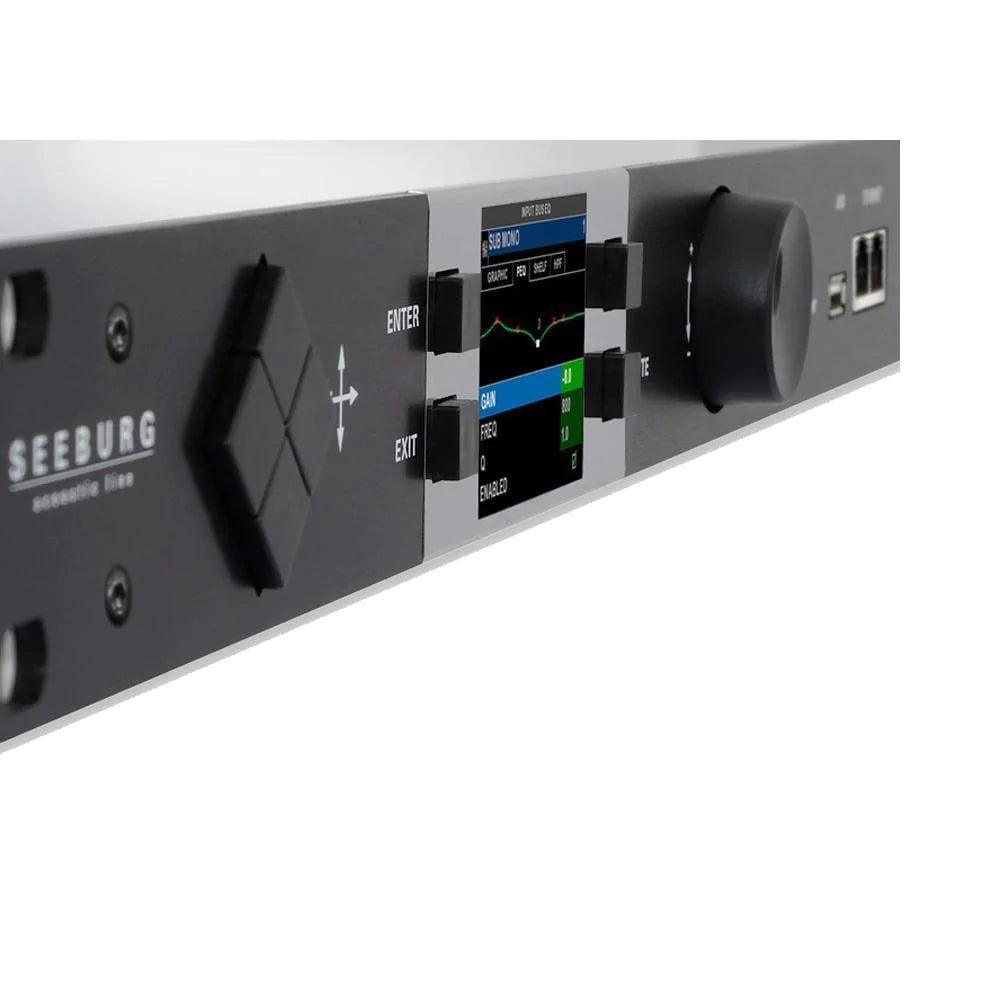

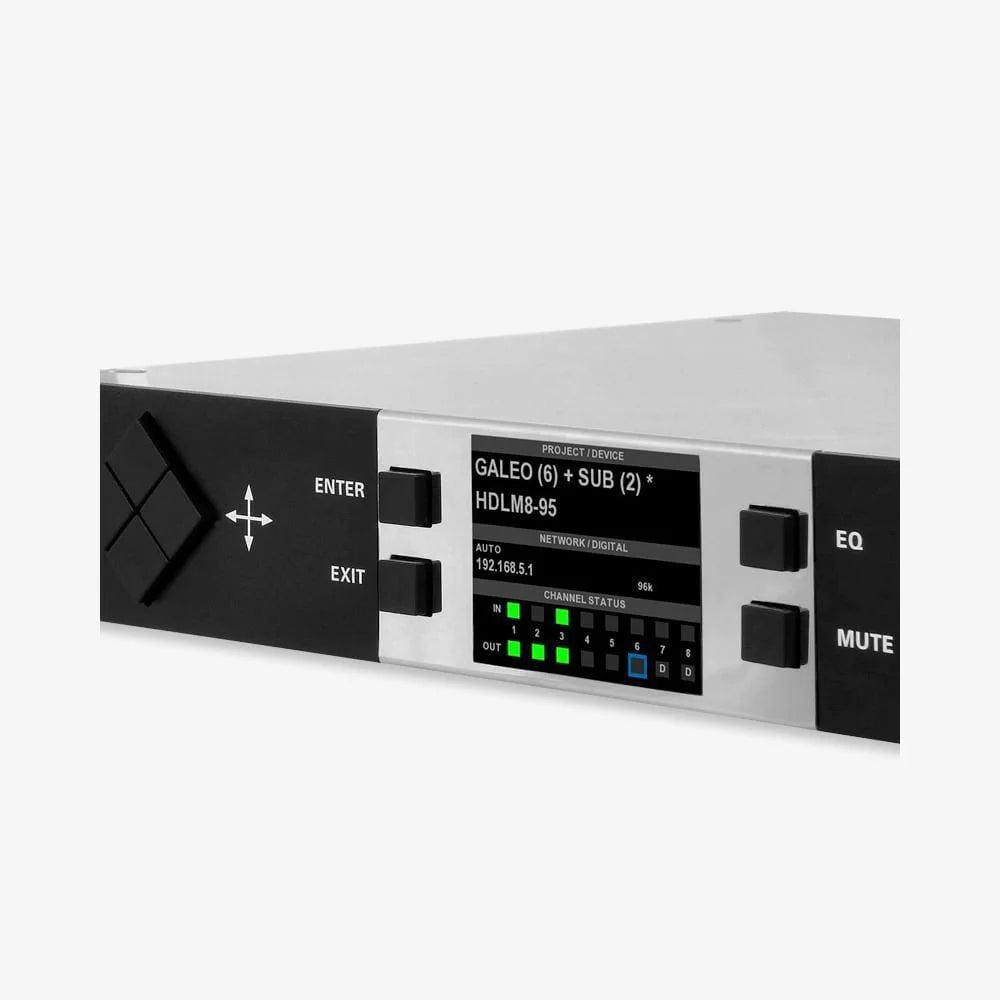

A large high-definition colour display, clearly assigned buttons for navigation and input screens, and the USB port, enable hassle-free adjustments directly on the controller. When combined with a WLAN-USB stick, all functions can be controlled with the smartphone app goHDLM. The Linux based operating system of the HDLM 8 can optionally be upgraded with a 1000 Mbit Ethernet interface.
The API (application programming interface) makes it possible for any C programmer to fully access the HDLM 8.
This allows, for example, direct control of presets, or any other control values, via a Crestron or AMX touch screen controller.
Tech Specs
| Model | HDLM 8/III |
| Description | High Definition Loudspeaker Management |
| Processors | 2 x FPGA - based DSP, Linux driven host |
| Analog Inputs | 4 x balanced |
| Analog outputs | 8 x balanced |
| Digital Inputs | 2 x stereo AES / EBU |
| Signal Structure | 8 x input busses / 8 x output channels |
| Input Bus EQs | 12 to 24 dB HPF, 5 x parametric, high shelf, |
| low shelf, | 31 band graphic EQ |
| Output Channel Features | Gain, polarity, delay, loudspeaker assignment |
| Output Channel EQs | 12 to 24 dB HPF, 4 x parametric, high shelf, low shelf |
| Loudspeaker Features | 1 to 4 way, gain, polarity, peak limiter, |
| thermal power limiter, | offset delay |
| Loudspeaker | EQs 6 to 48 dB HPF / LPF, parametric EQs, 6 to 12 dB |
| high / low shelf, | 1st and 2nd order allpass filters |
| Optional i/o | ADAT, AVB audio video bridging |
| Sample rate | 96 kHz |
| Filter Topology | 480 x high precision lattice-ladder IIR |
| Dynamic range | 119 dB (lin) / 121 dB (A) typ |
| Latency | 0,76 ms (analog in -> analog out) |
| 0,92 ms (digital in -> digital out) | |
| Cooling Passive | (no fan) |
| Origin | Made in Germany |
| Weight | 3.5 kg |
| Size width x height x depth | 483 (19") x 44 (1 HE) x 270 mm |
