Seeburg Acoustic Line Galeo Two-Way Line Array

Delivery, Warranty & Returns Information

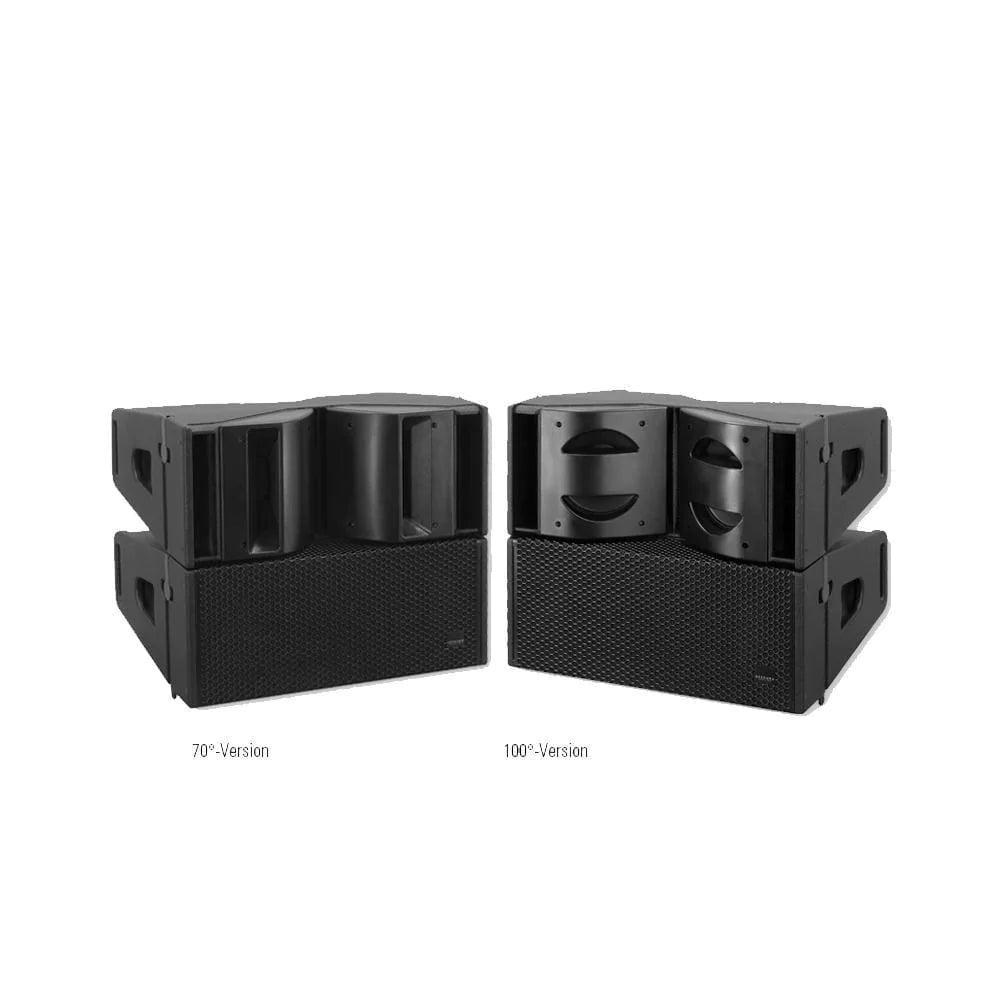

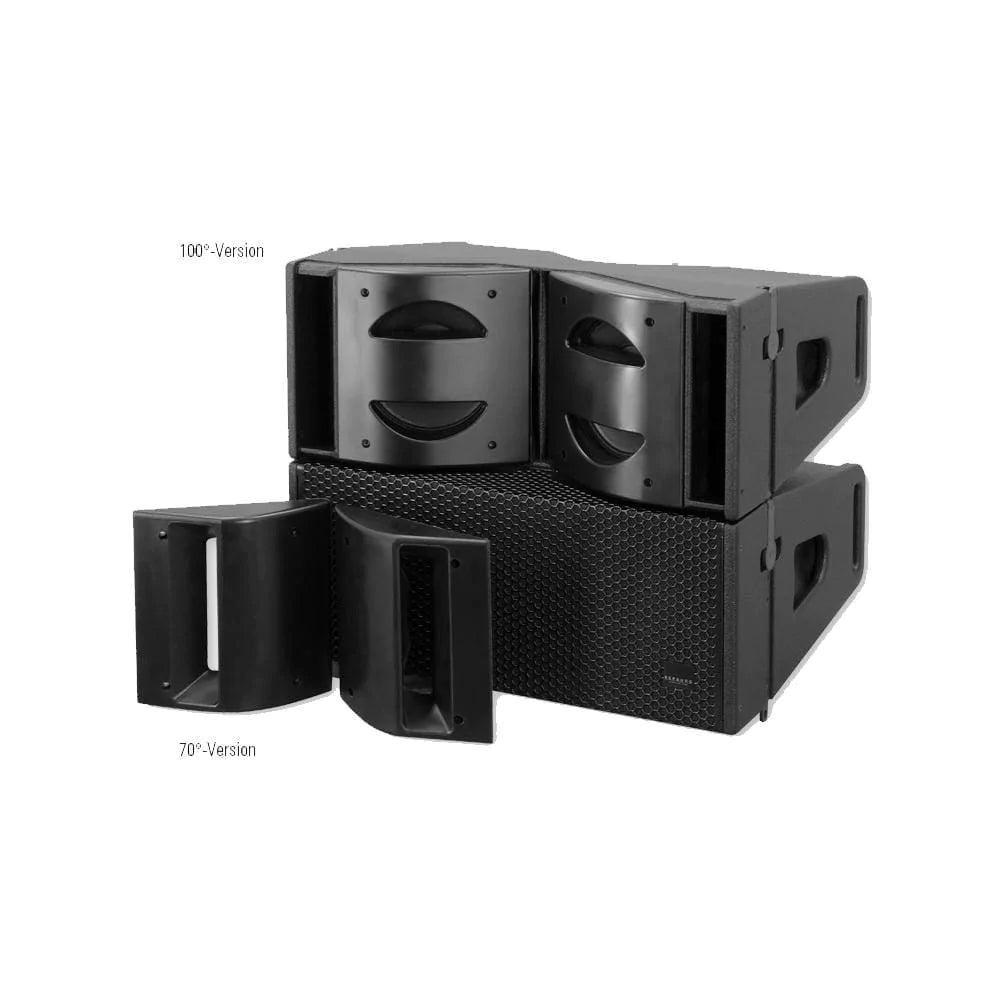

A compact and versatile high performance Line Array featuring various innovative acoustical and mechanical solutions. This 2 x 8” / 1.4” system is driven two-way active. The Galeo C is a visually unobtrusive sound reinforcement system equally suited to high end permanent installations and demanding tour applications. A choice of horizontal coverage angles of 70° or 100° is provided by the interchangeable AMR horn elements. The maximum splay angle of 14° allows a high degree of curvature in the line array with a small number of cabinets. The innovative integrated flying hardware allows the curving angle to be set after the system has been lifted up, thereby simplifying the set-up process.

Tech Specs

Speaker Components 2 x 8“ Nd (2,5“ VC) / 1,4“ Nd (3“ VC)
Description Two-Way Line Array Unit
Power AES / Peak LF: 600 W / 1800 W
HF: 110 W / 330 W
Impedance nominal LF: 16 Ω / HF: 16 Ω
SPL 1 W / Peak @ 1 m
LF: 98 dB / 131 dB
HF: 111 dB / 136 dB
Usable Range 80 Hz - 20 kHz (- 6 dB)
Tuning Frequency excursion minimum 85 Hz
X-Overpoint acoustical Depends on preset
Coverage horizontal x vertical 100° x 14° (100°-version)
70° x 14° (70°-version)
Max. Splay Angle 14°
Connectors 2 x Neutrik Speakon NL4 in/out
Coding: 1 +/- HF, 2 +/- LF
Handles 4 x
Rigging / Fittings 6 x M10
Integrated flying hardware
Weight 22 kg
Size height x width x depth 24,0 x 58,0 x 46,0 cm
