Seeburg

A8

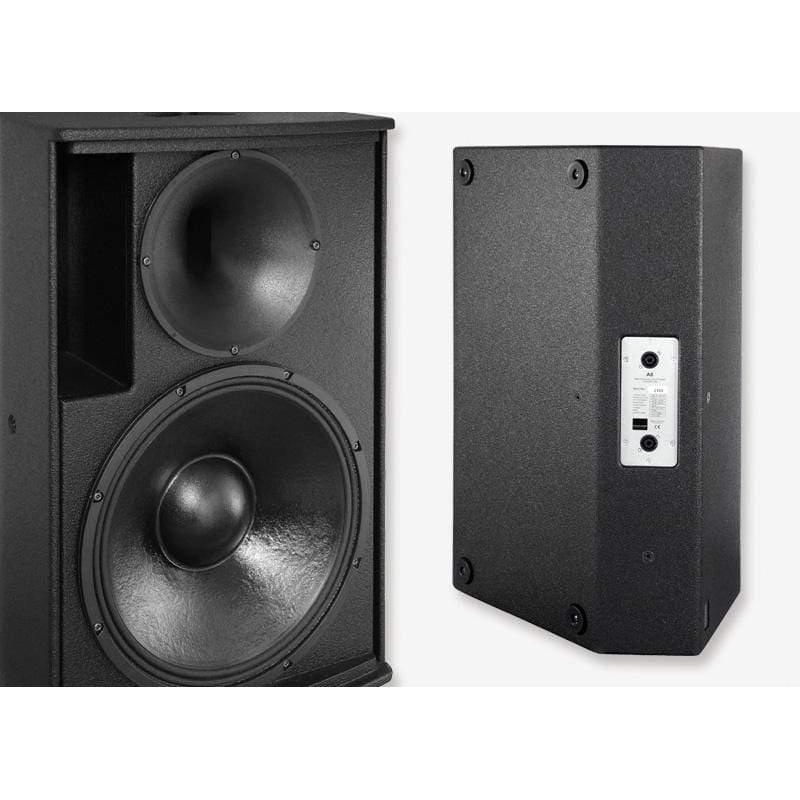

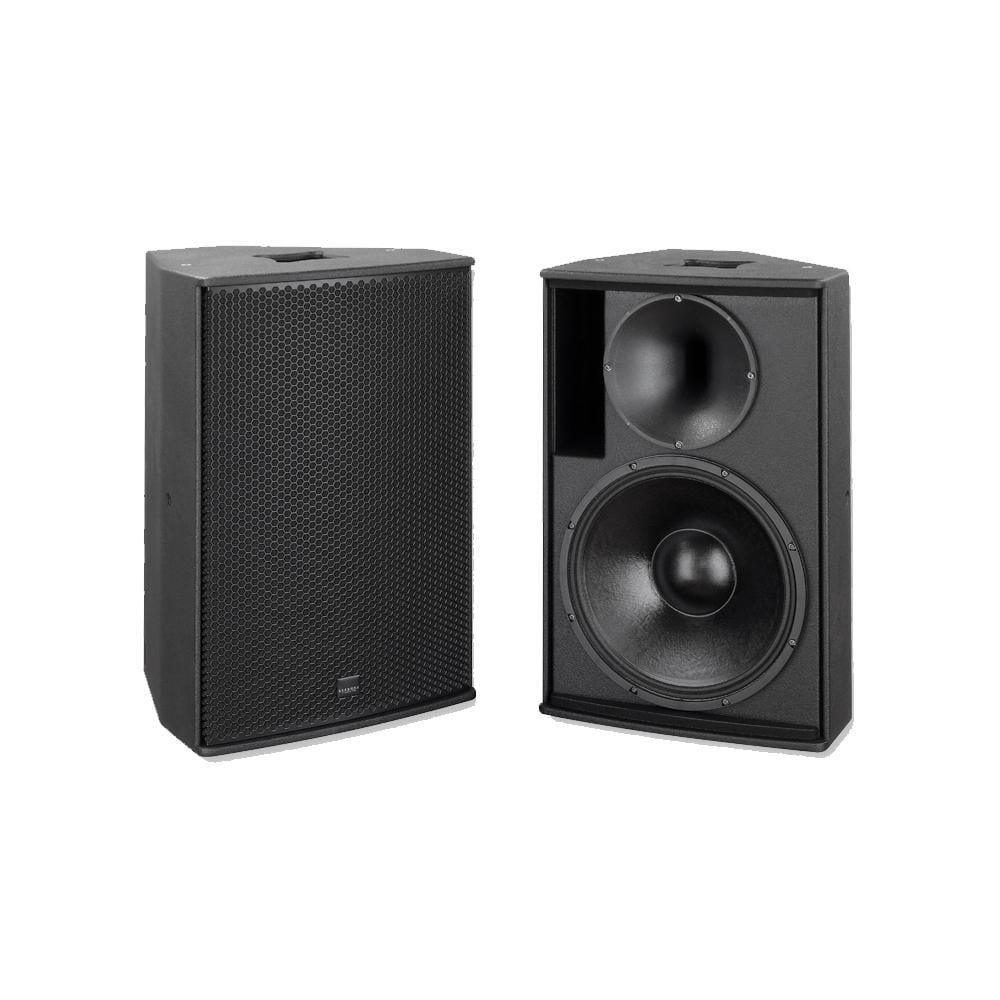

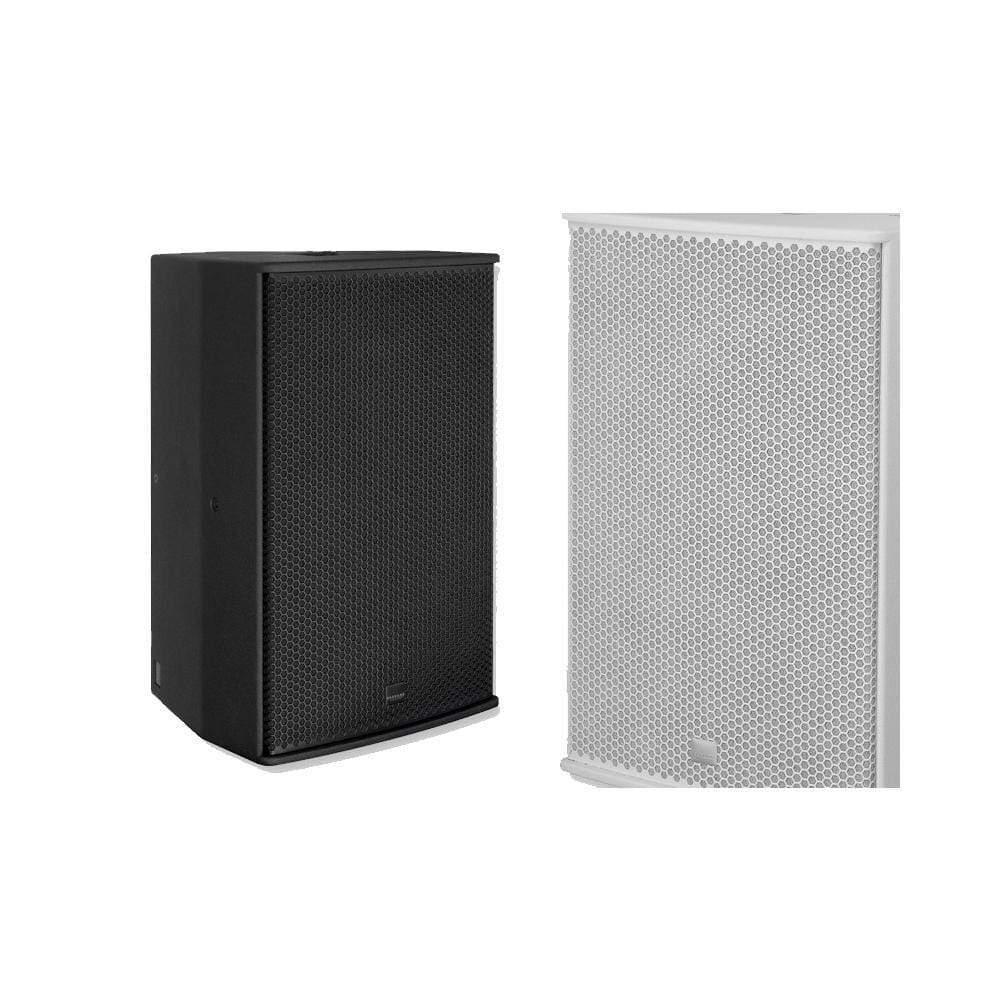

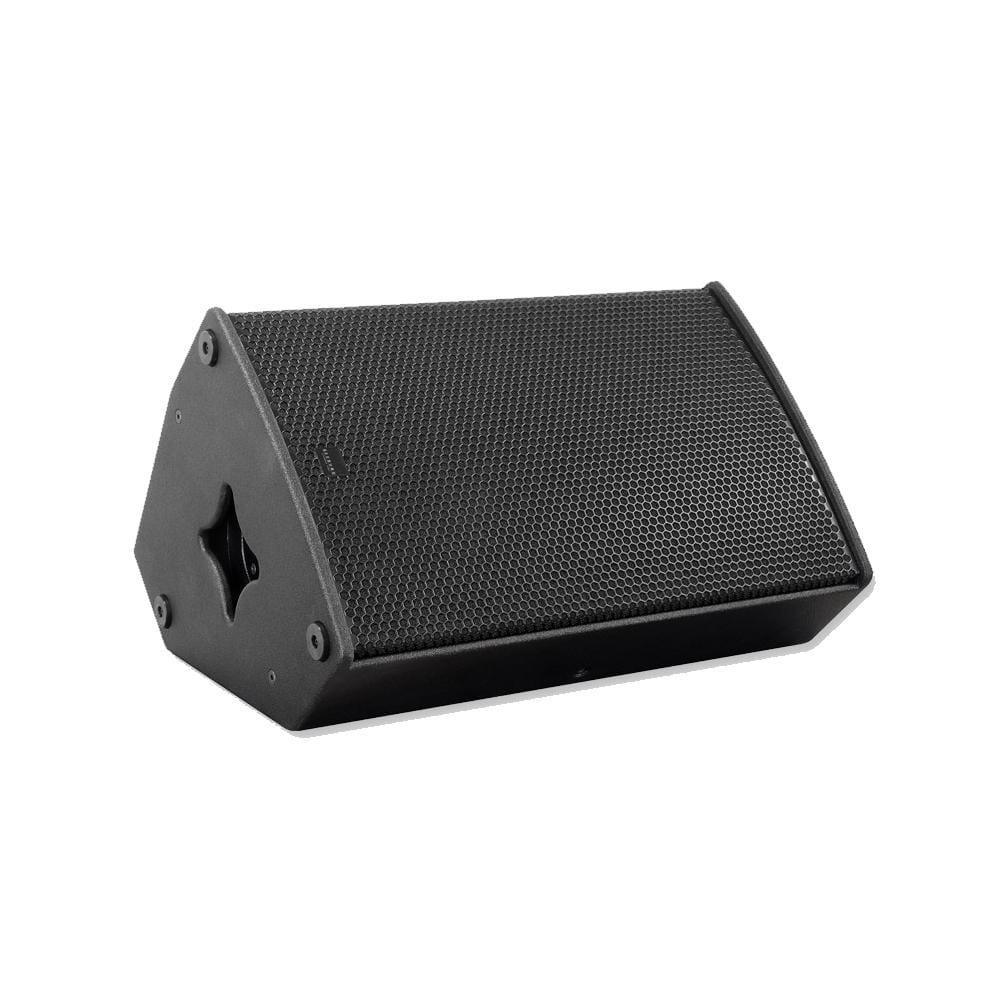

Seeburg Acoustic Line A8 Professional Multifunction Speaker

Multifunctional 15“ Nd / 1“ cabinet with a very broad frequency range and well-balanced sound characteristics. With performance similar to the A 6, but with extended bass response, the A 8 is a universal full range audio tool. A variety of M8 and M10 mounting points provide for easy mounting of the accessory hardware and installation.
The system is also available in the "AF 8" version optimised for permanent installation.

Tech Specs

Speaker Components 15“ Nd / 1“
Description Multi Purpose Sound System
Power AES / Peak 500 W / 1500 W
Impedance nominal 8 Ω
SPL 1 W / Peak @ 1 m
99 dB / 131 dB
Usable Range 50 Hz - 20 kHz (-10 dB)
Tuning Frequency excursion minimum 50 Hz
X - Overpoint acoustical 1,3 kHz
Coverage horizontal / vertical 90° x 60° - rotatable
Max. Splay Angle - - -
Connectors 2 x Neutrik Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop thru
Handles 2 x
Rigging / Fittings 2 x M10 / 7 x M8
35 mm pole mount
Weight 23,5 kg
Size height x width x depth 69,8 x 45,0 x 42,5 cm
