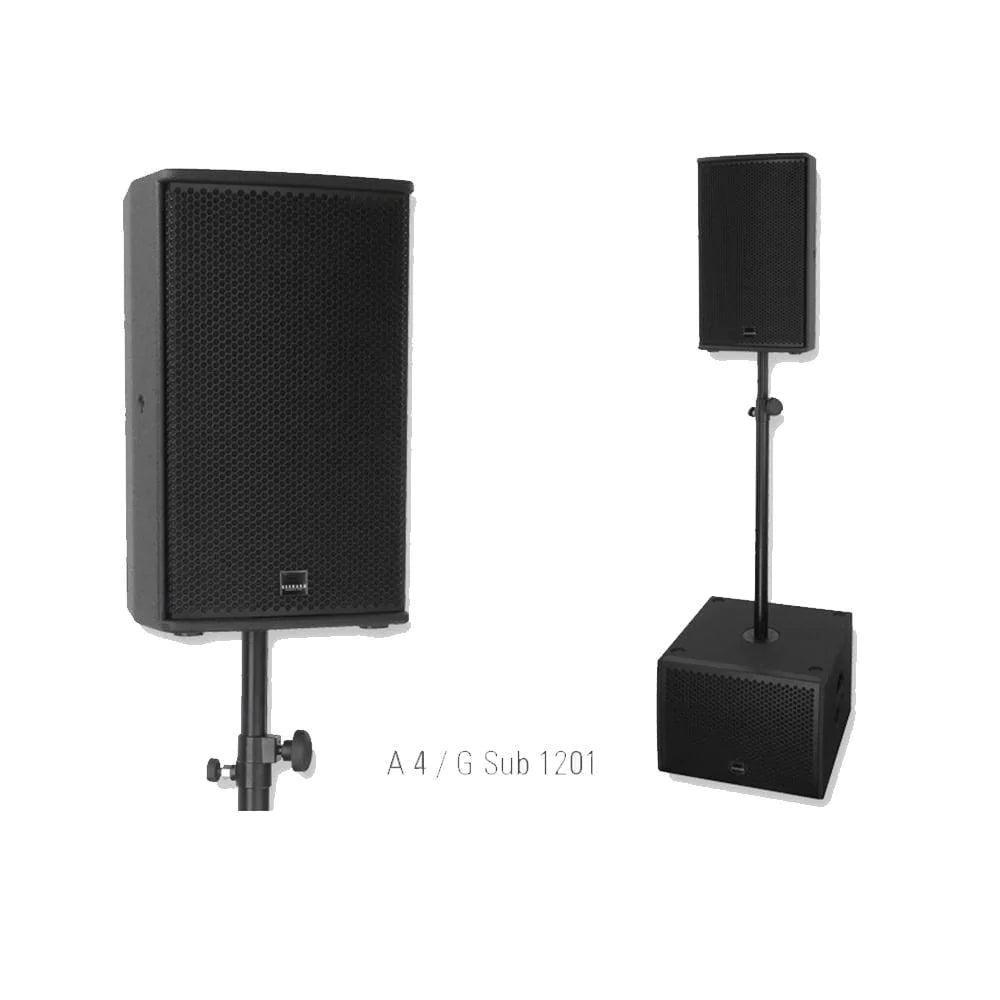

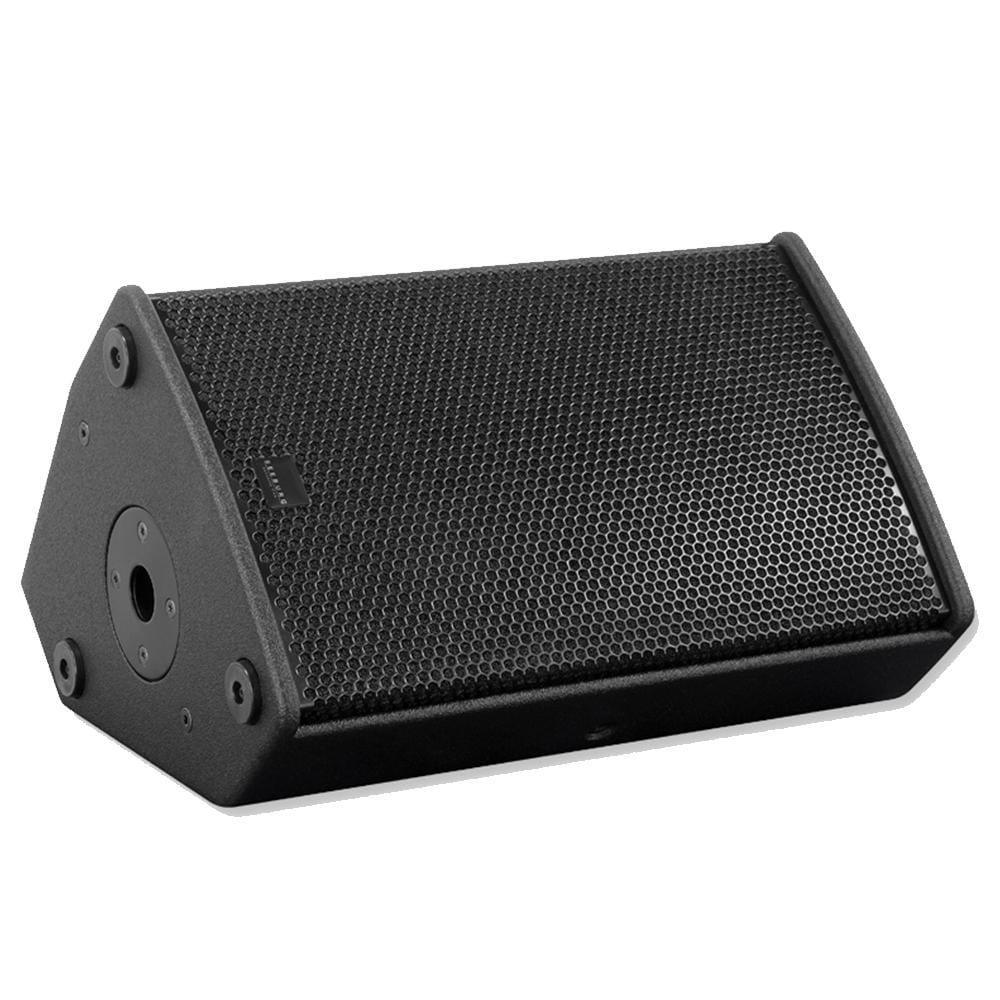

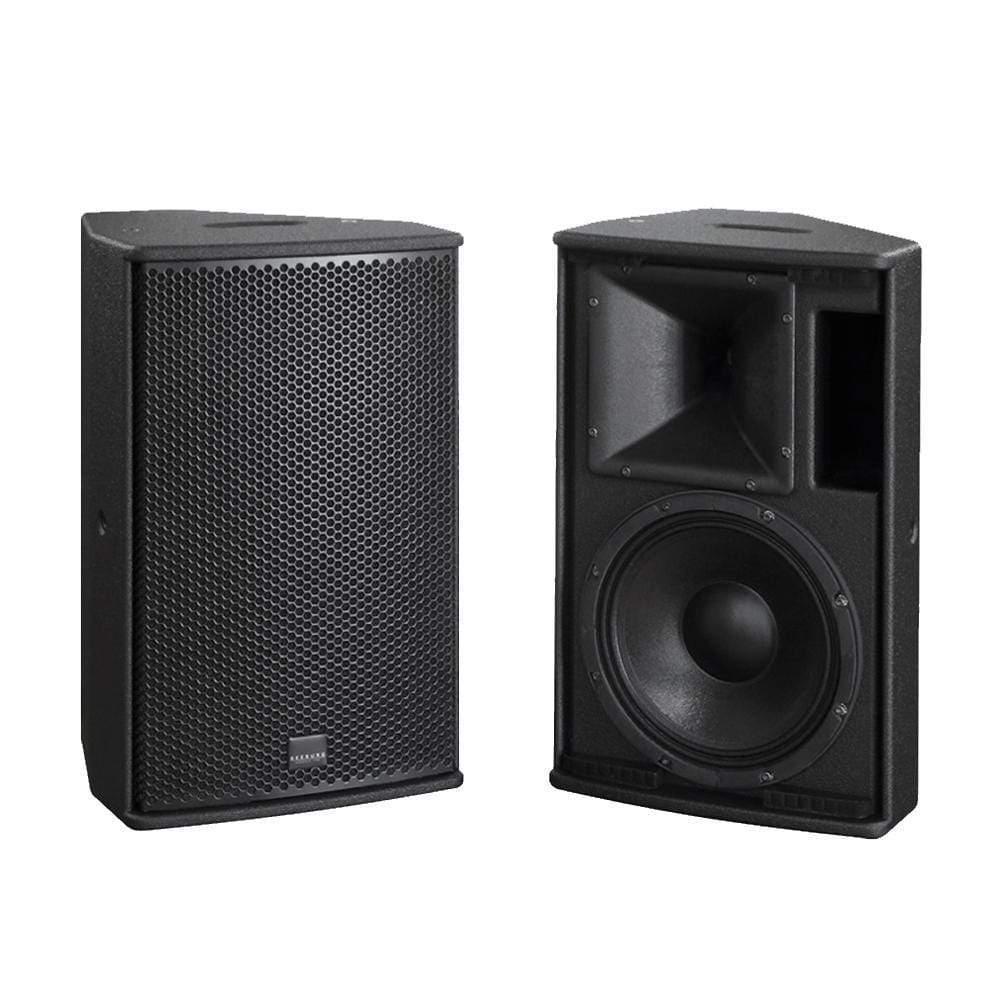

Multifunctional 10“ Nd/1“ system with well-balanced sound characteristics in a compact cabinet. The use of Neodym drivers ensures lightweight. This system provides good bass reproduction even without the proprietary controller. A variety of M8 and M10 mounting points provide for easy mounting of the accessory hardware and installation.
The system is also available in the "AF 4" version optimised for permanent installation.
FEATURES

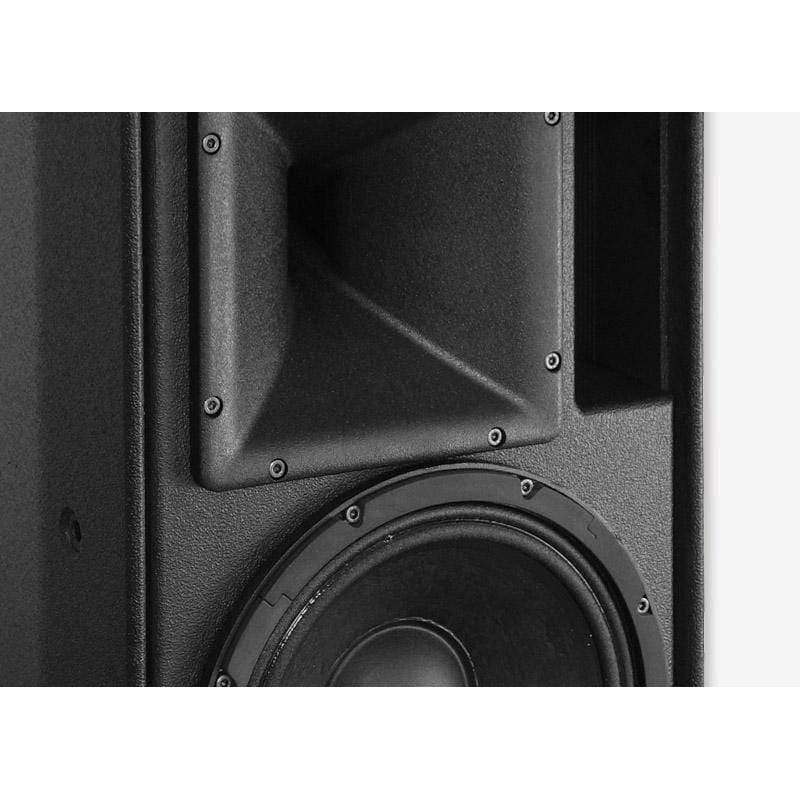

- Speakers: 10" neodymium woofer and 1" HT driver
- Dispersion angle (H x V): 90 x 60° (horn rotatable)
- Power rating: 300 W AES, 900 W peak
- Impedance: 8 Ohm
- Max. SPL: 123 dB
- 2 Speaker Twist NL4
- 35 mm stand flange
- Rigging points: 2x M10, 7x M8 thread
- Housing material: Baltic birch multiplex with Polyurea coating
Tech Specs
Speaker Components | 10“ Nd / 1” |
Description | Multi-Purpose Sound System |
Power AES / Peak | 300 W / 900 W |
Impedance nominal | 8 Ω |
SPL 1 W / Peak @ | 1 m |
95 dB / 123 dB | |
Usable Range | - 6 dB |
60 Hz - 20 kHz (-6 dB) | |
Tuning Frequency excursion minimum | 65 Hz |
X - Overpoint acoustical | 1,6 kHz |
Coverage horizontal / vertical | 90° x 60° - rotatable |
Max. Splay Angle | - - - |

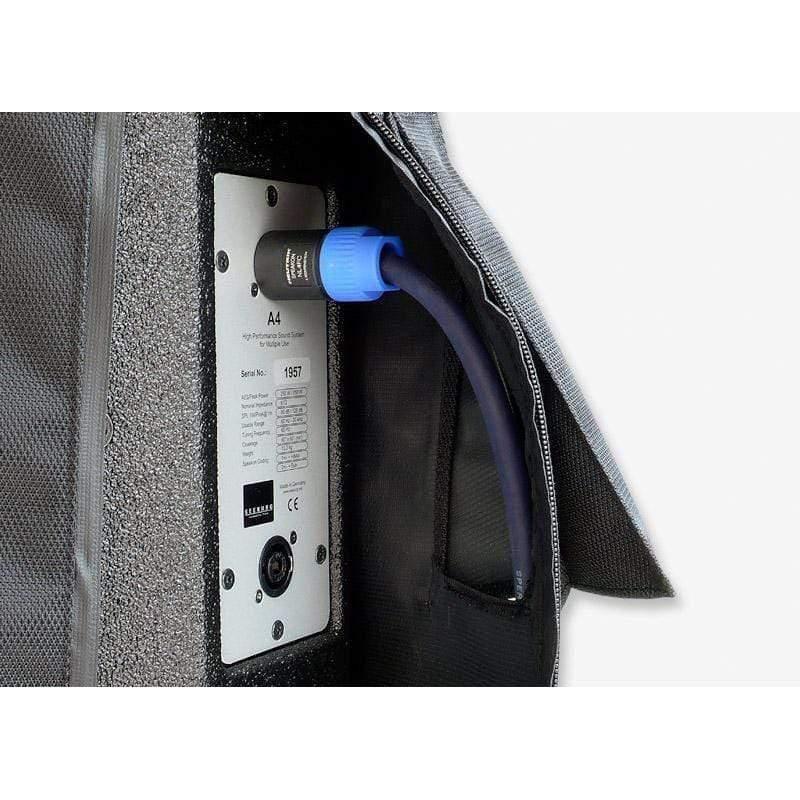

Connectors | 2 x Neutrik Speakon NL4MP in/out |
Coding: | 1 +/- HiMid, 2 +/- loop thru |
Handles | 1 x |
Rigging / Fittings | 2 x M10 / 7 x M8 |
4 x M10 / 7 x M8 (installation version) | |
35 mm pole mount | |
Weight | 13 kg |
Size height x width x depth | 51,5 x 32,4 x 30,6 cm |
