Seeburg Acoustic Line A2 HiMid Sound System

Delivery, Warranty & Returns Information

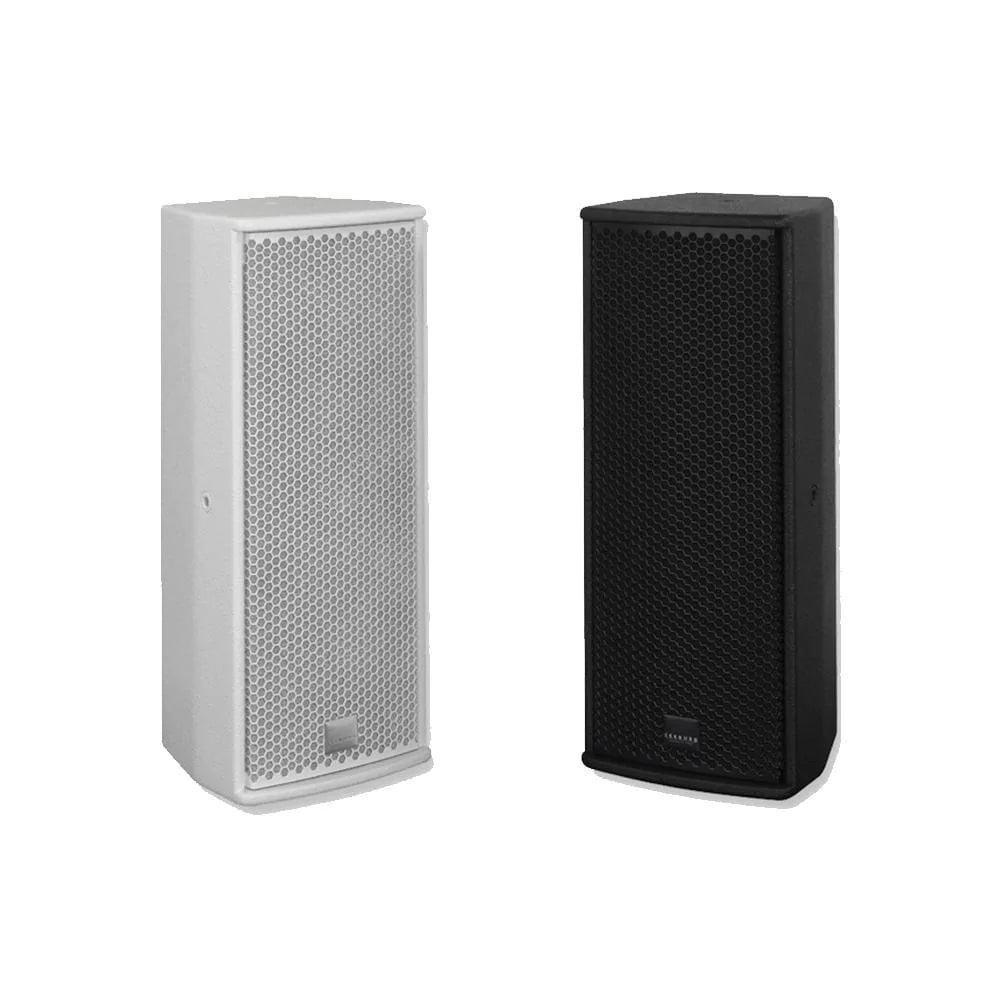

An unobtrusive and elegant Hi - Mid system for permanent installations and corporate applications. The classic 2 x 6.5” Nd / 1” combination provides for clear and transparent speech reproduction and a good throw. Four M10 mounting points, and a fifth as an optional alternative to the speaker stand socket, in combination with the comprehensive accessory range, allow simple vertical or horizontal mounting.
The A 3 is also available in the dp-version with an integrated,
DSP controlled 500 Watt / 150 Watt AES amplifier.
Tech Specs

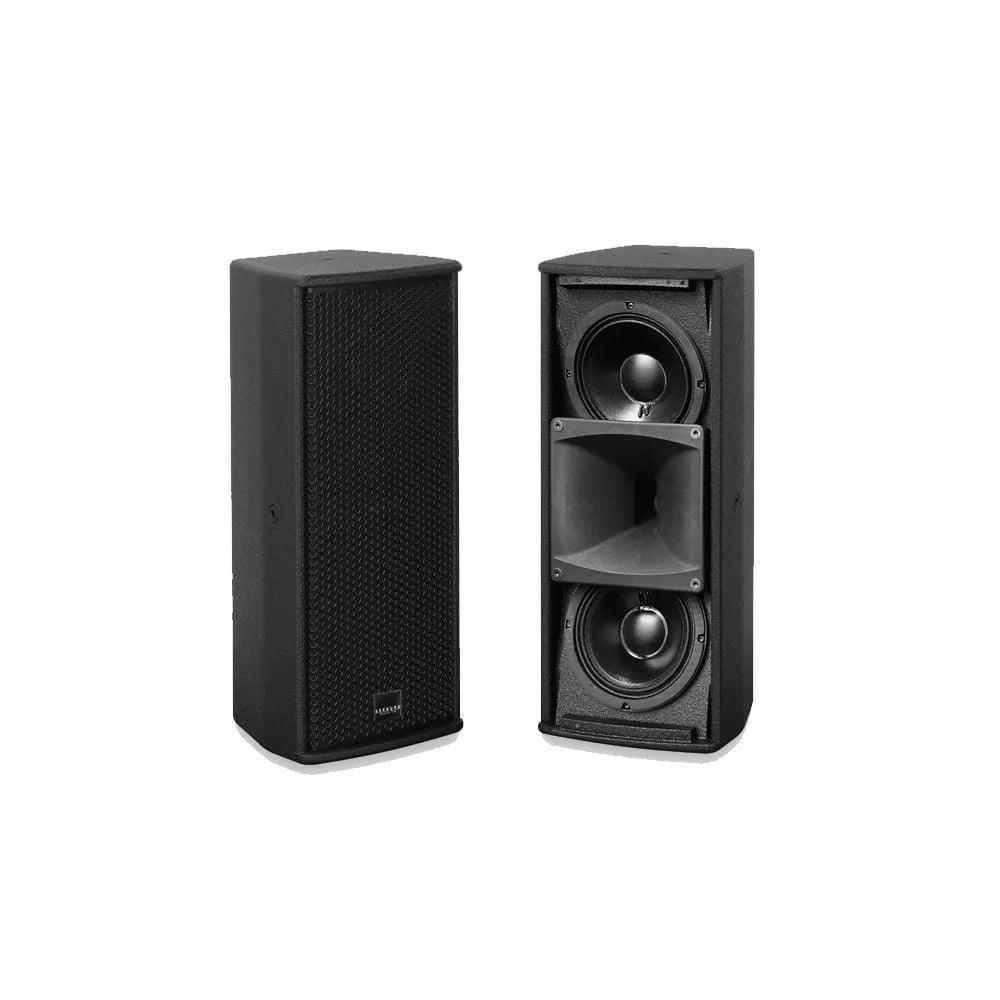

Speaker Components 2 x 6,5" Nd (2" VC) / 1" (1,7" VC
Description HiMid Sound System
Power AES / Peak 400 W / 1200 W
Amp Power AES - - -
Impedance nominal 8 Ω
Rated Current - - -
SPL 1 W / Peak @ 1 m 97 dB / 128 dB
SPL Peak@1m - - -
Max. Input Signal - - -
DSP - - -
AD / DA - - -
Latency - - -
Usable Range 80 Hz - 19 kHz (-6 dB)
Tuning Frequency excursion minimum 95 Hz
X - Overpoint acoustical 1,5 kHz
Coverage horizontal / vertical 90° x 60° - rotatable
Max. Splay Angle - - -

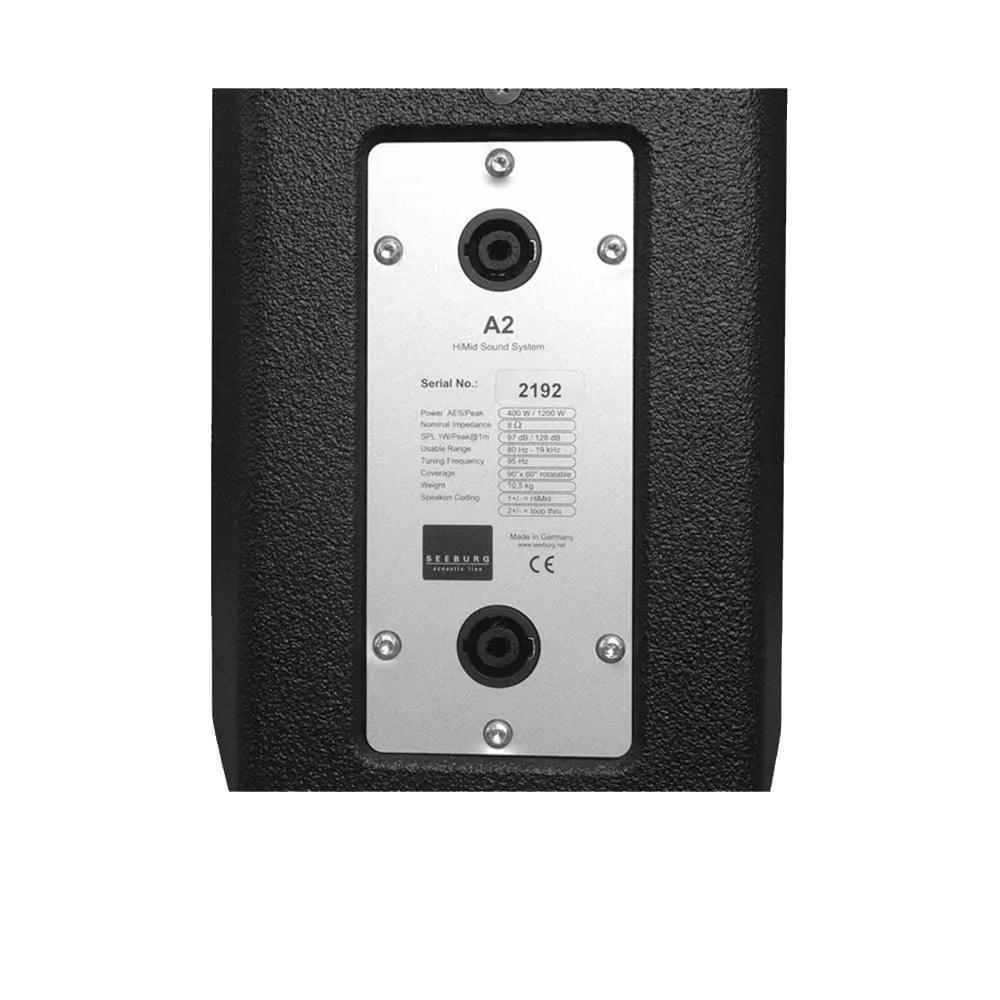

Connectors 2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru
Handles 1 x
Rigging / Fittings 4 x M10, 2 x M6 35 mm pole mount
Weight 9,5 kg
Size height x width x depth 51,0 x 21,0 x 21,0 cm
