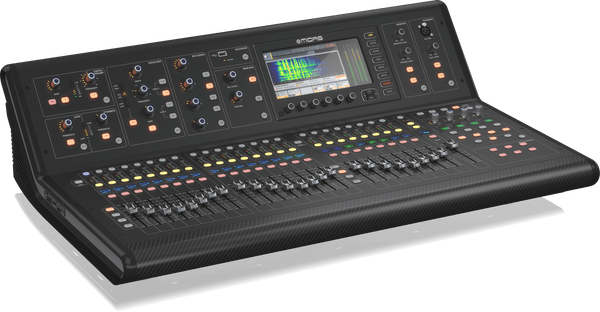

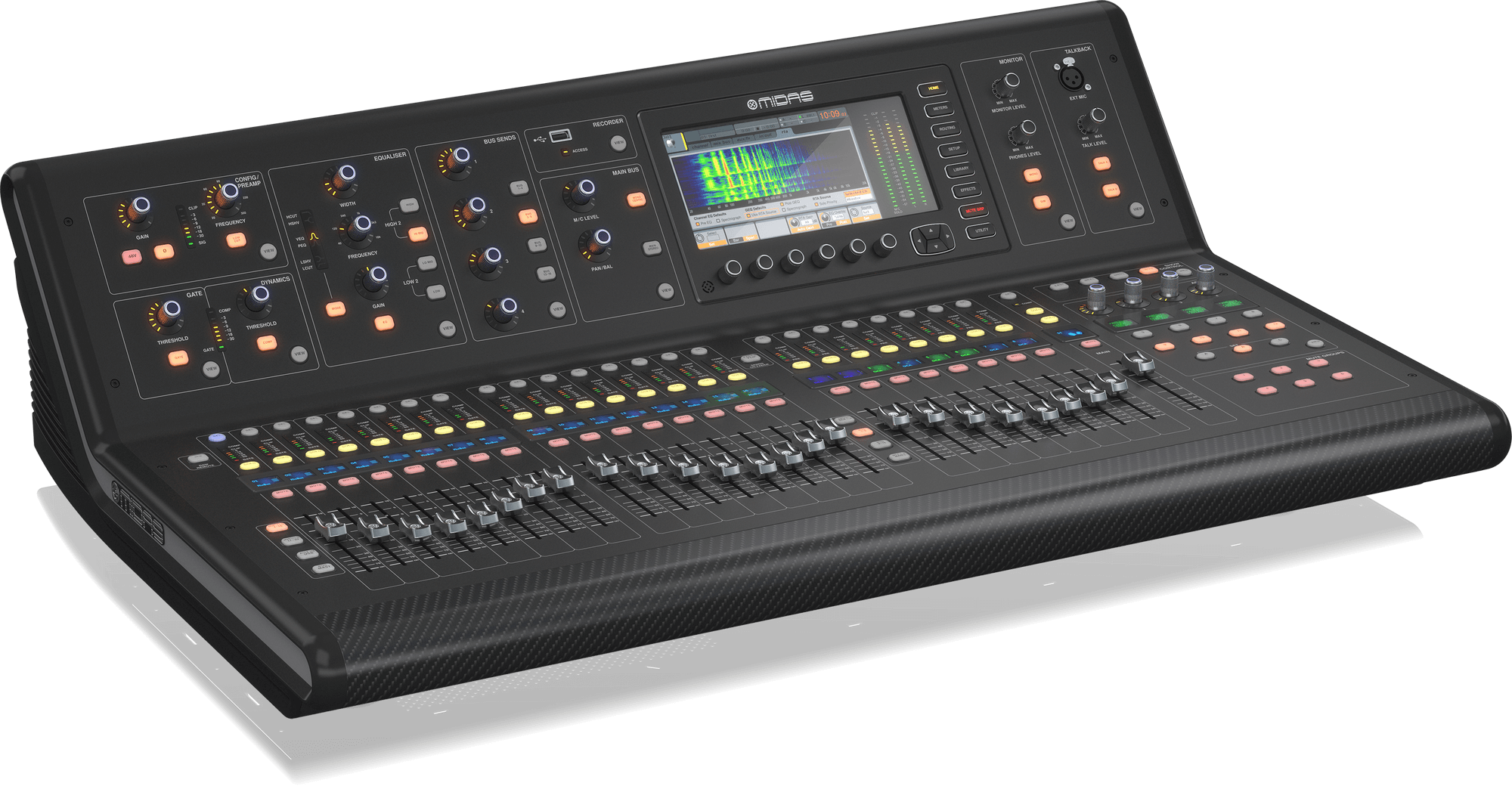

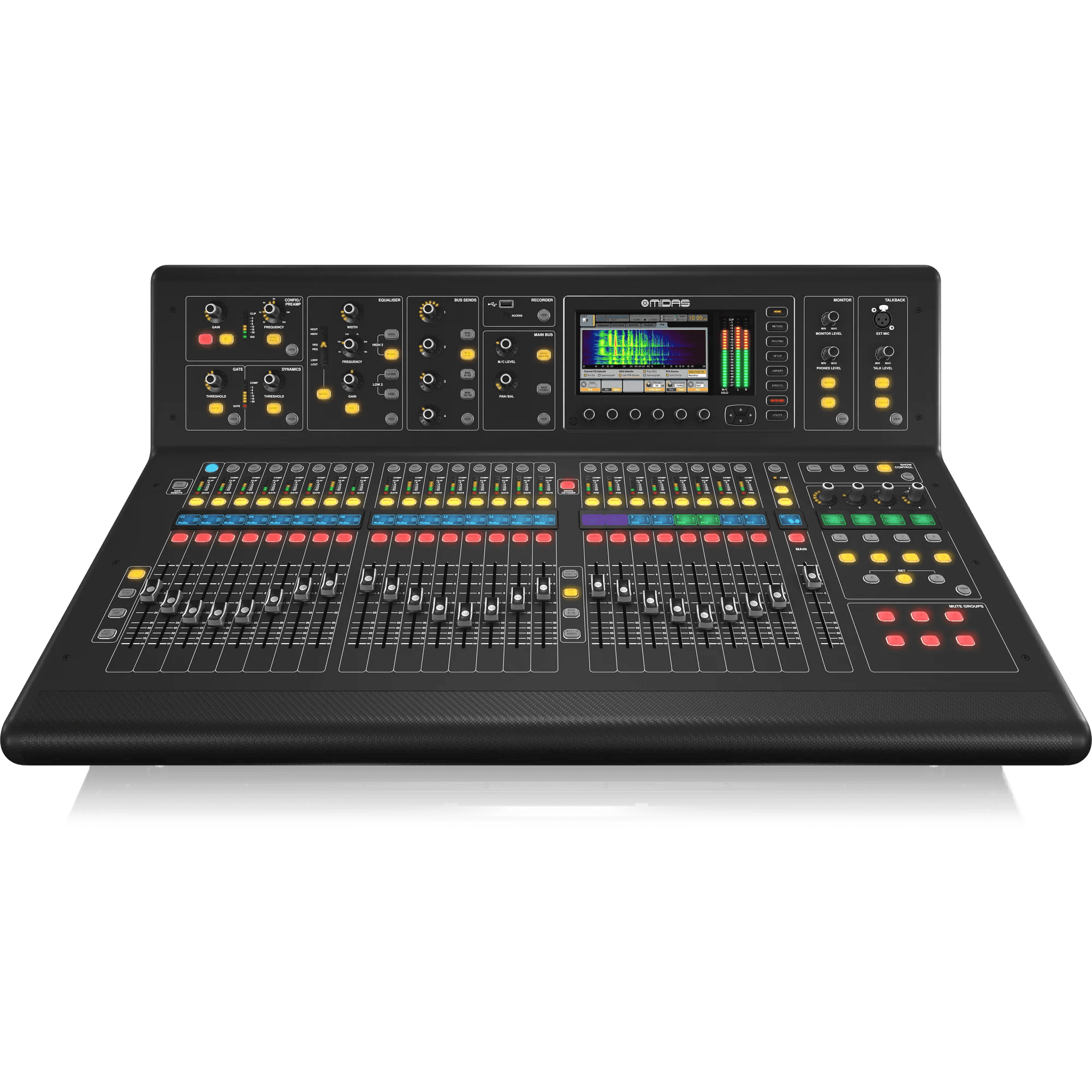

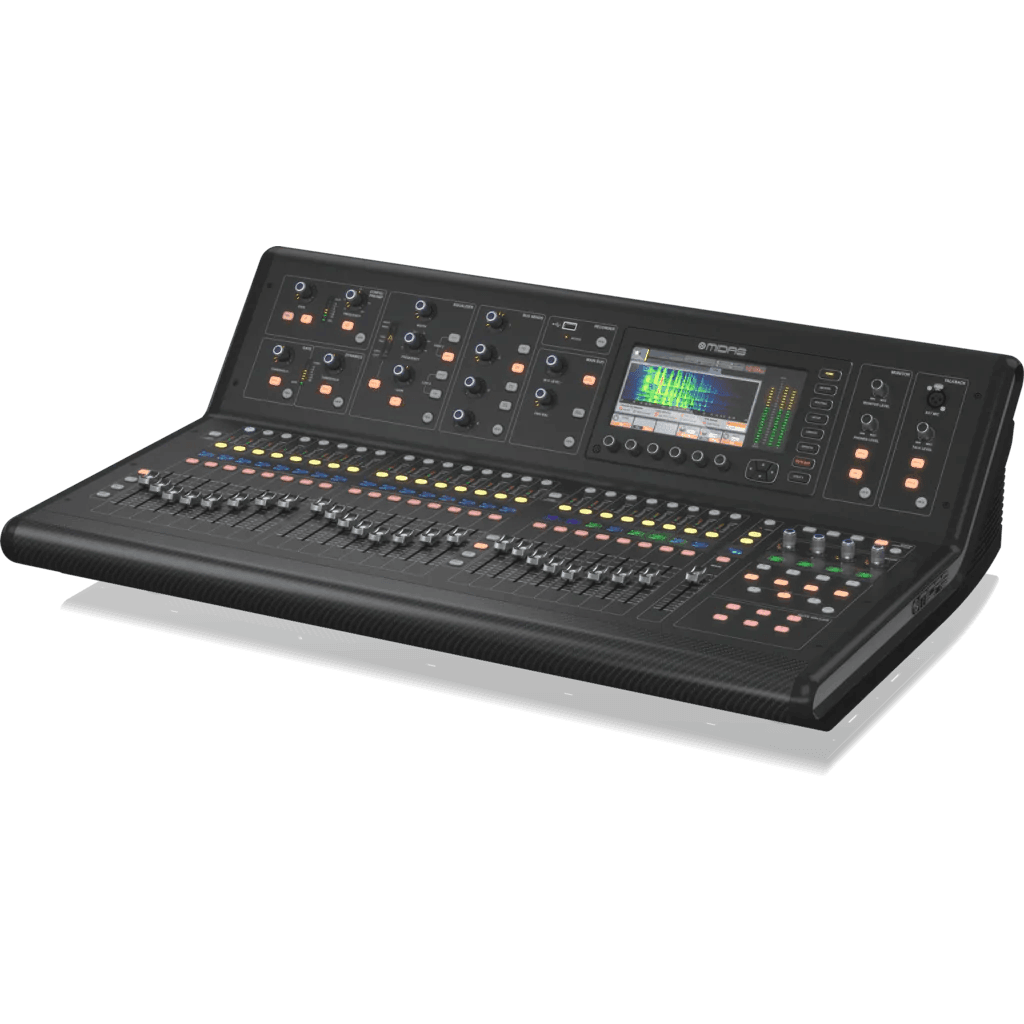

Midas M32 LIVE Digital Console for Live and Studio with 40 Input Channels, 32 Midas PRO Microphone Preamplifiers and 25 Mix Buses and Live Multitrack Recording
17,640.00 Did You Find a Better Price?
On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.
Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.
Please note: we only match product prices vs other UAE websites.
Did You Find a Better Price?
On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.
Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.
Please note: we only match product prices vs other UAE websites.
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Midas M32 LIVE Digital Console for Live and Studio with 40 Input Channels, 32 Midas PRO Microphone Preamplifiers and 25 Mix Buses and Live Multitrack Recording
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 4410.0\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
FEATURES:
-
Live performance and studio recording digital console with up to 40 simultaneous input channels
-
32 award-winning Midas PRO microphone preamplifiers
-
25 time-aligned and phase-coherent mix buses
-
AES50 networking allows up to 96 inputs and 96 outputs
-
32 bi-directional channels of live recording/playback on dual SD/SDHC (cards not included)
-
Up to 3 hours of 32 channel PCM recording in one session - stored as uncompressed WAV files
-
High-performance carbon fibre, aluminium and high-impact steel structure
-
40 bit floating point digital signal processing
-
8 DCA and 6 mute groups
-
8 digital signal processing effects engines
-
25 Midas PRO motor faders
-
Daylight viewable 7" full colour TFT display screen
-
32 x 32 channel USB 2.0 audio interface
-
DAW remote control emulations of Mackie Control and HUI protocols
-
Optional wireless remote control with Midas Apps for iPhone and iPad
-
Auto-ranging universal switch-mode power supply
DESCRIPTION
Designing A Future Classic
Our goal for M32 LIVE was to combine the best of classic British console designs with advanced modern technology to completely redefine what a medium-format live console can offer.
We began the industrial design process by drawing inspiration from a somewhat unexpected source – the luxury and high-performance car industry.
Why High-Performance Cars?
Simply because the design teams at Aston Martin *, Bentley *, Rolls Royce *, and other leading manufacturers are skilled at introducing innovative technological advancements while simultaneously maintaining the feel, essence, and intangible qualities of their cherished brands. And in essence, that’s the challenge we too faced when creating the M32 LIVE console.
So in order to create a future-forward design that took the Midas legacy even further, we enlisted the help of Rajesh Kutty, a leading industrial designer known for his work with celebrated luxury auto manufacturers such as Bentley, etc.
Kutty started by examining the design elements that have made Midas consoles so highly sought after – from the straightforward, logical layout to the unparalleled usability and ergonomics. These are characteristics that live sound engineers around the world have come to rely on, and are key aspects of the Midas legacy.
With these design elements in mind, Kutty set forth to create a styling that would be modern, innovative, futuristic, and stunningly elegant.
Many different construction materials were tested. Countless design variations were explored. And in the end, a styling was chosen that represented the perfect marriage between aerodynamic artistry and uncompromising performance. The design is both ultramodern and distinctly classic at the same time.
The Landmark in Console History
A close look at M32 LIVE reveals that the styling is completely new in every sense of the word. Rajesh Kutty’s automotive-inspired design elements mesh perfectly with a recognisable Midas signature, setting the M32 LIVE apart from any other console. Its beautifully streamlined and elegant form factor completely revolutionises the experience of live mixing.
The Midas M32 LIVE construction is equally impressive, and is designed to offer you years of reliable performance while withstanding the demanding environment of live performance venues. M32 LIVE employs a predominantly space-frame construction, with parts of the sub-frame consisting of durable and lightweight carbon fibre and aluminium. Multiple alloys have been employed throughout to guarantee maximum component efficiency and an improved performance-to-weight ratio.
The M32 LIVE is an innovative, evolved design that brings together modern construction principles and high-tech materials into a styling destined to go down as a landmark in console history.
SPECIFICATIONS:
| Category | Specification |
|---|---|
| Processing | |
| Input Processing Channels | 32 Input Channels, 8 Aux Channels, 8 FX Return Channels |
| Output Processing Channels | 16 |
| Aux Buses / Matrices / Main LRC | 16 aux buses, 6 matrices, main LRC |
| Total Processing Channels | 100 |
| Internal Effects Engines | 16 (True Stereo / Mono) |
| Internal Show Automation | 500 Cues / 100 Snippets |
| Internal Total Recall Scenes | 100 (incl. Preamplifiers and Faders) |
| Signal Processing | 40-Bit Floating Point |
| A/D Conversion (8-ch, 96 kHz ready) | 114 dB Dynamic Range (A-weighted*) |
| D/A Conversion (stereo, 96 kHz) | 120 dB Dynamic Range (A-weighted*) |
| I/O Latency (Console In > Out) | 0.8 ms |
| Network Latency (Stage Box In > Out) | 1.1 ms |

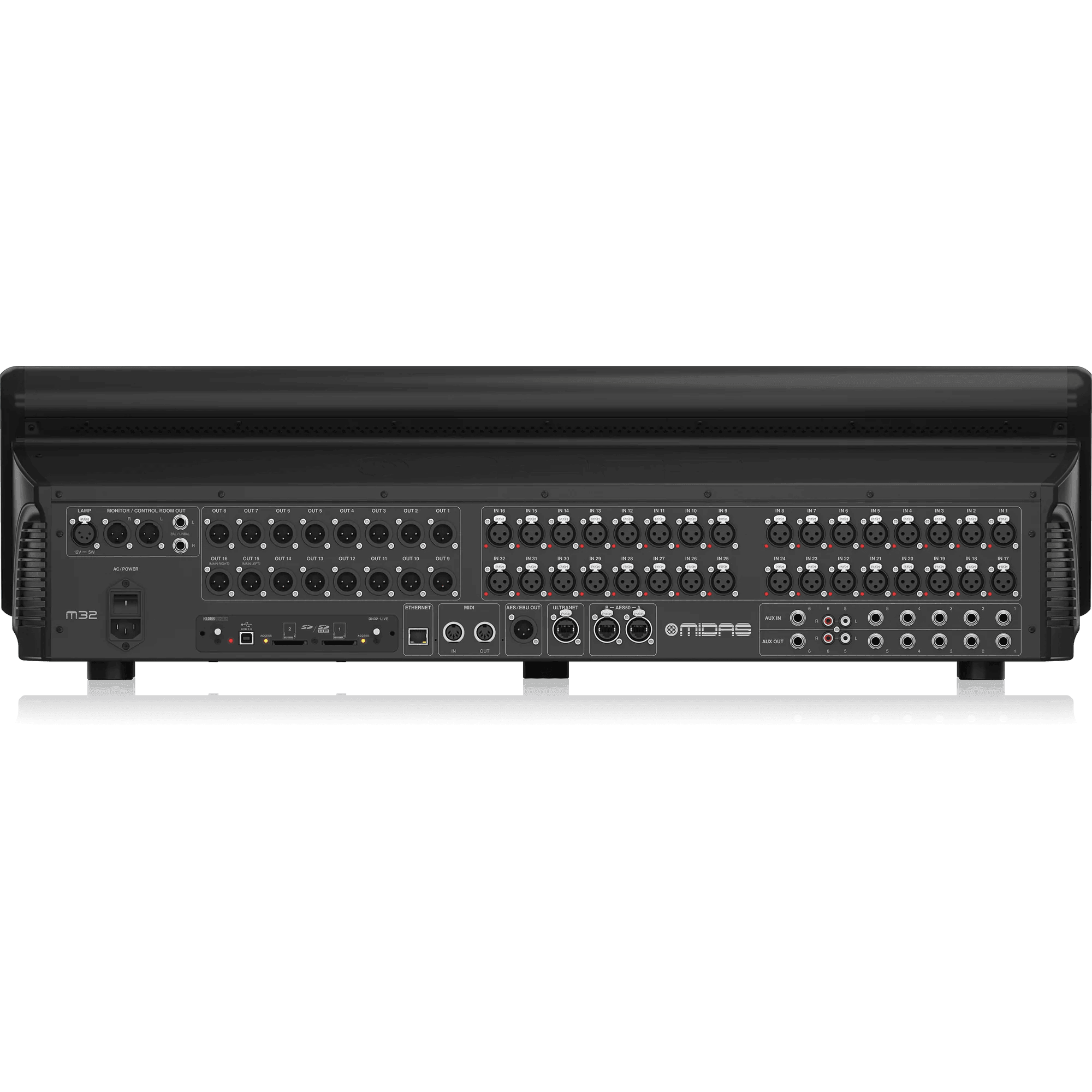

| Connectors | |
| Mic Preamplifiers (XLR) | 32 (Midas PRO Series) |
| Talkback Mic Input (XLR) | 1 |
| RCA Inputs / Outputs | 2 |
| XLR Outputs | 16 |
| Monitoring Outputs | 2 (XLR / ¼" TRS Balanced) |
| Aux Inputs / Outputs | 6 (¼" TRS Balanced) |
| Phones Output | 2 (Stereo, ¼" TRS) |
| Digital AES/EBU Output (XLR) | 1 |
| AES50 Ports | 2 (Klark Teknik SuperMAC) |
| Expansion Card Interface | 32 Channel Audio Input / Output |
| ULTRANET P-16 Connector | 1 (No Power Supplied) |
| MIDI I/O | 1 In / 1 Out |
| USB Type A | 1 (Audio and Data Import / Export) |
| USB Type B (Rear) | 1 (Remote Control) |
| Ethernet RJ45 (Rear) | 1 (Remote Control) |
| Mic Input Characteristics | |
| Design | Midas PRO Series |
| THD+N @ 0 dB Gain | <0.01% (Unweighted) |
| THD+N @ +40 dB Gain | <0.03% (Unweighted) |
| Input Impedance (Unbal/Bal) | 10 kΩ / 10 kΩ |
| Max Input Level (Non-Clip) | +23 dBu |
| Phantom Power | +48 V (Switchable per Input) |
| Equivalent Input Noise @ +45 dB | -125 dB (22 Hz – 22 kHz, Unweighted) |
| CMRR @ Unity Gain | >70 dB |
| CMRR @ 40 dB Gain | >90 dB |
| Input/Output Characteristics | |
| Frequency Response @ 48 kHz | 0 dB to -1 dB (20 Hz – 20 kHz) |
| Dynamic Range (Analog In > Out) | 106 dB (22 Hz – 22 kHz, Unweighted) |
| A/D Dynamic Range (Output) | 109 dB (Typical, 22 Hz – 22 kHz, Unweighted) |
| Crosstalk Rejection @ 1 kHz | 100 dB (Adjacent Channels) |
| XLR Output Level (Nominal/Max) | +4 dBu / +21 dBu |
| XLR Output Impedance (Unbal/Bal) | 50 Ω / 50 Ω |
| TRS Input Impedance (Unbal/Bal) | 20 kΩ / 40 kΩ |
| TRS Max Input Level (Non-Clip) | +21 dBu |
| TRS Output Level (Nominal/Max) | +4 dBu / +21 dBu |
| TRS Output Impedance (Unbal/Bal) | 50 Ω / 50 Ω |
| Phones Output Impedance / Level | 40 Ω / +21 dBu (Stereo) |
| Residual Noise (Out 1-16 XLR, Unity) | -85 dBu (22 Hz – 22 kHz, Unweighted) |
| Residual Noise (Out 1-16 XLR, Muted) | -88 dBu (22 Hz – 22 kHz, Unweighted) |
| Residual Noise (TRS/Monitor Out) | -83 dBu (22 Hz – 22 kHz, Unweighted) |
| Display | |
| Main Screen | 7" TFT LCD, 800 x 480 Resolution, 262k Colours |
| Channel LCD Screen | 128 x 64 LCD with RGB Colour Backlight |
| Main Meter | 24 Segment (-57 dB to Clip) |
| Power | |
| Power Supply | Switch-Mode, Auto-Ranging 100–240 VAC (50/60 Hz) ± 10% |
| Power Consumption | 120 W |
| Physical | |
| Operating Temperature Range | 5°C – 40°C (41°F – 104°F) |
| Dimensions (W x D x H) | 891 x 612 x 256 mm (35.1 x 24.1 x 10.1") |
| Weight | 25 kg (55 lbs) |
HOW IT WORKS:
The MIDAS M32 Live Digital Console is a powerful, 40-channel mixer perfect for any situation. It features 32 XLR mic preamps with 48V phantom power, 16 XLR main outputs, 6 aux outputs, and 25 mix buses. The console also includes a 100-band RTA, 100 scenes, and 100 snippets. To get started, simply connect your mics and speakers to the console and adjust the settings to create your perfect mix.
FAQ:
Q: How many channels does the M32 have?
A: The MIDAS M32 Live Digital Console has 40 channels.
Q: Does the M32 have aux outputs?
A: Yes, the M32 has 6 aux outputs for connecting to external effects, monitors, and more.
Q: Does the M32 have a 100-band RTA?
A: Yes, the M32 comes with a 100-band RTA, 100 scenes, and 100 snippets for added convenience..
