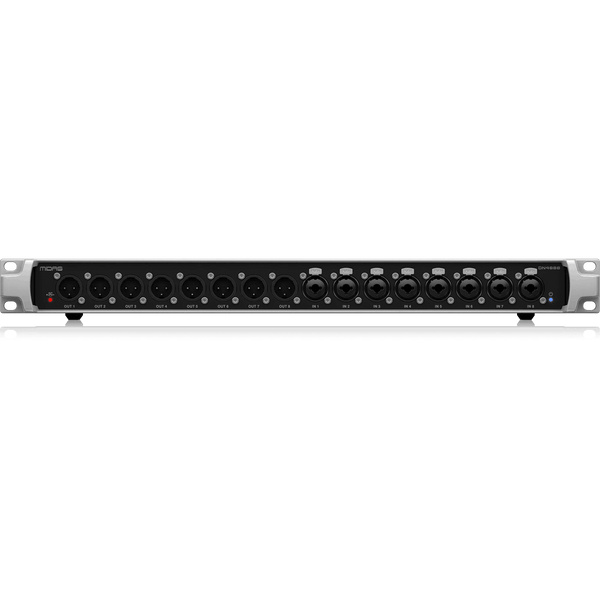

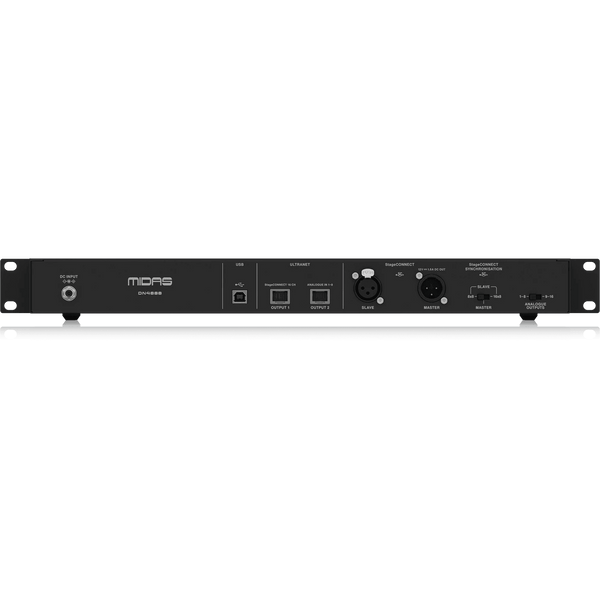

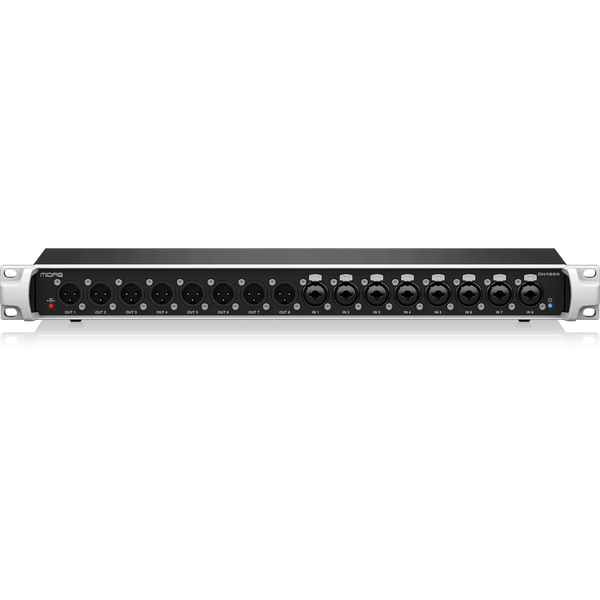

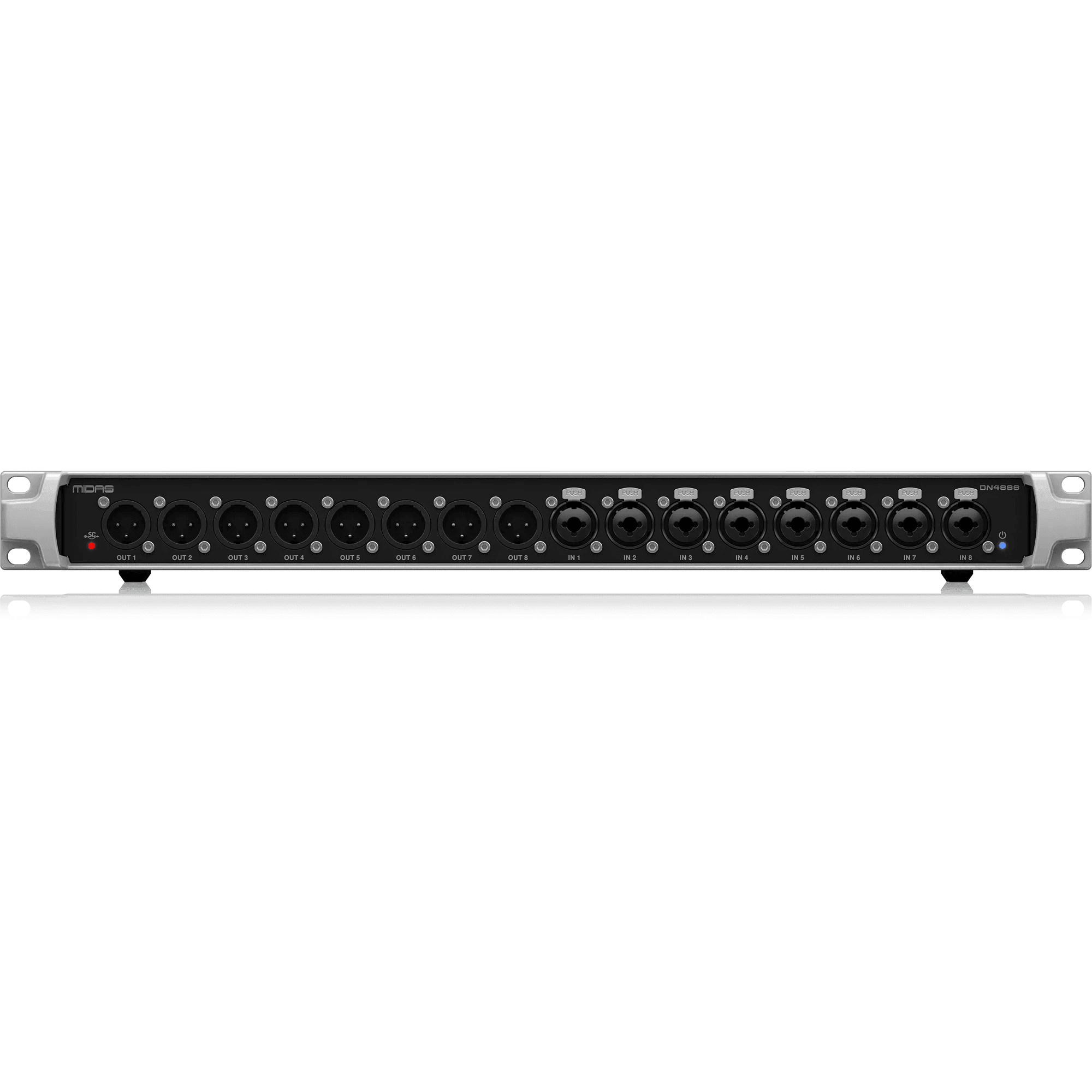

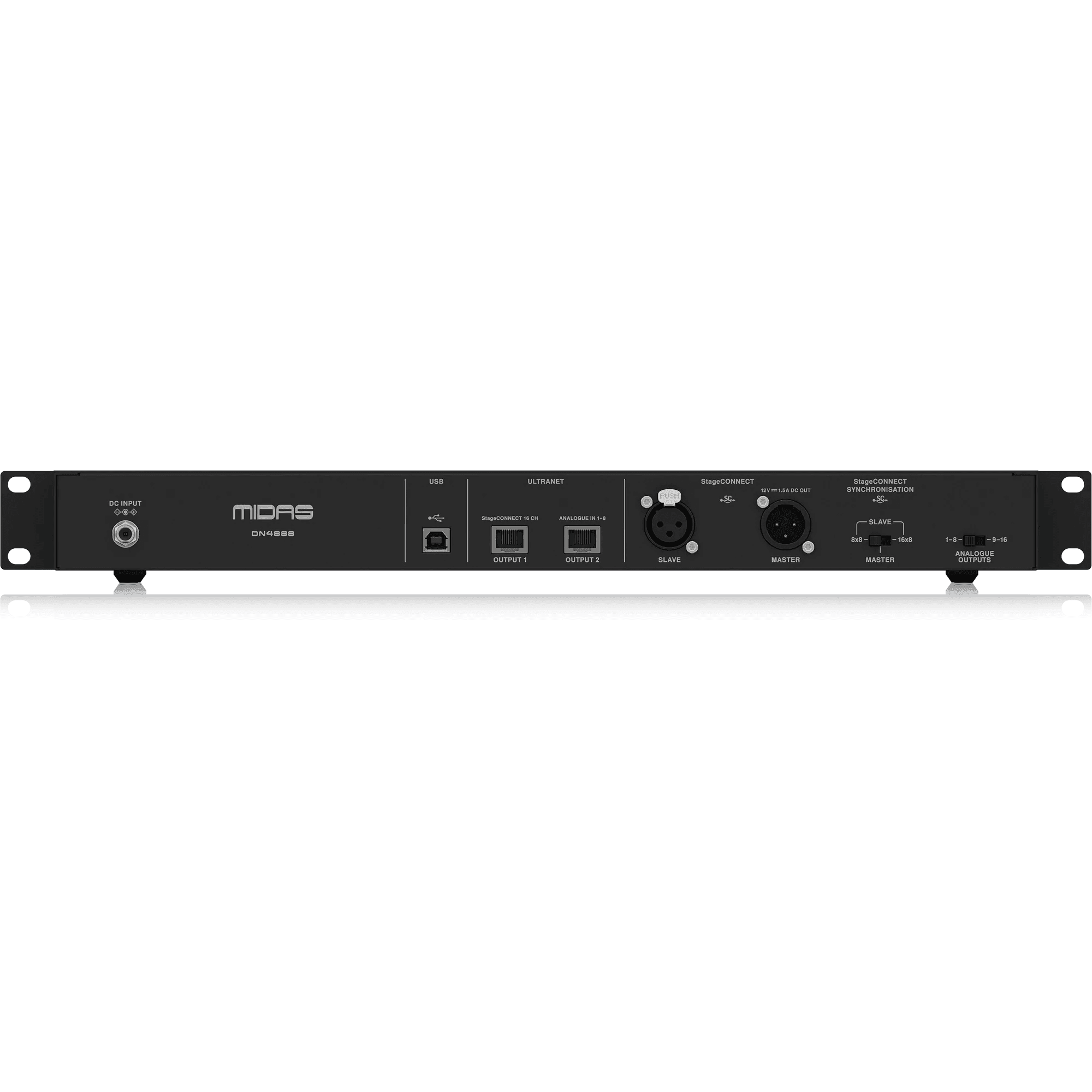

Are you looking for an efficient way to connect additional equipment to your monitor or FOH console? The MIDAS DN4888 BUS-POWERED STAGECONNECT INTERFACE is the perfect solution for you! It provides 8 additional analogue inputs and outputs to enable for 8 analogue inserts or the connection to wireless devices, like 8 wireless microphones and 8 wireless in-ear systems.
FEATURES:
- Breakout box with 8 balanced XLR line in and 8 balanced XLR line out for StageConnect systems
- Can be used as analogue I/O box for other StageConnect devices, Turbosound iQ speakers or Behringer WING and Ultranet receivers, such as P16 personal monitoring mixers
- StageConnect 32-channel audio transmission at sub-millisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz using standard XLR microphone or DMX cable
- Allows cascading with other StageConnect boxes, such as DN4816-I and DN4816-O for more analogue inputs and outputs
- Supports bi-directional audio configurations, with control data and 12 VDC / 18 W remote power
- Master mode allows exchanging multichannel audio with a chain of other StageConnect devices
- Slave modes offer 8x8 or 16x8 channel configurations to be used with StageConnect-enabled mixing consoles, stageboxes and hubs
- Dual Ultranet outputs for feeding Behringer P16 personal monitoring and Turbosound iQ speaker systems directly from StageConnect and analogue inputs
- External power supply for standalone use and offering remote power on the StageConnect Master output
SPECIFICATIONS
|
Processing |
|
|
D/A conversion |
24-Bit, 48/44.1 kHz, 114 dB |
|
StageConnect bus capacity |
32 ch, 24-Bit PCM audio |
|
I/O latency |
0.05 |
|
Connectors |
|
|
Analog Inputs |
8 x XLR female jacks, balanced |
|
Impedance |
20 kΩ unbalanced / 40 kΩ balanced |
|
Max. output level |
+21 dBu |
|
Ultranet |
2 x RJ45 |
|
Shielded CAT5e cable max. length |
75 m |
|
StageConnect |
1 XLR male, 1 XLR female |
|
Shielded bal. 110-Ohm DMX cable |
max. 40 m |
|
USB |
Type B |
|
System |
|
|
Frequency response |
20 Hz - 20 kHz ±0.2 dB |
|
Dynamic range |
110 dB DA / 106 dB AD |
|
Cross talk rejection @ 1 kHz, adjacent channel |
110 dB DA / 104 dB AD |
|
Noise (20 Hz - 20 kHz bandwidth) |
-90 dBu DA / -106 dBFS AD |
|
Distortion |
0.004% / 1 kHz / 0 dBu in |
|
Power |
|
|
Power supply |
12 VDC / 2.5 A (30 W) adapter included, remote power input via SLAVE XLR (female), remote power output via MASTER XLR (male) 12 VDC / 1.5 A (18 W) |
|
Power consumption |
8.5 W |
|
Physical |
|
|
Standard operating temperature range |
5° - 45° C (41° - 113° F) |
|
Dimensions |
49 x 483 x 169 mm (1.9 x 19.0 x 6.7") |
|
Weight |
2.2 kg (4.9 lbs) |
