KEY FEATURES

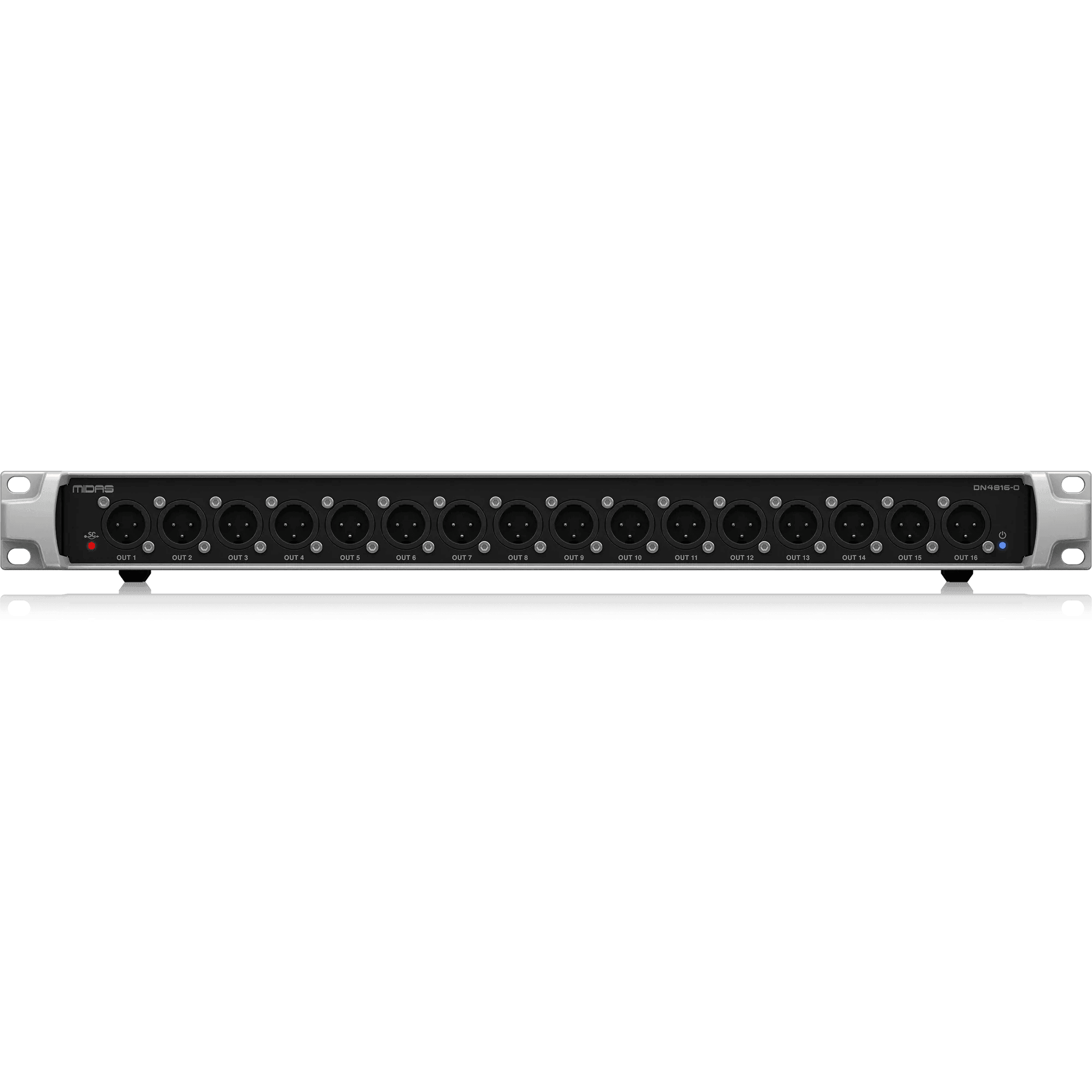

- Breakout box with 16 balanced XLR line out for StageConnect and Behringer Ultranet systems
- Analog output box for other StageConnect devices, Midas HUB4 and Behringer WING or Ultranet transmitters such as Midas MR18/M32 and DL16/DL32 stageboxes
- StageConnect 32-channel audio transmission at sub-millisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz using standard XLR microphone or DMX cable
- Two units can be cascaded for a total of 32 low-latency analogue outputs fed from a single StageConnect source
DESCRIPTION
The DN4816-O is the perfect solution for connecting additional line outputs to your monitor or FOH console. It provides 16 analog outputs (e.g., to connect wireless transmitters for in-ear monitoring). Additionally, it provides an Ultranet input, that can be used to forward Signals from an AIR mixer via StageConnect.
The StageConnect interface can be connected to other StageConnect devices using a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will negotiate the channels for their respective connectivity automatically.
StageConnect – The Future of XLR
What if any standard XLR or DMX cable could be used to transmit more than one channel of audio?
What if that cable could transmit signals not only one way, but bi-directionally?
What if that cable would allow the passage of control data at the same time?
What if a connected StageConnect device could receive up to 18 W of power through that same cable?
Well, these capabilities are exactly what StageConnect delivers – a new interface standard to be released by Music Tribe after two years of development. The Midas DN48XX Series is one of the first available I/O-Interfaces based on the StageConnect standard. This new standard comes with outstanding technical specs: 32 channels of uncompressed PCM audio in various I/O configurations, 24-bit at 48 kHz, below 0.5 ms of latency.
For optimum performance and long cable runs 110 Ohm DMX cable is required.
Ecosystem and Beyond
The DN48XX Series is the first generation of I/O Interfaces for the new StageConnect ecosystem. StageConnect was introduced with the Behringer WING mixing console. Even though the DN48XX Series was designed with the WING console in mind the devices can be used with all StageConnect devices like HUB4. The StageConnect Ecosystem opens a wide field of audio devices. May it be several I/O devices spread over the Stage or equipment in the siderack – the use cases for the DN48XX Series StageConnect Interfaces are virtually endless.
SPECIFICATIONS
|
Processing |
|
|
D/A conversion |
24-Bit, 48/44.1 kHz, 114 dB |
|
StageConnect bus capacity |
32 ch, 24-Bit PCM audio |
|
I/O latency |
≤0.05 ms |
|
Connectors |
|
|
Analog Inputs |
16 x XLR female jacks, balanced |
|
Impedance |
100 Ω unbalanced / 200 Ω balanced |
|
Max. input level |
+21 dBu |
|
Ultranet |
2 x RJ45 |
|
Shielded CAT5e cable max. length |
75 m |
|

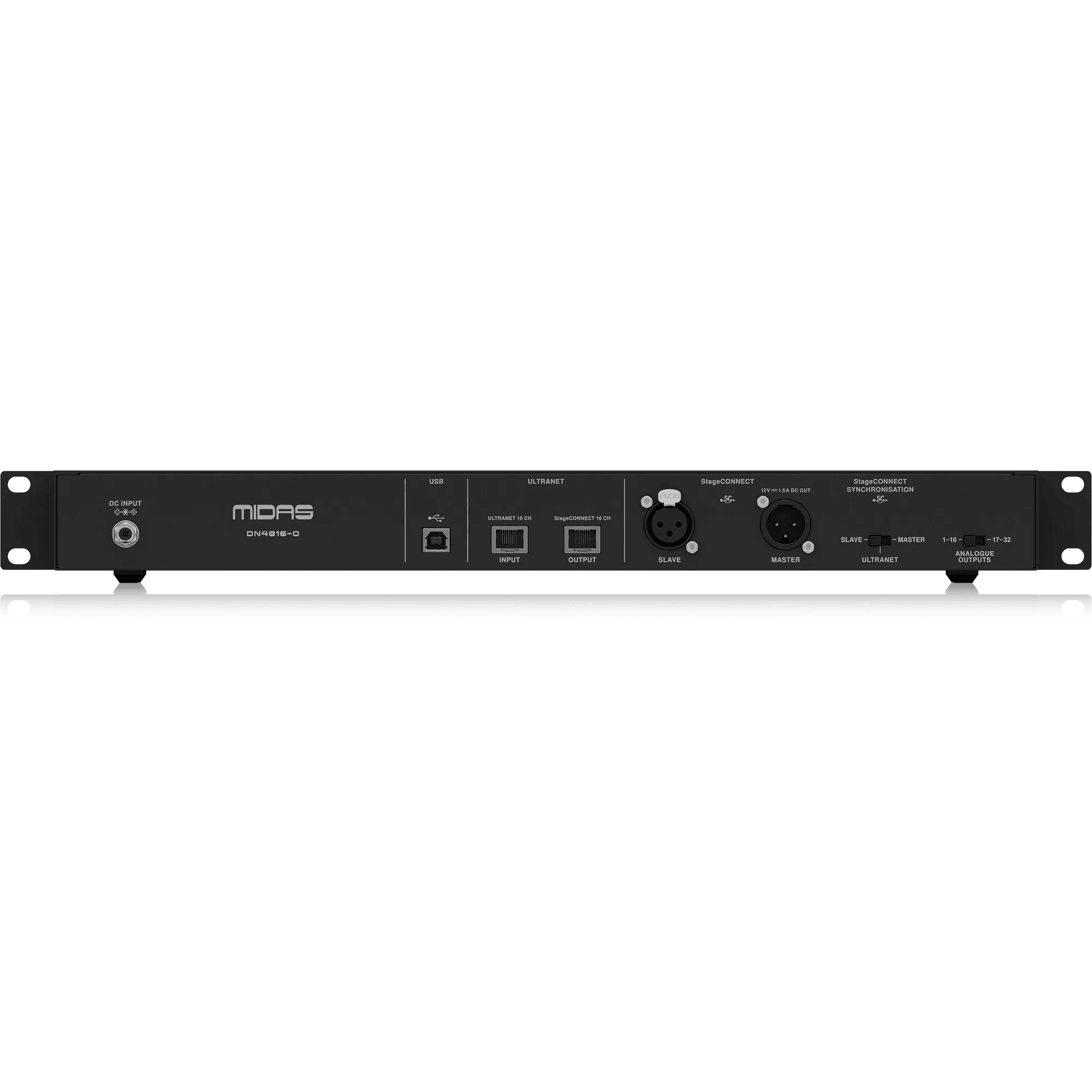

StageConnect |
1 XLR male, 1 XLR female |
|
Shielded bal. 110-Ohm DMX cable |
max. 40 m |
|
USB |
Type B |
|
System |
|
|
Frequency response |
20 Hz - 20 kHz ±0.2 dB |
|
Dynamic range |
110 dB |
|
Cross talk rejection @ 1 kHz, adjacent channel |
110 dB |
|
Noise (20 Hz - 20 kHz bandwidth) |
-90 dBu |
|
Distortion |
0.004% / 1 kHz / 0 dBu in |
|
Power |
|
|
Power supply |
12 VDC / 2.5 A (30 W) adapter included, remote power input via SLAVE XLR (female), remote power output via MASTER XLR (male) 12 VDC / 1.5 A (18 W) |
|
Power consumption |
9 W |
|
Physical |
|
|
Standard operating temperature range |
5° - 45° C (41° - 113° F) |
|
Dimensions |
49 x 483 x 169 mm (1.9 x 19.0 x 6.7") |
|
Weight |
2.2 kg (4.9 lbs) |
