KEY FEATURES
-
12-channel analog mixer
- 8 mono input channels and 2 stereo input channels, perfect for small bands and worship teams
- 3-band EQ on each mono channel for sound shaping (2-band EQ on stereo channels)
- 2 aux sends for monitor mixes or effects sends, switchable between pre- and post-fader operation
- 8 low-noise, high-fidelity Midas mic preamps with phantom power
- Robust chassis for long-term durability
DESCRIPTION

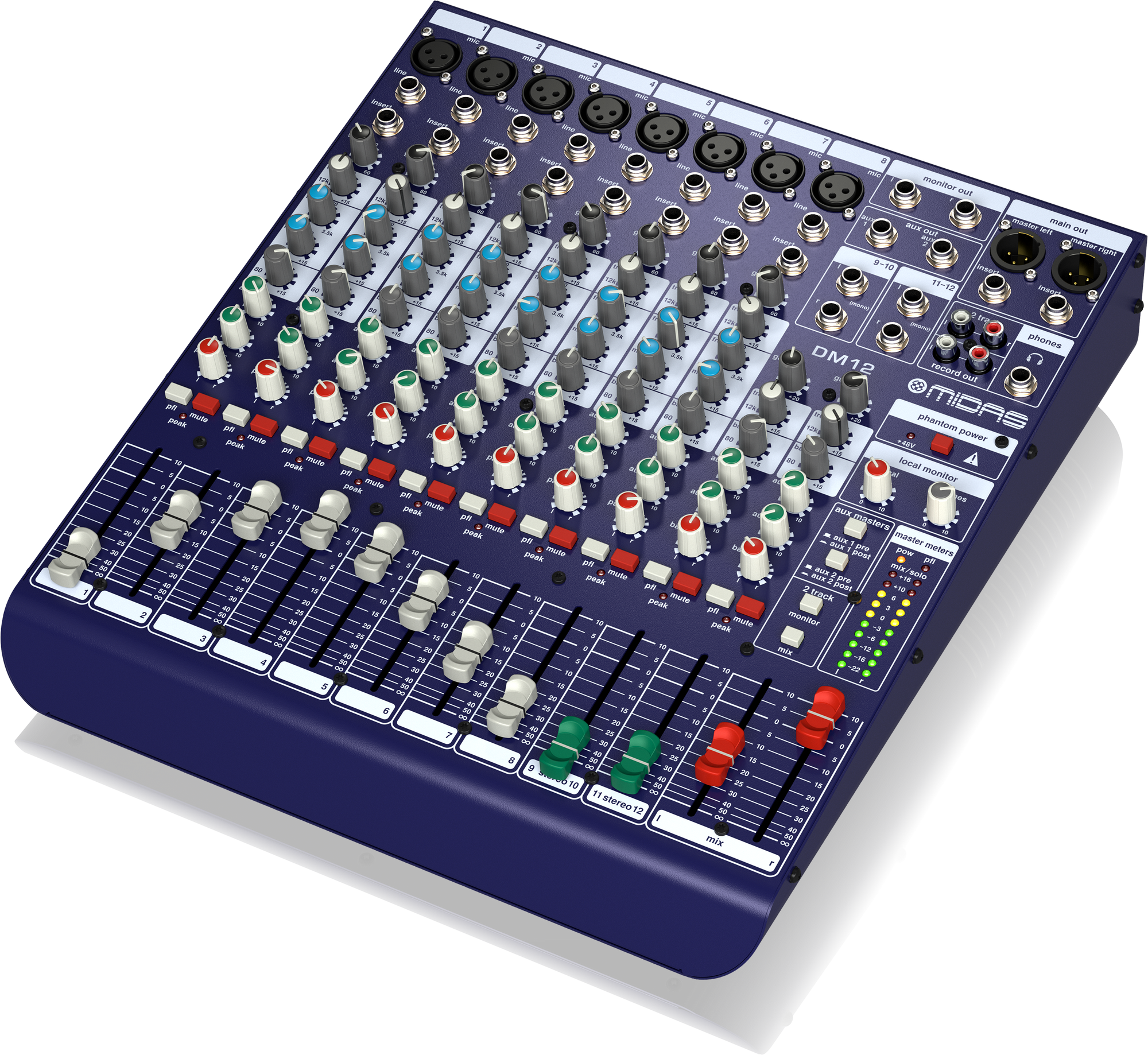

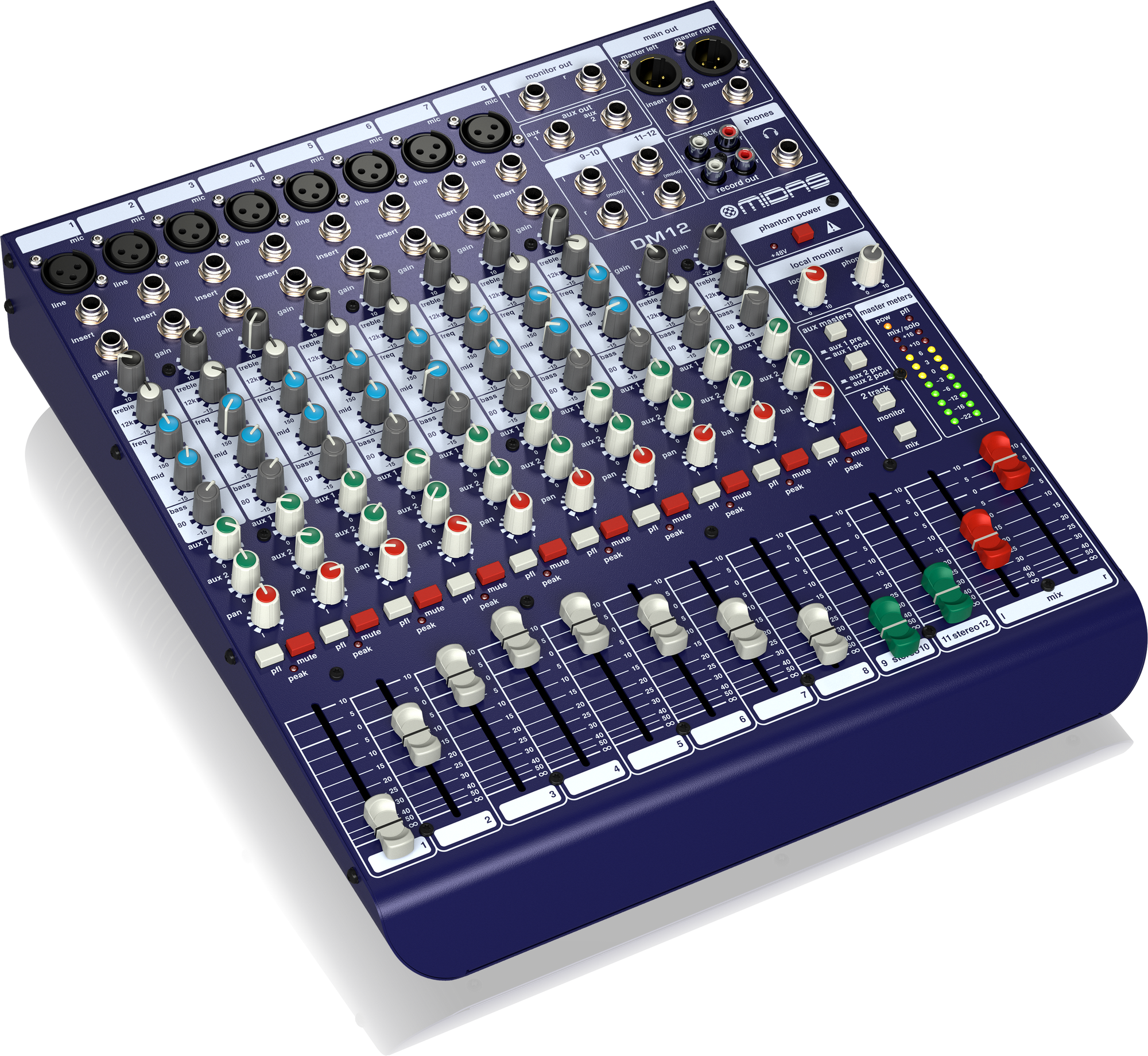

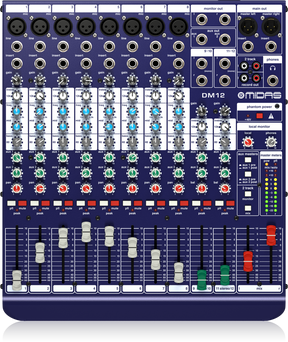

The Midas DDA DM12 analog mixer is a simple, great-sounding compact mixing solution. With eight mono inputs and two stereo input channels, you've got enough inputs for small bands or worship teams. You'll be impressed with the sound of the DDA DM12's eight Midas microphone preamps, with ultra-low noise and exceptional sonic detail. Two aux sends are available and can be switched between pre- and post-fader operation.
Line channels 9/10 - 11/12 are dedicated stereo channels, making them ideal for stereo instruments, such as keyboards – and can also be used for mono signals thanks to a convenient balance control on each 2-channel grouping. These channels can also be used as return inputs for signals sent external effects processing equipment.
SPECIFICATIONS
| Type | Analog |
| Channels | 12 channels (including 2 stereo channels) |
| Faders | 12 x 60mm faders |
| Equalizer |
Low : ±15 dB @ 80 Hz, shelving Mid (mono inputs only) : ±15 dB @ 150 Hz to 3.5 kHz, variable semi-parametric High : ±15 dB @ 12 kHz, shelving |
| Mono Inputs |
Mic Inputs (MIDAS mic preamp) : 8 Type : XLR, balanced Impedance : 2 kO, balanced |
| Line Input |
Type : ¼" TRS, balanced Impedance : 20 kO balanced / unbalanced |
| Stereo Inputs |
Type : 4 x ¼" TRS connector, balanced Impedance : 20 kO balanced / unbalanced |
| Channel Inserts |
Type : ¼" TRS connector, unbalanced |
| AUX Sends |
Type : 2 x ¼" TRS connector, balanced Impedance : 240 O balanced, 120 O unbalanced |
| Monitor Out |
Type : 2 x ¼" TRS connector, balanced Impedance : 240 O balanced, 120 O unbalanced |
|
Main Out |
Type : 2 x XLR, electronically balanced Impedance : 100 O balanced, 50 O unbalanced |
| Main Out Inserts |
Type : 2 x ¼" TRS connector, unbalanced |
| Phone Output |
Type : ¼" TRS connector, unbalanced |
| 2-Track Input |
Type : 2 x RCA, unbalanced |
| Record Out |
Type : 2 x RCA, unbalanced |
|
Dimensions (H x W x D) |
95 x 328 x 370 mm (3.7 x 12.9 x 14.6") |
|
Weight |
3.9 kg (1.8 lbs) |
