KEY FEATURES

• USB 2.0 expansion module for Midas and Behringer digital consoles

• 32-channel live recording and playback on dual SD/SDHC cards

• Up to 3 hours of 48 kHz/32-bit PCM recording of 32 channels in one session, stored as uncompressed WAV files

• Up to 32 bidirectional channels @ 48 kHz of recording and playback

• Independent operation of SD cards and USB recording / playback

• Remote control via PC, Android* or iPad* apps, assignable controls or compatible hardware control surfaces, such as the Behringer X-TOUCH

• Dual SD card slots to keep virtual sound check and live performance files separately available or for extended recording time

• Sample-accurate automatic spanning feature allows extending a session across both SD cards for more than 12 hours of 8-track recording time non-stop

• Instantaneous live playback with preload and markers in the console UI and remote apps

• Markers can be set on the fly for identifying song positions while recording or playing back

• All markers can be edited directly in the console GUI

• Seamless computer integration for virtual sound checks and software plug-ins

• Channel routing can be stored and automated for record/playback

• Secure file handling in the event of power blackout (optional CR123A Lithium cell required)

• Enables remote control of compatible DAW software via emulations of Mackie Control* and HUI* protocols

• Compatible with CoreAudio on Mac OSX* - ultra-low latency ASIO* drivers for Windows* PC available

DESCRIPTION

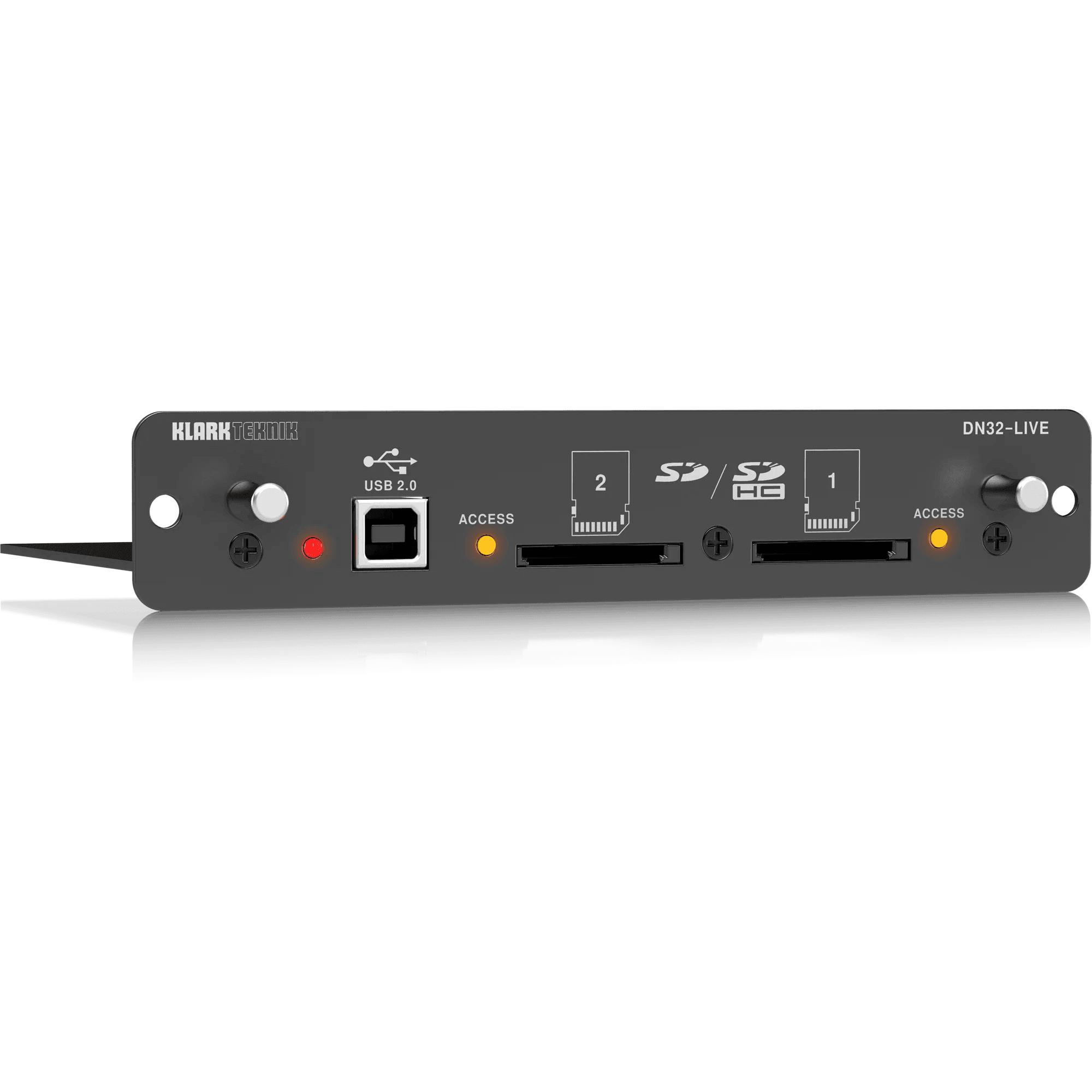

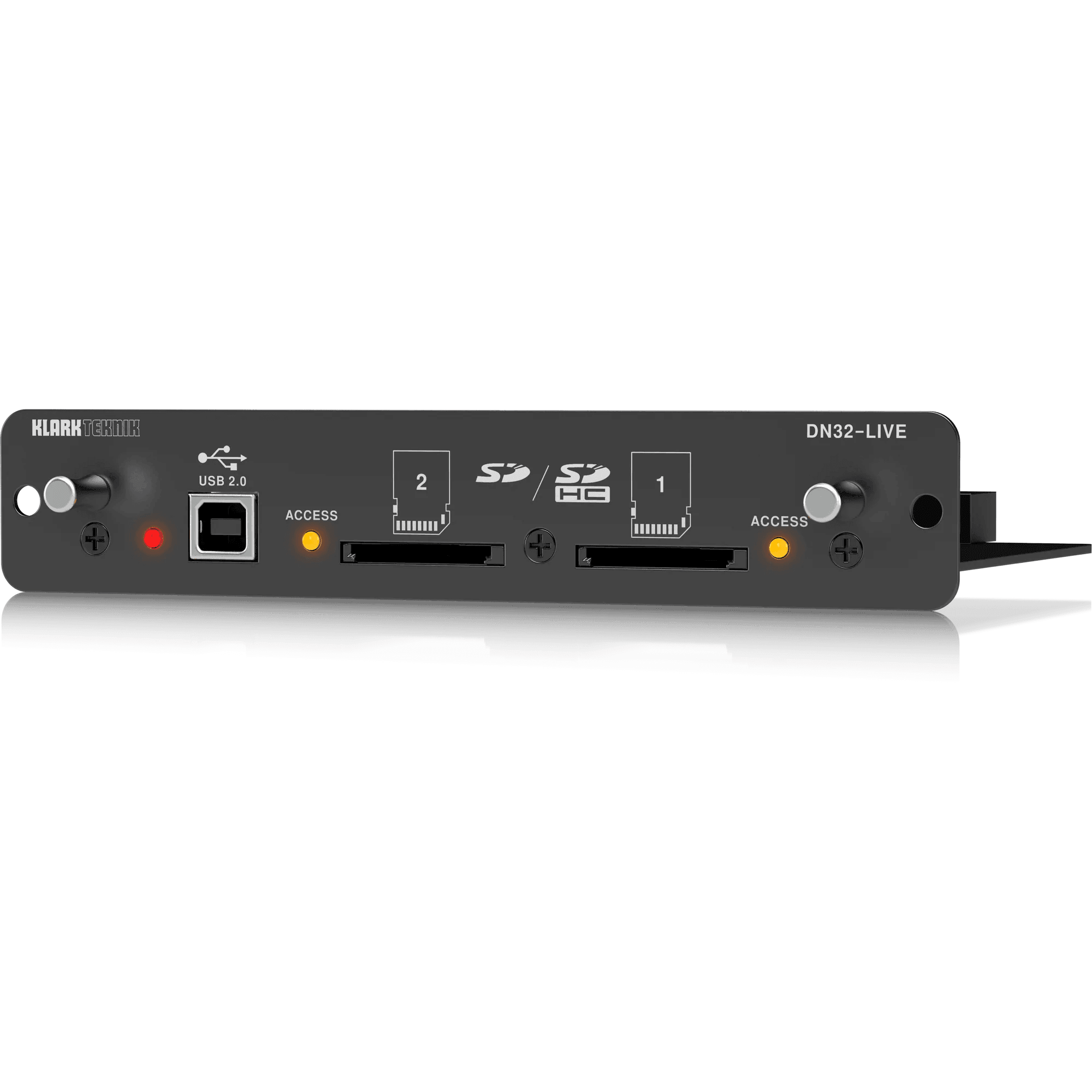

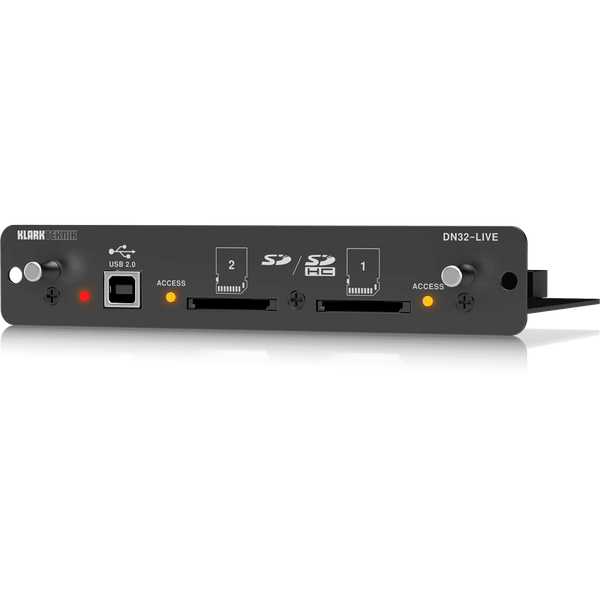

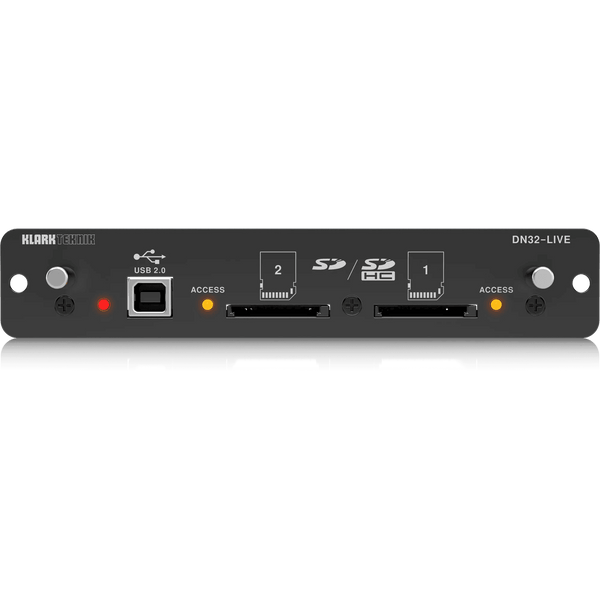

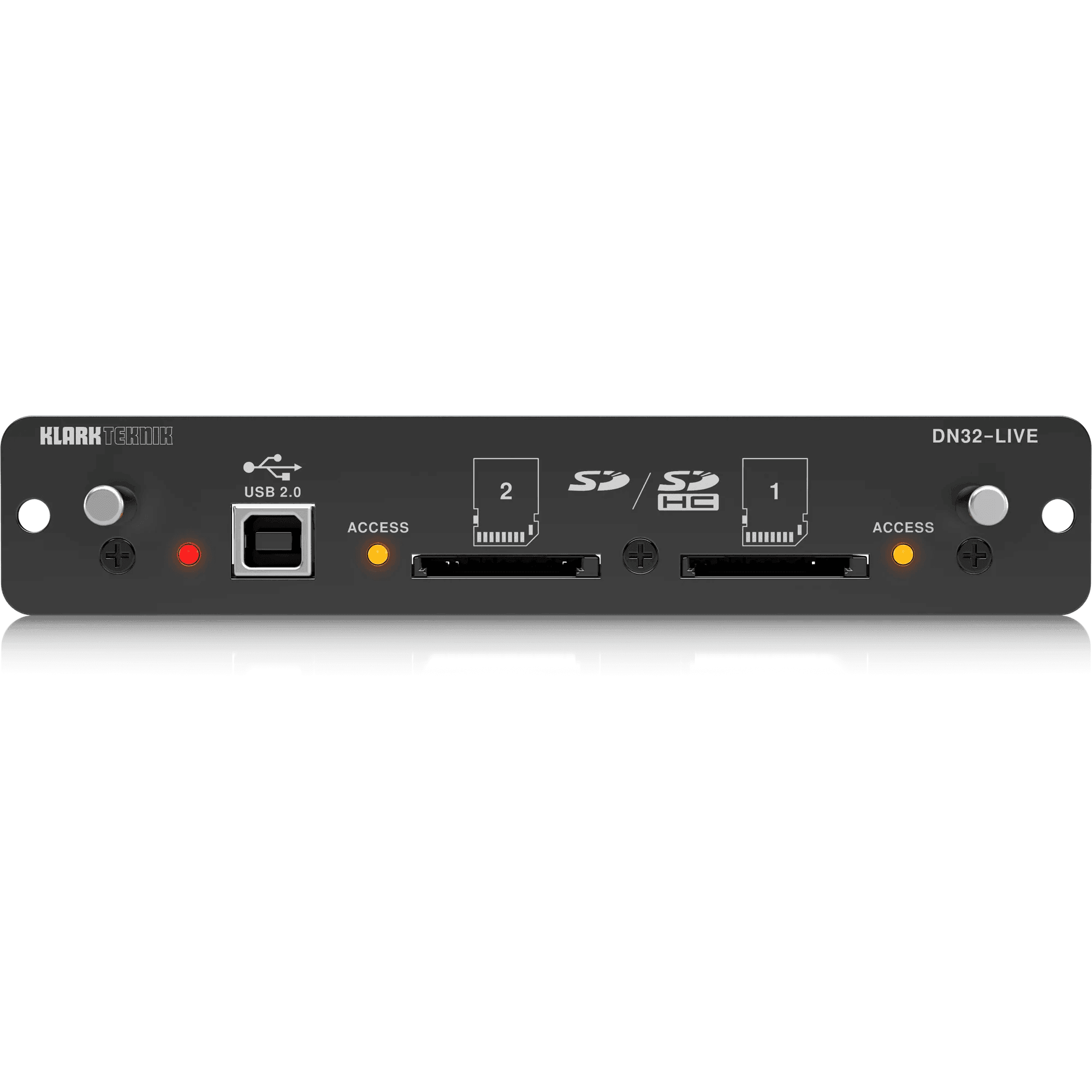

The DN32-LIVE SD/SDHC and USB 2.0 Expansion Module for MIDAS M32 and BEHRINGER X32 mixers provides 32-channel bi-directional audio I/O via USB 2.0 for both live performance and studio recording, plus comprehensive remote operation of your DAW via HUI/Mackie Control emulation. The addition of dual SD/SDHC slots allows fully independent recording and playback of up to 32 channels of uncompressed WAV files in consistent sessions – up to the maximum capacity of the SD cards. Now, without the need for a laptop computer, you can capture multi-channel live or session tracks, perform virtual sound checks, add in backing-tracks, set and manipulate accurate markers, and enjoy full remote operation via PC, Android* or iPad* apps, and X-TOUCH control surfaces. All of this barely begins to scratch the surface of what DN32-LIVE can bring to your M32/X32 console.

DN32-LIVE Makes Multi-Tracking a Breeze
Your console’s recording capability just got even more robust, thanks to the new DN32-LIVE Expansion Card and USB Audio/MIDI Interface. Whether you’re multi-tracking your live performances directly to a PC/Mac, or to the flash media in your console, DN32-LIVE makes it easier than ever. Equipped with dual SD/SDHC-card slots, DN32-LIVE provides uncompressed recording and playback of up to 64 GB of memory, enough to capture a 3 hour and 20 minute continuous 32-track session – all of which can be done without ever leaving the console. Just think about it, no external wiring or computer issues – everything you need in a single location. And DN32-LIVE is equally at home in either the recording studio or the performance venue.

Independent USB & SD Operation

The DN32-LIVE USB and SD interfaces can be operated simultaneously and independently. For example, you may want to play back your recorded session from an SD card and record the tracks via USB into your favorite DAW for post-processing. Or, you might need to prepare live backing tracks in your DAW and then transfer them to an SD card in real time, while setting performance markers on-the-fly. You can even record using both the USB and SD simultaneously for redundancy. Best of all, these operations can be performed without routing tracks through your console channels.

SPECIFICATIONS
