FEATURES

• Active DI Box for general purpose and multimedia applications

• Custom-built Midas transformer for highest signal integrity

• High headroom design offers superior sound quality

• Powered from console +48 V phantom or internal battery (not included)

• Automatic switchover to battery if phantom power fails

• Matches the level and impedance with unity gain without loading the source

• Switchable input attenuation for guitar, line and speaker levels

• High quality industry standard XLR and high impedance 1/4" TRS connectors

• Earth Lift switch eliminates ground loop problems

• Fully transformer-isolated design ensures electrical separation

• Ultra-low noise and ultra-linear system for highest signal integrity

• Aluminium extrusion casing with protective rubber corners

• Compact and rugged design

DESCRIPTION

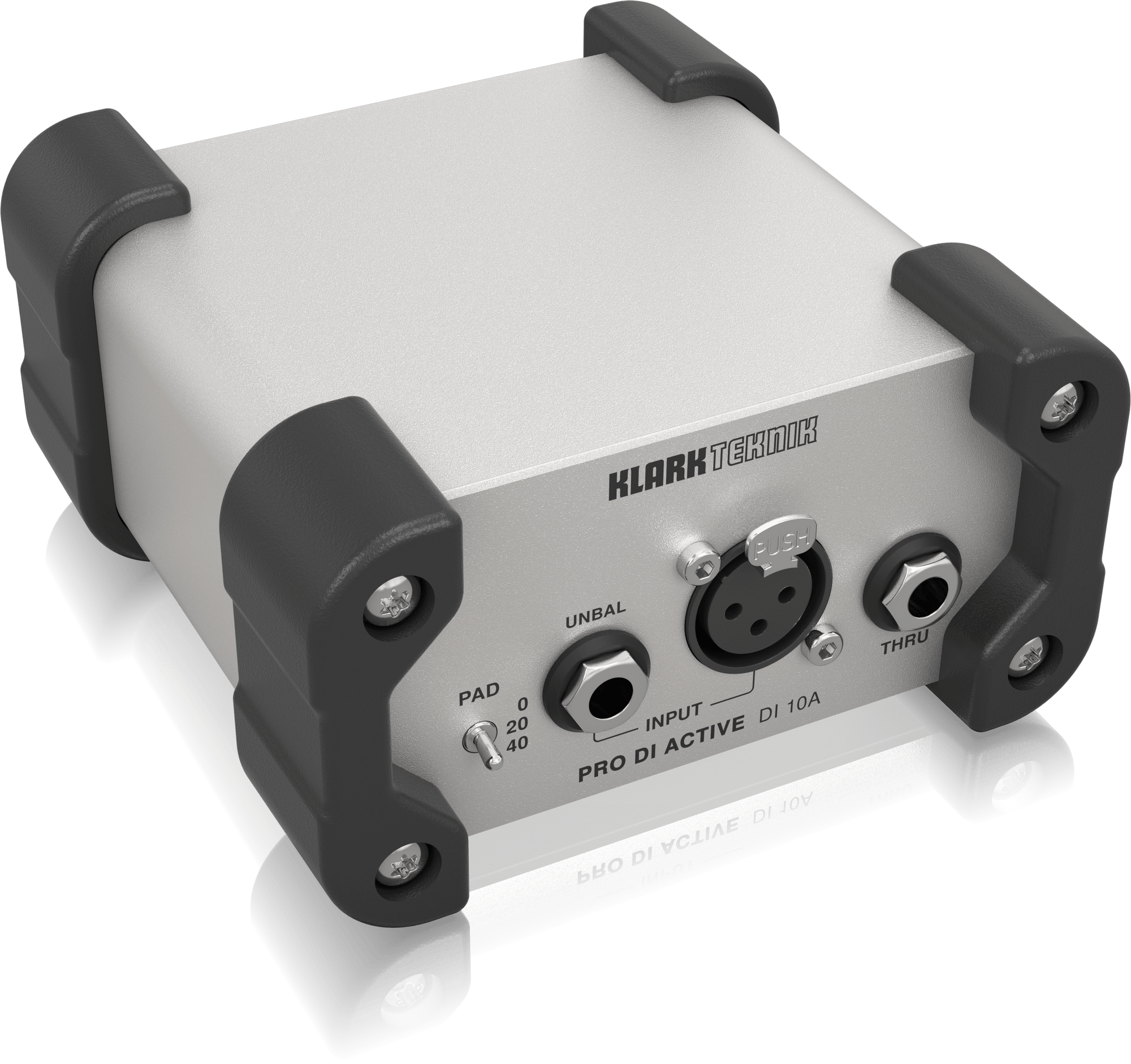

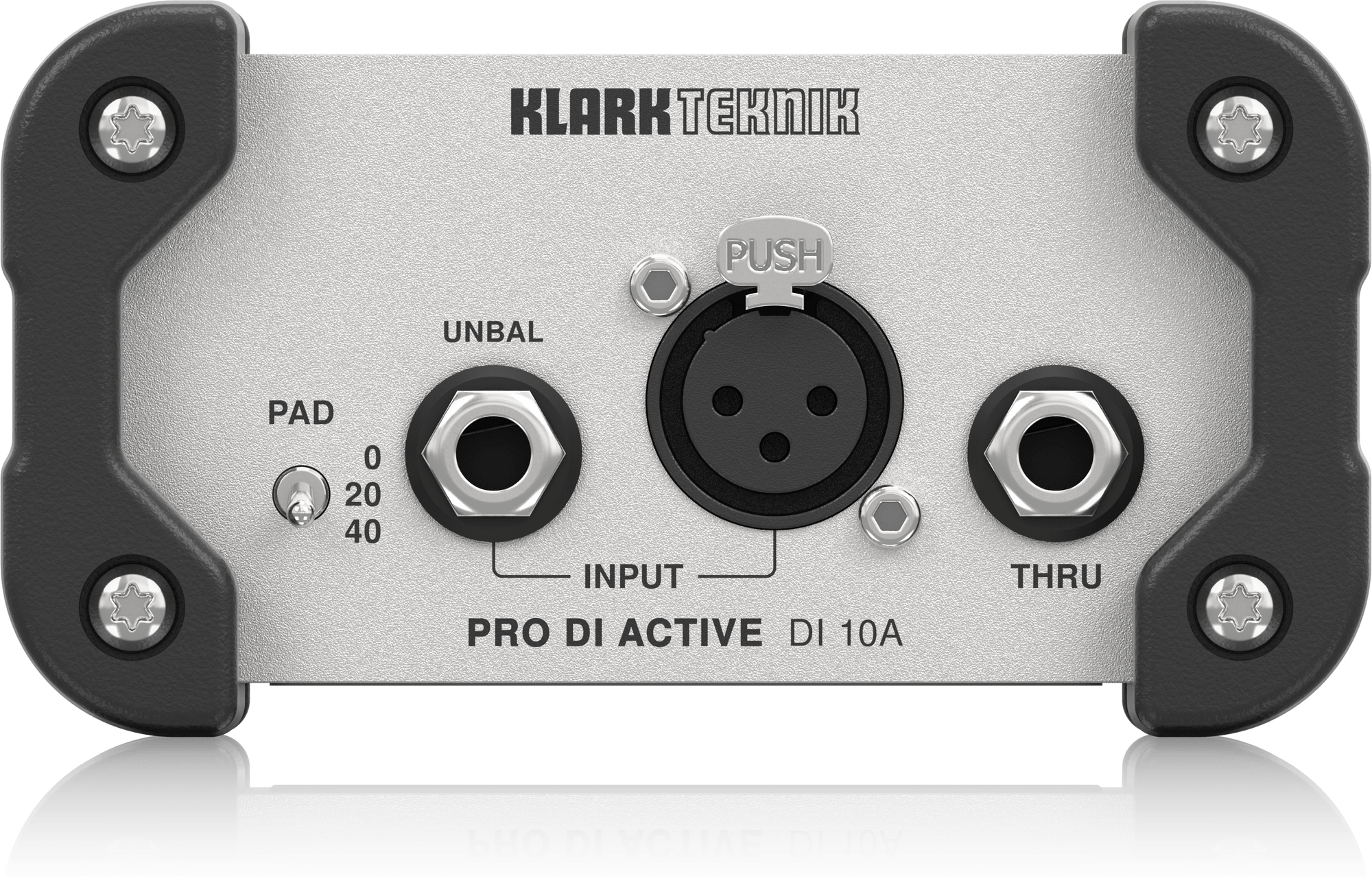

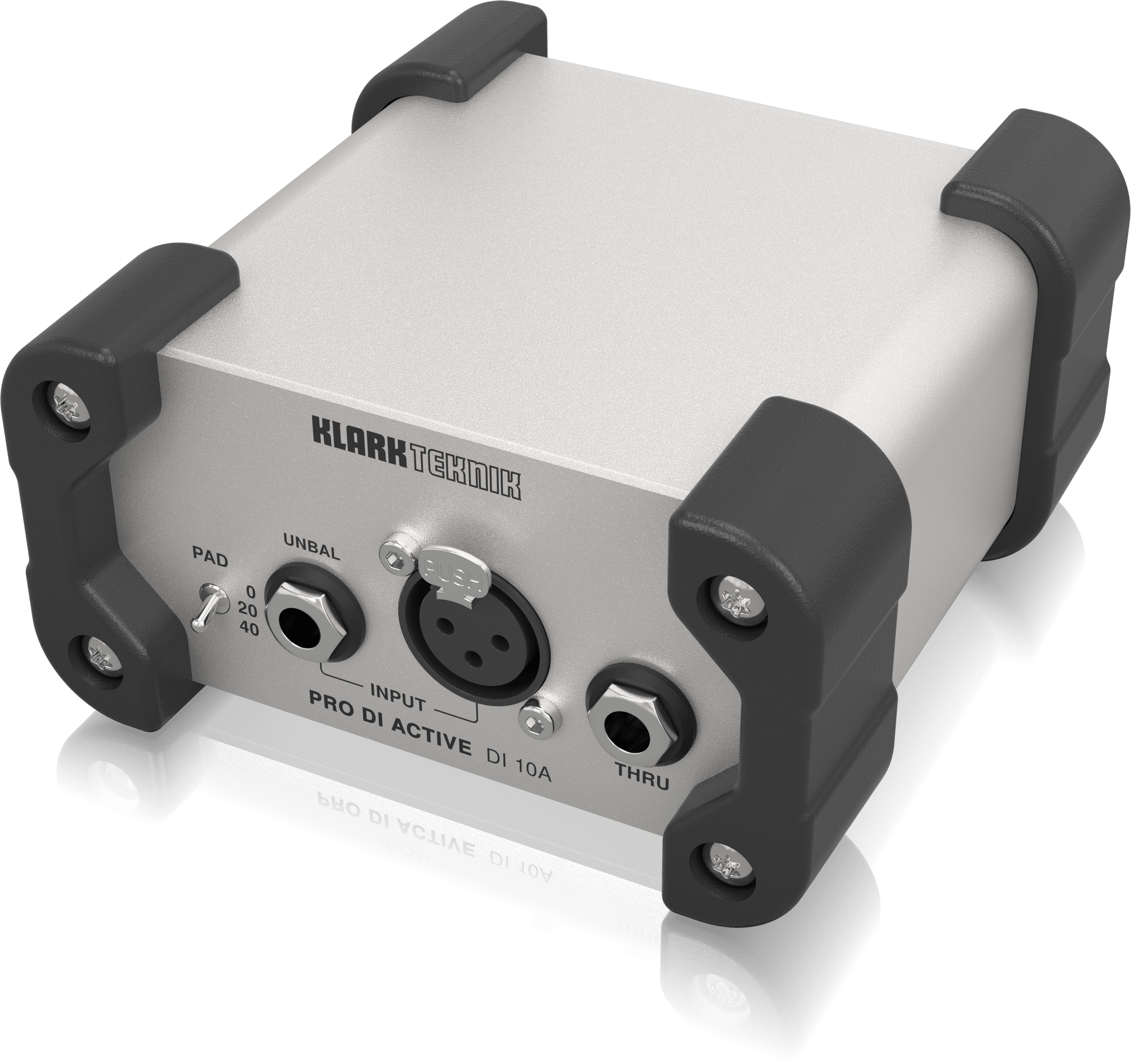

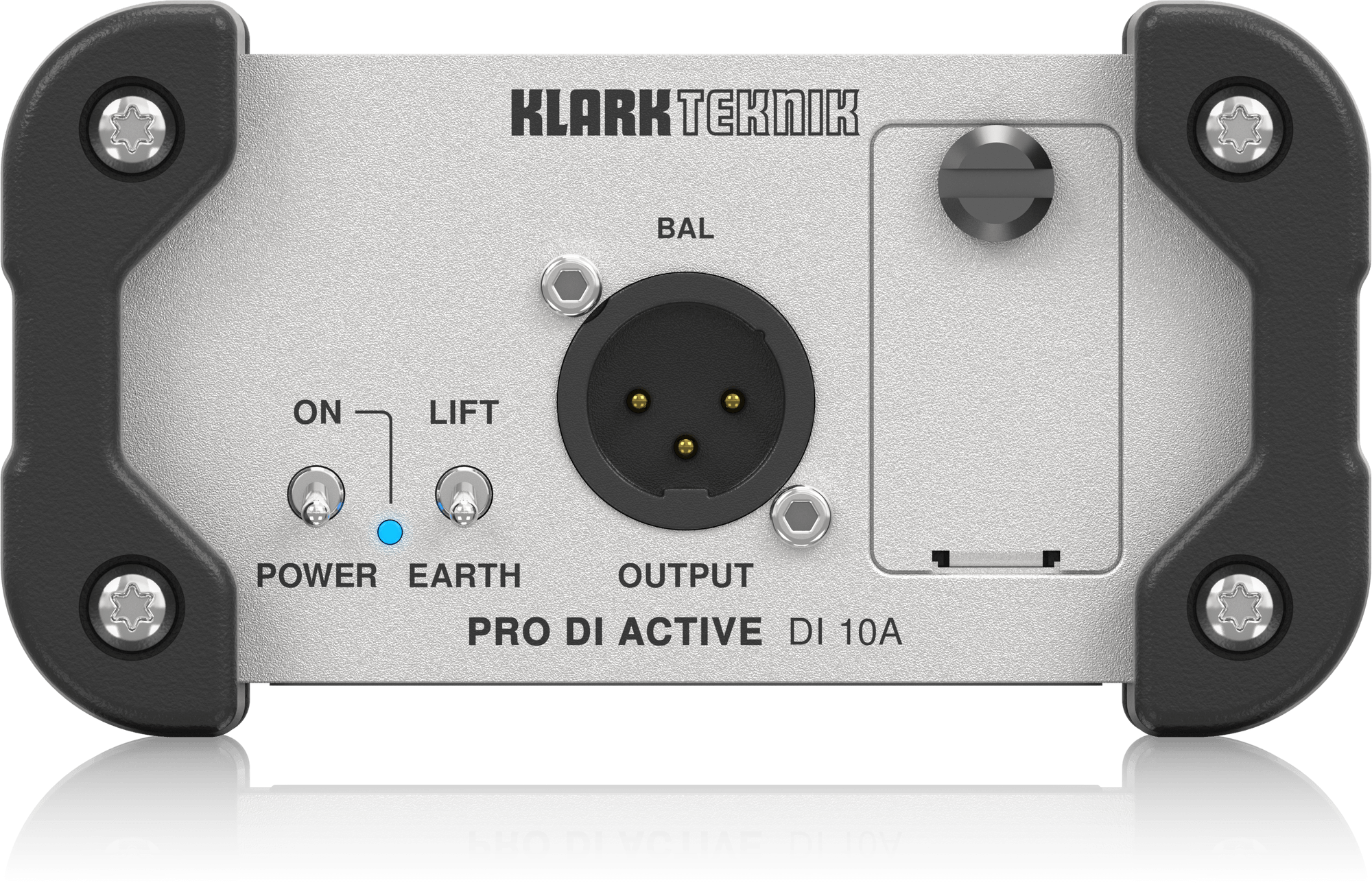

PRO DI ACTIVE DI 10A
Building on KLARK TEKNIK’s storied legacy of highest-quality direct injection devices, the DI 10A PRO DI ACTIVE offers the same high headroom, dynamic response and sonic clarity you have come to expect. DI 10A is ideal for interfacing keyboards, samplers and other electronic musical instruments to mixing consoles, and faithfully reproduces the character of electric and acoustic instruments, allowing far more of the detail of musical performances to be captured. The DI 10A is powered by +48 V phantom power with a 9 V battery backup, which automatically allows the device to function should phantom power fail, or be unavailable. Equipped with a switchable input attenuator, DI 10A easily accommodates instruments, line, and even loudspeaker level signals – and thanks to its extremely low noise input circuit topology (-112 dBu), DI 10A provides extended dynamic range, making it the perfect choice for professional audio and multimedia applications.

Compact & Rugged Construction
The ultra-compact DI 10A is built to handle the rigours of life on the road via a thick and rugged aluminium extrusion that protects the electronics. The enclosure’s roadworthiness is further enhanced through the implementation of sturdy rubber corner bumpers.

MIDAS – The Legend in Sound Quality
Ever since its formation in the 1970s, MIDAS has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations world-wide, legendary MIDAS consoles such as the XL4 and Heritage H3000 quickly became industry standards.

MIDAS has earned their impeccable reputation due to their no-compromise approach for audio and build quality and in particular for their Award-winning products which are considered by industry experts as the industry’s best sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.

KLARK TEKNIK is proud to incorporate MIDAS designed transformers for the ultimate in high-quality audio reproduction in both live and studio environments. Find out more about MIDAS’ amazing legacy by visiting their extensive website.
