Hikvision

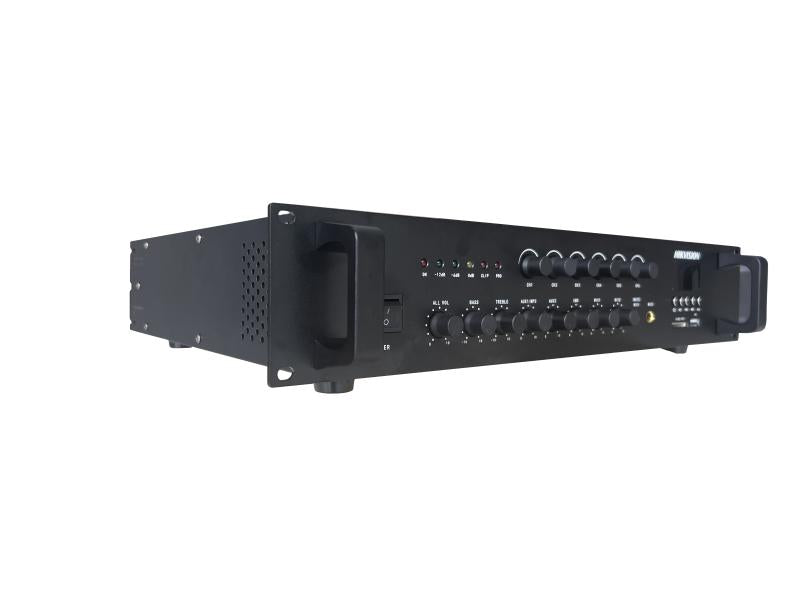

Hikvision DS-QAE0A120G1-VB6 120W 6-Zone Analog Amplifier
Secure Transactions
Warranty Coverage
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We're here to help ensure every warranty request is handled smoothly and efficiently.
Read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
Read moreTalk to a Pro
Speak to our Music & Audio Pros – the quickest way to get some info.
We're available Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppChoose options
Features
- Rated Power: 120 W, 6 Zones
- Audio input: EMC/MIC/AUX/Bluetooth/USB/SD Card
- Support two-zone volume and content adjustment
Description
The Hikvision DS-QAE0A120G1-VB6 120W 6-Zone Analog Amplifier is a professional-grade public address and background music solution designed for commercial, retail, educational, hospitality, and industrial audio installations. Combining powerful amplification, multi-zone audio control, Bluetooth connectivity, and versatile input options, this high-performance amplifier delivers reliable and flexible sound distribution for modern PA systems.
Engineered with a powerful 120W output capacity, the amplifier supports up to 6 independent audio zones, allowing users to manage and distribute audio efficiently across multiple areas such as offices, shopping malls, schools, restaurants, mosques, warehouses, hotels, and commercial buildings. Each zone can be controlled individually for enhanced flexibility and customized audio management.
The DS-QAE0A120G1-VB6 features built-in Bluetooth and MP3 playback functionality, enabling convenient wireless music streaming and direct audio playback without additional devices. Multiple audio input options including 2 AUX inputs and 2 microphone inputs provide seamless connectivity for microphones, media players, paging systems, and external audio equipment.
An integrated EMC (Emergency Microphone Control) input ensures priority emergency broadcasting capabilities, making the amplifier suitable for safety announcements and evacuation systems in commercial environments. The dual microphone support makes it ideal for public speaking, announcements, presentations, and paging applications.
Designed for continuous professional operation, the amplifier offers stable performance, efficient heat management, and easy integration into centralized audio systems. Its durable construction and user-friendly controls make it an ideal solution for both small and large-scale audio installations.
Whether used for background music, voice announcements, paging systems, or multi-zone public address applications, the Hikvision DS-QAE0A120G1-VB6 delivers reliable audio amplification with modern connectivity and intelligent zone management.
Specification
| Category | Specification |
|---|---|
| Audio | |
| Rated Power | 120 W |
| Sensitivity | Line: -10 dBEMC: -10 dBMIC: -40 dBLine Output: 0 dB |
| Frequency Response | 80 Hz – 18 kHz (±3 dB) |
| THD | ≤ 0.5% |
| SNR | ≥ 83 dB |
| Audio Input Interfaces | |
| EMC Input | 1 × EMC IN |
| Microphone Input | 2 × 6.5 mm Microphone |
| AUX Input | 2 × AUX IN |
| Bluetooth | Supported |
| USB | USB 2.0 |
| SD Card | Supported |

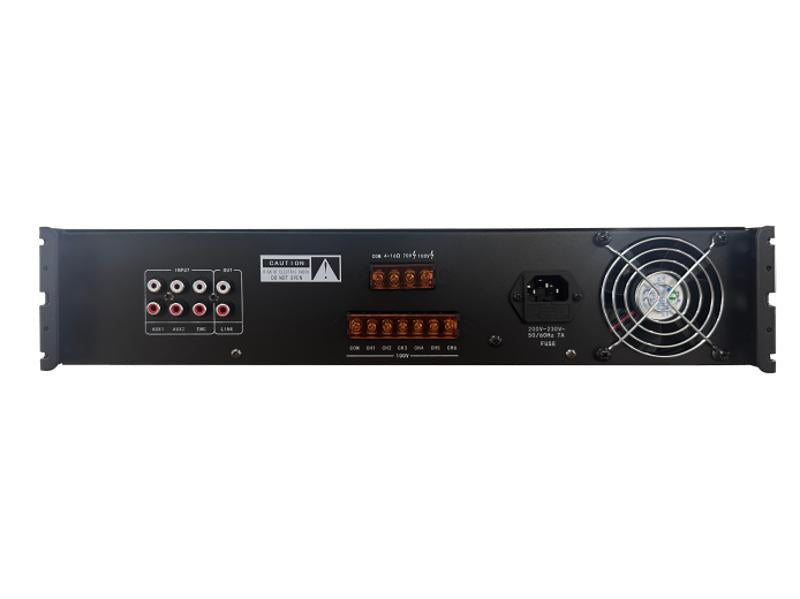

| Audio Output Interfaces | |
| Constant Voltage Output | 1 × 110 V COM1 × 70 V COM |
| Constant Impedance Output | 1 × 4–16 Ω COM |
| Partition Output | 6 × 110 V COM |
| Line Output | 1 × Line Out |

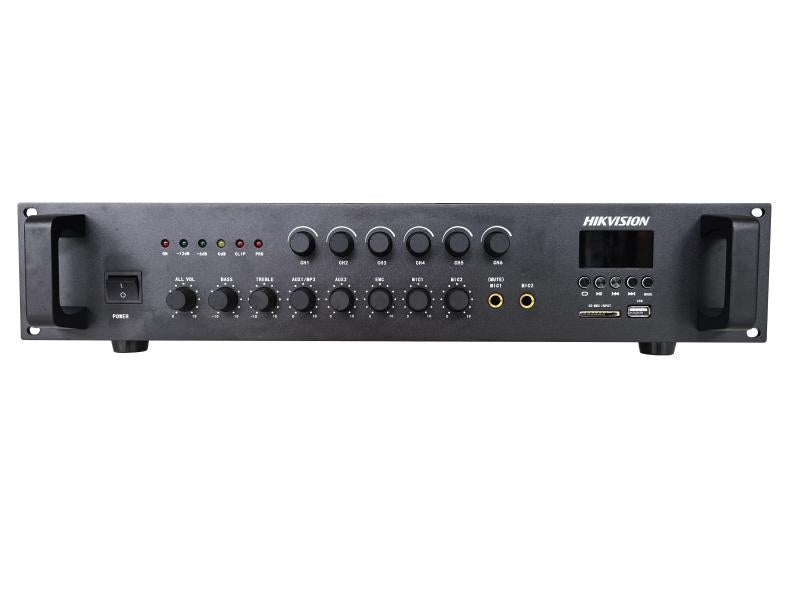

| Volume Controls | |
| MIC Volume | 2 Knobs |
| Partition Volume | 6 Knobs (Partition 1–6) |
| Master Volume | 1 Knob |
| Bass Control | 1 Knob |
| Treble Control | 1 Knob |
| AUX1/MP3 Volume | 1 Knob |
| AUX2 Volume | 1 Knob |
| EMC Volume | 1 Knob |
| USB | USB 2.0 |
| General | |
| Power Supply | 200–230 V AC, 50/60 Hz, 5 A |
| Material | Iron |
| Color | Black |
| Device Dimensions | 484 × 88 × 360 mm |
| Overall Dimensions (Including Handle) | 484 × 88 × 395 mm |
| Net Weight | Approx. 9.2 kg (20.28 lb.) |
| Package Dimensions | 540 × 165 × 450 mm |
| Gross Weight | Approx. 9.5 kg (20.94 lb.) |
| Operating Temperature | -10°C to +40°C (±2°C) |
| Operating Humidity | 20%–80% RH |
| Installation | Cabinet Mount |
| Packing List | 1 × Machine, 1 × Power Cord |
