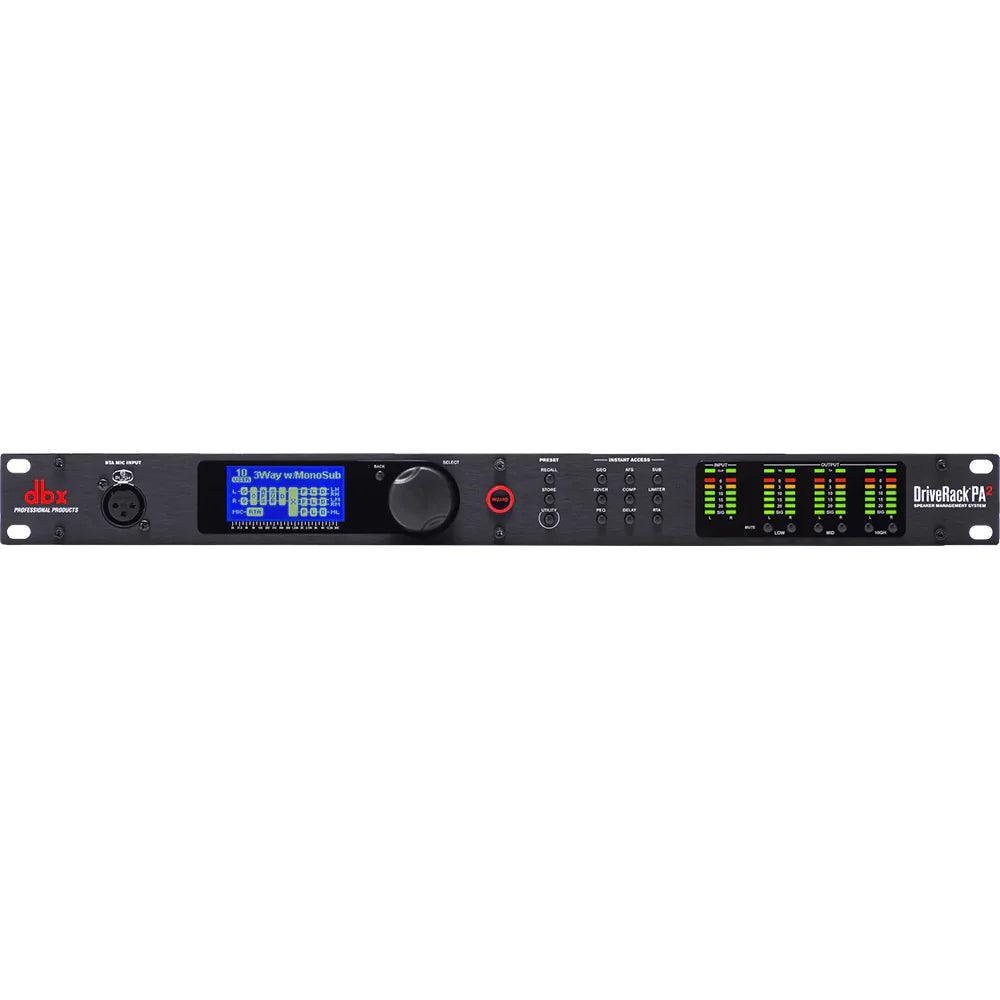

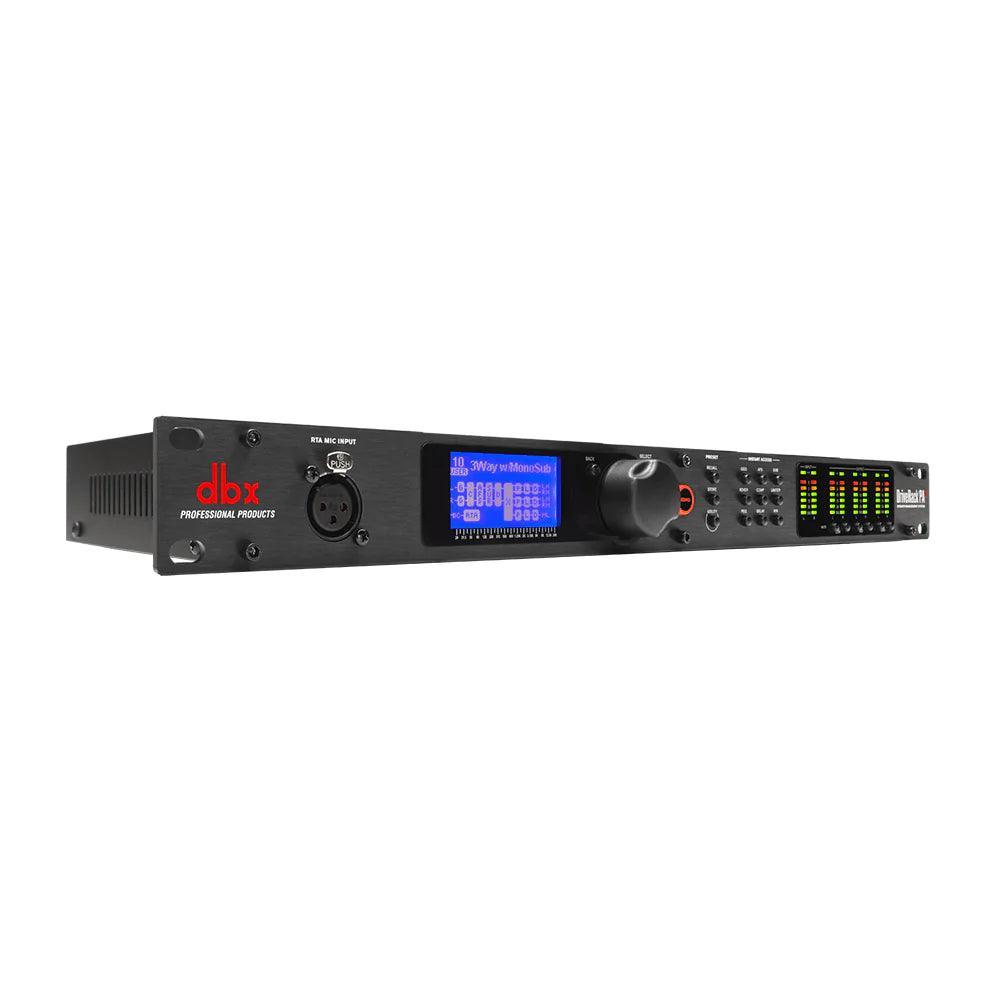

The DriveRack® PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android®, iOS®, Mac®, or Windows® device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.
Features
- Polar Pattern : omni-directional
- Element : back electret-Condenser
- Frequency Response : 20 Hz - 20 kHz
- Impedance : 250 30% (at 1,000Hz)
- Sensitivity : -63 dB +-3 dB ( 0 dB=1V/ microbar 1,000 Hz indicated by open circuit )
- Operating Voltage : phantom power 9V-52VDC
Tech Specs
| Input | (2) line inputs. (1) RTA Mic input |
| Input Connectors | (2) Female XLR line inputs. (1) Female XLR RTA Mic input |
| Input Type | Electronically balanced/RF filtered |
| Input Impedance | >50 kohm |
| A/D Converter | dbx Type IV™ Conversion System |
| CMRR | > 45dB |
| Mic Preamp Phantom Power | +15VDC (RTA) |
| Mic Preamp Equivalent Input Noise (EIN) | < -117dB, 22Hz-22kHz, 150 ohm (RTA) |

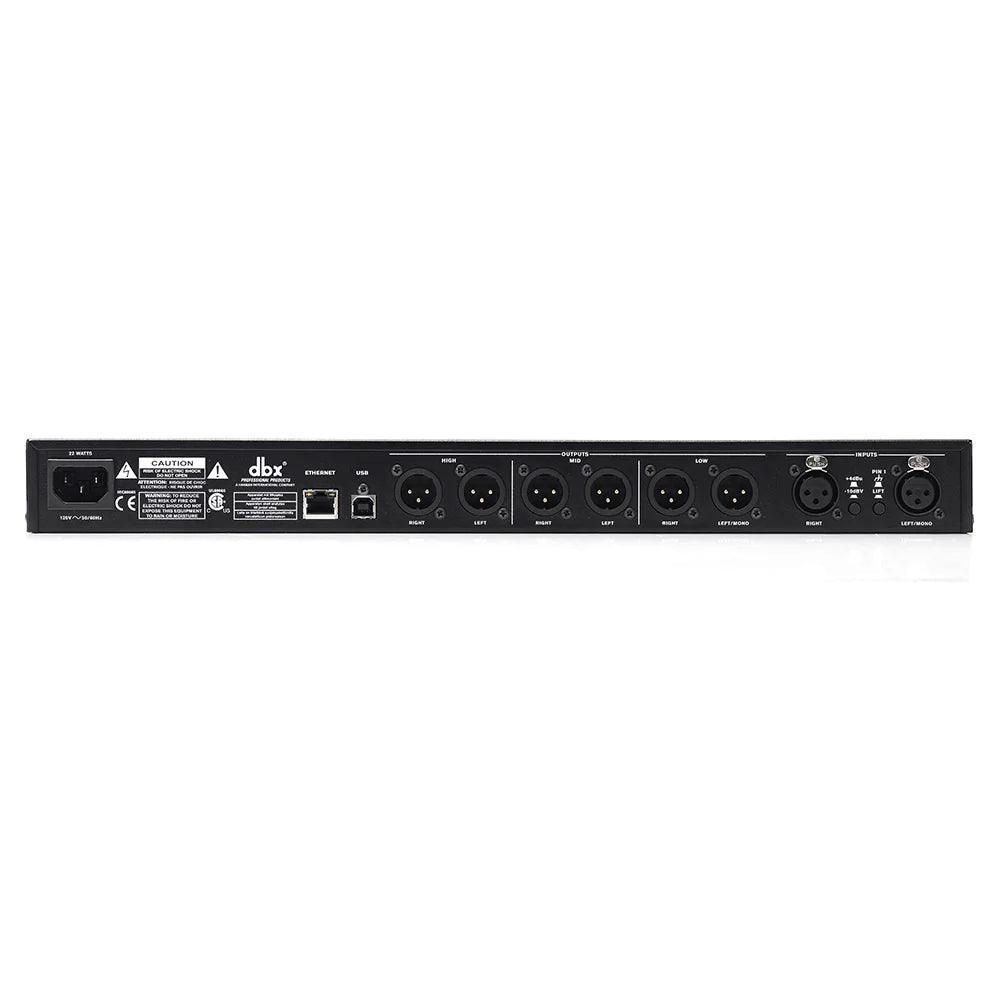

| Output | (6) Line Outputs |
| Output Connectors | Male XLR |
| Output Type | Electronically balanced, RF filtered |
| Output Impedance | 120 Ω |
| Max Output | +20dBu |
| A/D Dynamic Range | 112 dB A-weighted, 110 dB unweighted |
| Type IV Dynamic Range | 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW |
| Input Delay Length | 100ms |
| Alignment Delay | 10ms per channel (60ms total) |
| Sample Rate | 48kHz |
| Dynamic Range | >110 dB A-weighted, >107dB unweighted |
| THD+Noise | 0.003% typical at +4dBu, 1kHz, 0dB input gain |
| Frequency Response | 20Hz – 20kHz, +/- 0.5dB |
| Interchannel Crosstalk | < -110 dB, -120dB typical (input-to-output: < -100 dB) |
| Operating Voltage | 100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz |
| Power Consumption | 22 W |
| Unit Weight | 5.25 lbs. (2.4 kg) |
| Shipping Weight | 6.75 lbs. (3.1 kg) |
| Dimensions | 1.75” (H) x 5.75” (D) x 19” (W), 4.4cm (H) x 14.6cm (D) x 48.26cm (W) |
| D/A Dynamic Range | 112 dB A-weighted, 110dB unweighted |
