Features

  • Stereo 2/3-Way, Mono 4-Way
  • Subwoofer Output
  • Linkwitz-Riley Filters
  • Range Switch (x10)
  • XLR Connectors

Description

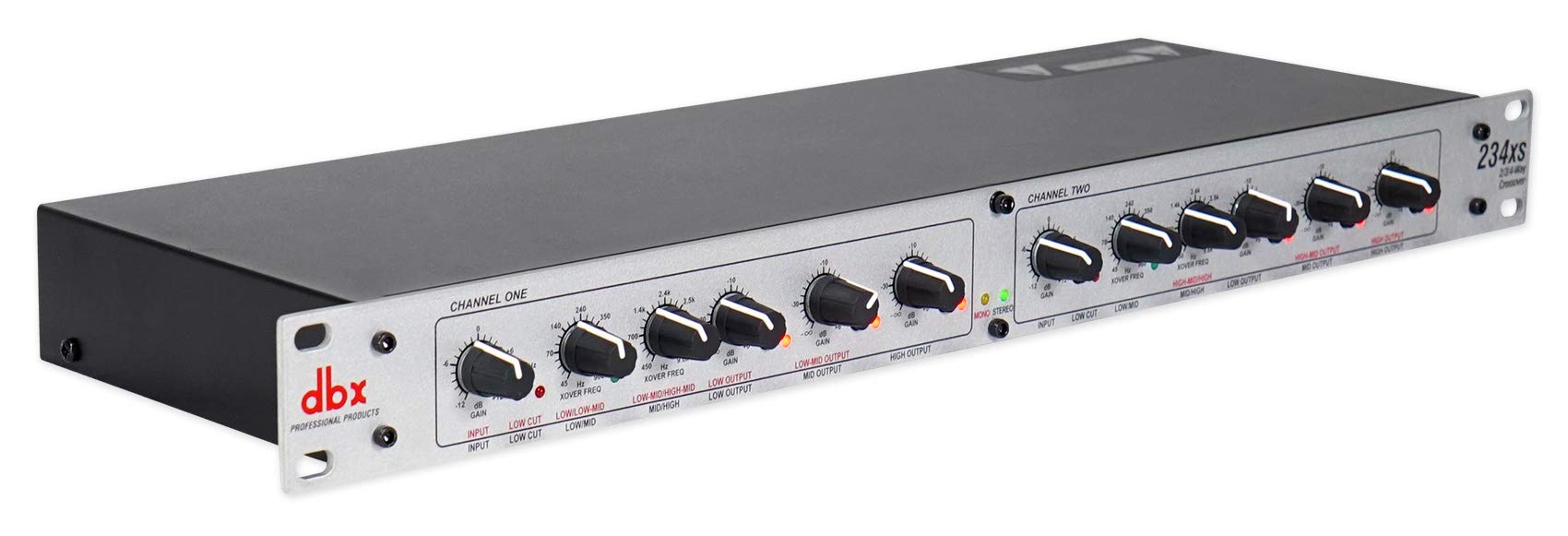

The 234xs from dbx is a dual channel, stereo 2/3-way or mono 4-way crossover. A crossover is essential for efficient PA operation because it filters the full band input signal into specific frequencies that match a speaker's optimum frequency-reproduction range. This leaves the amplifier free to use its full power on the usable signal, eliminating distortion and delivering clear sound.

The unit features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Quality components and meticulous attention to detail offers exceptional sound and rugged reliability, while exuding great precision from the solid "click" controls to the high quality XLR inputs and outputs.

Specification

Filter Type
Linkwitz-Riley, 24 dB/octave, state-variable
Operating Modes
Stereo 2/3-way, switchable to mono 4-way
Crossover Frequencies
Stereo Mode - Low/High: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Stereo Mode - Low/Mid: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Stereo Mode - Mid/High: 450Hz to 9.6kHz
Mono Mode - Low/Mid: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Mono Mode - Mid/High: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Mono Mode - High-Mid/High: 450Hz to 9.6kHz
Inputs
2 x XLR (pin 2 hot)
Input Impedance
50kΩ balanced, 25kΩ unbalanced
Maximum Input Level
>+21dBu balanced or unbalanced
Outputs
6 x XLR (pin 2 hot)
Output Impedance
60Ω balanced, 30Ω unbalanced
Maximum Output Level
>+20dBu balanced/unbalanced into 600Ω or greater
Frequency Response
FR: <3Hz to >90kHz, +0/-3.0dB
Bandwidth: 20Hz to 20kHz, +0/-0.5dB
Dynamic Range
>106dB unweighted, any output
Noise
SNR ref: +4dBu, 22kHz measurement bandwidth
Stereo Mode:
>94dB (low output)
>93dB (mid output)
>90dB (high output)
Mono Mode:
>94dB (low output)
>94dB (low/mid output)
>92dB (high/mid output)
>88dB (high output)
THD + N
<0.004% @ +4dBu, 1kHz
<0.04% @ +20dBu, 1kHz
Crosstalk
<-80dB, 20Hz to 20kHz
CMRR
>40dB, typically >55dB @ 1kHz

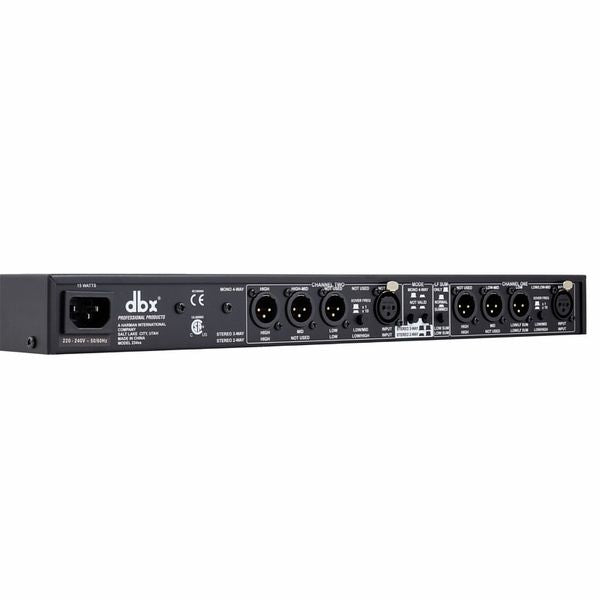

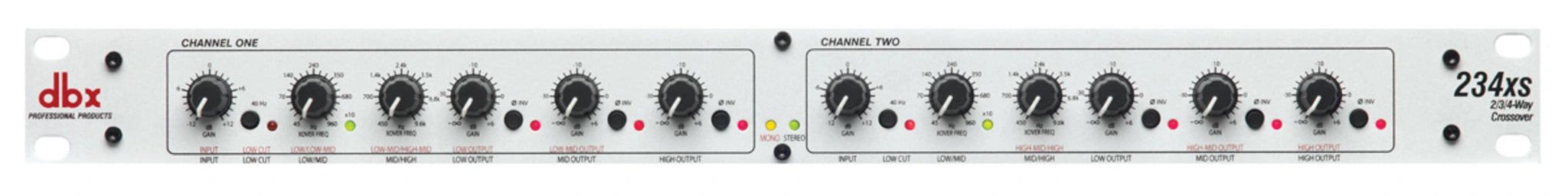

Switches
Low Cut (front panel)
Phase Invert (front panel)
x10 (rear panel)
Mode (rear panel)
LF sum (rear panel)
Indicators
Stereo Operation
Mono Operation
Low Cut
x10
Phase Invert
Operating Temperature
32°F to 113°F (0°C to 45°C)
Power Requirements
100VAC~50/60Hz, 120VAC~60Hz
15W power consumption
