Biamp P60DTW Pendant Loudspeaker 1x6.5" 70 - 100V / 60W 16 ohms / 120W White
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Biamp P60DTW Pendant Loudspeaker 1x6.5" 70 - 100V / 60W 16 ohms / 120W White
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 321.5\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Note: This is a B2B Product
-Prices are indicative and discounts available based on quantities
-Design services available for these systems. Please contact our team for support on WhatsApp, Call Us or Email Us.
FEATURES
- Installer-friendly end cap with cut-out slot and integrated magnetic closure; hides the tap selector and all cable connections
- Two tooless Gripple® cable fasteners are provided for a safe, secure, and fast installation
- Euroblock connector with permanent pass-through
- Tap switch allows for 70V/100V or 16Ω low impedance operation
- Tuned bass reflex port for optimized low frequency performance
- Loudspeaker overload protection for 24/7 failsafe operation
- ETL listed to conform with UL Std 1480; Certified to CSA C22.2#62368-1
DESCRIPTION

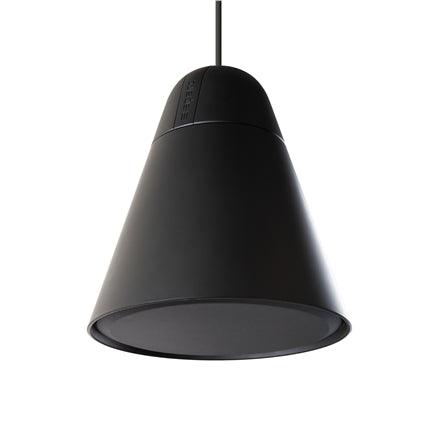

The Desono P60DT two-way, 6.5" pendant loudspeaker is intended for full range music reproduction in distributed audio applications. It delivers high intelligibility coupled with a wide coverage area, allowing system designers to use fewer speakers while maintaining acceptable levels of speech intelligibility. Available in black or white, the P60DT utilizes a 5-position switchable transformer ranging from 3.75W to 60W with low-impedance bypass for constantvoltage operation, making it an excellent choice for large areas of BGM. The Gripple cable fasteners, Euroblock connector, and 70V/100V tap switch can be hidden after installation by the innovatively designed end cap. The Desono P60DT is an ideal choice for indoor distributed audio applications that demand superior speech intelligibility and full range music reproduction.
SPECIFICATIONS
| Operating Mode | Passive | ||
| Operating Environment | Indoor | ||
| Operating Range (-10dB) | 75 Hz to 22 kHz | ||
| Nominal Beamwidth (H x V) | 120° conical | ||
| Transducers | LF 1 x 6.5" (165 mm) coated paper cone HF 1 x 1" (25 mm) soft dome |
||
| Continuous Power Handling @ Nominal Impedance | 31V | 60W @ 16W (240W peak) | |
| Nominal Sensitivity @ 1m | @ 1W 89 dB |
@ 2.83V 86 dB |
|
| Nominal Maximum SPL @ 1m | Peak 113 dB |
Continuous 107 dB |
|
| Transformer | 70V: 60W, 30W, 15W, 7.5W, 3.75W 100V: 60W, 30W, 15W, 7.5W |
||
| Protection | Self-resetting loudspeaker protection | ||
| Recommended Accessories | 75 Hz, 12dB/Oct High Pass | ||
| Recommended Amplifiers | 60W - 120W @ 16W (31V - 44V) | ||
| PHYSICAL | |||
| Input Connection | 4-way Euroblock connector with permanent pass-through | ||
| Controls | Power tap / low impedance selector switch | ||
| Mounting Provisions | Two 5m (16 ft) wire suspension cables (one as primary support, one as a safety cable), of high tensile galvanized steel wire rope with integrated spring clips for attaching the cable to the bracket and Gripple cable fasteners. | ||
| Compliance | ETL listed to comply with UL Std 1480, Certified to CSA C22.2#62368-1 Suspension system and Gripple cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81 |
||
| Dimensions H x Dia. | 10.4" x 10.9" (264 mm x 276 mm) | ||
| Weight | 8.5 lbs (3.9 kg) | ||
| Finish | Refer to the Technical Drawings (page 2) | ||
| Accessories (included) | Two wire suspension cables; Two Gripple cable fasteners; End cap and cable cover | ||
| OPTIONS | |||
| Accessories | MC-PHK16-12PK: Pendant Hang Kit with (12) 5m (16 ft) lengths of Magic Cable and connectors to suspend snap- hook-mounted pendant loudspeakers, black or white | ||
