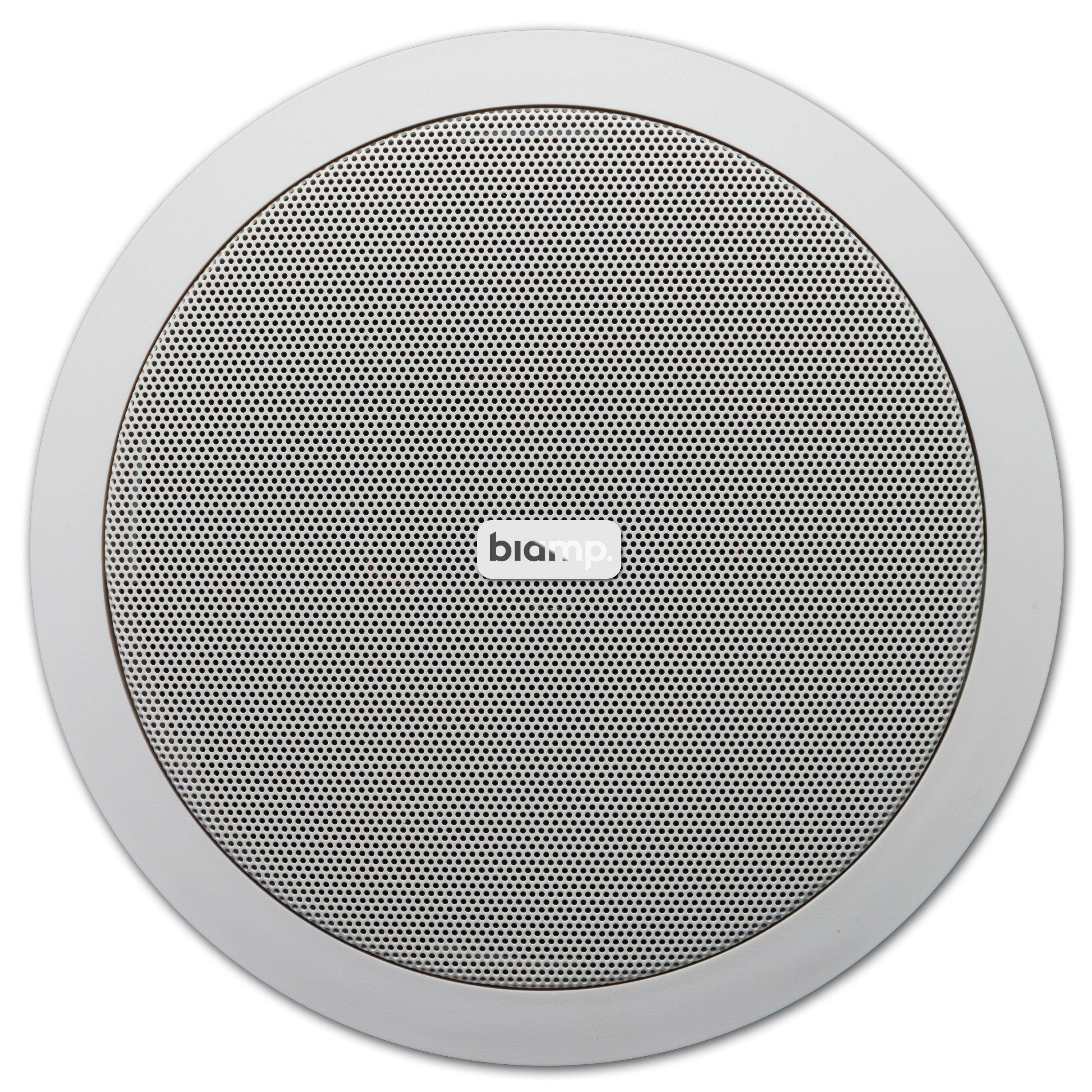

Biamp CM6T Speaker Ceiling 1x6.5" 70 - 100V/6W, 16 ohms / 60W White
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Biamp CM6T Speaker Ceiling 1x6.5" 70 - 100V/6W, 16 ohms / 60W White
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 59.0\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Note: This is a B2B Product
-Prices are indicative and discounts available based on quantities
-Design services available for these systems. Please contact our team for support on WhatsApp, Call Us or Email Us.
DESCRIPTION
The CM6T is a two-way low impedance or 100 volt loudspeaker suitable for the distribution of microphone calls and background music. In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. For 100 volt use, the CM6T is equipped with a highquality 6 watt 100 volt transformer with several power tappings (6 - 3 – 1.5 watts). CM6T is easy to install, due to its simple quick mounting system with only 3 screws. This loudspeaker is now updated with a new Quick Fix connector and transformer tapping sticker for an even faster and easier installation. Versatile for almost every market around the globe due to the addition of the 70 / 100 volt connection, the CM series is bound to stay the standard installer’s choice in the fixed install market. The housing is made of high quality ABS. The 6 ½” woofer is made of special enforced polypropylene what results in a very low distortion. To complete the sound, a quality 1” tweeter has been integrated. The grille is made of aluminium what makes CM6T humidity proof and suited for bathrooms, kitchens... The CM6T loudspeakers can be painted in any colour
SPECIFICATIONS
| outside diameter in mm | 205 |
| cutout in mm | 186 |
| loudspeaker system | 2-way |
| woofer cone material | polypropylene |
| mounting system | 3 screws |
| 100V transformer power taps in watts | 6 - 3 - 1.5 |
| impedance in ohms | 16 |
| low impedance RMS power in watts | 30 |
| max SPL 1m in dB | 105 |
| main construction material | ABS plastic |
| IP rating | 54 |
| applicable in 100V | yes |
| closest RAL colour (subject to deviations) | RAL9010 (W) / RAL9011 (BL) |
| depth in mm | 75 |
| installation grip range in mm | 2 - 25 |
| woofer size in inch | 6.5 |
| tweeter size in inch | 1 inch |
| colour | white |
| 70V transformer power taps in watts | 6 - 3 - 1.5 - 0.75 |
| low impedance dynamic power in watts | 60 |
| SPL 1W/1m in dB | 87 |
| frequency response in Hz | 60 - 20K |
| grille main material | aluminium |
| applicable low impedance | yes |
| Vertical dispersion angle 1000 Hz | 180° |
| Net weight product in kg | 1.40 |
