Description

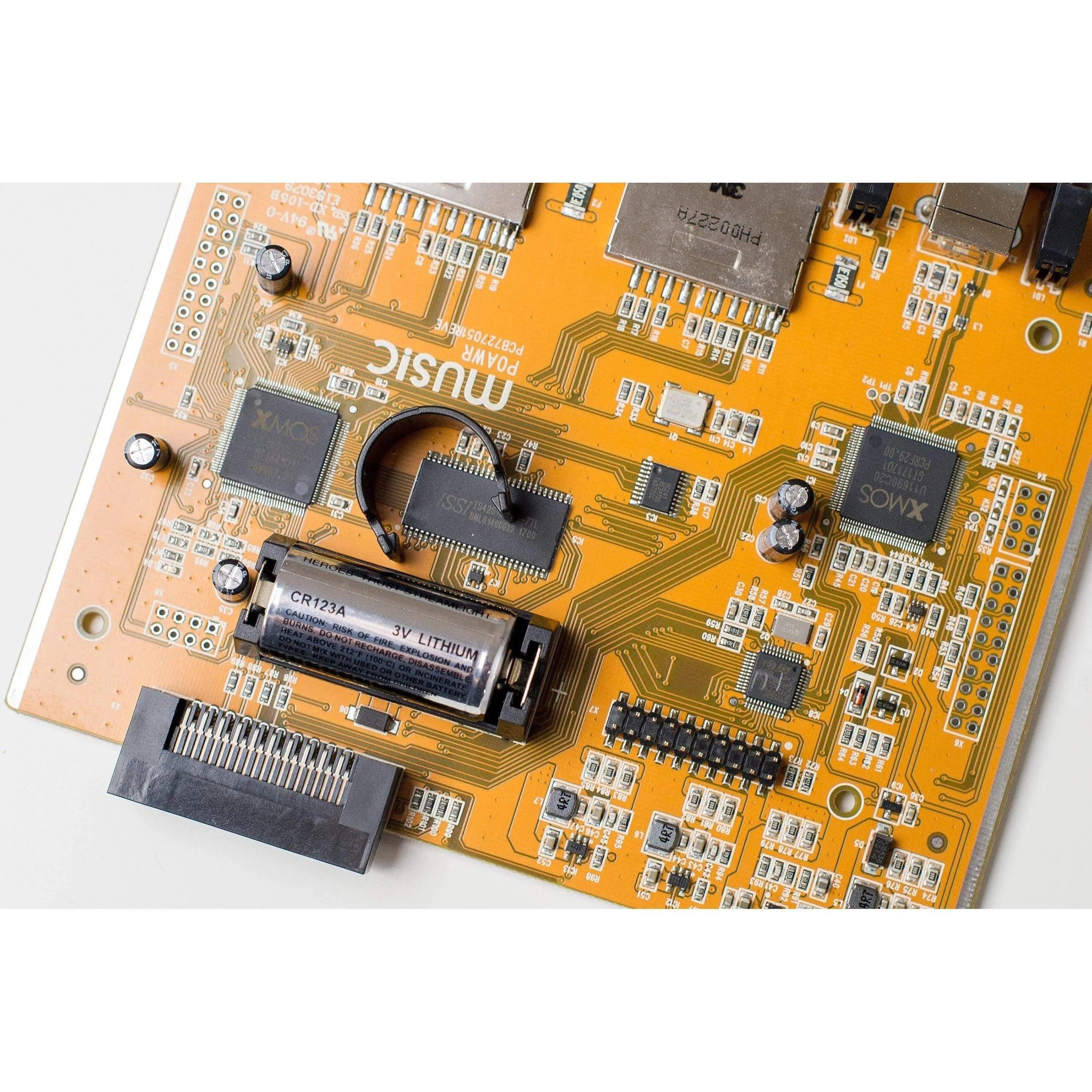

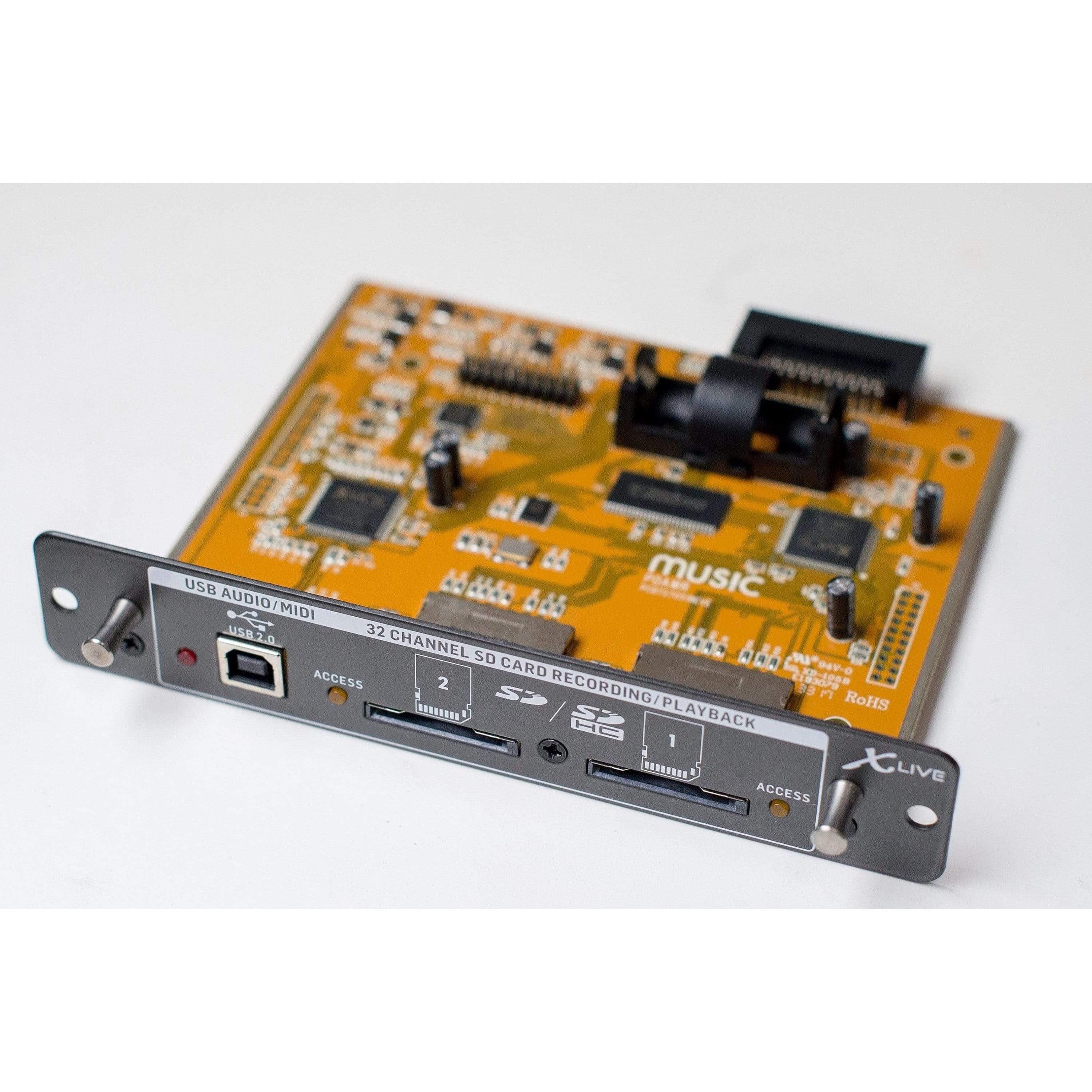

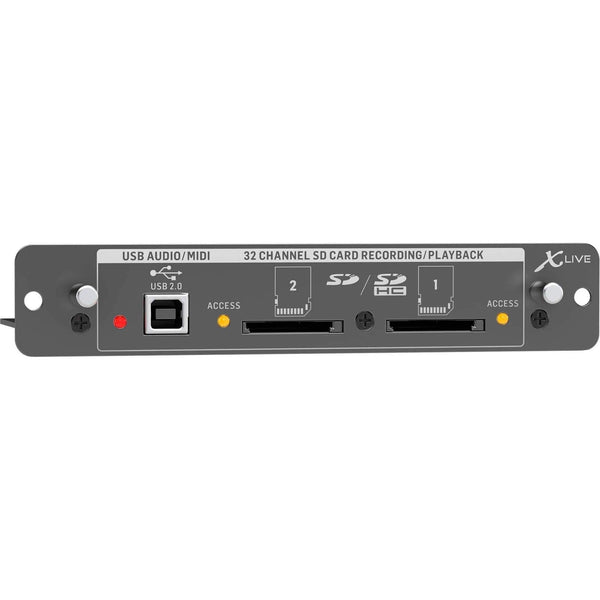

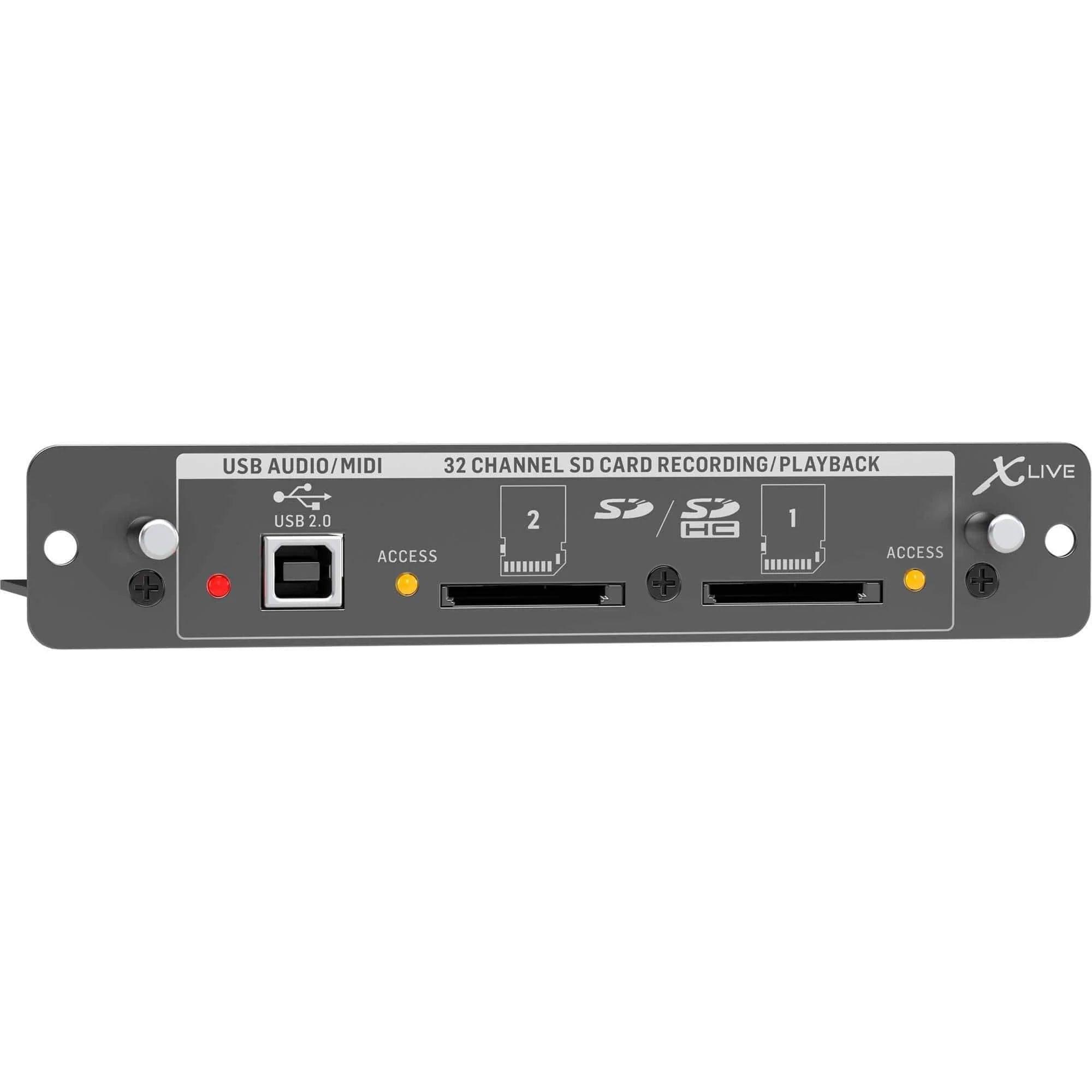

The X-LIVE interface card expands on the already stellar performance of the X-USB card that has been standard in X32 consoles for years. The same 32-channel bi-directional audio I/O via USB 2.0 is available, providing 32 channels for recording and playback, plus remote operation of your DAW via HUI/Mackie Control emulation. The addition of dual SD/SDHC slots provides independent recording and playback of up to 32 channels of uncompressed WAV files inconsistent sessions up to the maximum capacity of the SD cards. Multi-channel recording without a laptop, as well as virtual sound checks, live backing-track support, accurate marker handling and manipulation, and full remote operation from PC, Android* or iPad* apps and X-TOUCH control surfaces. All of this barely begins to scratch the surface of what X-LIVE can bring to your X32.

X-LIVE Makes Multi-Tracking a Breeze
The X32’s recording capability just got even more robust, thanks to the new X-LIVE Expansion Card and USB Audio/ MIDI Interface. Whether you're multitracking your live performances directly to a PC/Mac, or to the flash media in your console, X-LIVE makes it easier than ever. Equipped with dual SD/SDHC-card slots, X-LIVE provides uncompressed recording and playback of up to 64 GB of memory, enough to capture a 3 hour and 20 minute continuous 32-track session – all of which can be done without ever leaving the X32 environment. Just think about it, no external wiring or computer issues – everything you need is in a single location. And X-LIVE is equally at home in either the recording studio or the performance venue.

Independent USB & SD Operation

The X-LIVE USB and SD interfaces can be operated simultaneously and independently. For example, you may want to play back your recorded session from an SD card and record the tracks via USB into your favorite DAW for post-processing. Or, you might need to prepare live backing tracks in your DAW and then transfer them to an SD card in real time, while setting performance markers on-the-fly. You can even record using both the USB and SD simultaneously for redundancy. Best of all, these operations can be performed without routing tracks through your console channels, leaving the X32 completely free to craft the perfect FOH mix.

Features

• 32-channel live recording and playback on dual SD/SDHC cards

• Up to 3 hours of 48 kHz/32-bit PCM recording of 32 channels in one session, stored as uncompressed WAV files

• 32-channel, bi-directional USB 2.0 audio/MIDI interface for studio and live recording

• Independent operation of SD cards and USB recording / playback

• Remote control via PC, Android or iPad apps, assignable controls or compatible hardware control surfaces, such as the Behringer X-TOUCH

• Dual SD card slots to keep virtual sound check and live performance files separately available or for extended recording time

• Unique sample-synchronized automatic spanning feature allows extending a session across both SD cards for more than 12 hours of 8-track recording time non-stop

• Instantaneous live playback with preload and markers in the console UI and remote apps

• Markers can be set on the fly for identifying song positions while recording or playing back

• All markers can be edited directly in the console GUI

• Allows employing PC "Plug Ins" for outboard effects processing via USB

• Channel routing can be stored and automated for record/playback

• Secure file handling in the event of power blackout (optional CR123A Lithium cell required)

• HUI/Mackie Control emulation for controlling of any compatible DAW software from the console surface

• Compatible with CoreAudio on Mac OSX- ultra-low latency ASIO drivers for Windows PC available

Specifications
