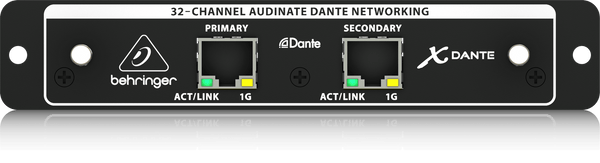

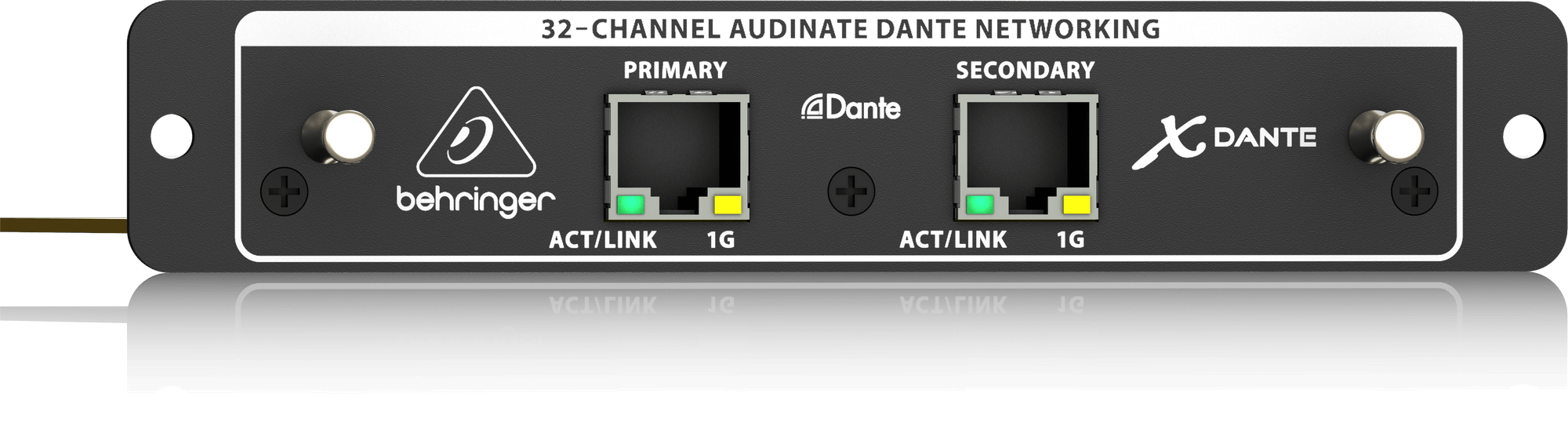

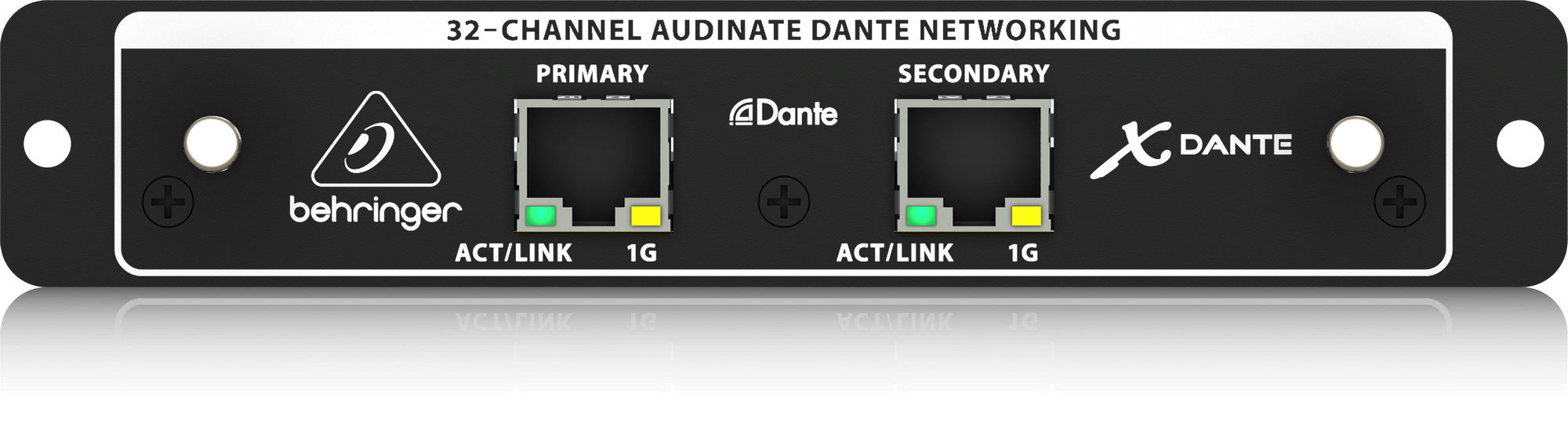

The Behringer X-Dante 32-Channel Expansion Card For X32 Digital Mixing Console is designed to expand the recording and routing capabilities of the mixer with Dante Audio over Ethernet systems. The card plugs into the expansion port on the back of the mixer and provides 32 simultaneous channels of low-latency sample-accurate bi-directional audio to 100 MBit/s or Gigabit network infrastructures with DSCP-based QoS.
The card can transfer the signal at 24-bit 48 kHz resolution and allows for audio with mixed bit and sample rates to simultaneously coexist on the network. The secondary Ethernet port connection can be set up for redundant audio networking.
Behringer XDANTE Spec:-
|I/O||32 bi-directional channels of audio over Dante
1x primary Ethernet jack
1x secondary Ethernet jack
|Throughput||100 MBit/s or Gigabit network infrastructure with DSCP-based QoS|
|Resolution||24-bit at 48 kHz|
