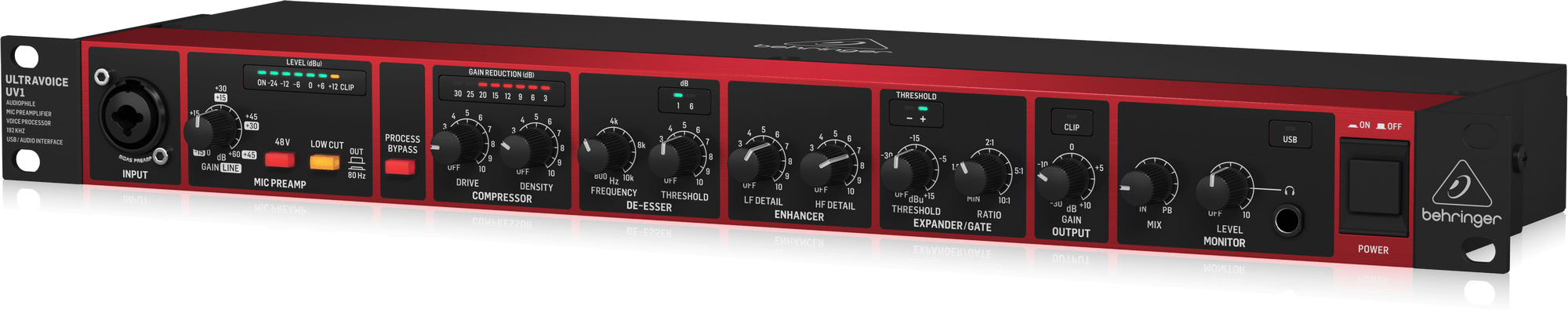

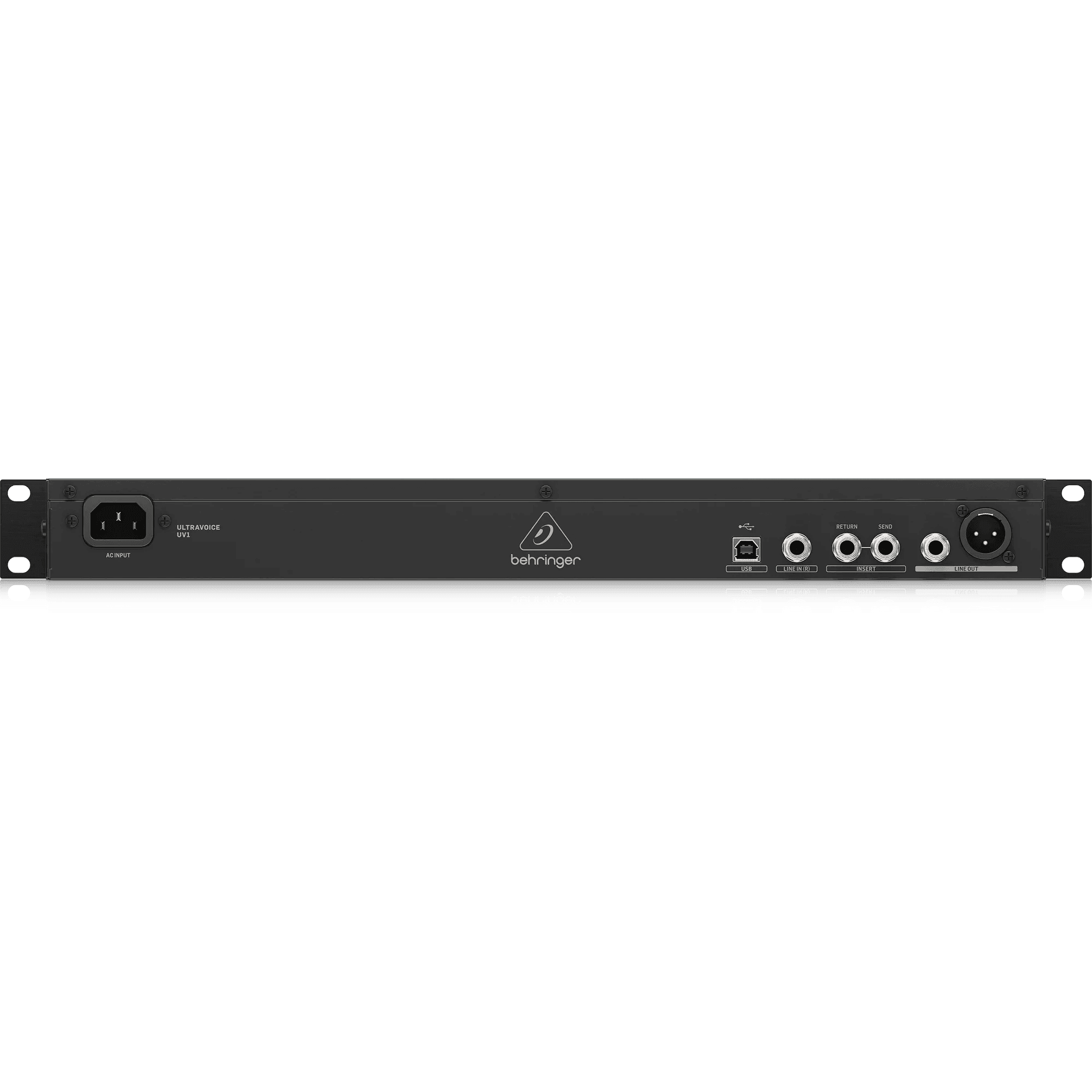

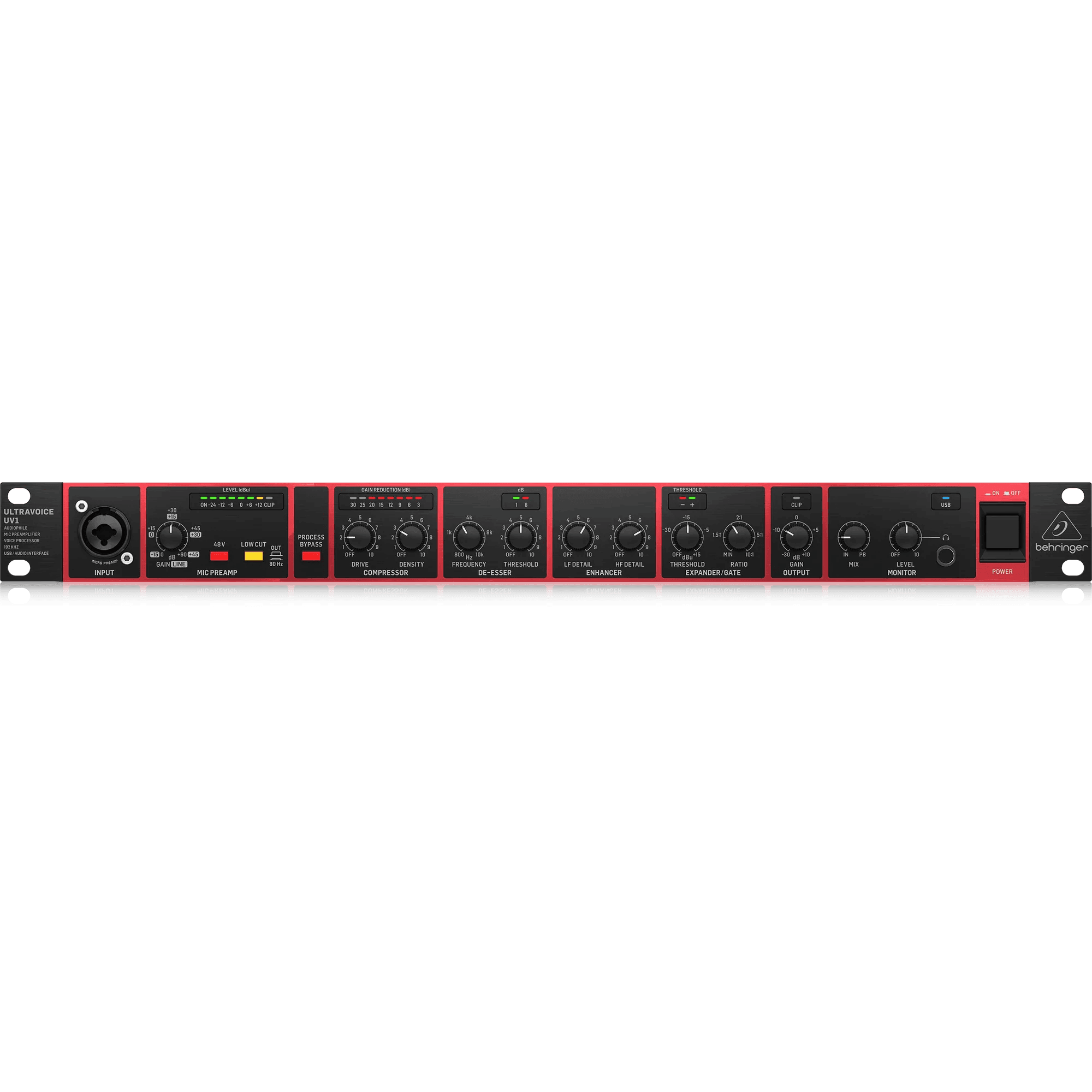

Behringer Ultravoice UV1 Microphone Preamp
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 130.0\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- Pristine Midas-designed preamplifier for all microphone and line-level sources
- Perfectly matches your studio, live and pro recording environment
- High-quality mic processor allows you to optimize your recordings
- Audiophile 192 kHz USB audio interface to connect directly to your computer
DESCRIPTION
When it comes to vocals, sound engineers become critical and often prefer a channel strip over a mixing console because of its outstanding sound quality and flexibility. The ULTRAVOICE UV1 is a full-featured channel strip with high-end microphone preamplifier, versatile sound processing features, and the free choice to play out the processed sound via balanced analog outputs or pass it on to the internal USB interface.
SPECIFICATIONS
|
Inputs |
|
|
Mic input |
Discrete mic preamp Type: Balanced XLR/TRS combo connector Impedance: 4 kΩ Max input level: +17 dBu Equivalent input noise (EIN): -126 dBu, 20 Hz - 20 kHz, 150 Ω |
|
Line in |
¼" TRS, balanced Impedance: 10 kΩ unbalanced, 20 kΩ balanced Max input level: 30 dBu
|
|
Insert return |
¼" TRS, balanced Impedance: 5 kΩ Max input level: +21 dBu |
|
Outputs |
|
|
Line out |
Balanced XLR, ¼" TRS Impedance: 100 Ω unbalanced, 200 Ω balanced Max output level: +20 dBu
|
|
Insert send |
¼" TRS, balanced Impedance: 100 Ω unbalanced Max output level: +20 dBu |
|
Controls |
|
|
Mic preamp |
Gain: Mic: 0 to +60 dB, line: -15 to +45 dB 48 V: +48 V phantom power, switchable Low cut: -18 dB/oct @ 80 Hz
|
|
Compressor |
Drive: Threshold, -40 dB to +20 dB Density: 1 to 75 dB/sec
|
|
De-Esser |
Frequency: 800 Hz to 10 kHz Threshold: Program-dependent Release time: Program-dependent, approx. 1 ms/dB |
|
Enhancer |
LF/HF detail: Min to max boost (0 dB to +12 dB) |
|
Expander/Gate |
Threshold: Off to +15 dB Ratio: 1:1 to 10:1 |
|
Output |
Output gain: -30 to +10 dB |
|
Monitor |
Mix: Blend direct signal and playback Level: -∞ to +6 dB |
|
System |
|
|
Frequency response |
<10 Hz to 80 kHz (0/-3 dB) |
|
Dynamic range |
110 dB, A-weighted |
|
USB |
|
|
Type |
USB 2.0, type B |
|
Interface |
2 in / 2 out |
|
Converter |
24-bit |
|
Sample rates |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
|
Supported operating systems |
Windows 10 / Mac OS X 10.4 or higher |
|
Drivers |
Windows driver available on behringer.com, no drivers needed for Mac |
|
Power |
|
|
Switch-mode autorange power supply |
100-240 V, ~50/60 Hz |
|
Power consumption |
15 W |
|
Mains connection |
Standard IEC connector |
|
Physical |
|
|
Standard operating temperature range |
5° C – 45° C (41° F – 113° F) |
|
Dimensions |
483 x 150 x 44 mm (19 x 5.9 x 1.7") |
|
Weight |
1.5 kg (3.3 lbs) |
