FEATURES

• 2 analog inputs and 6 analog outputs for maximum flexibility

• High-end 96 kHz converters for ultimate signal integrity and wide dynamic range (120 dB)

• Precise Dynamic EQs for level-dependent equalization and extremely musical Parametric EQs, selectable for all inputs and outputs

• Several types of EQs (LP/BP/HP) for each input and output

• "Zero"-attack Limiters on all output channels for optimal speaker protection

• Four different mono and stereo output operating modes

• Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave

• Adjustable Delays for all inputs and outputs-allow manual or automatic correction for room temperature, phase and arrival time differences

• 60 user-defined internal presets storable

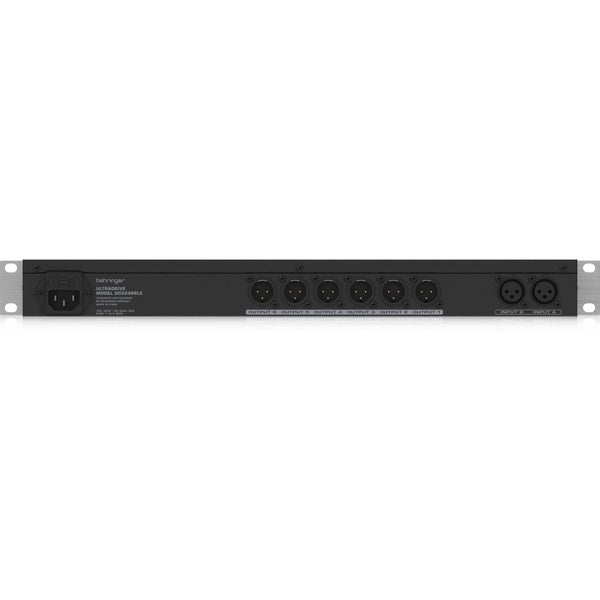

• Servo-balanced, gold-plated XLR connectors for all inputs and outputs

• Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving

• High-quality components and exceptionally rugged construction ensure long life

DESCRIPTION

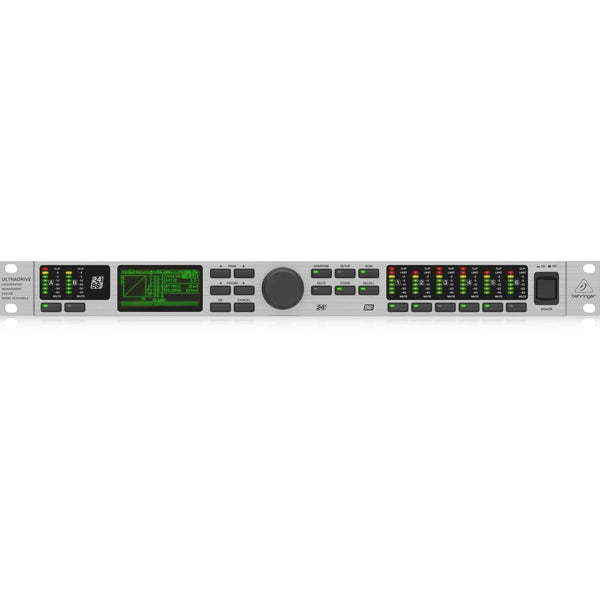

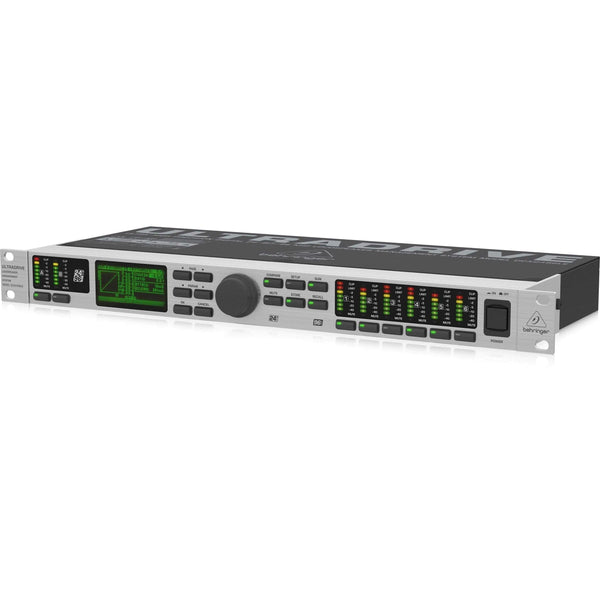

The ULTRADRIVE DCX2496LE is the answer to making your venue sound like it was tuned by the pros. Over the past years, the DCX2496 has become an industry standard and several hundred thousand units have been employed in high-end touring as well as install applications. The new DCX2496LE version offers the same impeccable audio performance as the original DCX2496, but with reduced functionality as many customers do not require the digital inputs and outputs of the standard version. The DCX2496LE is the perfect way to manage a multi-speaker sound system in any sized venue, from cinema to sanctuary to the concert hall. Featuring 2 inputs, 6 outputs and 24-bit/96 kHz high-end AD/DA converters, this state-of-the-art processor will take your system to the next level and beyond.

SPECIFICATIONS
