FEATURES

• “Modded Out” Bass Line synthesizer featuring the most legendary modifications

• Pure analog signal path based on legendary VCO, VCF and VCA designs

• Sawtooth and square waveform VCO with transistor wave-shaping circuitry

• Amazing 4-pole low-pass resonant filter with cut-off, resonance, envelope, decay and accent controls

• Easy-to-use 16-step sequencer with 7 tracks, each with 250 user patterns

• Filter frequency fully controllable via MIDI CC

• Earth-shattering sub-harmonics oscillator with switchable output level

• Authentic analog slide circuitry with external slide control

• Slide Time control allows for variable slide time (up to 6 times longer)

• Sweep Speed switch features 3 accent speed modes (slow, norm, fast)

• Accent Sweep switch features 3 sweep combinations with high resonance mode

• Filter FM control modulates frequency of the filter from the audio output of the VCA

• Muffler circuitry features post VCA distortion with full bass response

• Dedicated Accent push button to manually activate the accent

• Soft Attack control for wide range of attack times for non-accented notes

• Normal control for wide range of decay time for non-accented notes

• Accent control for wide range of decay time for accented notes

• Filter Tracking control for filter frequency tracking of the current note

• Overdrive control adds insane spice and edge to your sounds

• Massive amount of CV and Gate in/outs for extreme creativity

• 16-voice Poly Chain allows combining multiple synthesizers for up to 16 voice polyphony

• Premium quality VRs featuring high resolution and metal shafts for long life cycle

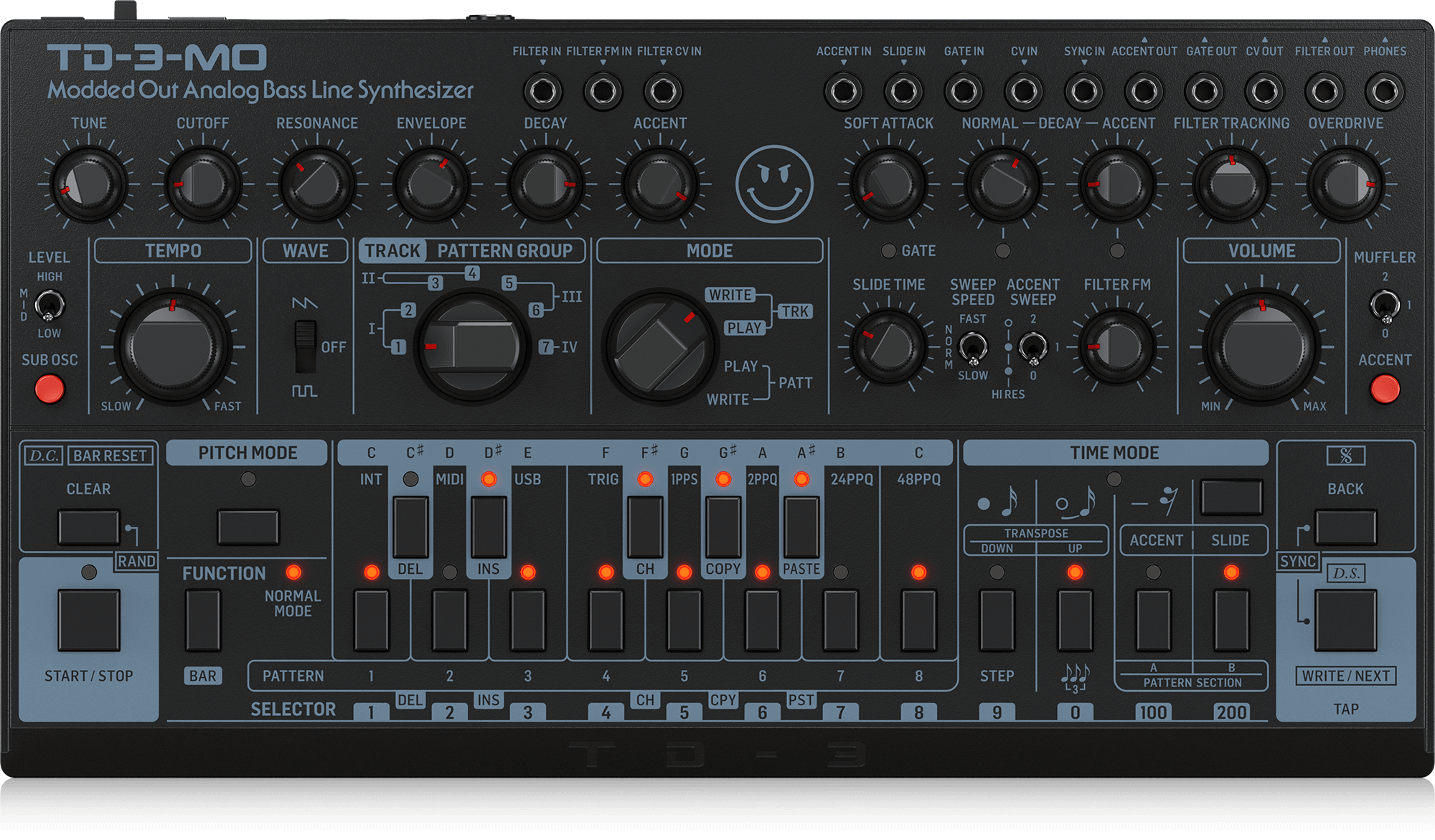

• 15 controls and 33 switches to give you direct and real-time access to all important parameters

• MIDI and USB implementation with MIDI channel and Voice Priority selection

DESCRIPTION

Pure Analog Signal Path

Great care has been taken in engineering the TD-3-MO-BK, including the true to the original VCO, VCF and VCA designs and pure analog circuitry with matched transistors. This highly-focused attention to detail is what gives TD-3-MO-BK its ultra-flexible sound shaping capability, which covers a wide spectrum for you to create some super-funky bass lines and pounding rhythms that can keep you, and the crowd, grooving all night long.

Rock Right Out of the Box!

Your TD-3-MO-BK comes ready to rock, thanks to its default signal routing that doesn’t require lifting a single patch cable to instantly create amazing sounds. The highly-intuitive layout lets you easily tap into the inspired sounds of 1980s and ’90s wave, EDM and synth-pop music tracks that made history – or to design incredibly fat and original sounds that will make you a legend in your own right!

SPECIFICATIONS
