Behringer

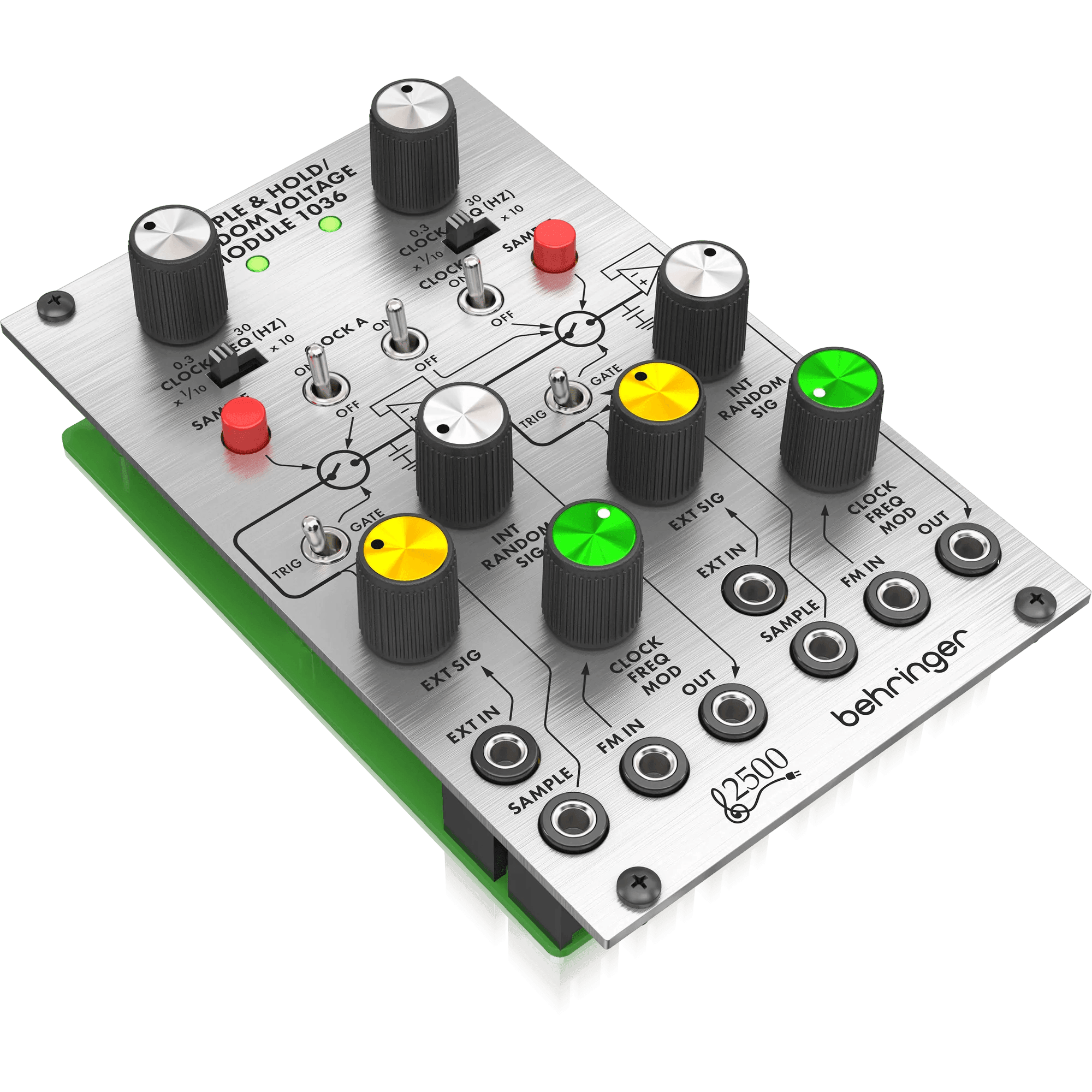

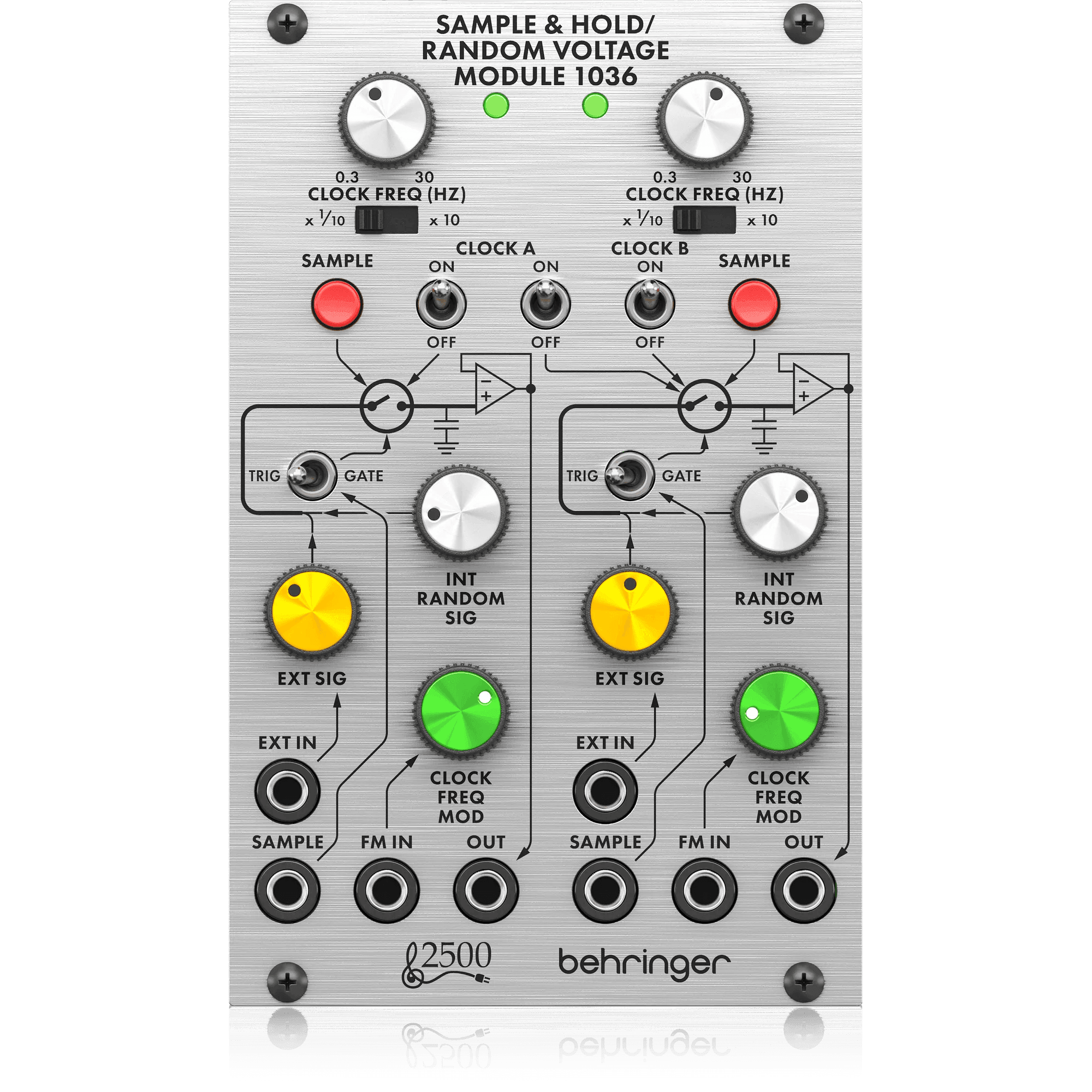

Behringer SAMPLE & HOLD / RANDOM VOLTAGE MODULE 1036
Out of stock – contact us for more information.
Secure Transactions
Warranty Coverage
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We're here to help ensure every warranty request is handled smoothly and efficiently.
Read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
Read moreTalk to a Pro
Speak to our Music & Audio Pros – the quickest way to get some info.
We're available Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppChoose options
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
-
Classic 1036 analog dual sample and hold module from the '70s
-
Authentic reproduction of the circuitry from the "2500" Series
-
Contains 2 independent sample and hold circuits, 2 random noise generators, and 2 voltage-controlled clocks
-
Produces random tone sequences, scales and arpeggios
-
Audio signal input and output for each Sample and Hold circuit with a sample command input to control the timing of samples from different sources
-
Clock Frequency control adjusts the frequency of each clock and the sampling rate
-
Manual sample control is available using momentary push buttons
-
Sampling can also be controlled externally via a trigger or gate signal using the external input connection
-
An internally generated random signal can be used as the sampled signal with an adjustable level control for each circuit
-
Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V
DESCRIPTION
The first 2500 series synth modules came out in the 70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.
SPECIFICATIONS
Inputs
|
FM in |
|
|
Type |
2 x 3.5 mm TS jacks |
|
Impedance |
50 kΩ, unbalanced |
|
CV range |
0-10 V |
|
Sample |
|
|
Type |
2 x 3.5 mm TS jacks |
|
Impedance |
10 kΩ, unbalanced |
|
Max input level |
5 V |
|
Ext in |
|
|
Type |
2 x 3.5 mm TS jacks |
|
Impedance |
25 kΩ, unbalanced |
|
Max input level |
10 V |
Outputs
|
Out |
|
|
Type |
2 x 3.5 mm TS jacks |
|
Impedance |
1 kΩ, unbalanced |
|
Max output level |
10 V |
Controls
|
Clock freq |
0.3-30 Hz |
|
Clock range |
Clock value factor of x0.1 or x10 |
|
Clock on/of |
Engage pulse generators |
|
Sample |
Generate sample command |
|
Trig/gate |
Selects sample (trig) or continues sample (gate) |
|
Int random sig |
0 to ±7 V |
|
Ext sig |
-∞ to unity gain |
|
Clock freq mod |
-∞ to unity gain |
Power
|
Power supply |
Eurorack |
|
Current draw |
40 mA (+12 V), 40 mA (-12 V) |
Physical
|
Dimensions |
43 x 81 x 129 mm (1.7 x 3.2 x 5.1") |
|
Rack units |
16 HP |
|
Weight |
0.18 kg (0.4 lbs) |
