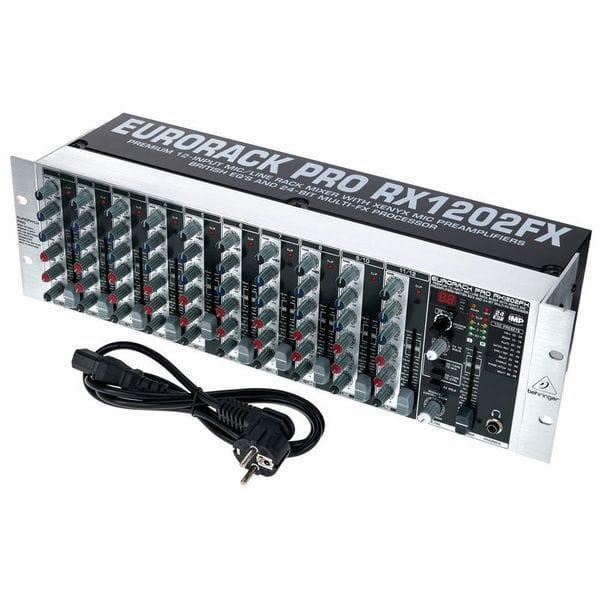

Behringer RX1202FXV2 Premium 12-Input Mic/Line Rack Mixer
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Behringer RX1202FXV2 Premium 12-Input Mic/Line Rack Mixer
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 193.25\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.

FEATURES
- Premium ultra-low noise, high headroom analog 3U rack mount mixer
- 8 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
- Neo-classic "British" 2-band EQs for warm and musical sound
- Studio-grade FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
- Switchable +48 V phantom power for condenser microphones
- 4 additional balanced high-headroom line inputs
- CD/Tape inputs assignable to Main mix or Control Room/Phones outputs
- 2 Aux sends per channel: 1 pre fader for monitoring applications, 1 post fader for internal FX or as external send
- Separate Control Room, Phones and stereo CD/tape outputs
- Balanced Main mix outputs with gold-plated XLR connectors
- Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
- "Planet Earth" switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
- Designed and engineered in Germany
DESCRIPTION
RX1202FX
The rack-mountable, 12-Input RX1202FX mixer enables you to effortlessly achieve premium-quality sound, thanks to 8 onboard studio-grade XENYX Mic Preamps, 2 stereo Line Inputs and ultra-musical “British” channel EQs. Add to this our 24-Bit Multi-FX processor with 100 awesome presets including studio-class reverbs, delays, pitch shifter and various multi-effects – and the RX1202FX becomes an incredibly-versatile mixer for your live performances. Ideally suited for musicians, houses of worship and a wide variety of business applications, the incredible RX1202FX is also perfect for sub-mixing keyboards, drums or multiple vocal mics – and is an absolute “must-have” for monitoring your multitrack recording projects!
Sonically Superior Mic Preamps
Our legendary, high headroom XENYX mic preamps have been praised by audio engineers all over the world. These state-of-the-art mic pres represent a major step in the evolution of audio technology – and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps. XENYX preamps off er a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz. Armed with these outstanding mic preamps, the RX1202FX provides such transparent, crystal-clear performance you just might think someone upgraded your mics while you weren’t looking.
Sublimely Musical British EQ
The British consoles of the 1960s and ‘70s changed the sound of rock and roll – without them the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The channel EQ on our RX1202FX mixer is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.
SPECIFICATIONS
Category | Parameter | Details |
---|---|---|
Inputs | ||
Mic Inputs | Type | XLR, electronically balanced |
Impedance | 2.6 kΩ balanced | |
Max. Input Level | +12 dBu @ +10 dB gain | |
Gain Range | +10 to +60 dB | |
Signal-to-Noise Ratio | -110 dB / -112 dB A-weighted | |
Distortion (THD + N) | 0.003%, A-weighted | |
Line Inputs | Type | 1/4" TRS connector, electronically balanced |
Impedance | 20 kΩ balanced, 10 kΩ unbalanced | |
Gain Range | -10 to +40 dB | |
Max. Input Level | +22 dBu @ 0 dB gain | |
Auxiliary Inputs | Type | RCA connectors, unbalanced |
Impedance | 20 kΩ | |
Max. Input Level | +22 dBu | |
Insert | Type | 1/4" TRS connector (tip = send, ring = return) |
Aux Return | Type | 1/4" TRS connector, balanced |
Impedance | 20 kΩ balanced, 10 kΩ unbalanced | |
Max. Input Level | +22 dBu | |
Outputs | ||
Main Out | Type | XLR connectors, balanced |
Impedance | 240 Ω balanced, 120 Ω unbalanced | |
Max. Output Level | +28 dBu balanced, +22 dBu unbalanced | |
Ctrl Out | Type | 1/4" TRS connector, impedance balanced |
Impedance | 240 Ω balanced, 120 Ω unbalanced | |
Max. Output Level | +22 dBu | |
CD/Tape Out | Type | RCA connectors, unbalanced |
Impedance | 1 kΩ | |
Max. Output Level | +22 dBu | |
Phones Out | Type | 1/4" TRS connector, stereo |
Max. Output Level | +19 dBu / 150 Ω (316 mW) | |
Aux Send | Type | 1/4" TRS connector, impedance balanced |
Impedance | 240 Ω balanced, 120 Ω unbalanced | |
Max. Output Level | +22 dBu | |
EQ | Low | ±15 dB @ 100 Hz |
High | ±15 dB @ 12 kHz | |
System Specifications | ||
Noise | Main mix @ -∞, channel fader @ -∞ | -98 dB / -101 dB A-weighted |
Main mix @ 0 dB, channel fader @ -∞ | -85 dB / -88 dB A-weighted | |
Main mix @ 0 dB, channel fader @ 0 dB | -77 dB / -80 dB A-weighted | |
Frequency Response | 20 Hz to 105 kHz, ±1 dB | |
Crosstalk | 90 dB | |
Effects Section | Converter | 24-bit Sigma-Delta |
Frequency Rate | 40 kHz | |
Presets | 100 | |
Power Supply | Type | Switch-mode autorange power supply |
Input Voltage | 100–240 V ~ 50/60 Hz | |
Power Consumption | 18 W | |
Mains Connection | Standard IEC connector | |
Physical | Dimensions (H x W x D) | 133 x 482 x 150 mm (5.2 x 19.0 x 5.9") |
Weight | 3.1 kg (6.8 lbs) |
