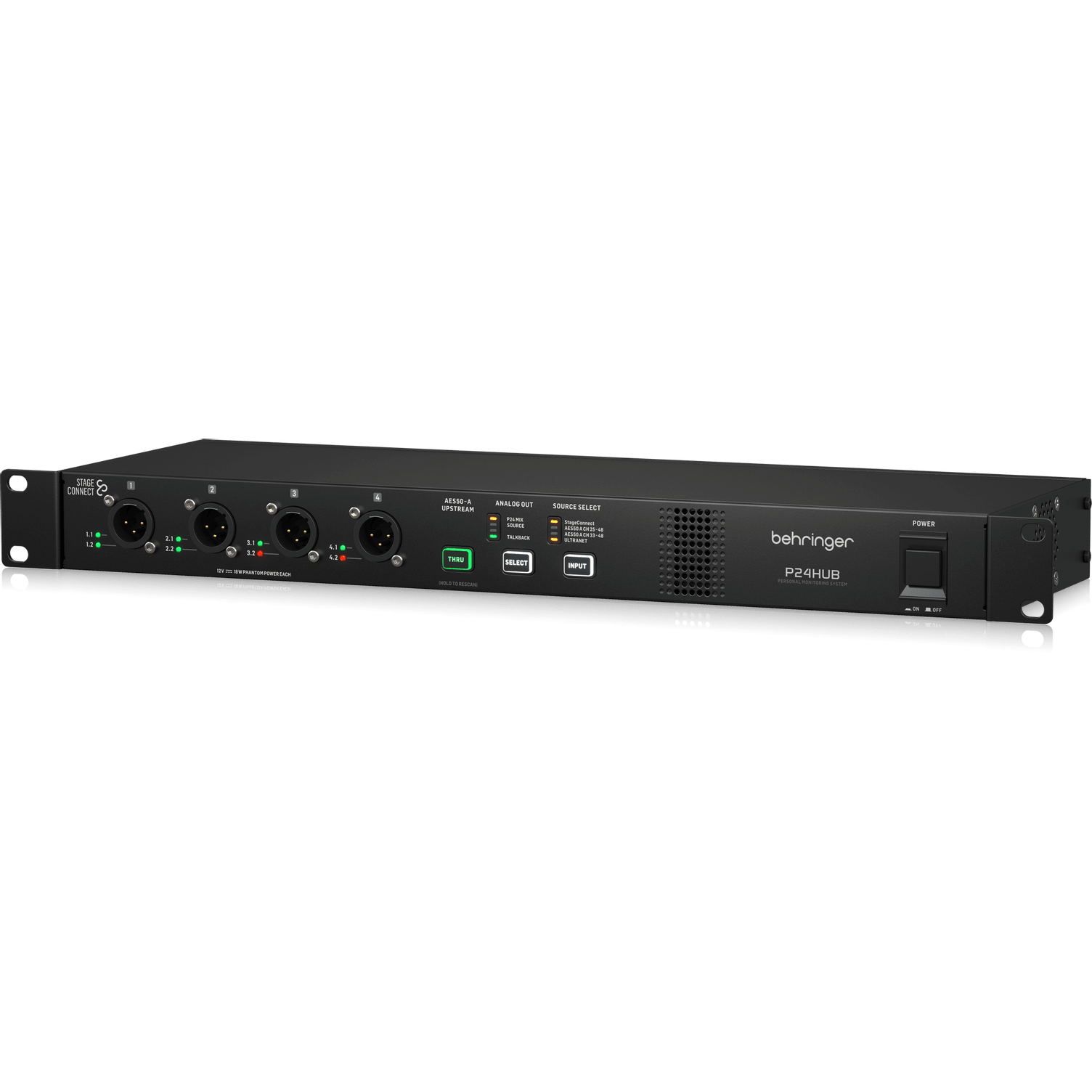

Behringer P24HUB StageConnect Hub with Bus Powering for Personal Monitor Mixers
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Behringer P24HUB StageConnect Hub with Bus Powering for Personal Monitor Mixers
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 512.25\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
-
Distribution hub with StageConnect bus powering for up to 8 personal monitoring mixers
-
Compatible with Behringer P24 personal mixers, AES50, Ultranet and Analog Connectivity
-
4 StageConnect front ports for powering 2 daisy-chained mixers each, minimizing on-stage cabling
-
16 balanced analog outputs on 1/4" TRS, for sending up to 8 personal stereo mixes to wireless IEM transmitters
-
StageConnect 26 x 6-channel audio transmission at sub-milisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz, using a standard XLR cable (DMX cable recommended)
-
StageTalk intercom system for communication between FOH, stage technician and musicians
-
Stable operation range up to 40 m via DMX type XLR cable - standard microphone cable can be used for short connections
-
AES50 In and Thru, with 48 x 48 channels on CAT5E STP cable up to 80 m
-
Ultranet Input with 16 channels on CAT5 STP cable up to 75 m
-
Ultranet In and Outputs for interfacing with various Behringer P16 personal monitoring equipment
-
Integrated sample rate conversion for compatibility with 96 kHz AES50-equipped devices, such as Midas HD consoles
-
Rugged 1U rackmount chassis for durability in portable applications
-
Integrated auto-ranging switch-mode power supply
DESCRIPTION
No matter if you're using a single P24 to provide an artist's mix in your studio recording room, or you're deploying a large setup for an orchestra pit with several daisy-chained P24HUBs-- setup and configuration is always a breeze.
The P24HUB is the obvious choice for larger setups especially in touring applications. However, several P24 personal mixers can be daisy-chained without a hub. This is ideal when supporting smaller impromptu gigs.
For the most robust performance and longest cable runs, using high-quality DMX cabling is recommended.
For short connections, standard XLR cables can be used. As there is no capacitance standard for microphone cables, range performance can vary substantially. Investing in high-quality DMX cables helps P24 perform best.
SPECIFICATIONS
| Category | Specification |
|---|---|

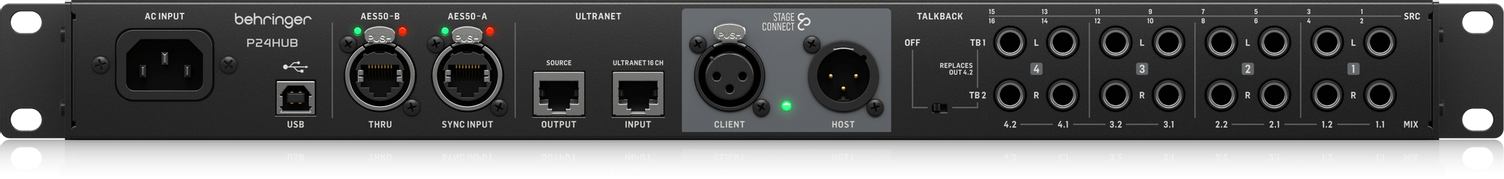

| Connections | |
| AES50 Sync HOST/Master/Thru | 2 × RJ45 |
| ULTRANET Input/Output | 2 × RJ45 |
| StageConnect HOST/Master | 1 × male |
| StageConnect CLIENT/Slave | 1 × female |
| StageConnect Remote Outputs | 4 × male |
| Analog Outputs | 16 × 1/4" TRS |
| USB | Type B |
| AES50 | |
| Audio Channels | 16 / 24 |
| Sample Rate | 44.1 / 48 kHz |
| Bit Depth | 24 bit |
| Remote Power | PoE (IEEE802.3at) |
| Latency | 146 μs at 44.1 kHz / 125 μs at 48 kHz |
| Cable Length | Up to 80 m |
| StageConnect | |
| Audio Channels | 24 |
| Sample Rate | 44.1 / 48 kHz |
| Bit Depth | 24 bit |
| Phantom Power | 12 V DC / 18 W |
| Latency | 146 μs at 44.1 kHz / 125 μs at 48 kHz |
| Cable | XLR balanced or DMX cable |
| Cable Length | Up to 40 m with 110 ohm DMX cable |
| Power | |
| Power Consumption | 125 W |
| Mains Connection | Standard IEC receptacle |
