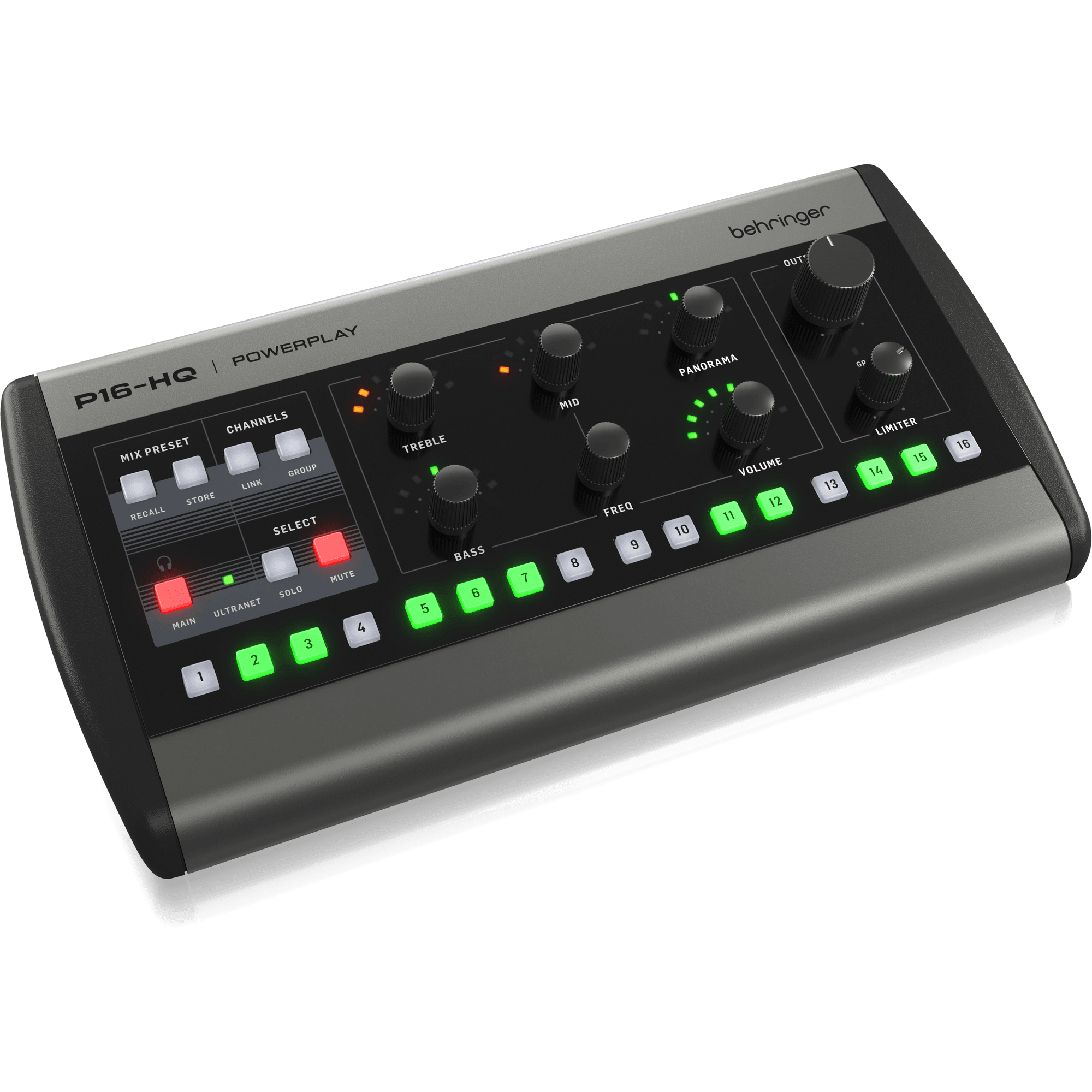

Behringer P16-HQ 16-Channel Personal Monitoring Mixer
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 189.0\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
-
Easily create highest-quality personalized monitor mixes from 16-channel input stream
-
Excellent new 114 dB D/A converter for noise free output even at high levels
-
New high-quality output amplifier stage for improved volume with low-impedance headphones and in-ears
-
Intuitive control surface with total recall and presets for custom mixes
-
16 backlit channel select buttons for immediate access
-
Level and Panorama/Balance control with LED indicators
-
3-band EQ per channel and main with adjustable mid-band frequency
-
Solo and Mute functions per channel and main
-
Output limiter for hearing protection
-
Additional mono/stereo line output for active monitor speakers
-
Single Ultranet CAT5e connection delivers power and 16 signals to personal mixers
-
For larger setups, P16-HQ can be daisy-chained or connected to P16-D hubs
-
Phantom powered via Ultranet or with external DC power supply (included)
-
Ultra-low system latency of less than 1 millisecond
-
Mounts securely on a mic stand with P16-MB (not included)
-
MIDI input allows real-time remote control from external MIDI devices
-
Fully compatible with Behringer P16-M personal mixers.
DESCRIPTION
The Behringer P16-HQ builds on the success of P16-M, an industry favorite, with its new high-quality D-A converter, output amplifier, a design refresh and more! The P16-HQ is a great and affordable way to give performers control over their own monitor mix; leaving room for engineers to create the best overall mix possible.
The P16-HQ includes a new digital-to-analog converter with a dynamic range of 114dB, coupled with a new high-quality amplifier stage providing improved performance and volume, especially with low-impedance headphones and in-ears.
SPECIFICATIONS
| Category | Specification |
|---|---|

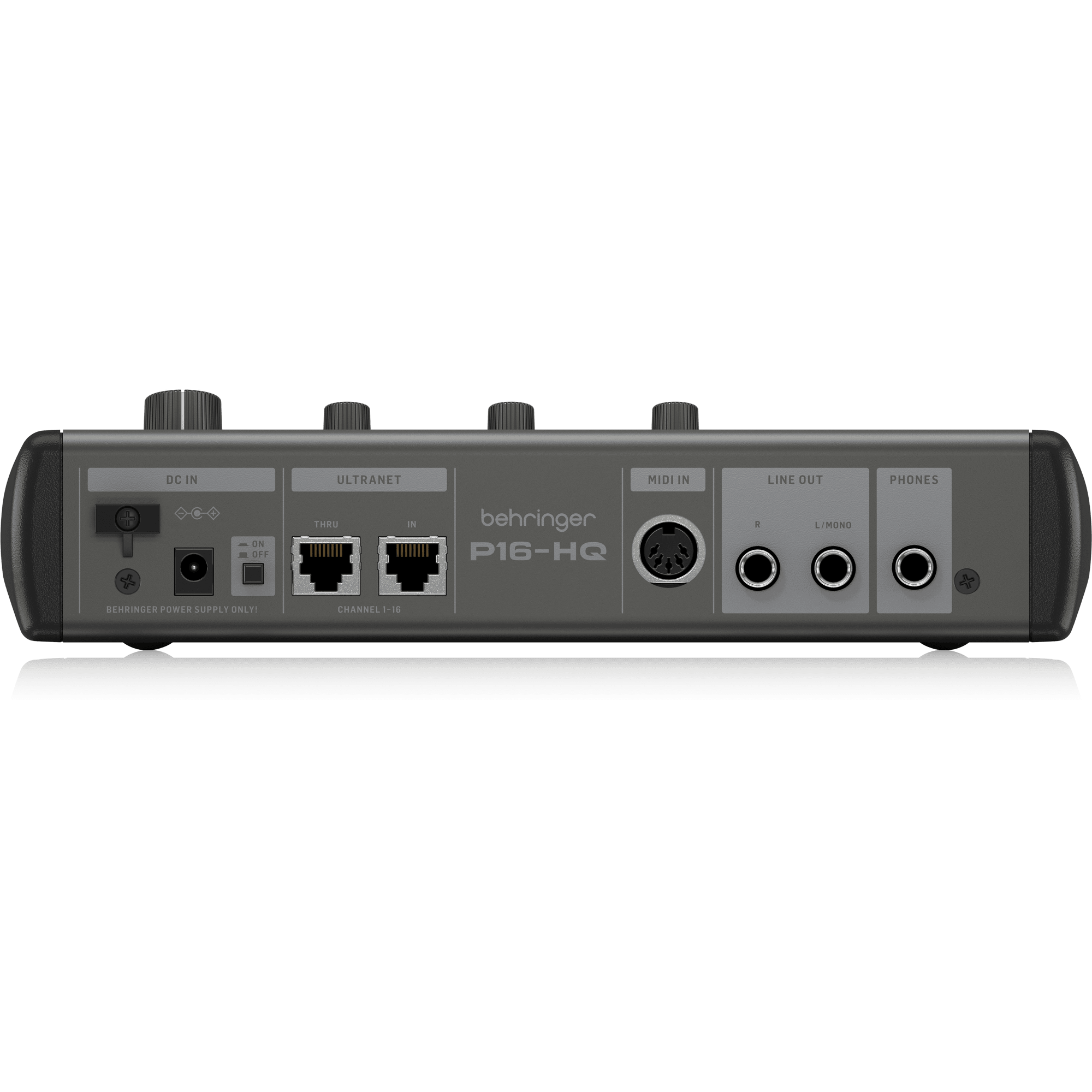

| Audio Connections | |
| Phones | 1/4" TRS, stereo |
| Line Out | 2 x 1/4" TS, unbalanced |
| Ultranet Thru / In | 2 x RJ45 |
| MIDI In | 5-pin MIDI connector |
| Performance Line Out | |
| Frequency Response | 20 Hz – 20 kHz (+0 / -0.5 dB) |
| THD+N | 0.002 % typ. |
| Residual Noise | -99 dBu unweighted / -102 dBu A-weighted |
| Crosstalk L / R | < -75 dB |
| Output Impedance | 1 kΩ |
| Max. Output Level | +12.5 dBu @ 200 kΩ load / +2.7 dBu @ 600 Ω load |
| Performance Phones Out | |
| Frequency Response | 20 Hz – 20 kHz (+0 / -0.1 dB) |
| THD+N | 0.002 % (typ.) / 0.007 % @ 350 mW output |
| Residual Noise | -94.5 dBu unweighted / -97.5 dBu A-weighted |
| Crosstalk L / R | < -90 dB |
| Max. Output Level | 50 mW @ 600 Ω load 100 mW @ 300 Ω load 400 mW @ 30 Ω load |
| Controls | |
| Equalizer | Bass: ±12 dB @ 100 Hz (shelving) Mid: ±12 dB, semi-parametric Frequency: 100 Hz – 10 kHz (adjustable) Treble: ±12 dB @ 10 kHz |
| Output | Limiter: Ratio ∞:1 Level: -20 to +15 dBu (Phones) |
