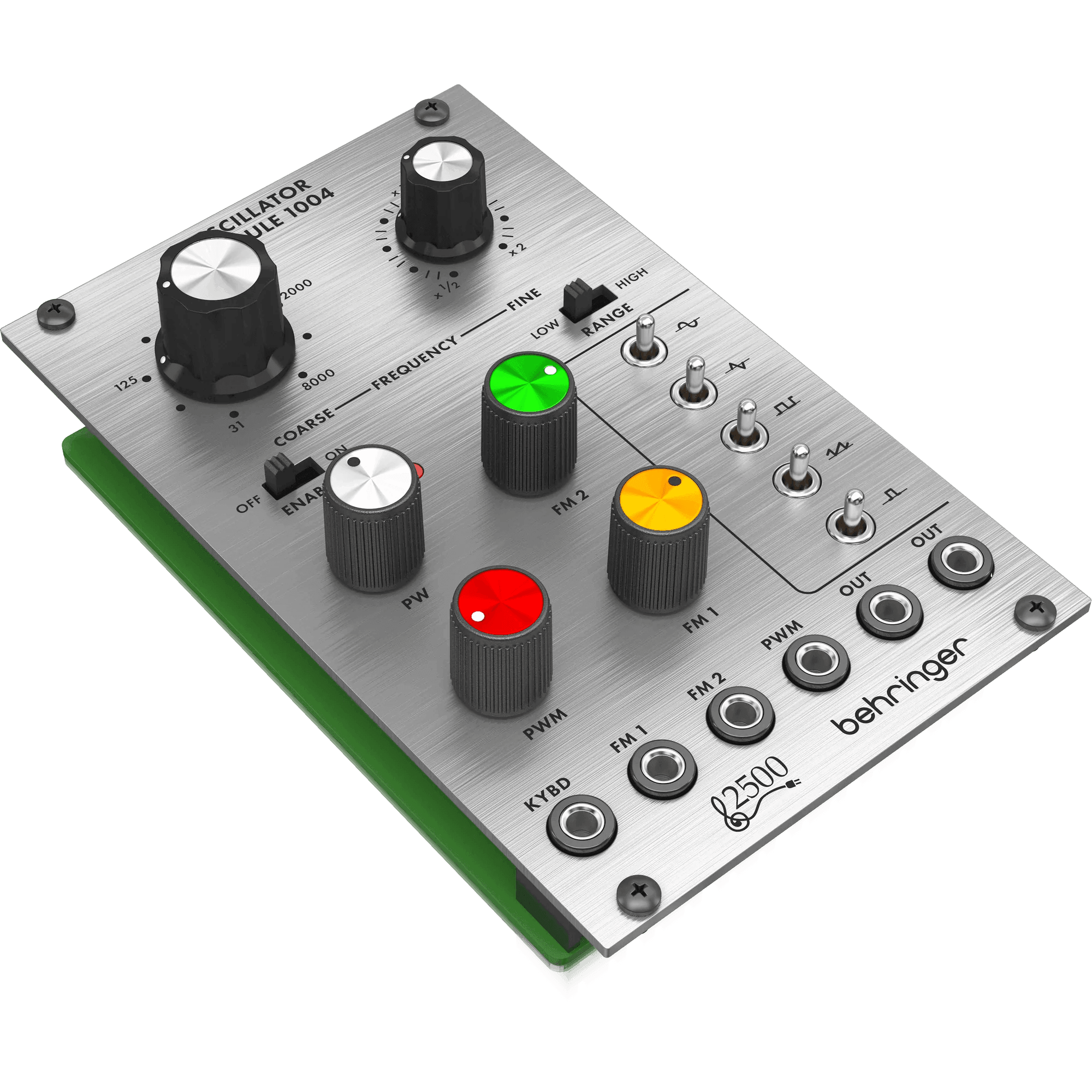

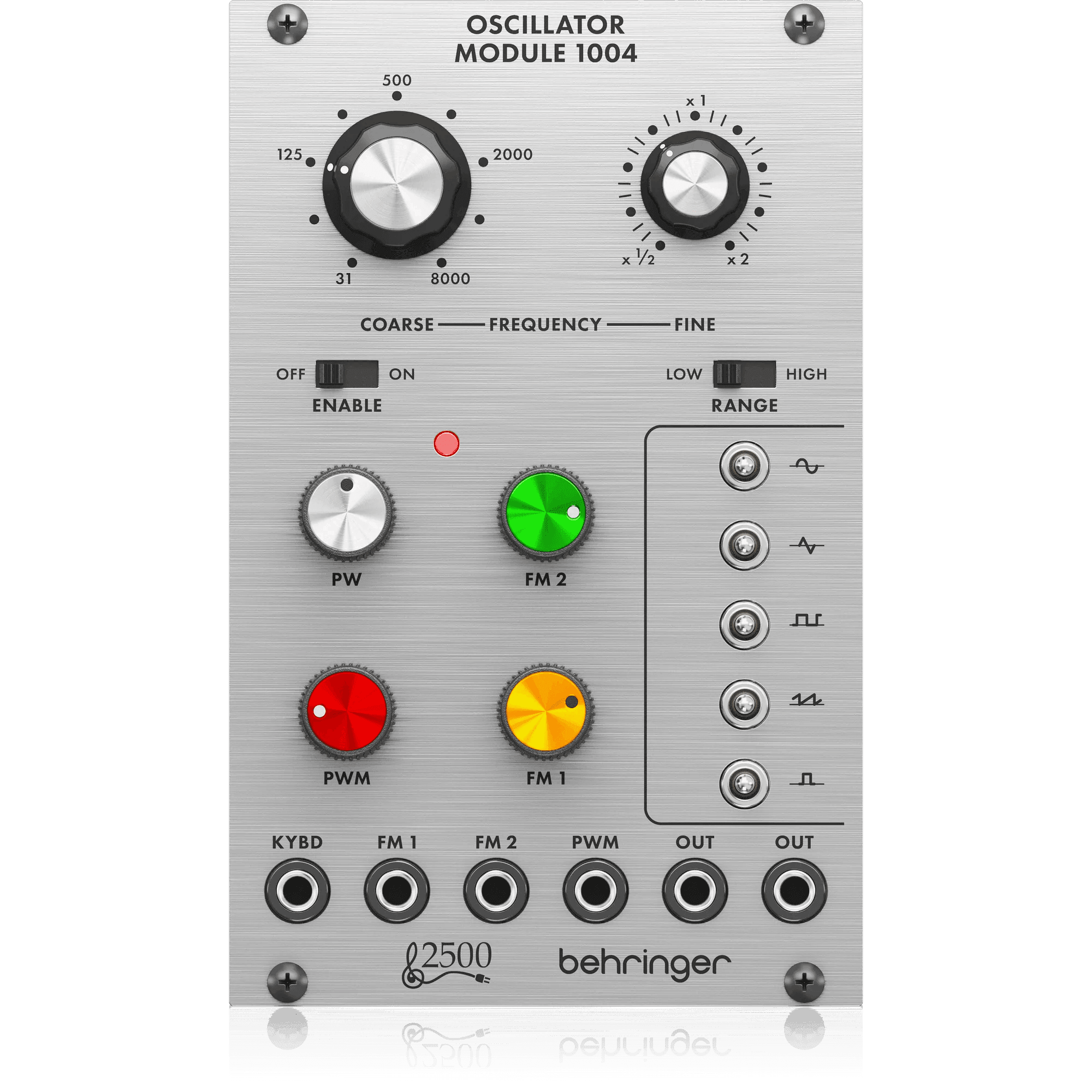

Behringer OSCILLATOR MODULE 1004
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsApp
Secure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
Choose options
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppSecure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppSecure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES-
lassic 1004 dual analog VCO module from the '70s
-
Authentic reproduction of the circuitry from the 2500 Series
-
VCO features 5 waveforms: sine, triangle, square, sawtooth and pulse
-
Waveforms can be combined and inversed into the audio outputs
-
Output frequency range from 0.03 Hz to 16 kHz in 2 ranges
-
VCO range selectable between Low (LFO) or High (Audio)
-
Coarse frequency control allows adjustment over 10 octaves
-
Fine frequency control adjusts over +/- 1 octave
-
Frequency modulation with 2 inputs and controls responding to 1 V/octave
-
The width of the pulse waveform can be set manually and controlled dynamically
-
Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V
DESCRIPTION
The first 2500 series synth modules came out in the '70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.
SPECIFICATIONS
Inputs
|
FM 1/2 |
|
|
Type |
2 x 3.5 mm TS jacks |
|
Impedance |
50 kΩ, unbalanced |
|
Max input level |
10 V, 1 V/octave |
|
Keyboard |
|
|
Type |
3.5 mm TS jack |
|
Impedance |
50 kΩ, unbalanced |
|
Max input level |
10 V, 1 V/octave |
|
PWM |
|
|
Type |
3.5 mm TS jack |
|
Impedance |
50 kΩ, unbalanced |
|
CV range |
±10 V, 10% per volt |
Outputs
|
Out |
|
|
Type |
2 x 3.5 mm TS jacks |
|
Impedance |
1 kΩ, unbalanced |
|
Max output level |
10 V p-p |
Controls
|
Coarse |
Sets oscillator frequency (8 octave range) |
|
Fine |
Oscillator fine adjustment (±1 octave) |
|
Range |
Select LFO (0.06 Hz - 16 Hz) or audio band (31 Hz - 8 kHz) |
|
Enable |
Oscillator on/of |
|
PW |
Pulse width adjustment (5% - 95%) |
|
PWM |
Modulation depth adjustment (-∞ to unity gain) |
|
FM 1/2 |
Attenuate FM inputs (-∞ to unity gain) |
|
Waveform switches |
Select up to 5 waveforms (sine, tri, square, saw, pulse) |
Power
|
Power supply |
Eurorack |
|
Current draw |
60 mA (+12 V), 50 mA (-12 V) |
Physical
|
Dimensions |
46 x 81 x 129 mm (1.8 x 3.2 x 5.1") |
|
Rack units |
16 HP |
|
Weight |
0.17 kg (0.37 lbs) |
