DESCRIPTION:

NX6000D

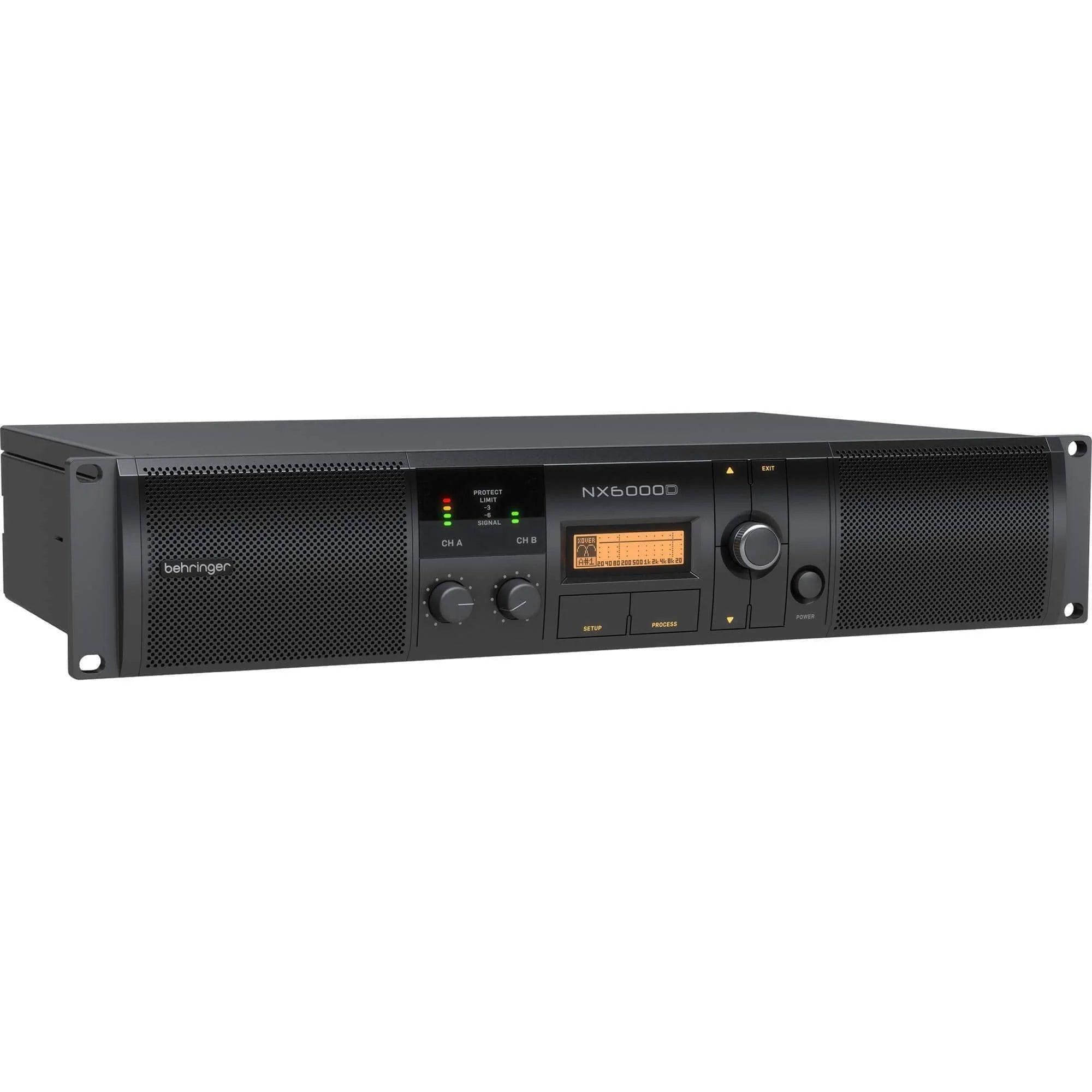

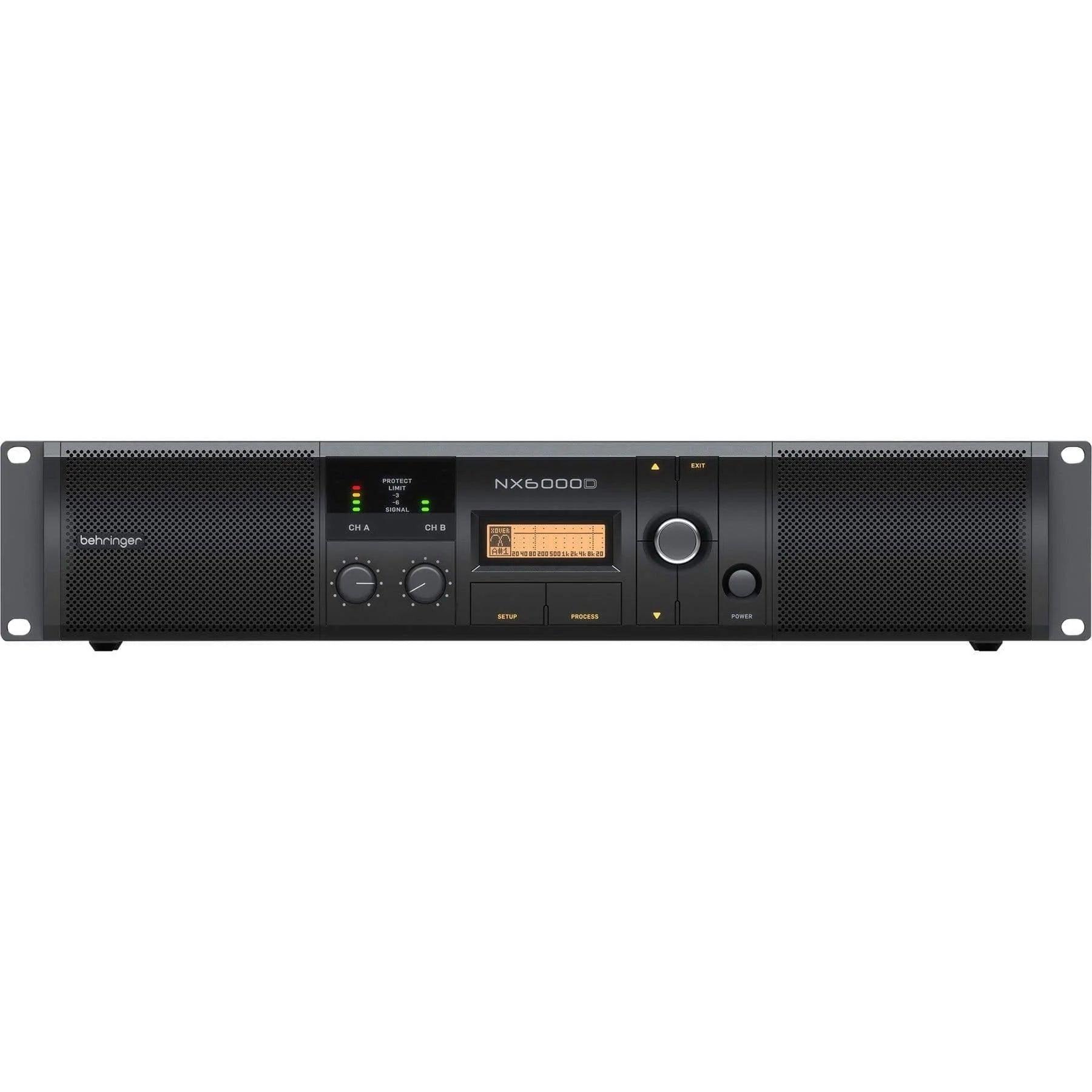

The NX6000D power amplifier packs 6000 Watts (2 x 3000 Watts @ 4 Ohms; 2 x 1600 Watts @ 8 Ohms) into exceptionally lightweight (13.2 lbs / 6.0 kg) and rack-mountable packages. Plus, the built-in DSP and 24-bit/ 96 kHz converters ensure the ultimate signal integrity with an extremely broad dynamic range. And because the NX6000D is so much more efficient than conventional designs, it runs cooler and doesn’t require the massive heat sinks and heavy toroid transformers typically associated with its conventional counterparts. Thanks to our “Zero-Attack” limiters that offer maximum output level with exceptionally-reliable overload protection and SmartSense Loudspeaker impedance compensation, which provides fully linear frequency response at any speaker load impedance, you can run the NX6000D full-out for hours on-end. Our revolutionary high-density Class-D technology, combined with an ultra-efficient, switch-mode power supply ensure this feather-light powerhouse will drive your rig effortlessly for many years to come.

Class-D - Massive Power, Perfect Sound

Thanks to our High-Density Class-D amplifier Technology, we are able to provide you with enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency – and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely-powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment.

FEATURES:

• Delivers 2 x 3100 Watts into 4 Ohms, 2 x 1600 Watts into 8 Ohms and weighs less than 12 lbs / 5.5 kg

• Ultimate reliability through revolutionary cool-running Class-D technology with “near-zero” thermal buildup

• Ultra-effi cient switch-mode power supply for noise-free audio, superior transient response and low power consumption

• High-performance DSP and 24-bit/96 kHz converters deliver ultimate signal integrity and extreme dynamic range

• DSP section features sophisticated delay, crossover (3 filter types, up to 48 dB/octave), EQ (8 parametric, 2 dynamic), dynamics processing and lockable security settings

• SmartSense loudspeaker impedance compensation provides ultra-linear frequency response and low distortion

• Front panel LCD display enables setup and adjustment without PC

• Can be set up, controlled and monitored via front panel USB connector. Powerful remote software downloadable at behringer.com

• “Zero-Attack” limiters off er maximum output level with reliable overload protection

• Built-in Subwoofer/Satellite crossover for perfect subwoofer operation

• Detented and illuminated gain controls for precise level setting

• Precise 4-segment Signal and Limit LEDs to monitor performance

• XLR and ¼ '' TRS combination input connectors for compatibility with any source

• Professional twist-lock speaker connectors for ultimate reliability

• Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show

• “Back-to-front” ventilation system prevents thermal buildup for reliable operation

SPECIFICATIONS:
