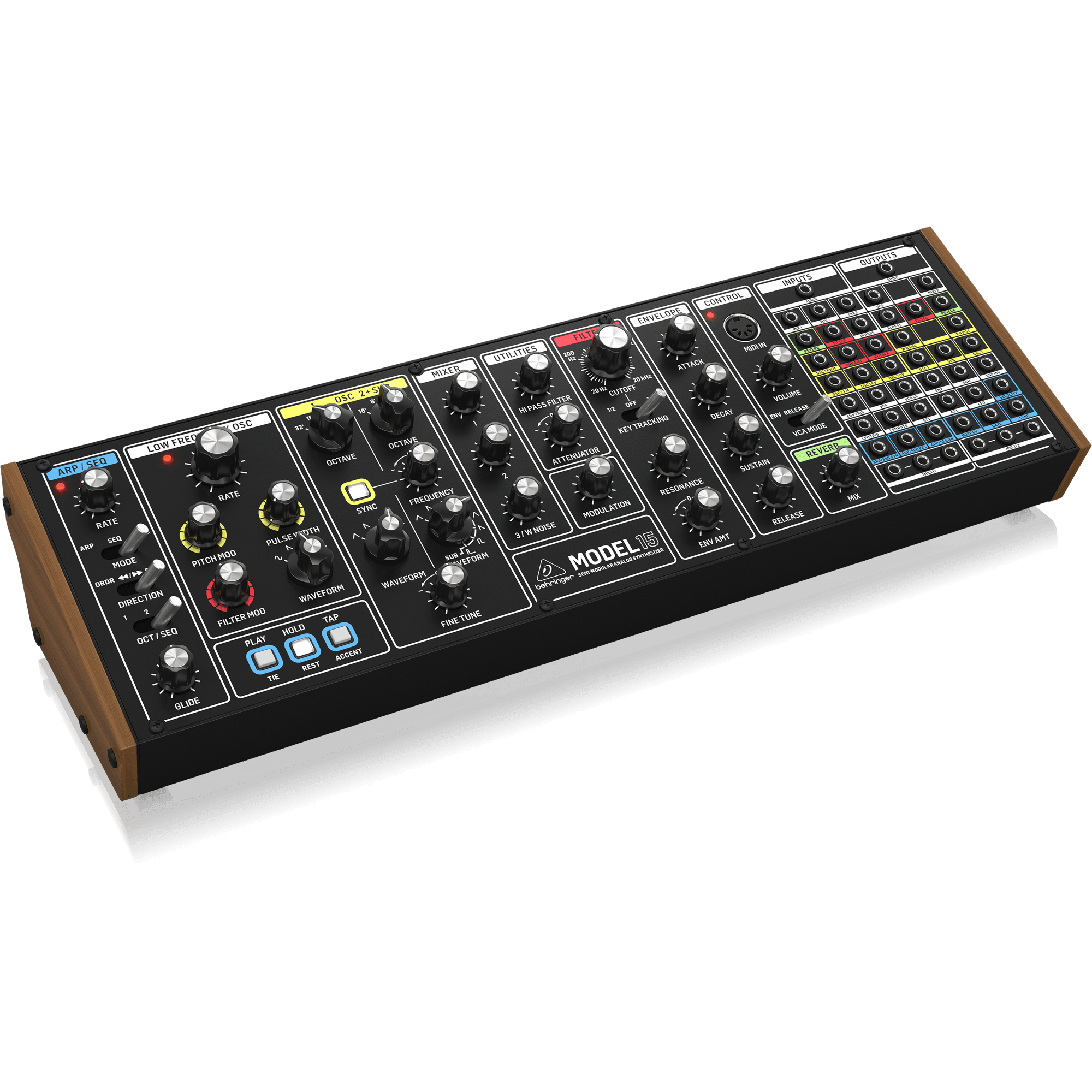

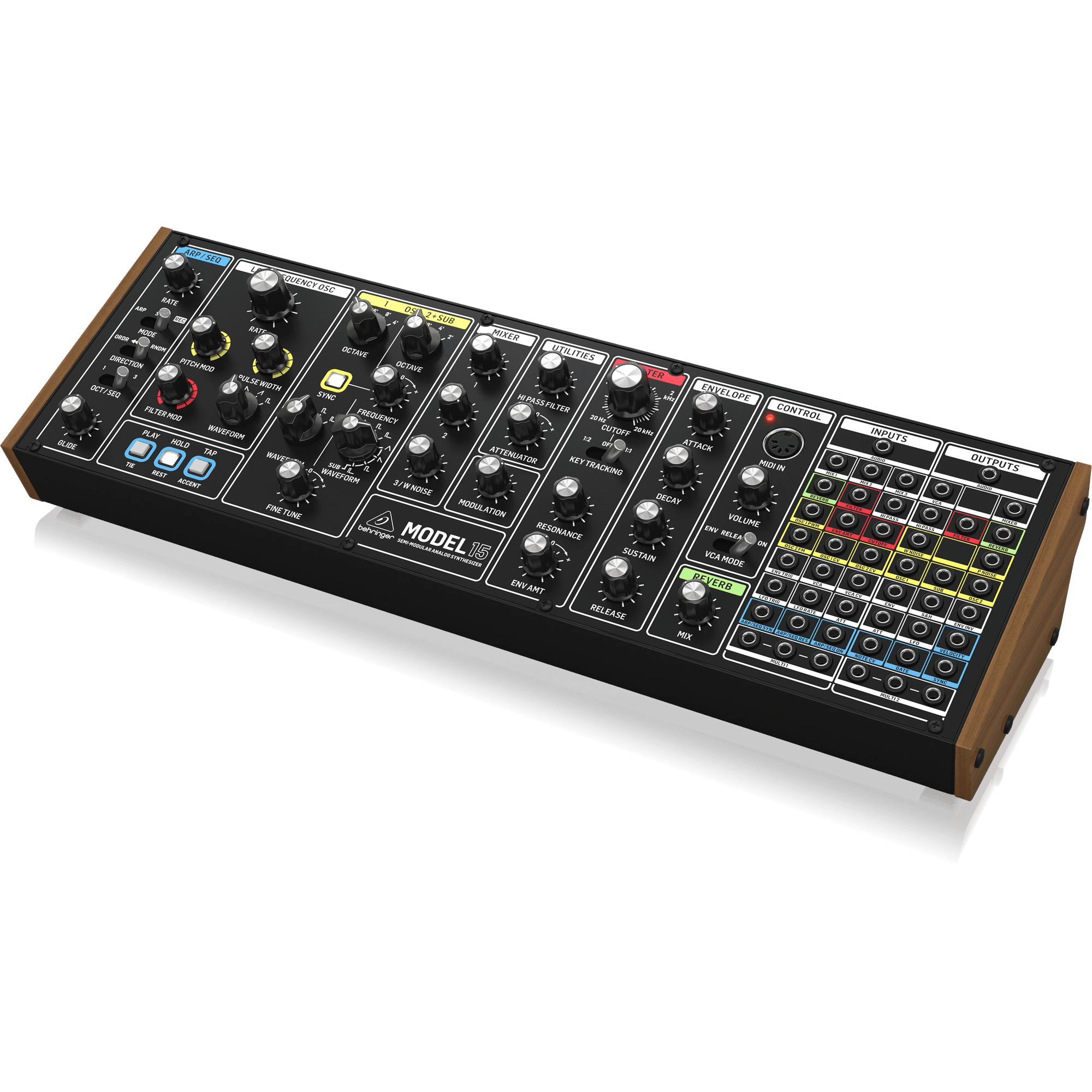

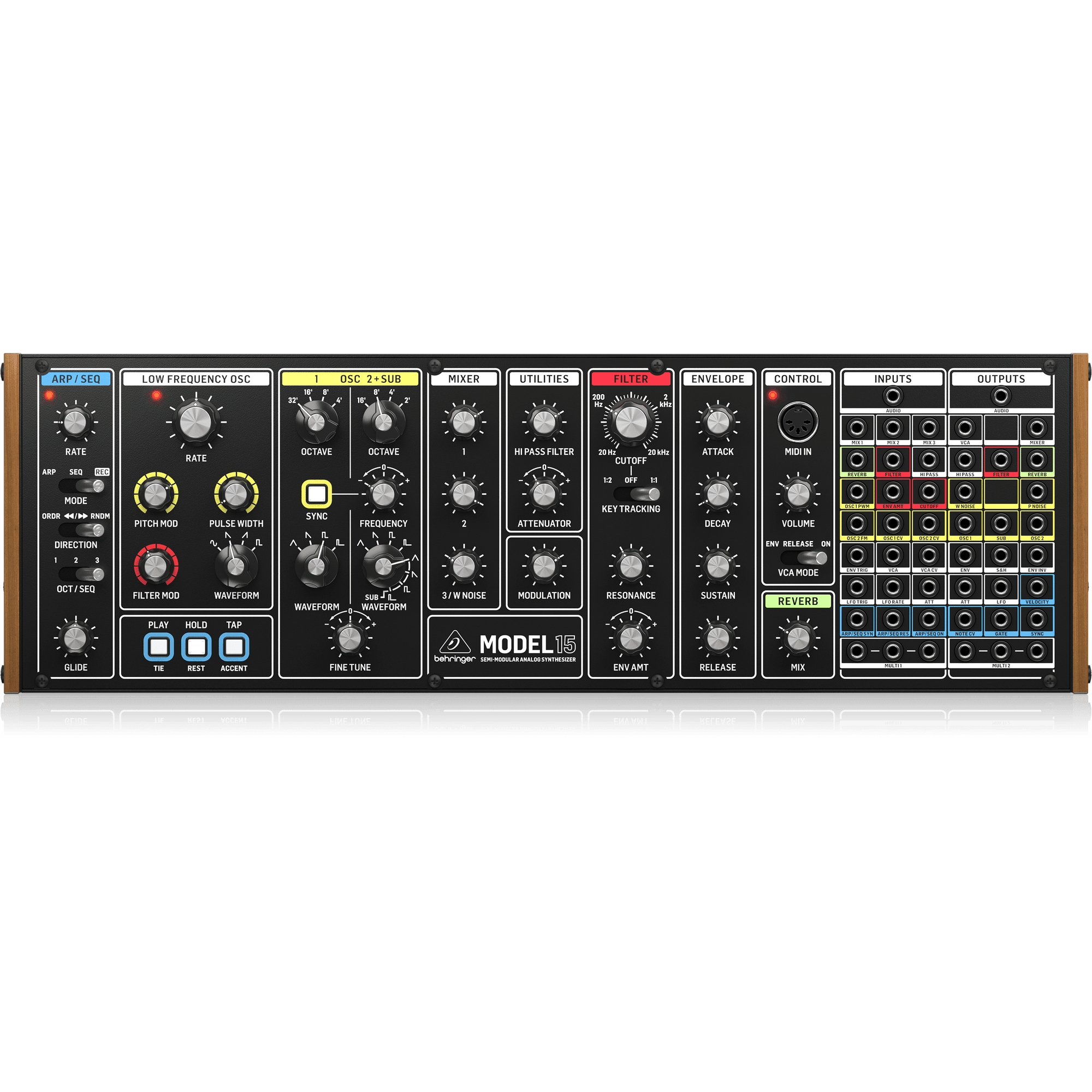

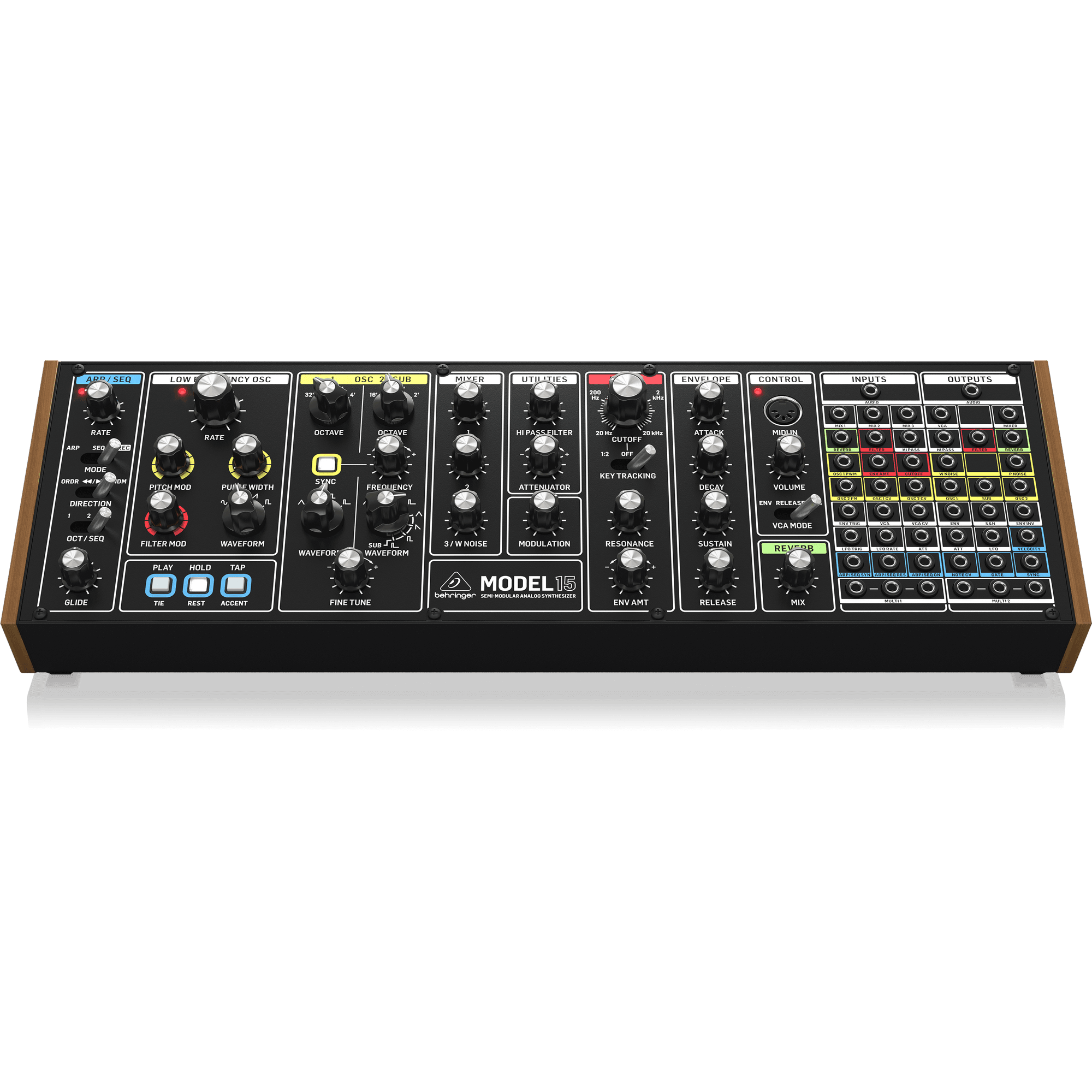

Behringer MODEL 15 Analog Semi-Modular Synthesizer with Dual VCOs, VCF, Sequencer and Arpeggiator in Eurorack Format
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Behringer MODEL 15 Analog Semi-Modular Synthesizer with Dual VCOs, VCF, Sequencer and Arpeggiator in Eurorack Format
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 277.25\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
FEATURES-
-
Analog synthesizer with dual VCO design allows for insanely fat music creation
-
Authentic recreation of circuits from the legendary “Model 15” modular synthesizer
-
Semi-modular design requires no patching for immediate performance
-
Pure analog signal path based on authentic VCO, VCF and VCA designs
-
Dual oscillators with 4 waveforms, oscillator sync, pulse width modulation and sub-oscillator
-
Classic 24 dB ladder filter with resonance for legendary sound performance
-
Advanced step sequencer with 3 separate 256-step memory slots, key transpose and multiple playback modes
-
Arpeggiator featuring hold function and multiple playback modes for recording and playing back your melodies and riffs
-
Fully analog LFO with 4 waveforms and dedicated controls for pitch, filter and pulse width modulation
-
Spring reverb emulation for inspiring sound effects
-
48 patch points for advanced modular connection and integration with external equipment
-
37 controls give you direct and real-time access to all important parameters
-
Complete Eurorack solution – main module can be transferred to a standard Eurorack case
-
16-voice Poly Chain allows combining multiple synthesizers for up to 16 voice polyphony
-
Comprehensive MIDI implementation with MIDI channel and Voice Priority selection
DESCRIPTION-
MODEL 15
This is the synth your grandma wish she had! Introducing the Behringer MODEL 15! This compact analog synthesizer features dual VCOs so you can create super-fat bass lines and awesome lead sounds that’ll have everyone in the crowd vibing!
Ready to Go!
The Behringer MODEL 15’s semi-modular design makes it ready to go right out of the box with its 48 patch points at your disposal so you can connect and integrate any module in your collection. And if you were a fan of the legendary System 55, we’ve taken everything great about that and put it in a sleek, compact chassis, so you won’t need a whole truck to transport your setup!
Classic Analog Goodness!
Featuring a pure analog signal path, the MODEL 15 features dual oscillators each with 4 waveforms, pulse width modulation and sub-oscillator. On top of that, the MODEL 15 also comes with 3 separate memory slots for its 256-step arpeggiator with multiple playback modes.
SPECIFICATIONS-
Synthesizer Architecture
| Number of voices |
Monophonic |
| Type |
Analog |
| Oscillators |
2 + sub |
| LFO |
1 |
| VCF |
1 |
| Envelope |
1 ADSR |
| Noise |
White, pink |

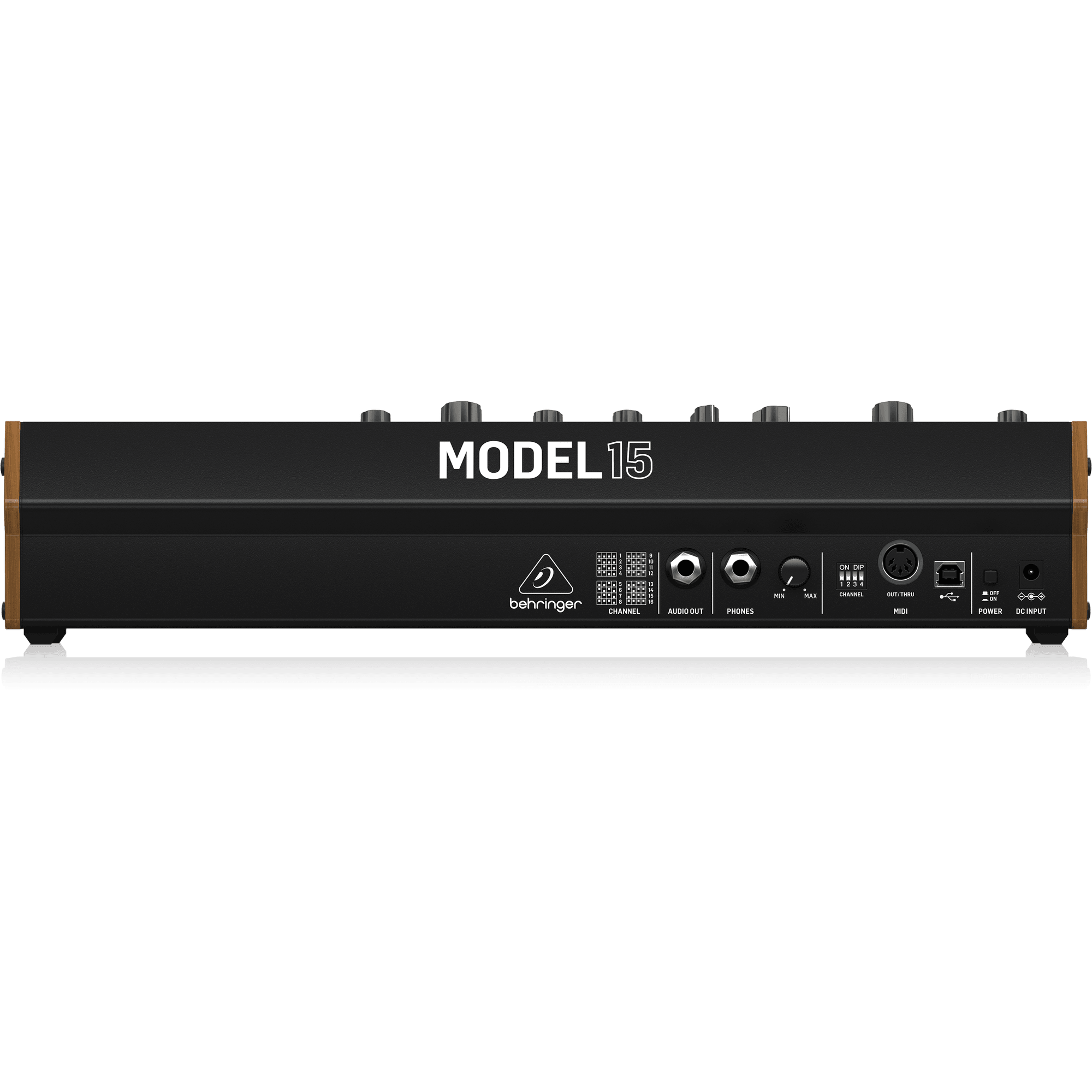

Connectivity
| Power input |
DC input connector |
| Power switch |
Push button on / off |
| USB (MIDI) |
USB 2.0, type B |
| MIDI in / out / thru |
2 x 5-pin DIN / 16 channels |
| Audio out |
1/4" TS, unbalanced, max. +5.8 dBu |
| Headphones |
1/4" TRS, unbalanced, max. 7.5 mW into 32 Ω |
| Headphones output impedance |
8 Ω |
Inputs
| Type |
3.5 mm TS |
| AUDIO INPUT |
Impedance: 280 kΩ -5 V to +5 V |
| MIX 1 |
Impedance: 100 kΩ -5 V to +5 V |
| MIX 2 |
Impedance: 100 kΩ -5 V to +5 V |
| MIX 3 |
Impedance: 100 kΩ -5 V to +5 V |
| REVERB |
Impedance: 150 kΩ -5 V to +5 V |
| FILTER |
Impedance: 100 kΩ -5 V to +5 V |
| HI PASS |
Impedance: 110 kΩ -5 V to +5 V |
| OSC 1 PWM |
Impedance: 100 kΩ 0 V to +5 V |
| ENV AMT |
-8 V to +8 V (DC coupled) |
| CUT OFF |
-5 V to +5 V |
| OSC 2 FM |
Impedance: 90 kΩ -5 V to +5 V |
| OSC 1 CV |
-5 V to +5 V |
| OSC 2 CV |
-5 V to +5 V |
| ENV TRIG |
More than 2.5 V |
| VCA |
Impedance: 100 kΩ -5 V to +5 V |
| VCA CV |
0 V to +8 V (DRONE setting) |
| LFO TRIG |
Impedance: 100 kΩ 0 V to +5 V |
| LFO RATE |
Impedance: 100 kΩ -5 V to +5 V |
| ATT |
Impedance: 110 kΩ -8 V to +8 V |
| ARP/SEQ SYN |
Impedance: 100 kΩ 0 V to +5 V |
| ARP/SEQ RES |
More than 2.5 V |
| ARP/SEQ ON |
off = 0 V / on = +5 V |
| MULTI 1 (x3) |
-5 V to +5 V |
LFO Section
| Controls |
Rate min to max (0.07 Hz - 1.3 kHz) |
| Switches |
Shape: sine / sawtooth / ramp / square |
| LED |
Rate indication |
OSC Section
| Controls |
Octave 1: 32', 16', 8', 4' |
| Buttons |
Sync |
Mixer Section
| Controls |
Osc 1 0% - 100% |
Utilities
| Controls |
Hi pass filter 0% - 100% |
Modulation
| Control |
depth 0% - 100% |
Filter Section
| Controls |
Cutoff frequency: 20 Hz - 20 kHz |
| Switches |
Key tracking: 1:2 / off / 1:1 |
Envelope
| Controls |
Attack: 2 mS to 16 S |
Reverb
| Reverb |
Mix 0 - 100% |
Output Section
| Control |
Volume 0% - 100% |
| Switches |
VCA mode env, release, on |
