KEY FEATURES
-
Classic 1050 sequential mixer module from the '70s
-
Authentic reproduction of the circuitry from the "2500" Series
-
Features sequential switching for rapid selection of waveforms and signals in a conventional audio mixer format
-
Dual 4-input mixers with electronically gated inputs and eight-step counter and clock.
DESCRIPTION
The first 2500 series synth modules came out in the '70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

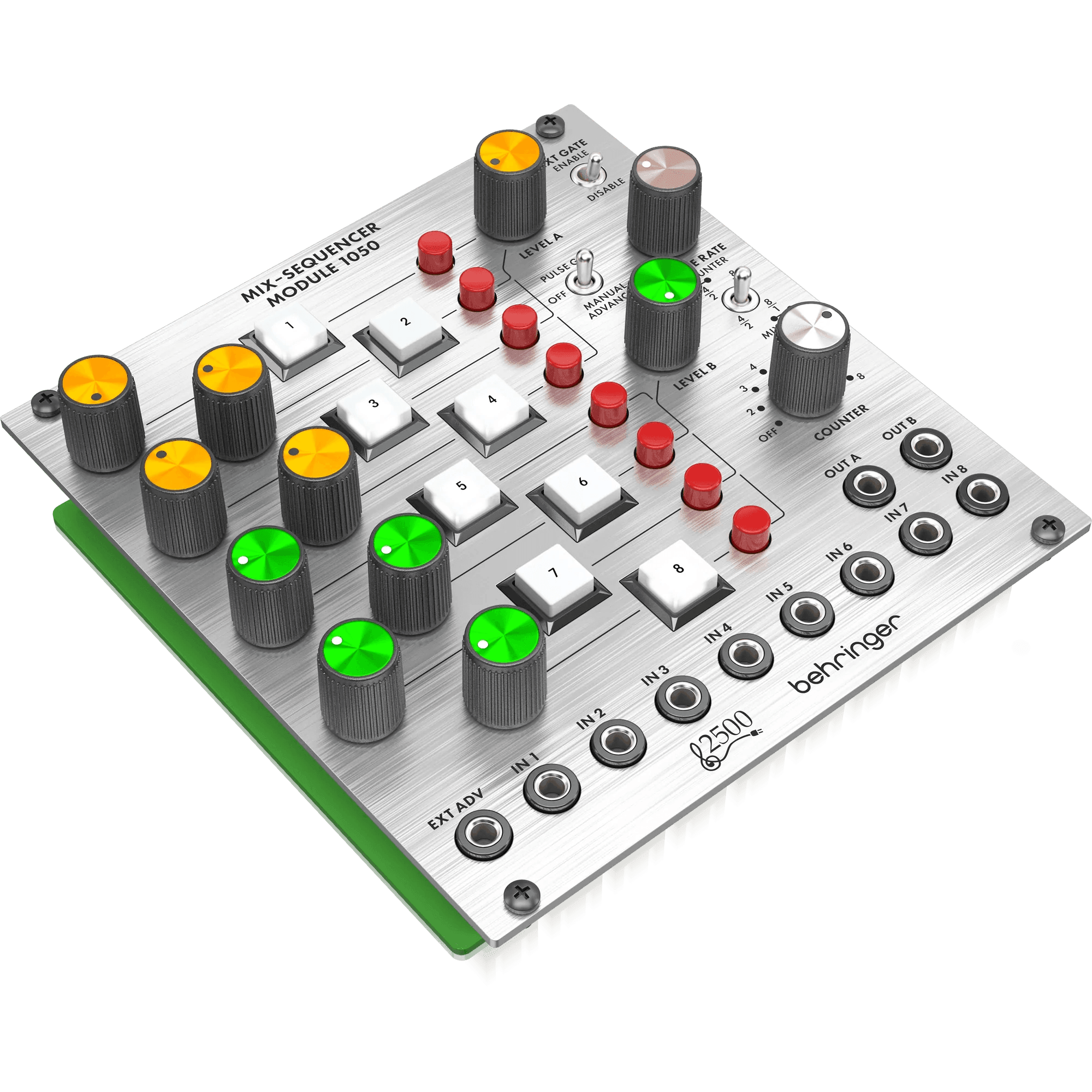

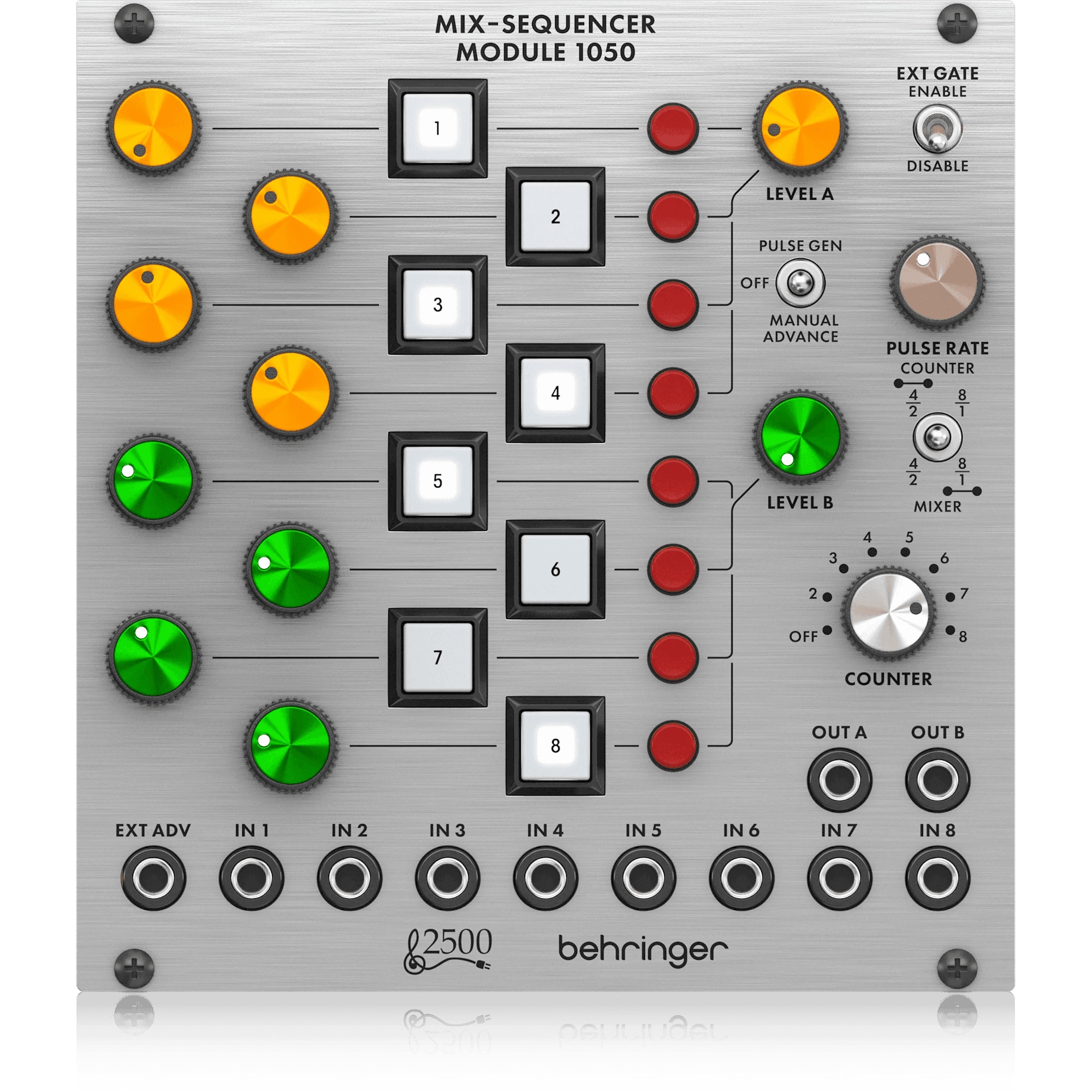

MIX-SEQUENCER MODULE 1050
This is the Behringer 2500 series MIX-SEQUENCER MODULE 1050. An authentic reproduction of the original “System 2500” circuitry from the ‘70s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Integrate the MIX-SEQUENCER MODULE 1050 into your existing rig or start your modular synth journey from here. Either way, you’re sure to have a lot of fun.
Sequencer or Mixer? You Decide.
The MIX-SEQUENCER MODULE 1050 is a classic 8-channel mixer/sequencer. The 1050 allows you to rapidly select waveforms and signals via a conventional mixer format. Each audio input comes with its own attenuator knob and channel on/off buttons which you can use to mix and/or gate an input. Controlling and altering a sequence on the fly has never been so easy! The attenuator knobs are even color-coded into two groups of four channels which are tied to their respective master gain control. You can use the 1050 as an 8-input mixer with two adjustable outputs or as two separate 4-input mixers. When using the 1050 as a sequencer you can select between a single 8 step sequencer or a dual 4 step sequencers for ultimate flexibility.
Eurorack Ready
Installing the 1050 is simple as it was designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the 1050 to be mixed with other synth modules for a truly unique set up.
Complete Your Setup
Whether you’re just getting into modular synths or looking to complete your collection, the MIX-SEQUENCER MODULE 1050 from Behringer is a great tool to have when creating amazing music.
Get the 1050 from your local Behringer dealer today!
SPECIFICATIONS
Inputs
| Inputs 1 – 8 | |
| Type |
8 x 3.5 mm TS jacks, DC coupled |
| Impedance |
50 kΩ, unbalanced |
| Max input level |
+20 dBu |
| External advance input | |
| Type |
1 x 3.5 mm TS jack, AC coupled |
| Impedance |
10 kΩ, unbalanced |
| Max input level |
+10 V |
| External gate link input | |
| Type |
1 x 12-way 0.1" box header, DC coupled |
| Impedance |
10 kΩ, unbalanced |
| Max input level |
+5 V |
Outputs
| Out A / B | |
| Type |
2 x 3.5 mm TS jacks, DC coupled |
| Impedance |
1 kΩ, unbalanced |
| Max output level |
+20 dBu |
Controls
| Channel level knobs |
8 x rotary knobs |
| Channel on / off buttons |
8 x buttons, LED backlit |
| Exclusive-on buttons |
8 x momentary switches |
| Level A / B |
2 x rotary knobs |
| External gate |
1 x 2-position switch Enable / disable, switchable |
Controls
| Pulse gen / Manual advance |
1 x 3-position switch Pulse generator on / off / manual advance, switchable |
| Counter / mixer |
1 x 3-position switch Left position, 4/2 counter with 4/2 mixer Center position, 4/2 counter with 8/1 mixer Right position, 8/1 counter with 8/1 mixer" |
| Pulse rate |
1 x rotary knob, 0.5 Hz to 150 Hz |
| Counter |
1 x 9-way rotary switch Off / 2 / 3 / 4 / 5 / 6 / 7 / 8, selectable" |
Power
| Power supply |
Eurorack |
| Current draw |
110 mA (+12 V), 20 mA (-12 V) |
Physical
| Standard operating temperature range |
5° C to 40° C (41° F to 104° F) |
| Dimensions |
122 x 129 x 42 mm (4.8 x 5.1 x 1.7") |
| Rack units |
24 HP |
| Weight |
0.30 kg (0.66 lbs) |
