Behringer MDX4600V2 Compressor/Limiter 4 Channel/Peak Limiter with Dynamic Enhancer and Low Contour Filter
541.00
Regular price 660.00 Did You Find a Better Price?
On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.
Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.
Please note: we only match product prices vs other UAE websites.
Did You Find a Better Price?
On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.
Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.
Please note: we only match product prices vs other UAE websites.
119.00 Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)

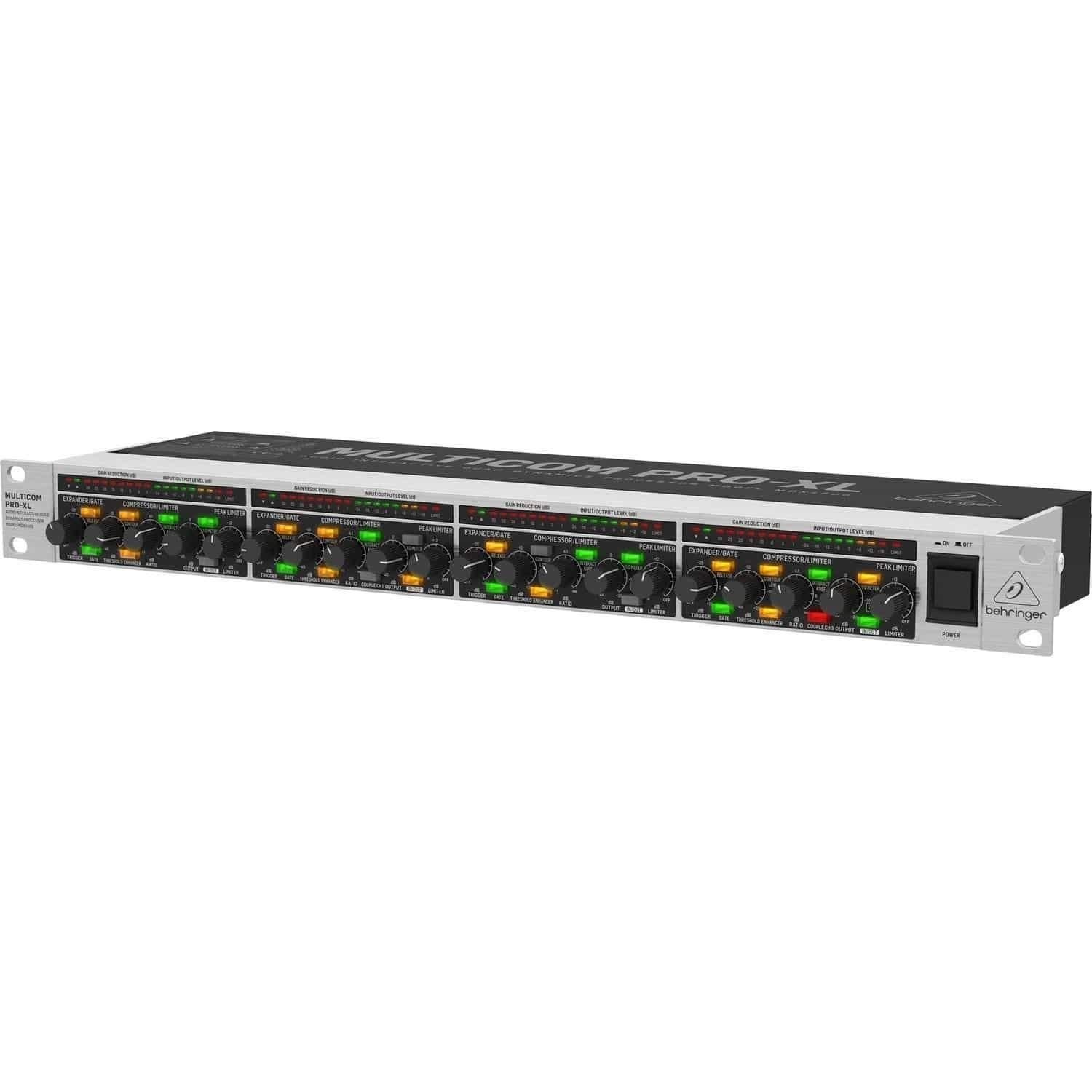

Behringer MDX4600V2 Compressor/Limiter 4 Channel/Peak Limiter with Dynamic Enhancer and Low Contour Filter
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 135.25\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Description:
MULTICOM PRO-XL MDX4600 V2
The reference-class MDX4600 is a marvelous 4-channel Expander/Gate/Compressor/Peak Limiter that is ideal for: compressing mono/stereo signals and providing virtually inaudible noise suppression, without loss of high frequencies; increasing vocal presence and energy; and limiting, or smoothing out extremely-high signal peaks. Additionally, the MDX4600 features an integrated Dynamic Enhancer and Low-Contour filter to provide the ultimate in signal enrichment. Put simply, the MDX4600 can do amazing things for your vocals or instruments – providing virtually everything you need for studio-quality dynamics processing!
Options Abound
The MDX4600 features amazingly-accurate, 8-segment LED meters for In/Out Level and Gain Reduction, switchable +4 dBu or -10 dBV operating level, Side Chain I/O, and servo-balanced XLR and 1/4" Inputs and Outputs. Best of all, the MULTICOM PRO-XL MDX4600 takes up just a single rackspace.
Features:
-
Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and soft-knee characteristics
-
IRC (Interactive Ratio Control) expander/gate circuitry for virtually inaudible noise suppression
-
Switchable dynamic Enhancer for brilliant, lively audio even with heavy compression
-
IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks
-
Switchable Low contour filter prevents "pumping" due to low-frequency dominated compression
-
Stereo couple function selectable for channels 1/2 and 3/4
-
Separate 8-segment LED meters for input/output levels and gain reduction
-
Selectable operating level (+4 dBu/-10 dBV)
-

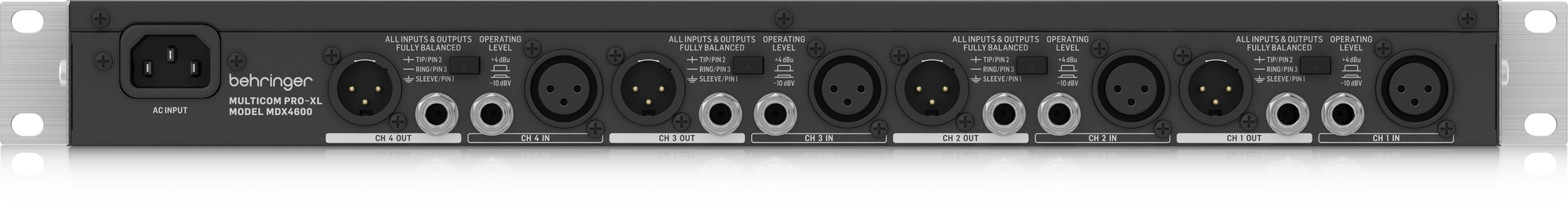

Servo-balanced inputs and outputs with ¼" TRS and gold-plated XLR connectors
-
Internal switch-mode power supply (100 - 240 V~) for noise-free audio and low power consumption
Specifications:
| Category | Parameter | Details |
|---|---|---|
| Audio Inputs | Type | XLR and 1/4" TRS connectors, servo-balanced |
| Impedance (+4 dBu) | 50 kΩ balanced, 50 kΩ unbalanced @ 1 kHz | |
| Impedance (-10 dBV) | 50 kΩ balanced, 100 kΩ unbalanced @ 1 kHz | |
| Operating Level | +4 dBu / -10 dBV, switchable | |
| Max. Input Level | +22 dBu, balanced and unbalanced | |
| CMRR | Typically 60 dB @ 1 kHz | |
| Audio Outputs | Type | XLR and 1/4" TRS connectors, servo-balanced |
| Impedance | 100 Ω balanced, 50 Ω unbalanced @ 1 kHz | |
| Max. Output Level | +21 dBu, balanced and unbalanced | |
| System Specifications | Frequency Range | 10 Hz to 70 kHz, +0/-3 dB |
| Signal-to-Noise Ratio | 115 dB, unweighted | |
| THD | 0.02% typ. @ +4 dBu, 1 kHz, unity gain | |
| Crosstalk | -90 dB @ 1 kHz | |
| Expander / Gate Section | Type | IRC (Interactive Ratio Control) expander |
| Threshold | OFF to +10 dB, variable | |
| Ratio | 1:1 to 1:8, variable | |
| Attack | < 1 msec / 50 dB, program-dependent | |
| Release | SLOW: 100 msec/1 dB, FAST: 100 msec/100 dB, variable | |
| Compressor Section | Type | IKA (Interactive Knee Adaptation) compressor |
| Threshold | -40 to +20 dB, variable | |
| Ratio | 1:1 to ∞:1, variable | |
| Auto Characteristic | Wave adaptive compressor | |
| Auto Attack Time | 15 ms for 10 dB, 5 ms for 20 dB, 3 ms for 30 dB (typical) | |
| Auto Release Time | Typically 125 dB/sec, program-dependent | |
| Output | -20 to +20 dB, variable | |
| Peak Limiter Section | Type | IGC (Interactive Gain Control) peak limiter |
| Level | 0 dB to OFF (+21 dBu), variable | |
| Level 1 Limiter Type | Clipper | |
| Attack (Level 1) | “Zero” | |
| Release (Level 1) | “Zero” | |
| Level 2 Limiter Type | Program limiter | |
| Attack (Level 2) | Typically <5 msec, program-dependent | |
| Release (Level 2) | Typically 20 dB/sec, program-dependent | |
| Dynamic Enhancer Section | Type | IDE (Interactive Dynamic Enhancer) |
| Filter Frequency | 2.5 kHz (lower cut-off frequency) | |
| Characteristic | High-pass filter (6 dB/oct.) | |
| Boost | Max. 28 dB @ 7.5 kHz | |
| Power Supply | Type | Switch mode power supply, autorange |
| Voltage Range | 100-240 V~ 50/60 Hz | |
| Power Consumption | 18 W | |
| Mains Connector | Standard IEC receptacle | |
| Dimensions / Weight | Dimensions (H x W x D) | 44 x 483 x 149 mm (1.7 x 19.0 x 5.9") |
| Weight | 1.8 kg (4.0 lbs) |
