KEY FEATURES
- Ultra-low noise quad VCA and mixer module
- Each VCA features manual Level control for independent mixing
- Dedicated CV attenuators with dual LED's for monitoring of bipolar CV signals
- Adjustable VCA response curve from linear to exponential
DESCRIPTION

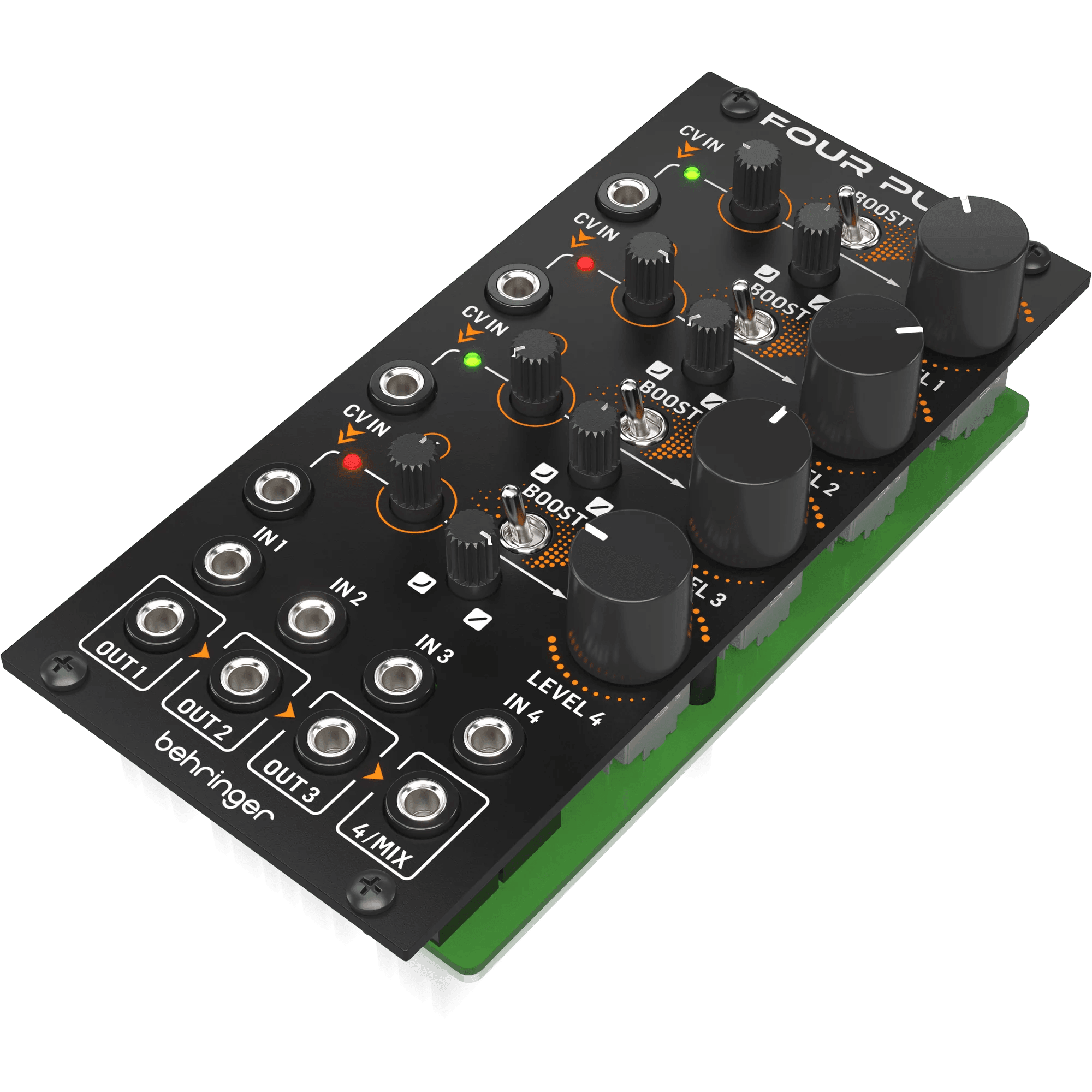

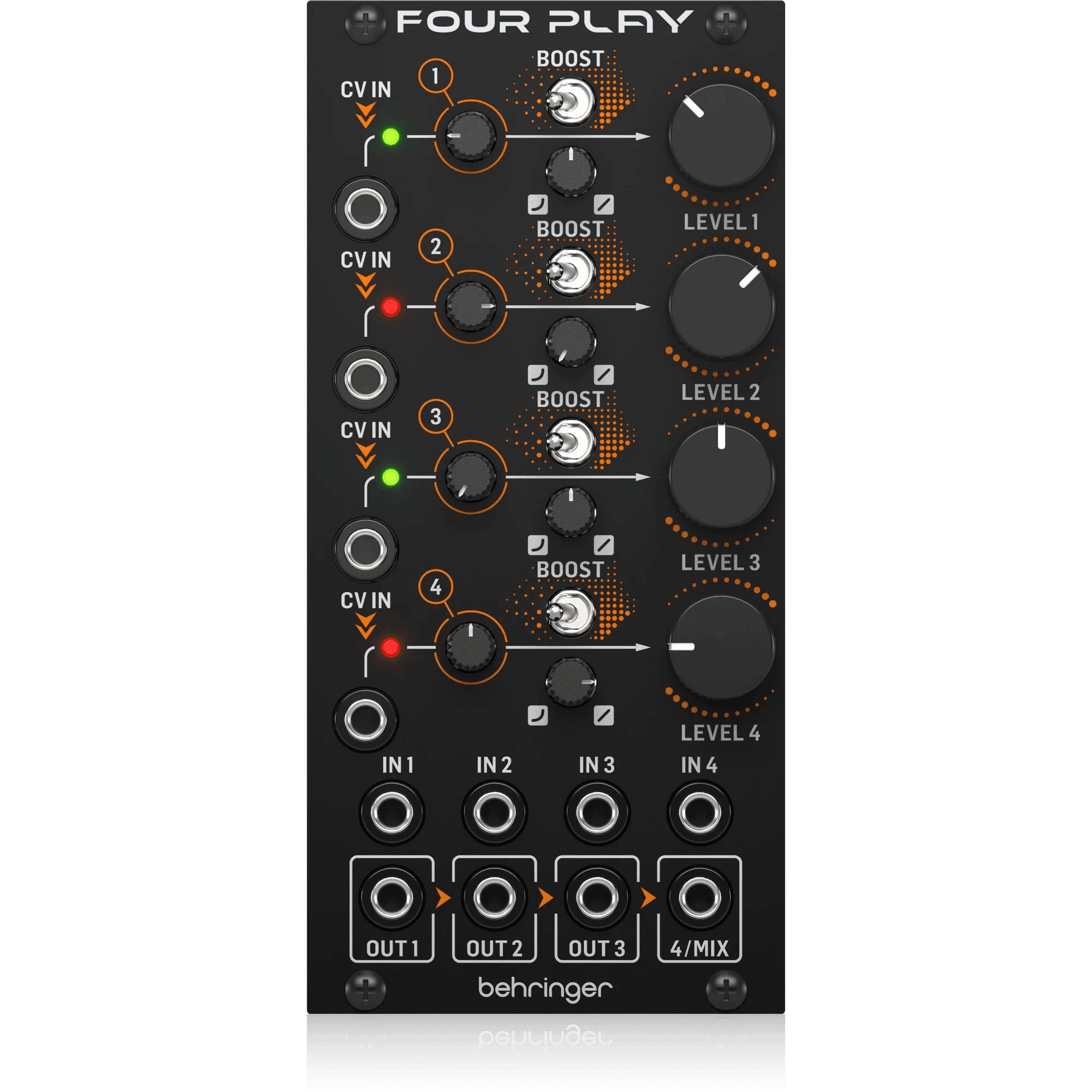

This is the Behringer FOUR PLAY. A high performance quad VCA and mixer module that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the FOUR PLAY in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.
SPECIFICATIONS
|
CV In |
|
|
Type |
4 x 3.5 mm TS jacks, DC coupled |
|
Impedance |
> 1 MΩ, unbalanced, half normalled |
|
Max input level |
10 V p-p |
|
In |
|
|
Type |
4 x 3.5 mm TS jack, DC coupled |
|
Impedance |
30 kΩ, 15 kΩ with boost enabled, unbalanced |
|
Max input level |
+19 dBu |
|
Outputs |
|
|
Type |
4 x 3.5 mm TS jack, DC coupled |
|
Impedance |
100 Ω, unbalanced, half normalled |
|
Max output level |
+19 dBu |
|
Output noise at unity gain |
-92 dBu, 22 Hz-22 kHz |
|
Output noise at full attenuation |
-98 dBu, 22 Hz-22 kHz |
|
Maximum attenuation |
-97 dB at 1 kHz |
|
Controls |
|
|
CV attenuator |
-∞ to unity gain |
|
Exp/Lin |
Exponential to linear CV response |
|
Level |
-∞ to unity gain |
|
Boost switch |
Adds +6 dB input gain |
|
CV LED |
Green =positive CV, Red =negative CV |
|
Power |
|
|
Power supply |
Eurorack |
|
Current draw |
100 mA (+12 V), 100 mA (-12 V) |
|
Physical |
|
|
Standard operating temperature range |
5° C to 40° C (41° F to 104° F) |
|
Dimensions |
60.6 x 129 x 41.3 mm (2.39 x 5.08 x 1.63") |
|
Rack units |
12 HP |
|
Weight |
0.14 kg (0.31 lbs) |
