DESCRIPTION:

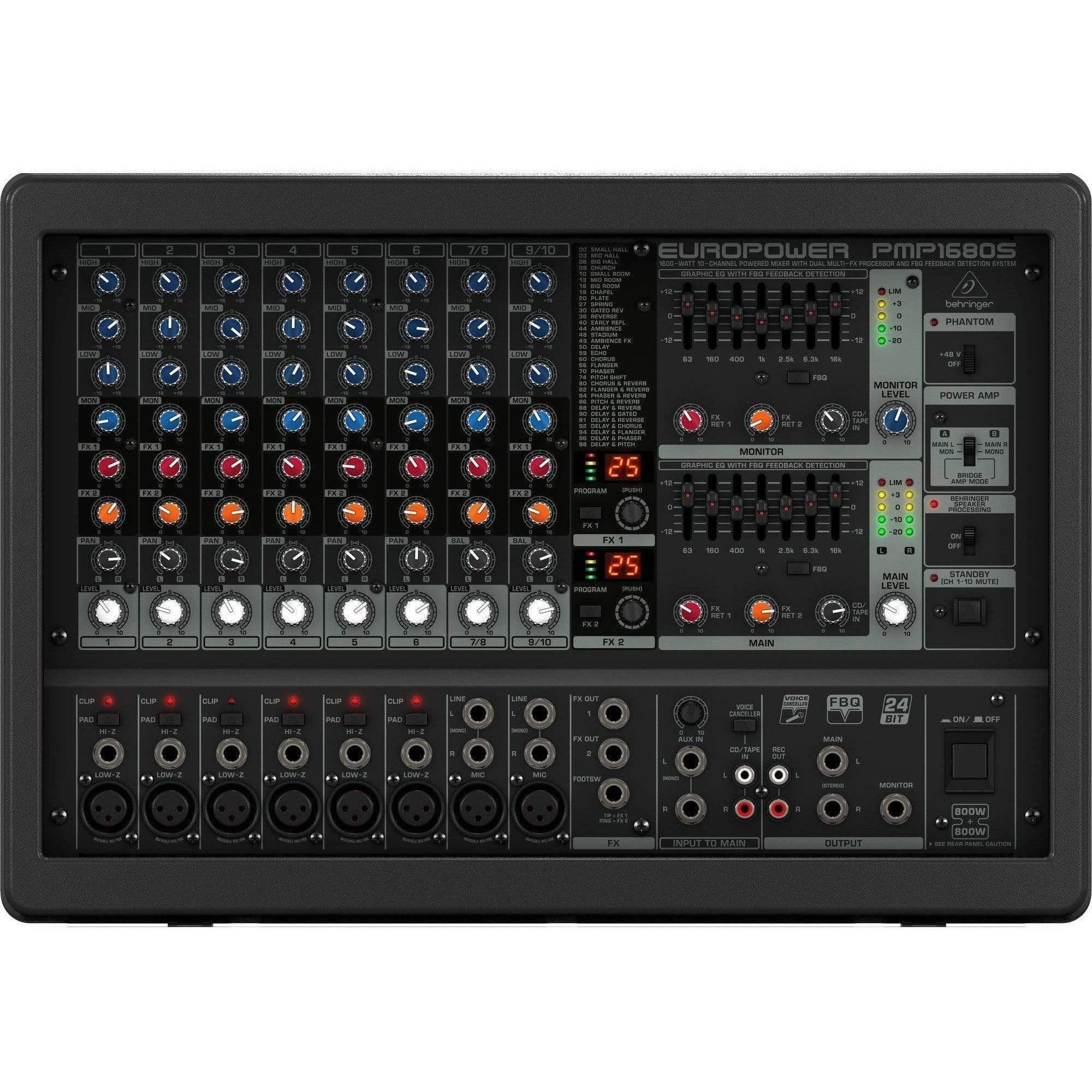

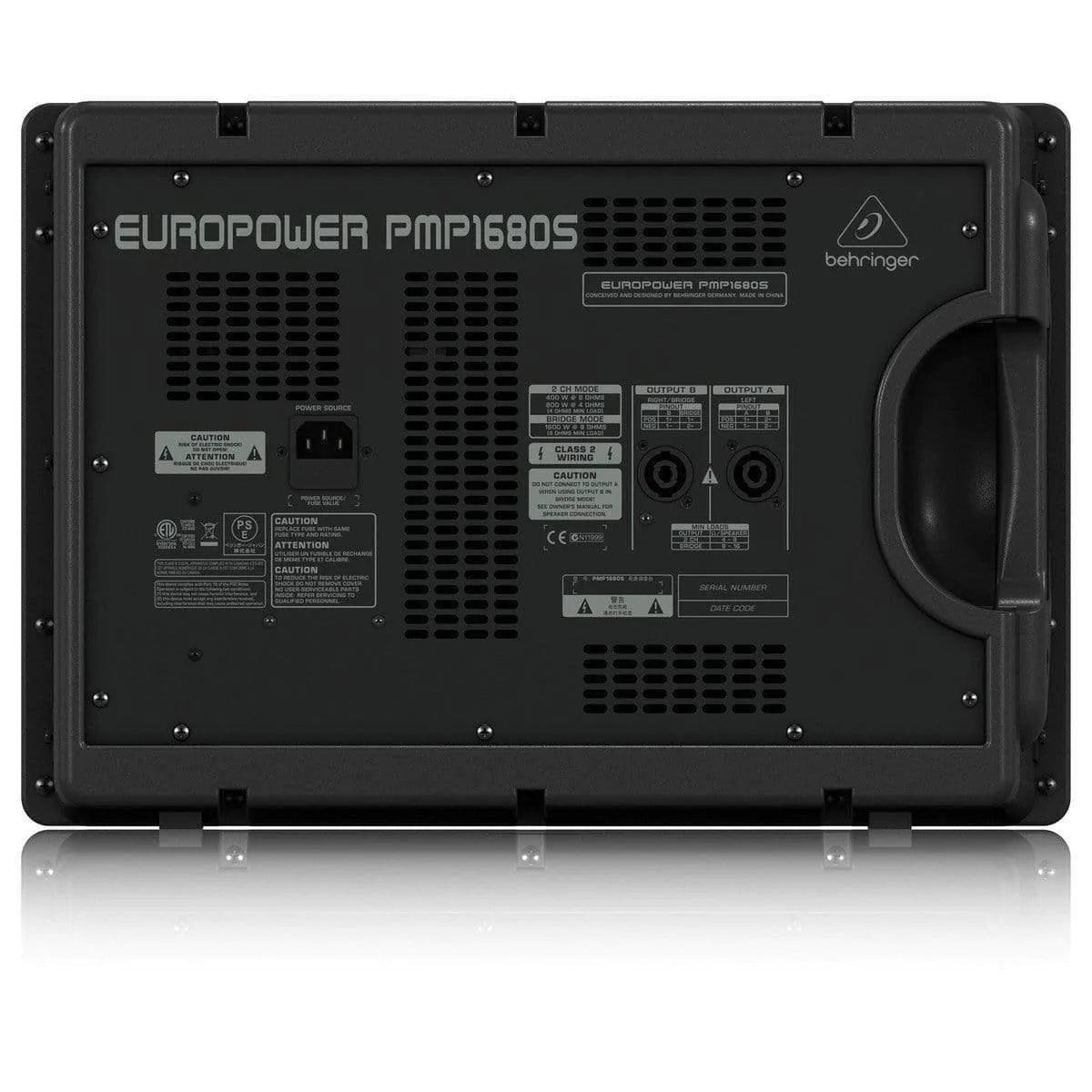

EUROPOWER PMP1680S
The amazing PMP1680S Powered Mixer packs tremendous power (2 x 800 Watts stereo or 1,600 Watts in Bridged mode), while maintaining an incredible power-to-weight ratio. These mixers employ high-efficiency Class-D technology and a state-of-the- art switch-mode power supply, which significantly reduces weight and heat. The 10-channel PMP1680S features 8 high-quality mic preamps, 2 stereo channels, dual 24-bit Multi-FX processors with 100 awesome presets including studio-class reverbs, delays, pitch shifter and various multi-effects, plus a 7-band stereo graphic EQ with our proprietary FBQ Feedback Detection System – for the ultimate in feedback-free performance.

Class-D - Massive Power, Perfect Sound
Thanks to our revolutionary Class-D amplifier technology, we are able to provide you with enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency – and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely-powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment.

FEATURES:

• Ultra-compact rack-mountable 2 x 800-Watt stereo powered mixer (1600-Watt bridged mode)

• Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight

• Ultra-compact design at nearly half the depth and weight of conventional powered mixers means no more lugging around dead weight

• 10-channel mixer section features 6 mono and 2 stereo channels plus separate CD/Tape input/output

• 2 studio-grade, 24-bit stereo FX processors with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects

• Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal

• 8 high-quality mic preamps with switchable +48 V phantom power for condenser microphones

• Effective, extremely musical 3-band EQ, switchable Pad, and Clip LEDs on all mono channels

• Stereo 7-band graphic EQ allows precise frequency correction of monitor and main outputs

• Voice Canceller function removes singer's voice from recordings for karaoke applications

• Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode

• Speaker Processing function adjusts frequency response to match professional speaker systems like Behringer EUROLIVE series, etc.

• Standby switch mutes all input channels during breaks while background music is provided via CD/Tape input

• Adjustable stereo Aux input for connecting external signal sources

• Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption

• Rack mount brackets included

• Designed and engineered in Germany

SPECIFICATIONS:

HOW IT WORKS:

1. Connect your microphones and other sound sources to the mixer's XLR inputs.

2. Adjust the gain and other settings on each channel to achieve the desired sound.

3. Make any necessary adjustments to the EQ and Multi-FX Processor to refine the sound.

4. Connect your speakers to the mixer's output jacks.

5. Turn on the mixer and adjust the master volume.

FAQ:

Q: What type of mixer is the PMP1680S?

A: The PMP1680S is a powered mixer.

Q: How many outputs does the PMP1680S have?

A: The PMP1680S has two outputs, both of which are speakON.
