Behringer

EPQ900

Behringer EPQ900 Power Amplifier

Delivery, Warranty & Returns Information

The EPQ 900 is an exceptionally lightweight single rack space amplifier with 390 watts per side into 4 Ohms.

Instead of operating relatively continuously like most power amps, the EPQ power amps feature rail tracking for effectively modulating the power supply rails with only the peaks of the input signal. This technology has revolutionized pro audio amp designs with its outstanding performance and efficiency. When combined with switching-mode power supplies that do away with heavy toroid transformers, the EPQ design provides more dynamic punch and, because they are efficient, run cool and don't require huge, heavy heat sinks.

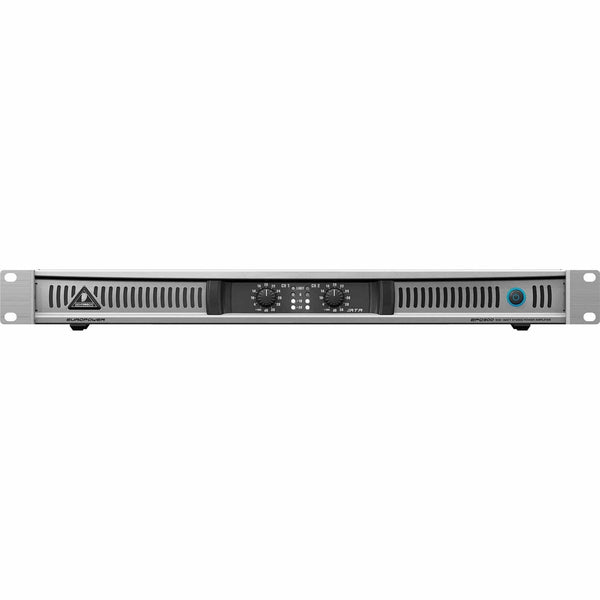

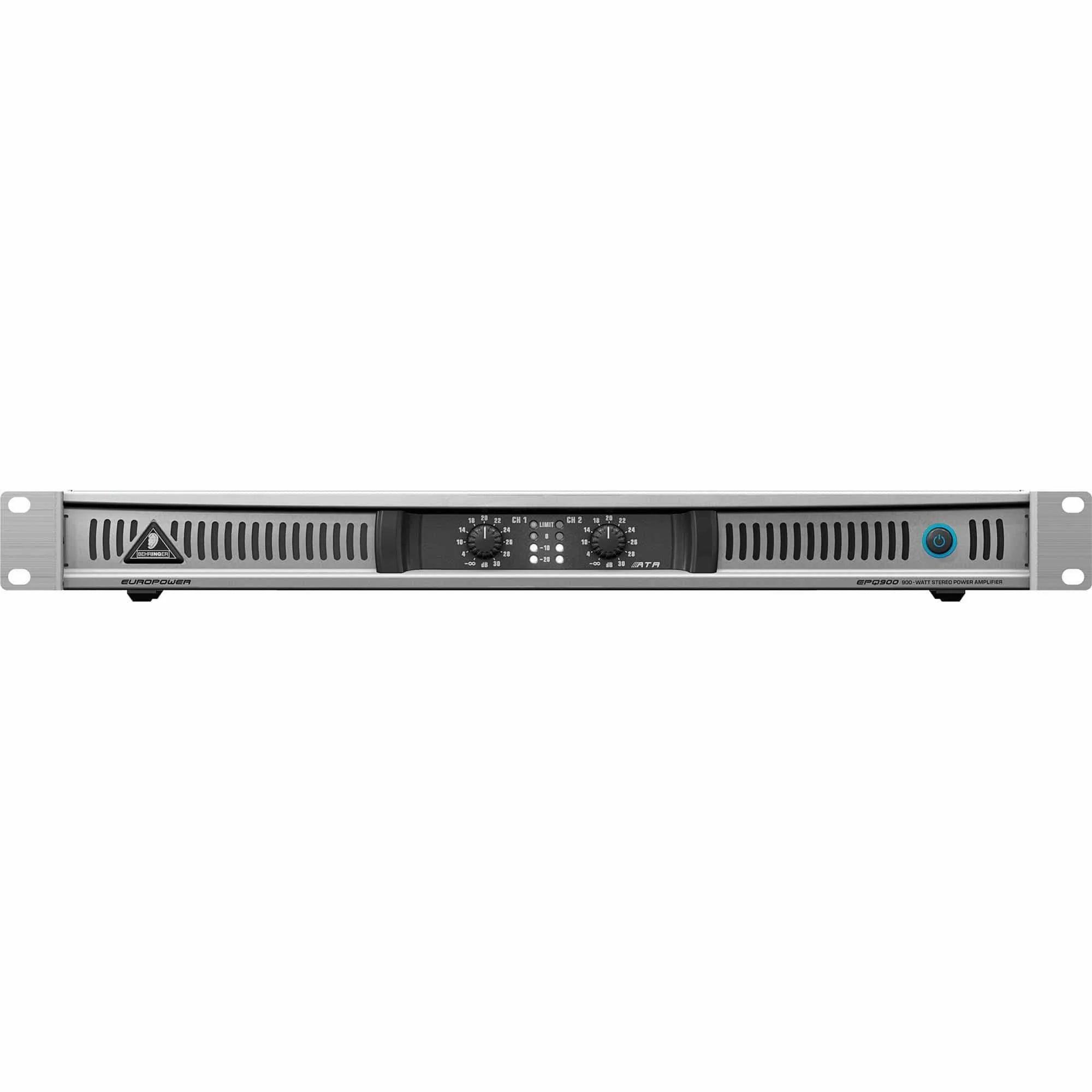

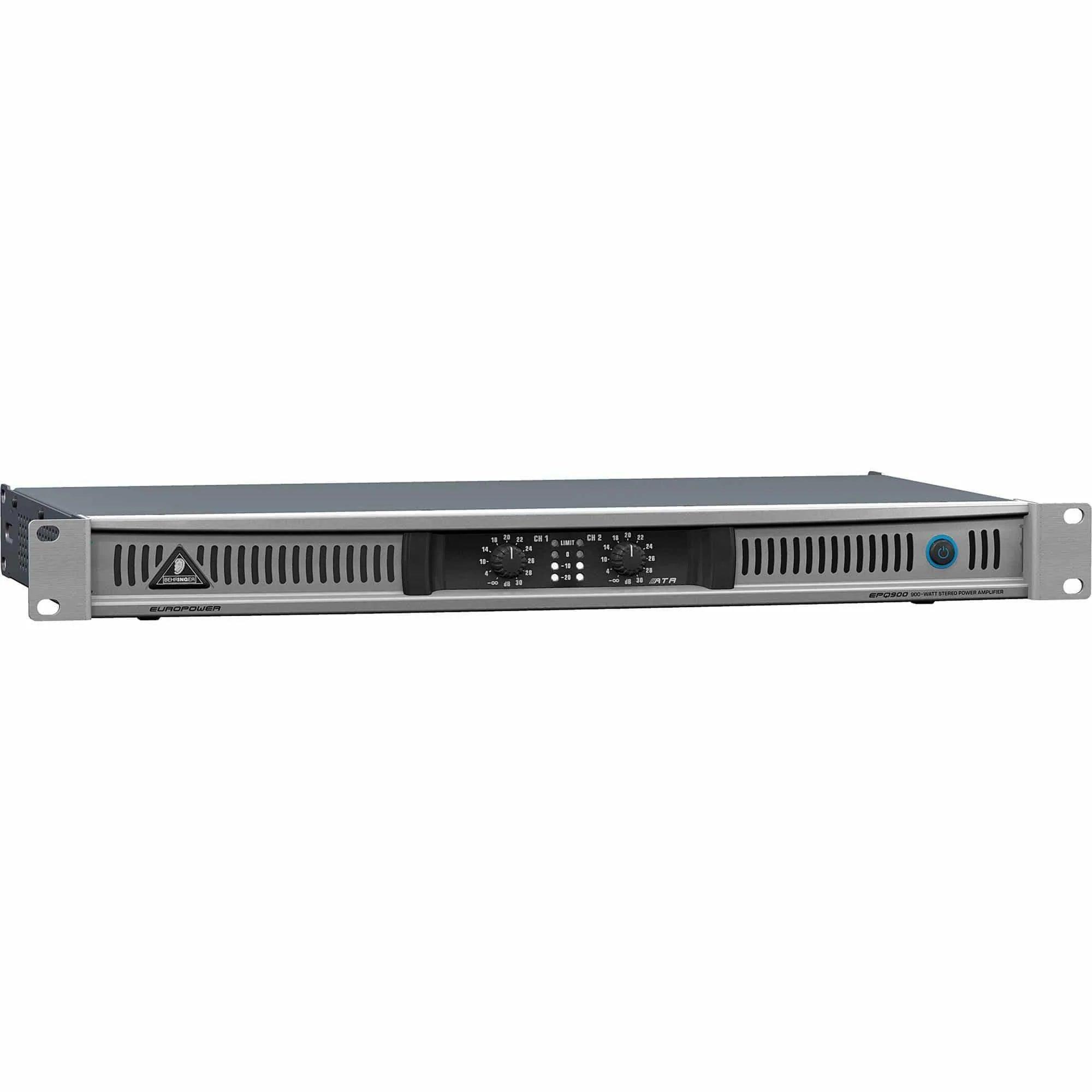

The simple front panel controls of these amps give you all of your sound's vital signs at a glance. After pressing the Power Button, the POWER LED will light when the amp is ready for action. Both channels have independent gain dials as well as clip LEDs that indicate when the signal is distorted and you need to reduce the gain. There are also SIGNAL LEDs that light up when a signal is present at the input.

Features

  • 2 x 390 watts
  • Ultra-lightweight
  • Power, signal and clip LEDs
  • XLR and 1/4" TRS inputs
  • Single space

Tech Specs

Stereo, both channels driven:
8 ohms per channel, stereo: 175 watts
4 ohms per channel, stereo: 275 watts
Bridged Mono : Both channels bridged
8 ohms bridge mode : 580 watts
Peak Power:
Stereo: Both channels driven
8 ohms per channel, stereo: 245 watts
4 ohms per channel, stereo: 390 watts
Bridged Mono: Both channels bridged
8 ohms bridge mode: 900 watts
System:
Controls:
Front: Power switch GAIN control (channels 1 and 2)
Rear: Mode switch (Mono, Stereo, Bridge)
Indicators: POWER: Blue LED
LIMIT (per channel) : Blue LED
SIGNAL (per channel) : White LED (-20 dB, -10 dB,0 dB)
Connectors:
Inputs: 2 x XLR / 1/4 in. TRS combo jacks
Input impedance: 10 kohms unbalanced, 20 kohms balanced
Outputs: 2 x locking-style professional speaker connectors
Output circuit type: Class H
Distortion: < 0.3%
Frequency Response: 20 Hz - 20 kHz, +0 / -1 dB
Damping Factor: > 350 @ 8 ohms
Signal-to-Noise: 104 dB
