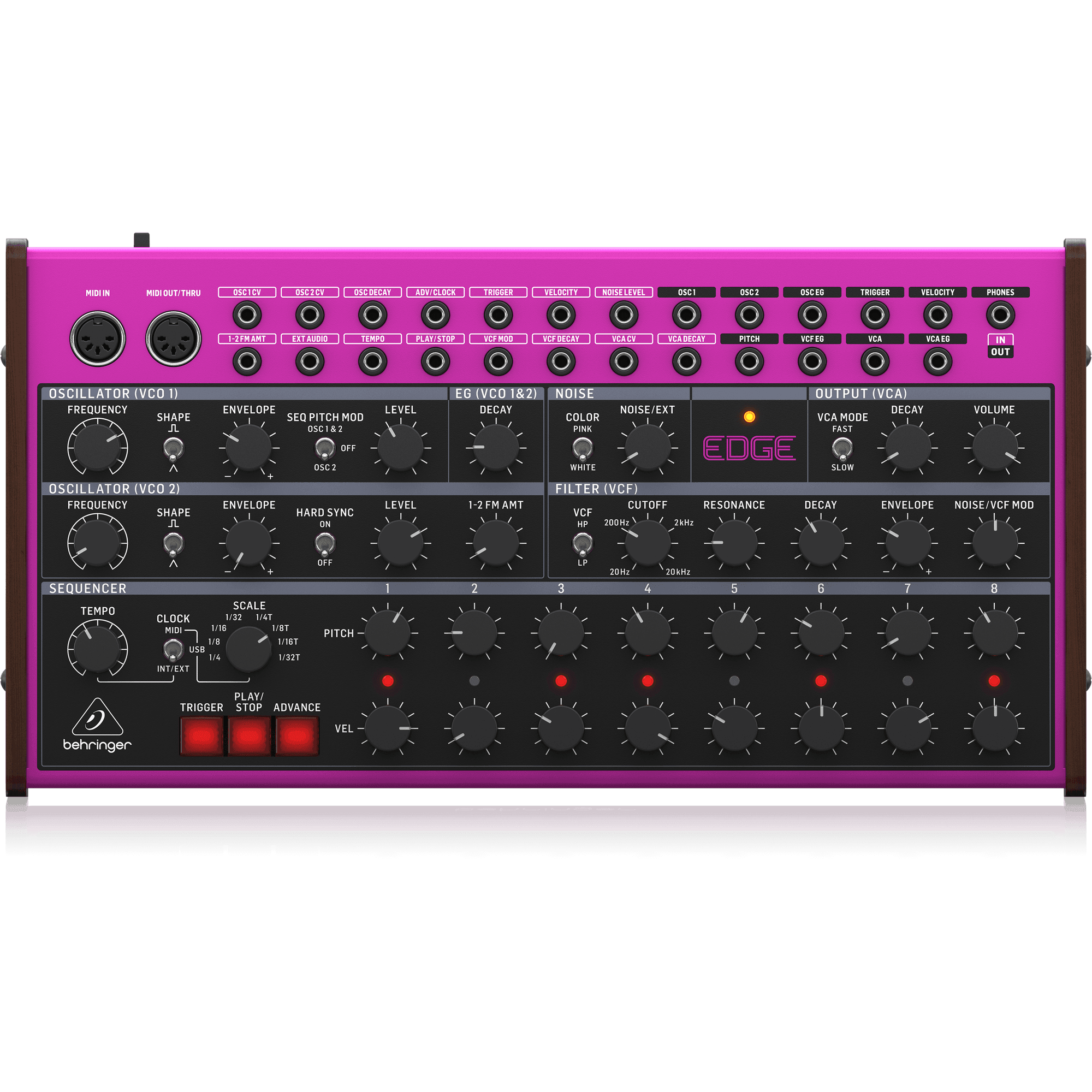

KEY FEATURES
-
Analog semi-modular percussion synthesizer for insanely fat music creation
-
Pure analog signal path based on authentic VCO and VCF designs
-
Dual VCOs with pulse and triangle waves, oscillator sync and FM for a huge range of sounds
-
Dual 8-step sequencer with pitch and velocity controls for inspiring grooves and rhythms
-
White/pink noise source and external input for unlimited additional timbres
-
Multi-mode 24 dB resonant ladder filter with low and high-pass plus cutoff modulation by noise
-
3 separate decay envelopes for pitch, filter cutoff and amplitude for detailed control
-
Sequencer speed with up to 10,000 BPM allows for audio range waveform generation
-
Semi-modular design with default routings requires no patching for immediate performance
-
15 x 10 I/O matrix for incredibly vast and flexible patching options
-
44 controls give you direct and real-time access to all important parameters
-
Multiple clocking sources including MIDI/USB for synchronization with other equipment
-
Time division control featuring 8 different rates
-
Comprehensive MIDI implementation with MIDI channel and Voice Priority selection
DESCRIPTION
If you’ve been searching for the perfect companion to your Behringer CRAVE then the brand new EDGE provides all the tools you need to complete your synth setup and become a master beat-maker, including: Dual VCOs with a huge range of sounds, a dual 8-step sequencer with pitch and velocity controls and so many more features for a powerful and flexible drum & bass machine that’ll shake the house and get everyone moving to the beat!
Great care has been taken in designing the EDGE to achieve new possibilities in sound creation by reviving timeless analog designs and technologies. By taking a fresh and modern approach on classic circuits, the EDGE gives you the power to create super-tight percussive sounds to dark and moody bass lines.
Built to enhance the way you perform, the EDGE boasts a pure analog signal path, Dual VCOs with pulse and triangle waves, oscillator sync and FM plus a white/pink noise source for a huge range of sounds and timbres. Its dual 8-step sequencer with pitch and velocity controls can also provide you with a degree of control that will let you create any groove and rhythm you can imagine. If that wasn’t enough, the EDGE’s sequencer can go up to an astounding 10,000 BPM so you can turn your beats into mind-blowing waveforms that’ll surprise even the most hardcore synth wave fan out there.
SPECIFICATIONS
Synthesizer Architecture
Number of voices |
Monophonic |
Type |
Analog |
Oscillators |
2 |
VCF |
1 HP/LP 4-pole (-24dB/Oct) ladder filter |
Envelope |
1 per VCO, 1 VCA decay, 1 VCF |
Noise |
White, pink |

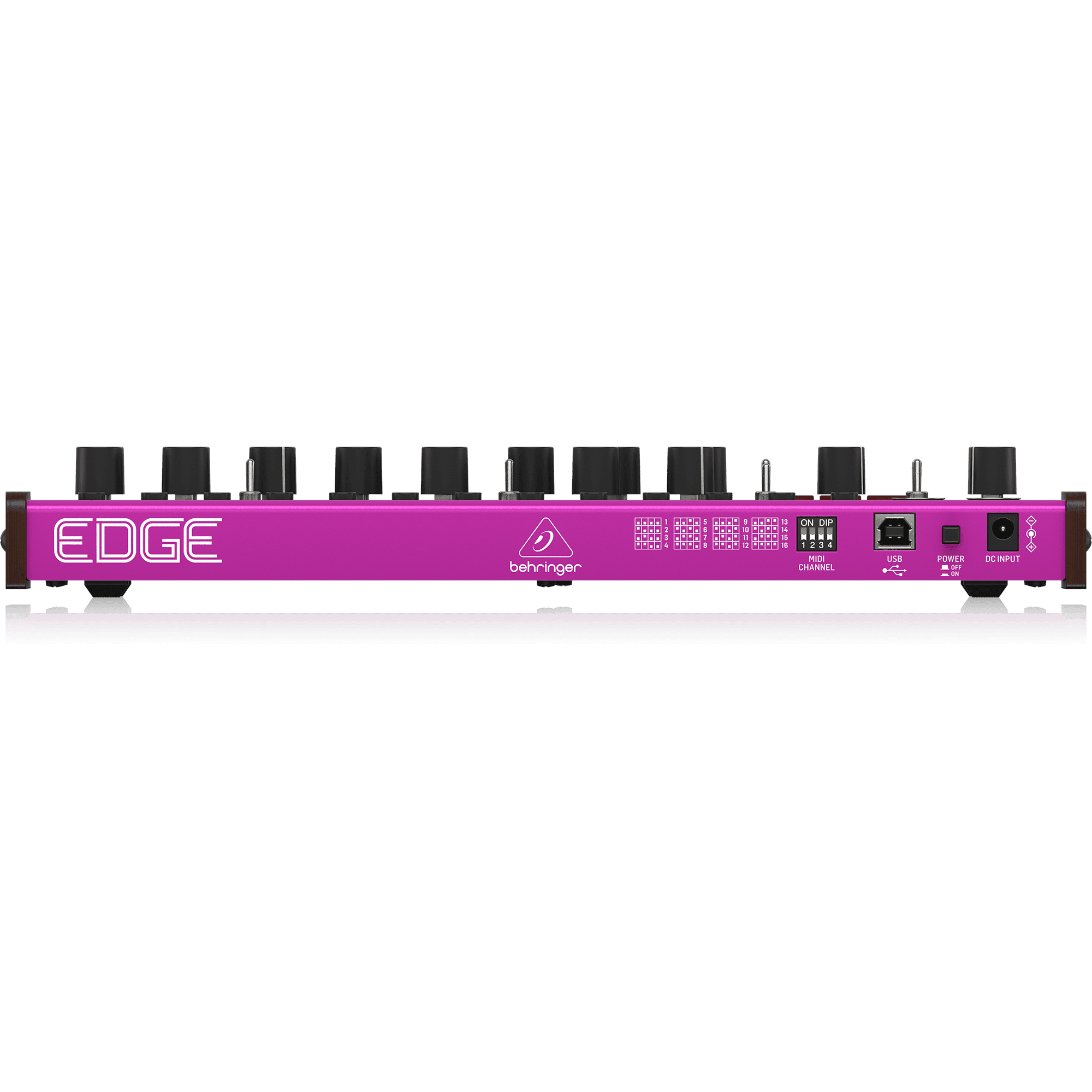

Connectivity
Power input |
DC input connector |
Power switch |
Push button on / off |
USB (MIDI) |
USB 2.0, type B |
MIDI In / Out /Thru |
2 x 5-pin DIN / 16 channels |
Output |
VCA output: 3.5 mm TS, unbalanced, max +14.5 dBu |
Headphones |
3.5 mm TRS, max. 450uW @ 64 Ω |
Headphones output impedance |
470 Ω |
Inputs
Type |
3.5 mm TS |
OSC 1 CV |
-5 V to +5 V |
OSC 2 CV |
-5 V to +5 V |
OSC decay |
-5 V to +5 V |
ADV/clock |
more than 3.2 V (10 V max) |
Trigger |
0 to +5 V Pulse or Gate signal (+10 V max) |
Velocity |
0 V to 5 V |
Noise level |
0 V to 8 V |
1-2FM AMT |
0 V to 8 V |
Ext audio |
10 V max |
Tempo |
-5 V to +5 V |
Play/stop |
more than 3.2 V (10 V max) |
VCF mod |
-5 V to +5 V |
VCF decay |
-5 V to +5 V |
VCA CV |
0 V to 8 V |
VCA decay |
-5 V to +5 V |
Outputs
Type |
3.5 mm TS |
OSC 1 |
± 5 V |
OSC 2 |
± 5 V |
OSC EG |
0 V to 8 V |
Trigger |
0 to +5V Pulse |
Velocity |
0 to +5V |
Pitch |
± 5 V |
VCF EG |
0 V to 8 V |
VCA EG |
0 V to 8 V |
USB
Type |
Class compliant USB 2.0, type B |
Supported operating systems |
Windows 10 or higher / Mac OS X 10.14 or higher |
Oscillator (VCO) 1 Section
Controls |
Frequency ± 5 octave (10 octave range) Envelope: -5 to +5 Level: 0 to 10 EG (VCO 1&2) decay 0 to 10 |
Switches |
Shape: pulse, triangle Seq pitch mod: osc 1&2, off, osc 2 |
Oscillator (VCO) 2 Section
Controls |
Frequency ± 5 octave (10 octave range) |
Switches |
Shape: pulse, triangle |
Noise Section
Controls |
Noise/ext 0-100% |
Switch |
Color: pink/white |
Output (VCA) Section
Controls |
Decay 0 to 10 |
Switch |
VCA mode: fast/slow |
Filter (VCF) Section
Controls |
Cutoff frequency: 0 to 10 (20 Hz - 20 kHz) |
Switch |
VCF: HP/LP |
SEQUENCER
Controls |
Tempo 0% - 100% |
Switch |
Clock: MIDI, USB, INT/EXT |
LED |
Active step indication |
Buttons |
Trigger, play/stop, Advance |
Power Requirements
External power adapter |
12 V DC 1000 mA |
Power consumption |
4 W max |
Indicator |
Power LED |
