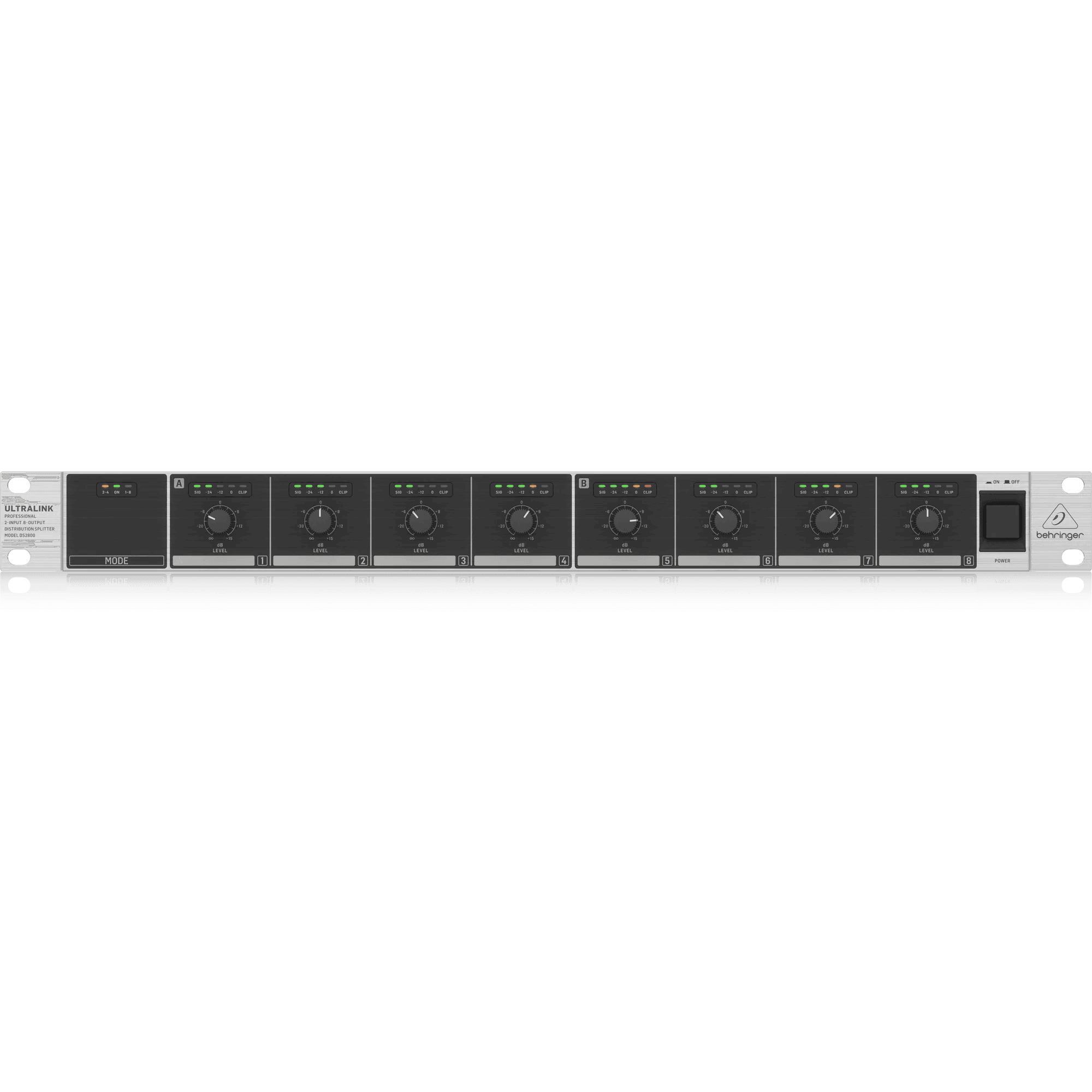

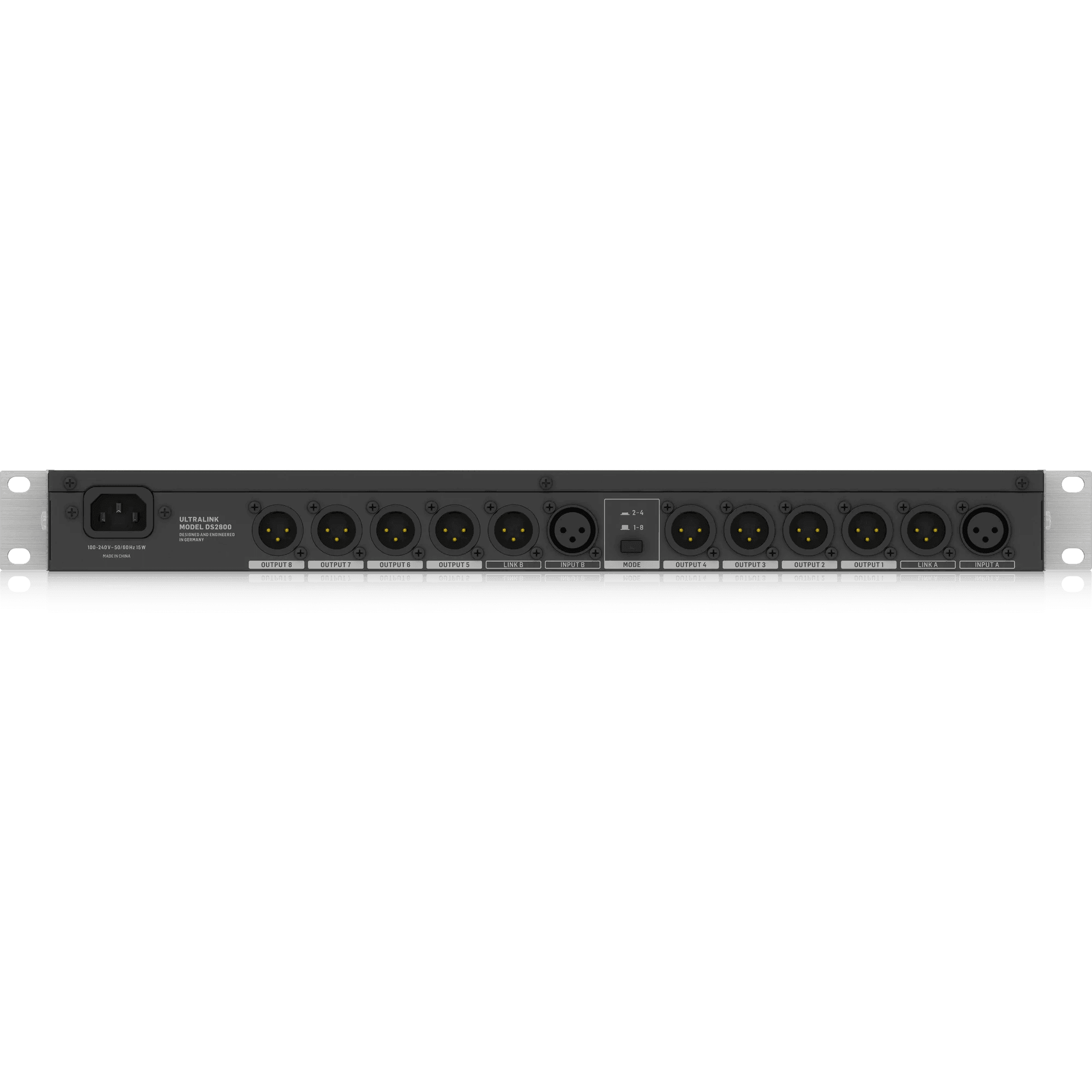

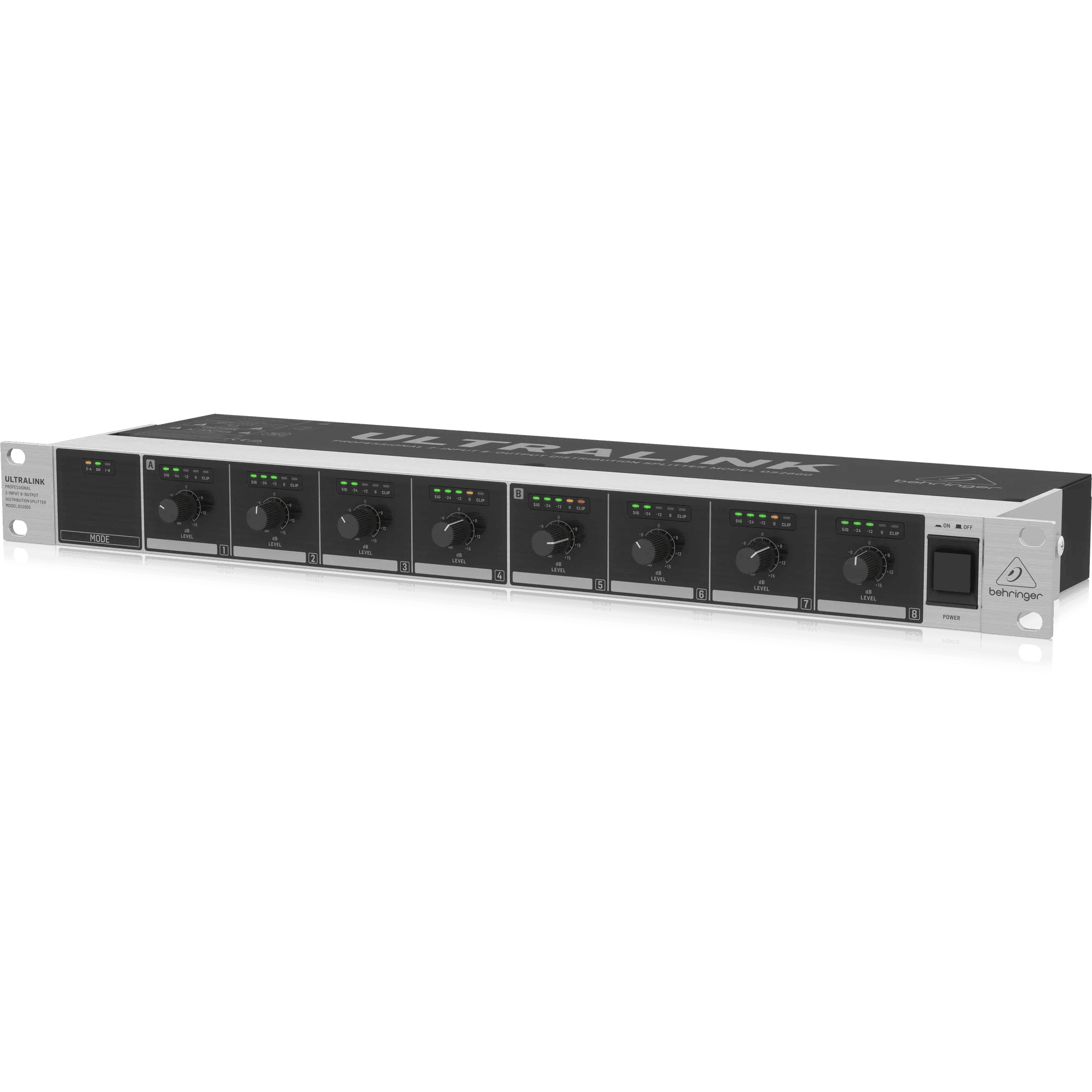

Behringer DS2800 Professional 2-Input 8-Output Distribution Splitter
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Behringer DS2800 Professional 2-Input 8-Output Distribution Splitter
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 100.75\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
-
Ultra-flexible and easy-to-use distribution splitter for commercial sound applications
-
Dual mode 2-In / 4 out or 1-in / 8-out operation
-
2 ultra-low noise line inputs with separate link output connectors
-
8 output channels each featuring independent level controls
-
5-segment LED meters for each output to indicate signal activity
-
Servo-balanced inputs and outputs with gold-plated XLR connectors
-
Internal switch-mode power supply (100 - 240 V~) for noise-free audio and low power consumption
DESCRIPTION
When it comes to providing signal distribution in commercial sound applications, the DS2800 Professional 2-Input 8-Output Distribution Splitter is the leader in its class. Extremely flexible and easy to use, the DS2800 features two modes of operation that allow you to send either 2 audio signals to 4 separate zones, or a single signal to up to 8. This level of versatility makes the DS2800 the ideal choice for a wide range of applications including everything from recording studios to shops, restaurants and more.
Dual Mode Operation
In the recording studio, monitoring options are crucial for the performers as well as the engineers, so DS2800’s 2-In / 4 Out mode makes it easy to switch between various loudspeaker and headphone systems. For applications such as restaurants and the like, running separate zones lets you set individual volume levels to better suit the needs of your clientele. The Mode selection switch is located on the rear panel and LED indicators on the front let you know which mode has been selected.
Ultra-Low Noise
DS2800’s XLR line Inputs feature state-of-the-industry, ultra-low noise op-amps for the ultimate in pristine sonic performance. In addition to the inputs, Link Output XLR sockets are provided for cascading additional DS2800 devices, so your system can grow as needs change. All XLR Input and Output connectors are gold plated for the highest signal integrity.
SPECIFICATIONS
Audio Connections
| Input A / B |
XLR, balanced |
| Input impedance |
10 kΩ balanced, 6.6 kΩ unbalanced |
| Max. input level |
+21 dBu |
| CMRR |
64 dB typ. @ 1 kHz |
| Link A / B |
XLR, balanced |
| Output 1 – 8 |
XLR, balanced |
| Max. output level |
+28 dBu |
System
| Frequency response |
10 Hz to 75 kHz (±3 dB) |
| Dynamic range |
117 dB |
| Distortion (THD) |
0.001% typ. @ +4 dBu, 1 kHz, Gain 1 |
| Crosstalk |
< -77 dB @ 1 kHz |
| Signal-to-noise ratio |
20 Hz to 20 kHz, > 97 dB @ 0 dBu |
Function Controls / Switches
| Output level |
-∞ … + 15 dB, variable |
| Mode |
1 – 8 / 2 – 4, switchable |
Displays
| Power ON |
LED indicator |
| Output level |
5-digit LED display: sig / -24 / -12 / 0 / clip |
| Mode |
Status LED Indicator |
Power Supply
| Type |
Switch-mode autorange power supply |
| Mains voltage |
100-240 V, 50/60 Hz |
| Power consumption |
15 W |
| Mains connection |
Standard IEC receptacle |
Dimension / Weight
| Dimensions (H x W x D) |
44 x 483 x 148 mm (1.7 x 19.0 x 5.8") |
| Weight |
1.6 kg (3.5 lbs) |
