Behringer DI4800A Professional 4-Channel Active DI Box, Booster and Line Isolator
Secure Transactions
Warranty Coverage
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We're here to help ensure every warranty request is handled smoothly and efficiently.
Read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
Read moreTalk to a Pro
Speak to our Music & Audio Pros – the quickest way to get some info.
We're available Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppChoose options
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES-
Professional and multi-purpose 4-channel direct injection box for stage and studio applications
-
Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
-
Ultra-flat frequency response due to renowned Behringer OT-1 transformers
-
Total of +18 dB gain boost in three +6 dB increments for pre-amplification of low-level signals
-
Ground Lift switch eliminates typical ground loop problems
-
Switchable -20 dB output attenuation
-
Neutrik* combo and gold-plated XLR connectors
-
Powered via external DC power supply (included) with optional battery powered operation (sold separately)
DESCRIPTION

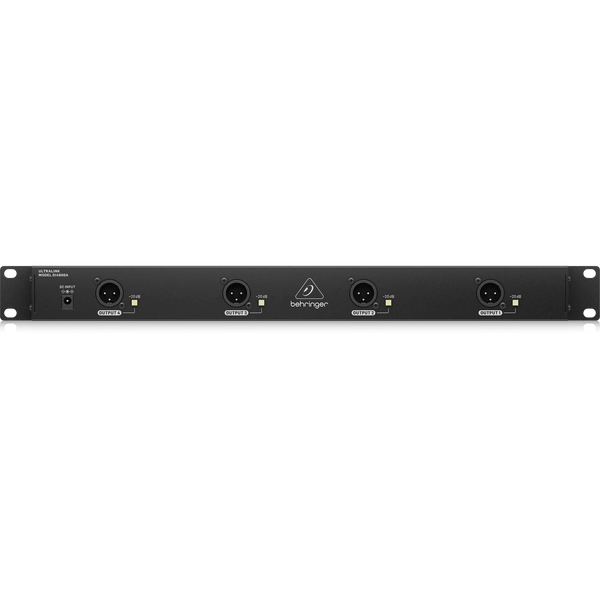

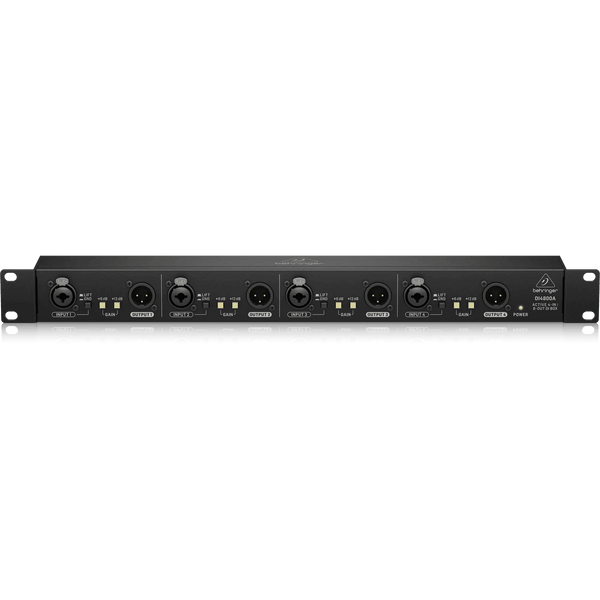

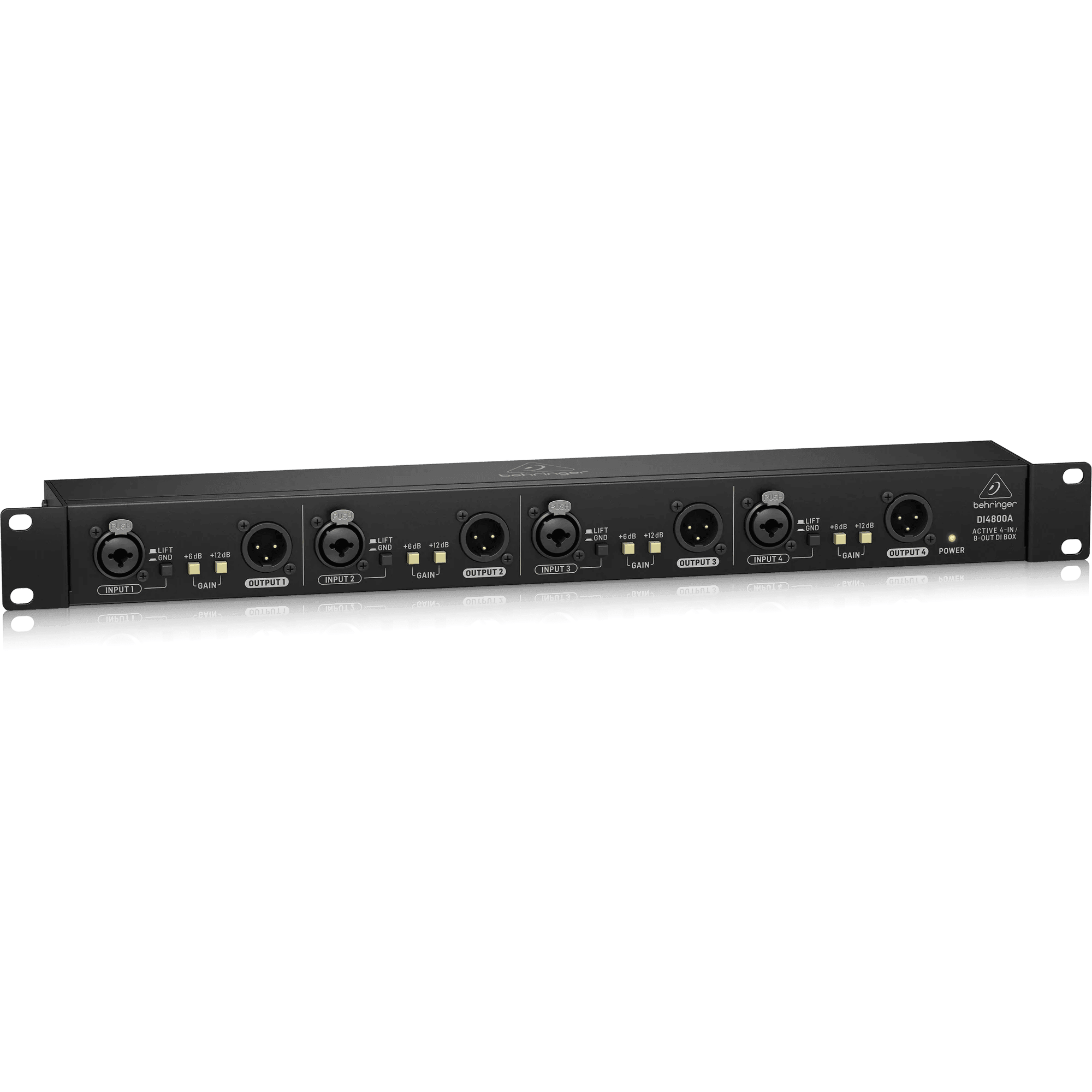

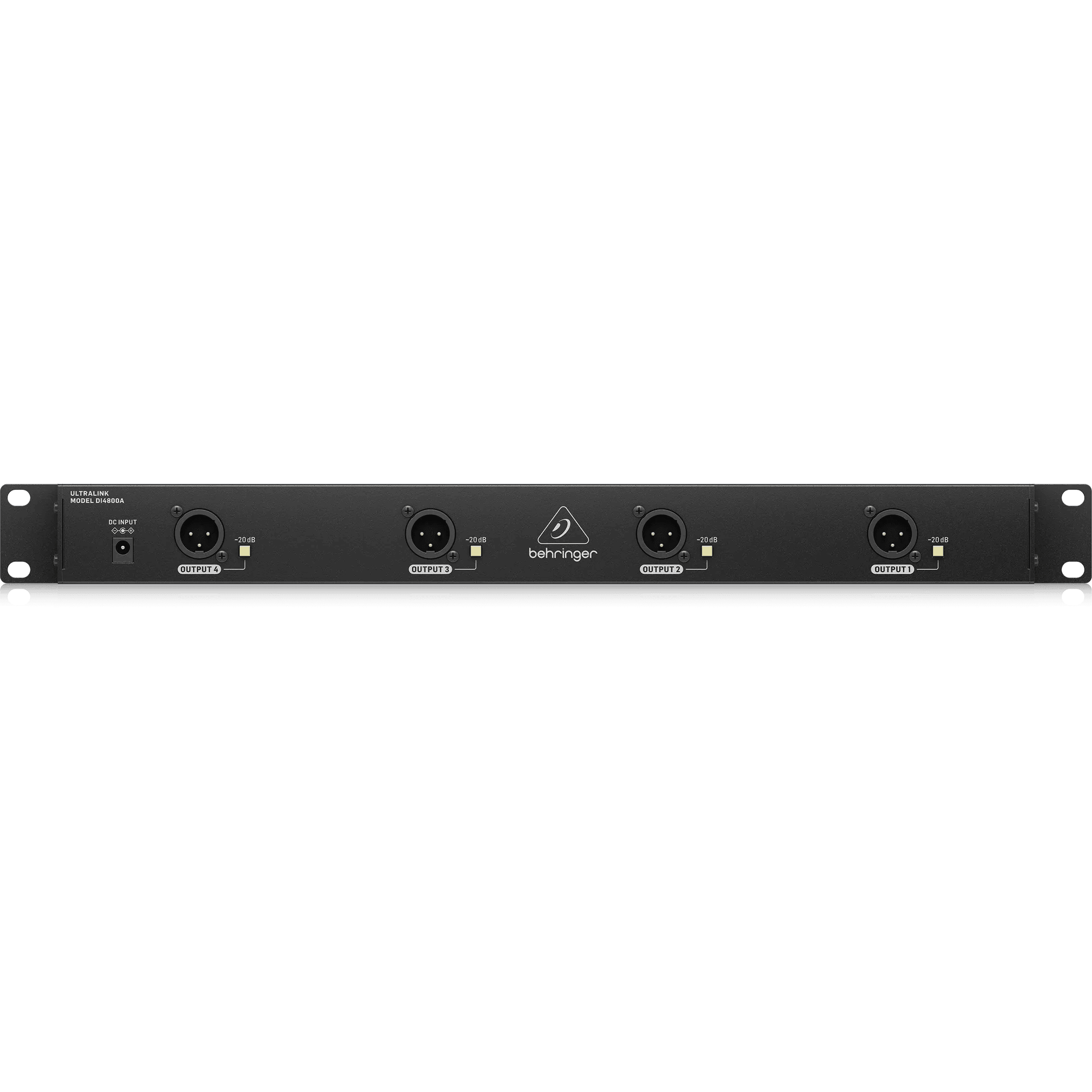

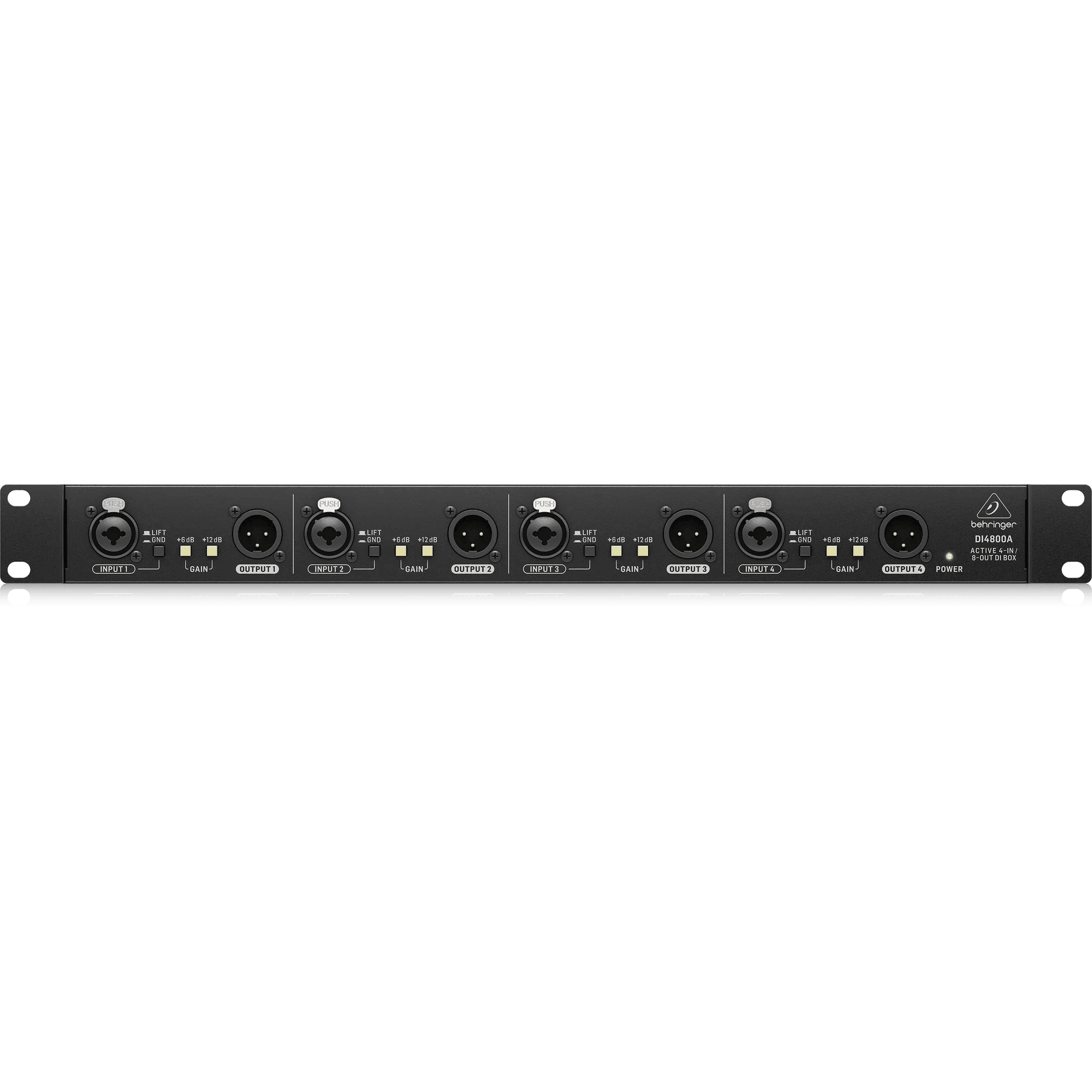

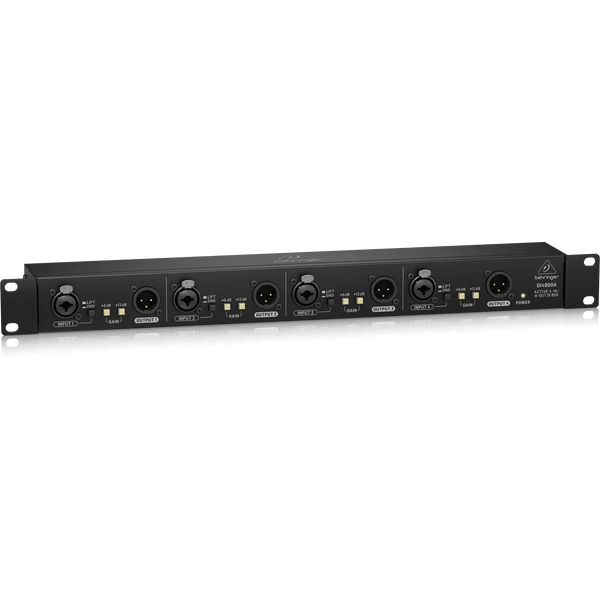

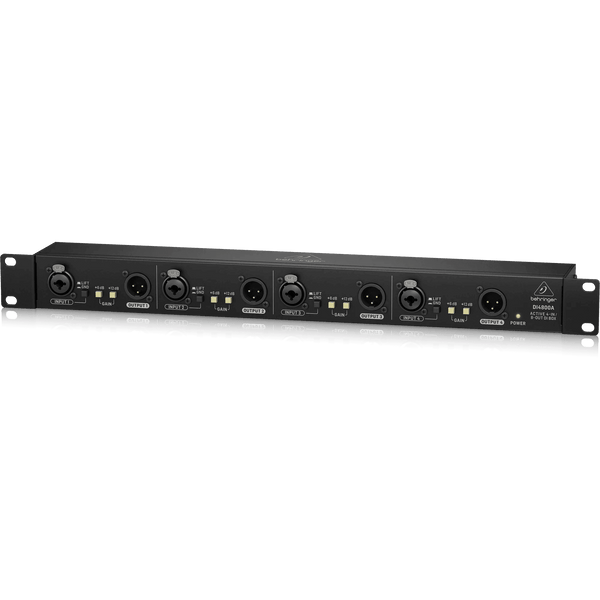

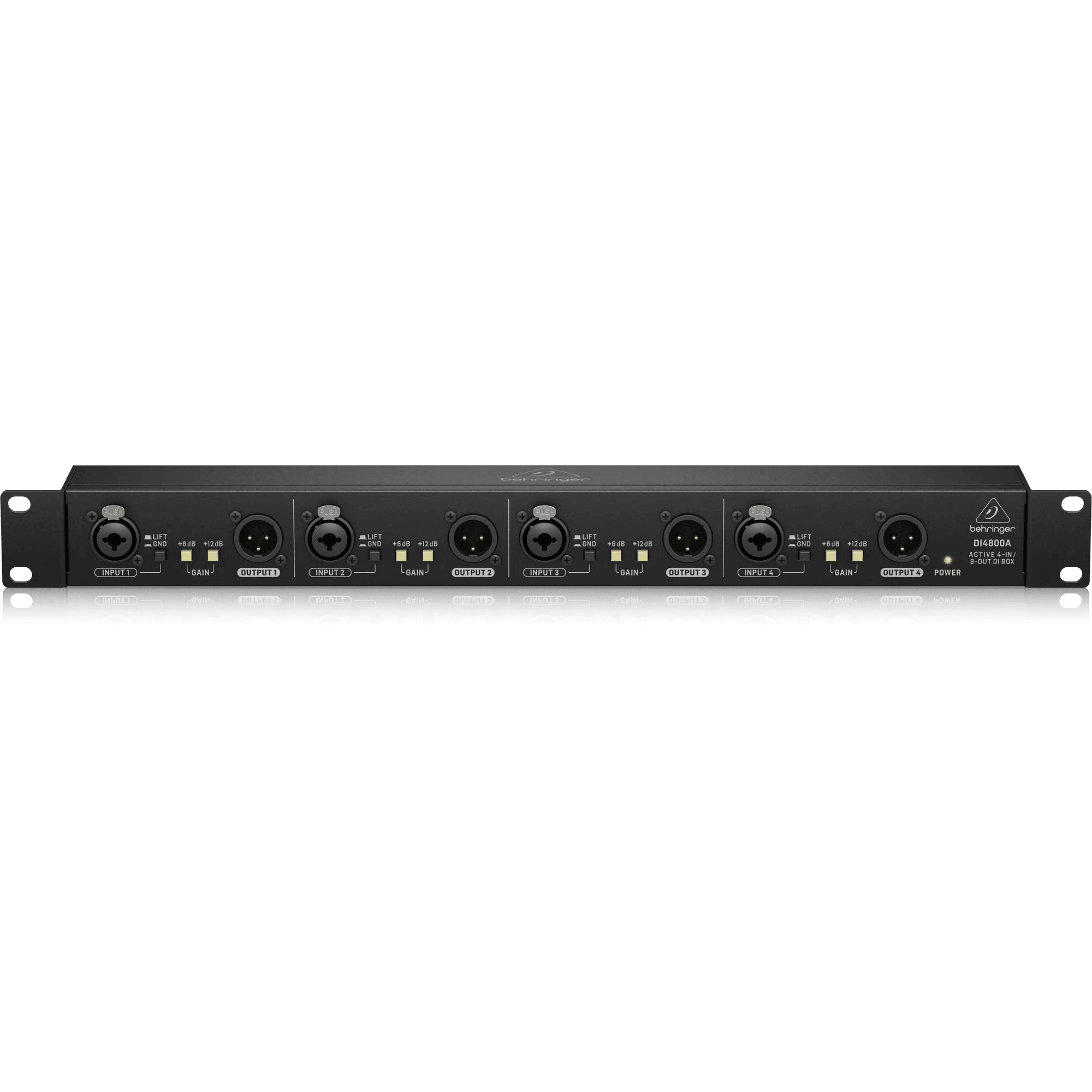

THE ULTRA-DI PRO DI4800A gives you 4 first-class DI channels in a single rack space. Each channel is equipped with one input (XLR or ¼” TRS) and two XLR Outputs at the front and back to connect to your amp or monitor console allowing for 8 outputs in all. Plus, the DI4800A is designed to accommodate virtually any input signal, with a switchable output attenuation of -20 dB, while our highly acclaimed OT-1 output transformers ensure pristine and powerful output.
SPECIFICATIONS
Inputs
|
Connectors |
4 x XLR-1/4" combo jacks, balanced |
|
Impedance |
20 kΩ |
|
Max. input level |
+20 dBu |
|
Channel boost switchable |
+6 dB,+12 dB,+18 dB |
Outputs
|
Connectors |
8 x XLR, transformer balanced |
|
Impedance |
600 Ω |
|
Max. output level |
+20 dBu |
|
Output pad switch |
20 dB attenuation |
System
|
Frequency response |
20 Hz to 20 kHz (±3 dB) |
|
THD + N (distortion) |
0.01% @ 1 kHz, 0 dBu |
|
Signal-to-noise ratio |
120 dB |
|
Ground lift switch |
Removes ground connection |
|
Power requirement |
12 V DC, 500 mA |
Physical
| Standard operating temperature range | 5° C – 40° C (41° F – 104° F) |
| Dimensions (W x D x H) | 483 x 71 x 44 mm(19.0 x 2.8 x 1.7"") |
| Weight | 1.4 kg (3.1 lbs) |
