Equalization. Dynamics. Feedback Correction.

You can have it all with the DEQ2496. How about automatic FFT analysis with Auto EQ? We added that too. The DEQ2496 is a whole rack of ultra-flexible equalization options, dynamics and time-correction solutions, all designed to optimize your rig’s sound quality like no other single piece of processing gear. Consider the DEQ2496 your audio engineer’s Swiss Army Knife – here are a just few examples: Dual 31-band Graphic Equalizers (stereo linkable) Dual 31-band Virtual Paragraphic Equalizers (stereo linkable) Dual 10-band Parametric EQ’s per stereo side Dynamically-activated EQ Feedback Destroyer with Learning Mode Stereo Imager Compressor/Expander Limiter Digital Delay RTA/SPL/FFT Analyzer with Auto EQ function

Dual 31-band Graphic Equalizers, 31-band Virtual Para-graphic Equalizers and 10-band Parametric

Naturally, the DEQ2496 has a phase-neutral digital graphic EQ. But in addition, we’ve added a function that allows you to change the frequency bandwidths from 1/3, to as tight as 59/3. Or, if you prefer the old-school approach to variable bandwidth, we’ve included 10-bands of parametric filters that can be incrementally fine-tuned all the way down to 1/60 of an octave.

FEATURES

• Ultra-high resolution 24-bit/96 kHz mastering processor featuring 32/40-bit floating-point DSP technology

• Audiophile 24-bit/96 kHz A/D- and D/A converters offering 113 dB dynamic range

• 4 concurrently selectable EQ modules (31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer plus 3 Dynamic EQs per stereo channel)

• Ultra-high resolution 61-band real-time FFT analyzer with additional auto EQ function for room and loudspeaker equalization

• Unique VPQ (Virtual Paragraphic EQ) option allows parametric control of graphic EQs

• State-of-the-art compressor/expander with peak limiter per stereo channel, additional stereo imager and stereo delay for delay line applications

• Multi-functional level meters (peak/RMS, VU and SPL meter with dBA/dBC weighting via RTA/Mic input)

• 64 user memories for complete setups and/or individual module configurations

• Separate mic/line input with phantom power for RTA and Auto-EQ applications

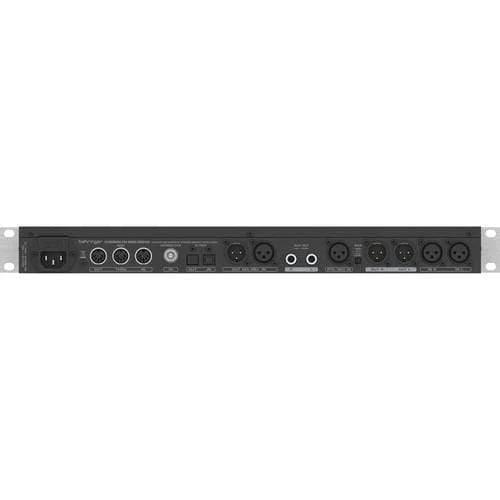

• Balanced inputs and servo-balanced outputs with gold-plated XLR connectors, stereo aux output, AES/EBU and S/PDIF inputs and outputs (XLR and optical)

• Professional Wordclock input and MIDI connections for full remote control, preset dumps and system updates

• Open architecture allowing future software updates via MIDI

• "Planet Earth" switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving


SPECIFICATIONS:

HOW IT WORKS:

The Behringer DEQ2496 Equalizer Digital 24bit-96kHz RTA Dyn App FDS Limiter is a high-resolution processor that provides all EQ, RTA and dynamic applications for PA and mastering. It offers four selectable EQ modules, a flexible compressor/expander function with peak limiter per stereo channel, a stereo imager, and a stereo delay. The sixty-one band FFT analyzer offers additional auto EQ functions for room and speaker equalization, and the separate RTA microphone/line comes with phantom power and sixty-four user memories for complete setup and individual module configuration.

PRODUCT FAQ:

Q: What type of EQ does the Behringer DEQ2496 Equalizer Digital 24bit-96kHz RTA Dyn App FDS Limiter offer?

A: It offers four selectable EQ modules, including a 31-band graphic EQ, a 10-band parametric EQ, and 3 dynamic EQs per channel (all available simultaneously).

Q: Does the Behringer DEQ2496 Equalizer Digital 24bit-96kHz RTA Dyn App FDS Limiter come with any additional features?

A: Yes, it also comes with a flexible compressor/expander function with peak limiter per stereo channel, a stereo imager, and a stereo delay.
