KEY FEATURES
-
Amazing sound powerhouse for anything from percussion, leads and basses to drums, drones and soundscapes
-
20 digital oscillators including 15 Mutable Instruments Plaits* engines for infinite sound creation
-
High-resolution 96 kHz synthesis for unsurpassed sound quality
-
Inspiring OLED oscilloscope for waveform visualization
-
Synthesis models designed for pitched sounds like ripping leads, lush chords and ethereal pads
-
10 synth engines: Virtual Analog, Waveshaper, FM, Grains, Additive, Chords, Speech, Karplus, Hypersaw and Wavetable
-
10 percussion and noise engines: Rain, Noise, Dust, Modal Strings, FM Drum, Bass, Snare, Hi Hat, Cowbell and Tom
-
Multi-functional Timbre and Harmonics controls for complex synthesis
-
Morph control to seamlessly change the character of the selected sound sources
-
2 separate audio outputs for both main sound and a dynamic variant
-
USB connector for easy firmware update
-
Eurorack specs: 16HP, 130mA +12V, 10mA -12V
DESCRIPTION

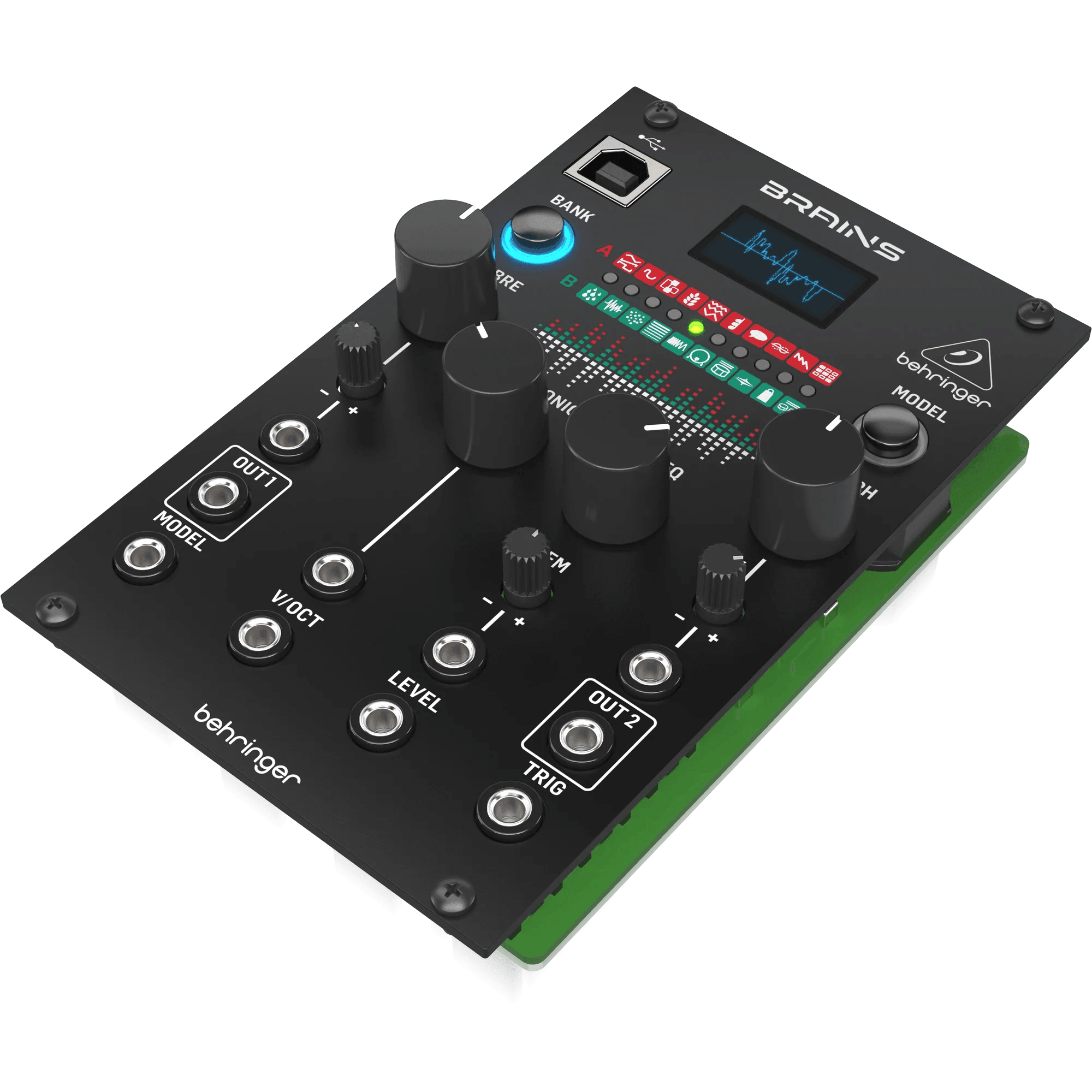

The Behringer BRAINS is an amazingly versatile digital sound source for creating percussion sounds, leads and basses, as well as drones and soundscapes. With 20 digital oscillator modes, including many different control engines, you’ve got a wealth of different sounds and timbres to create some wild and out-of-this-world patches using chords, harmonic oscillation, particle noise, analog bass drum, snare, hi hat and even speech.

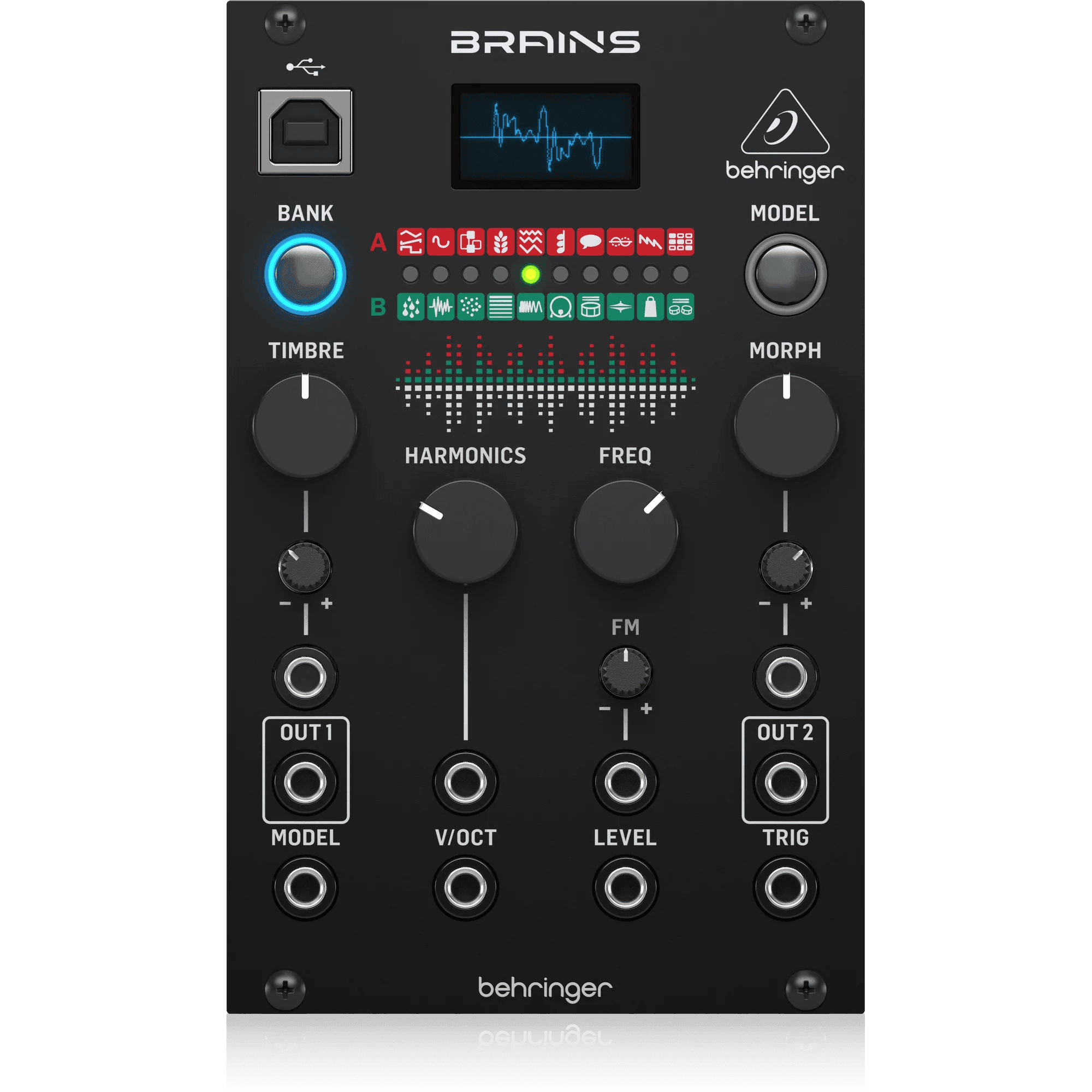

Four Knobs for Everything
BRAINS comes with multi-functional Timbre, Harmonics, Frequency and Morph controls that can be used to tweak each of the 20 synth models. Just select the active synth mode with the model button then start turning the controls to change the character of your sound source until you get your desired tone. Set any of BRAINS’ 20 synth or percussion and noise engines such as Virtual Analog, Waveshaper, FM, Grains, Rain, Noise, Dust, Modal Strings, Bass, Snare or Hi Hat to generate dark pulsating beats, bright and spicy tones, ripping leads, lush chords or ethereal pads to really breathe life into your music.
Visible Wavelengths
If having 20 digital oscillator modes wasn’t cool enough, BRAINS has an integrated and inspiring OLED display so you can visualize and adjust waveforms exactly the way you want them to be. Plus, having a screen with dancing waveforms on your synth is just plain awesome!
Ins and Outs
Along with its incredibly tweakable synth modules, BRAINS also comes with a slew of 3.5 mm input jacks to pipe in control voltages that expand the capabilities of BRAINS. Two separate audio outputs are also available for both your main sound and a dynamic variant which can be routed to other modules to create even more interesting and often wide stereo sounds.
Eurorack Ready
BRAINS is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the BRAINS to be mixed with other synth modules for a truly unique setup.
An Amazing Value
Use your BRAINS whether you’re just getting into modular synths or looking to complete your collection. This module from Behringer is a great tool to have in your arsenal when creating amazing music.
Get the BRAINS from your local Behringer dealer today!
SPECIFICATIONS
Inputs
| Timber CV input | |
| Type |
3.5 mm TS jack, DC to 2 kHz |
| Impedance |
50 kΩ |
| Max input level |
±8 V |
| Harmonics CV input | |
| Type |
3.5 mm TS jack, DC to 2 kHz |
| Impedance |
100 kΩ |
| Max input level |
±5 V |
| Freq CV input | |
| Type |
3.5 mm TS jack, DC to 2 kHz |
| Impedance |
50 kΩ |
| Max input level |
±8 V |
| Morph CV input | |
| Type |
3.5 mm TS jack, DC to 2 kHz |
| Impedance |
50 kΩ |
| Max input level |
±8 V |
| Model CV input | |
| Type |
3.5 mm TS jack, DC to 2 kHz |
| Impedance |
100 kΩ |
| Max input level |
±5 V |
| V/oct input | |
| Type |
3.5 mm TS jack, DC to 2 kHz |
| Impedance |
100 kΩ |
| Max input level |
-3 to +7 V |
| Level input | |
| Type |
3.5 mm TS jack, DC to 2 kHz |
| Impedance |
50 kΩ |
| Max input level |
0 to +8 V |
| Trig input | |
| Type |
3.5 mm TS jack, DC to 2 kHz |
| Impedance |
50 kΩ |
| Max input level |
0 to +8 V |
Outputs
| Out 1 | |
| Type |
3.5 mm TS jack, DC coupled |
| Impedance |
1 kΩ |
| Max output level |
6.2 V |
| Out 2 | |
| Type |
3.5 mm TS jack, DC coupled |
| Impedance |
1 kΩ |
| Max output level |
6.2 V |
Controls
| Timbre |
Darker or brighter content |
| Harmonics |
Frequency spread or tonal balance |
| Freq |
Frequency adjustment |
| Morph |
Panning or character |
| Bank |
Toggles band A and B |
| Model |
Scrolls through models in active bank |
Digital Processing
| A/D converter | |
| Resolution |
16 bit |
| D/A converter | |
| Resolution |
16 bit |
| Sampling rate |
96 kHz |
| Internal processing |
32-bit floating point |
USB
| Type |
USB 2.0, type B |
Power
| Power supply |
Eurorack |
| Current draw |
130 mA (+12 V), 10 mA (-12 V) |
Physical
| Dimensions |
129 x 81 x 45 mm (5.0 x 3.2 x 1.8") |
| Rack units |
16 HP |
| Weight |
0.16 kg (0.35 lbs) |
