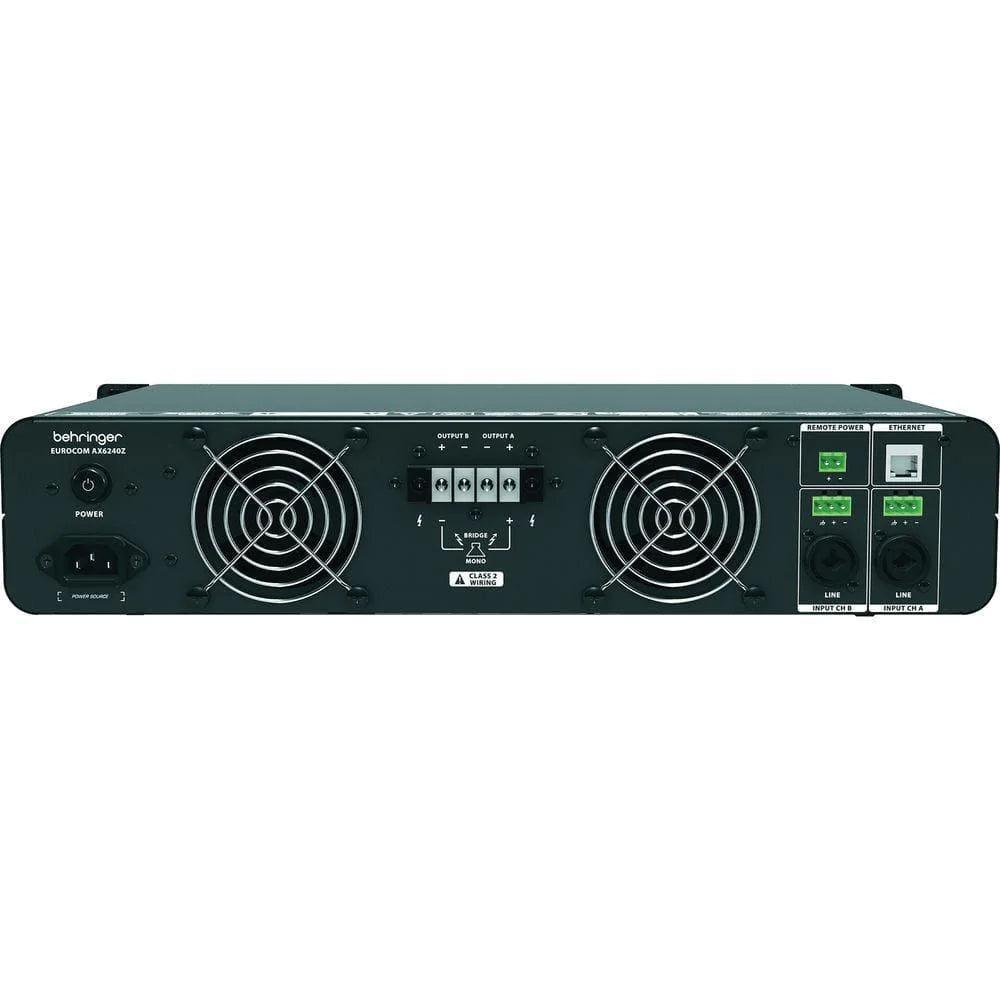

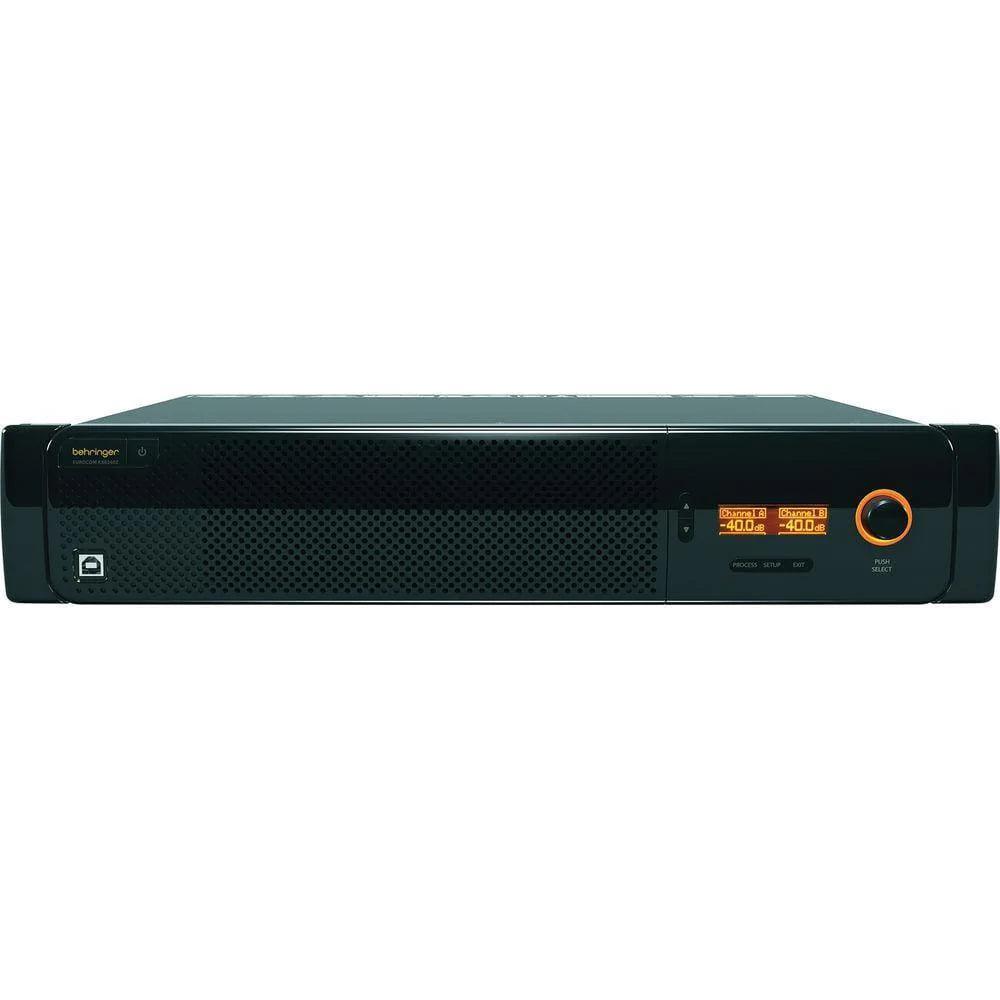

Behringer AX6240Z Power Amplifier

Delivery, Warranty & Returns Information

Featuring comprehensive digital signal processing (DSP) and remote setup via Ethernet / USB in a 2U rack-mountable, fan-cooled chassis, the AX6240Z 900W 70/100V High-Impedance Power Amplifier from Behringer is a professional, high-performance, 2-channel power amplifier for installation with 70 / 100V distributed speaker systems. This system delivers up to 700W RMS per channel at 70V (7Ω), up to 1000W RMS per channel at 100V (10Ω), up to 350W RMS per channel at 70V (14Ω), and up to 500W RMS per channel at 100V (20Ω). It utilizes transformer-less, class-D topology and switch-mode power technology to provide low noise and good transient response while reducing amplifier energy costs. The dual variable-speed fans create back-to-front ventilation to keep racks running cool, and zero-attack limiters combine with independent DC and thermal overload protection to safeguard the amplifiers and connected speaker systems. Featuring 24-bit / 96 kHz converters to ensure signal integrity, the processing section of this AX6240Z amplifier maintains an broad dynamic range while offering sophisticated DSP options including delay, crossover, dynamics, and both parametric (8-band) and dynamic (2-band) EQ.

Features

  • Reliable, dual-channel 2 x 900W power amplifier with 70 / 100V technology, designed for continuous operation in distributed music, paging, and AV applications
  • Energy-saving, switch-mode power technology with high power efficiency reduces energy cost
  • 2 transformer-less, cool-running Class-D amplifiers drive 70V or 100V loads, selectable via rear panel switch for energy efficiency and accurate transients
  • High-performance DSP and 24-bit / 96 kHz converters deliver signal integrity and good dynamic range
  • DSP section features sophisticated delay, crossover, EQ (8 parametric, 2 dynamic), dynamics processing, and lockable security settings
  • Can be set up, controlled, and monitored through standard Ethernet network with downloadable PC software (sold separately) or on-site via front panel USB connector
  • Front panel LCD display enables setup and adjustment without PC
  • 2 line-level inputs via 3-pin Euroblock or XLR / TRS combination connectors
  • Secure 4-position terminal strip speaker output connector with plastic cover & phenolic barriers
  • Front panel VU metering, mute indication, system fault, over-current or overdrive indicators, and illuminated master volume ring with clipping indication
  • Zero-attack limiters on all output channels with independent DC and thermal overload protection automatically protect the amplifier & speakers
  • Comes with integrated rack ears, screw covers, IEC-type AC power cord, and all mating Euroblock connectors
  • Remote power terminal for sequential power control and power switch with power amplifier cycling via alternate actuation
  • Back-to-front ventilation system prevents thermal buildup for reliable operation
  • Light, high-efficiency, switch-mode power supply for noise-free audio, good transient response, and low-loss green technology
  • High-quality components and rugged construction ensure long life

Tech Specs

Audio I/O 2 x 3-pin Euroblock and XLR / TRS combo
PC Control Type B USB on front or IEEE 802.3 Ethernet network connector on back panel
Display LCD 128 x 32, amber backlit
Delay Function: 0 to 300 ms (per channel)
Crossover Function: 3 filter types, up to 48 dB/octave
Dimensions (H x W x D) 3.5 x 17.0 x 16.0" (88.9 x 431.8 x 406.4 mm)
Weight 21.4 lbs (9.7 kg)
