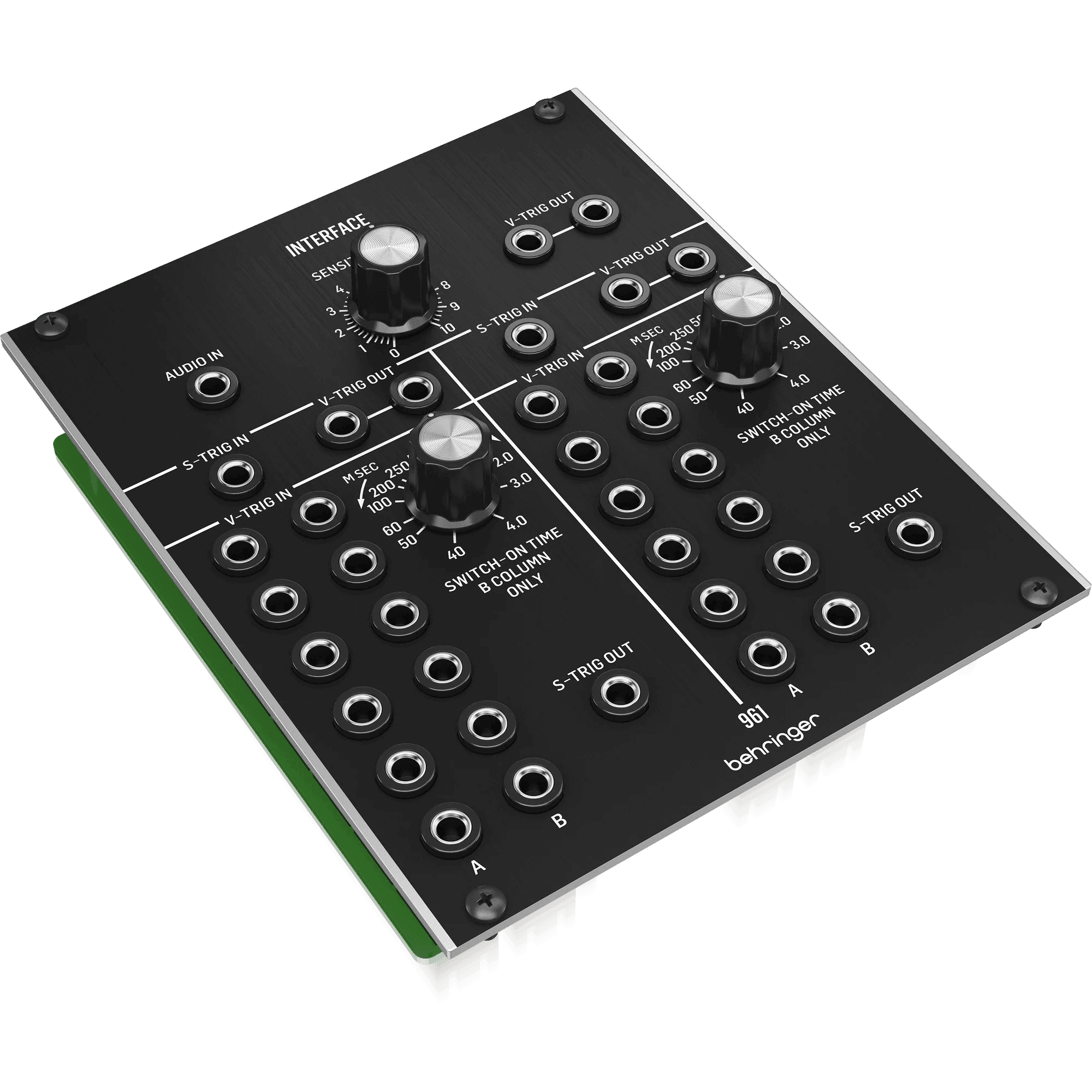

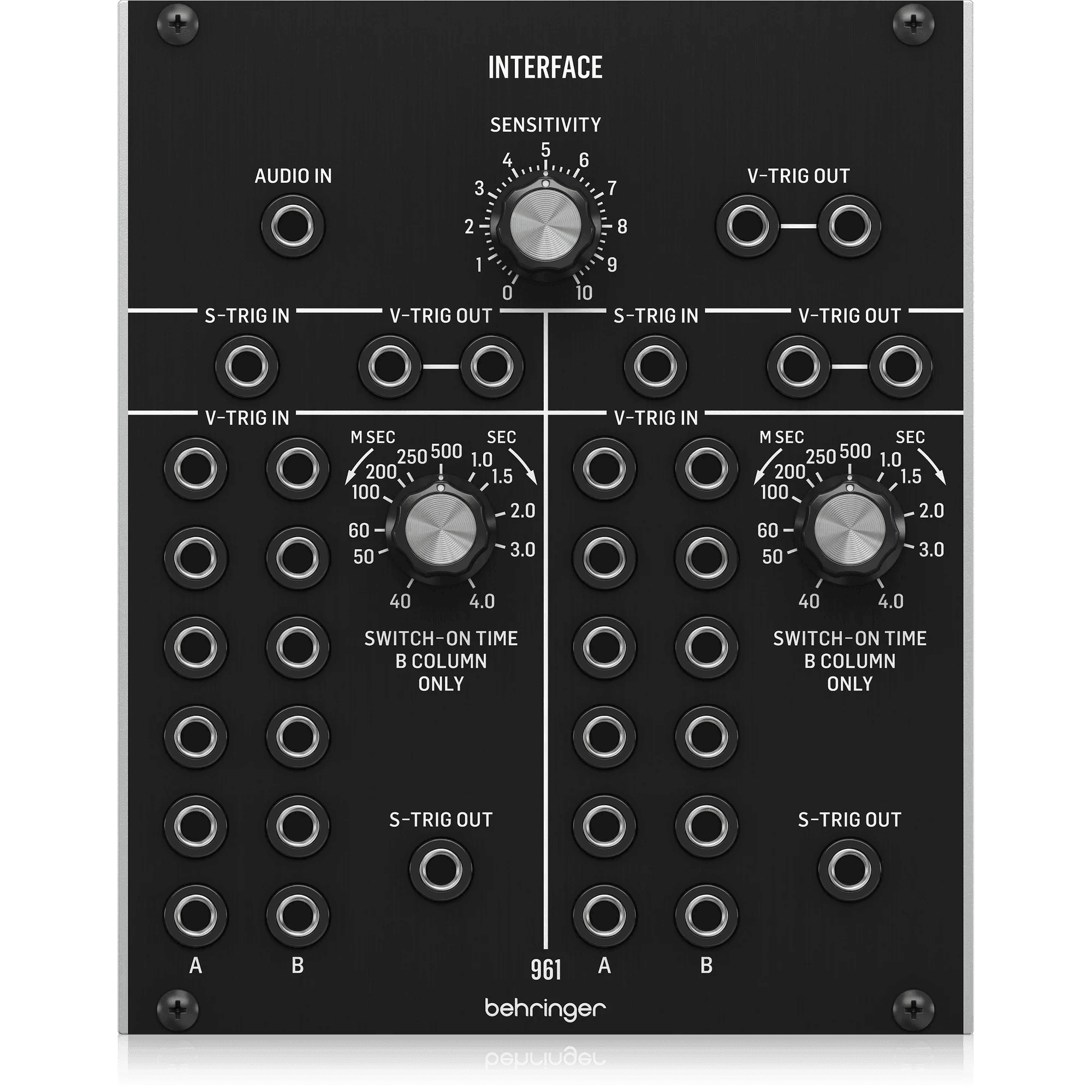

Behringer 961 INTERFACE
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Behringer 961 INTERFACE
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 98.75\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES-
Authentic reproduction of the circuitry from the "Modular 55" Series
-
Artist roster includes world's most famous pop, rock and jazz musicians
-
Dual multi-channel V-trig to S-trig converter
-
Dual S-trig to V-trig converter
-
Audio to V-trig converter
-
Variable switch on delay controls for Column B V-trig inputs
-
Control for setting audio sensitivity for V-trig conversion
-
Eurorack specs: 21 HP, 50 mA +12 V
DESCRIPTION
The first System 55, 35 and 15 synth modules came out in the early 70s and tended to be extremely expensive. They were mainly all discrete transistor designs as op-amps at the time were very high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like Keith Emerson, Stevie Wonder, Tangerine Dream and so many more, giving us some of the greatest records we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.
SPECIFICATIONS
|
Signal Connections |
|
|
Audio-to-voltage-trigger converter |
1 x circuit |
|
Audio in |
1 x 3.5 mm jack, AC coupled |
|
Input impedance |
> 3 kΩ unbalanced |
|
V-trig out |
2 x 3.5 mm parallel jacks, DC coupled |
|
Output Impedance |
< 2 kΩ, unbalanced |
|
Maximum output level |
+5 V |
|
Switch-to-voltage-trigger converter |
2 x circuit (left and right) |
|
S-trig in |
1 x 3.5 mm jack, DC coupled |
|
Operation |
Pull low to trigger |
|
Maximum input level |
+12 V |
|
V-trig out |
2 x 3.5 mm parallel jacks, DC coupled |
|
Output Impedance |
< 2 kΩ, unbalanced |
|
Maximum output level |
+5 V |
|
Voltage-to-switch-trigger converter |
2 x circuit (left and right) |
|
V-trig in A |
6 x 3.5 mm jacks, DC coupled |
|
Input Impedance |
10 kΩ, unbalanced |
|
Maximum input level |
+5 V |
|
Minimum level to trigger |
+ 1.5 V |
|
V-trig in B |
6 x 3.5 mm jacks, AC coupled |
|
Input Impedance |
10 kΩ unbalanced |
|
Maximum input level |
+5 V |
|
Minimum level to trigger |
+ 1.5 V |
|
S-trig out |
1 x 3.5 mm jack, DC coupled |
|
Operation |
Active low |
|
Output level |
0 V to +12 V pullup resistor |
|
Controls |
|
|
Sensitivity |
1 x rotary knob |
|
Switch-on time |
2 x rotary knob40 ms to 4 s, adjustable |
|
Power |
|
|
Power supply |
Eurorack |
|
Current draw |
50 mA (+12 V) |
|
Physical |
|
|
Dimensions |
35 x 106 x 129 mm (1.4 x 4.2 x 5.1") |
|
Rack units |
21 HP |
|
Weight |
0.22 kg (0.49 lbs) |
