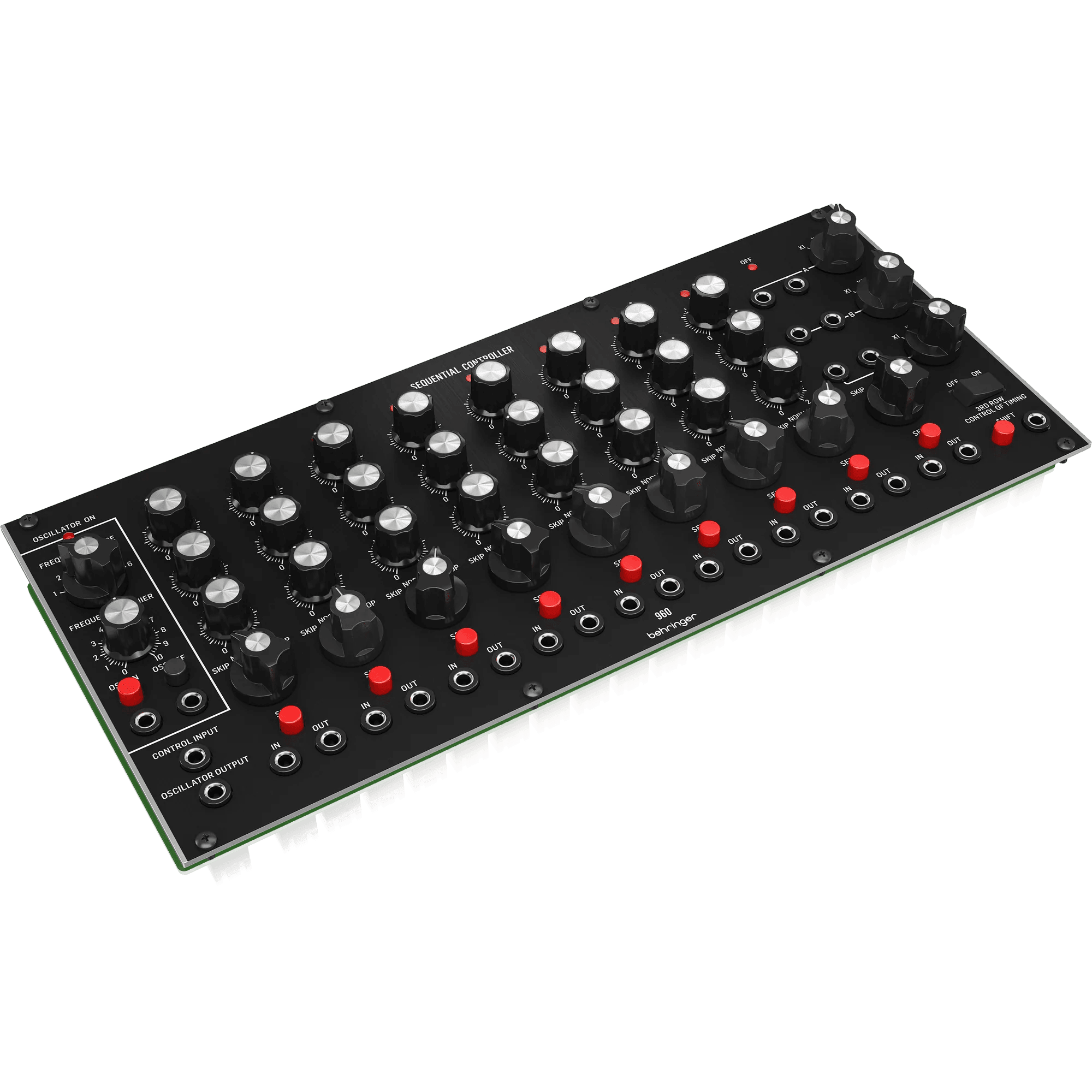

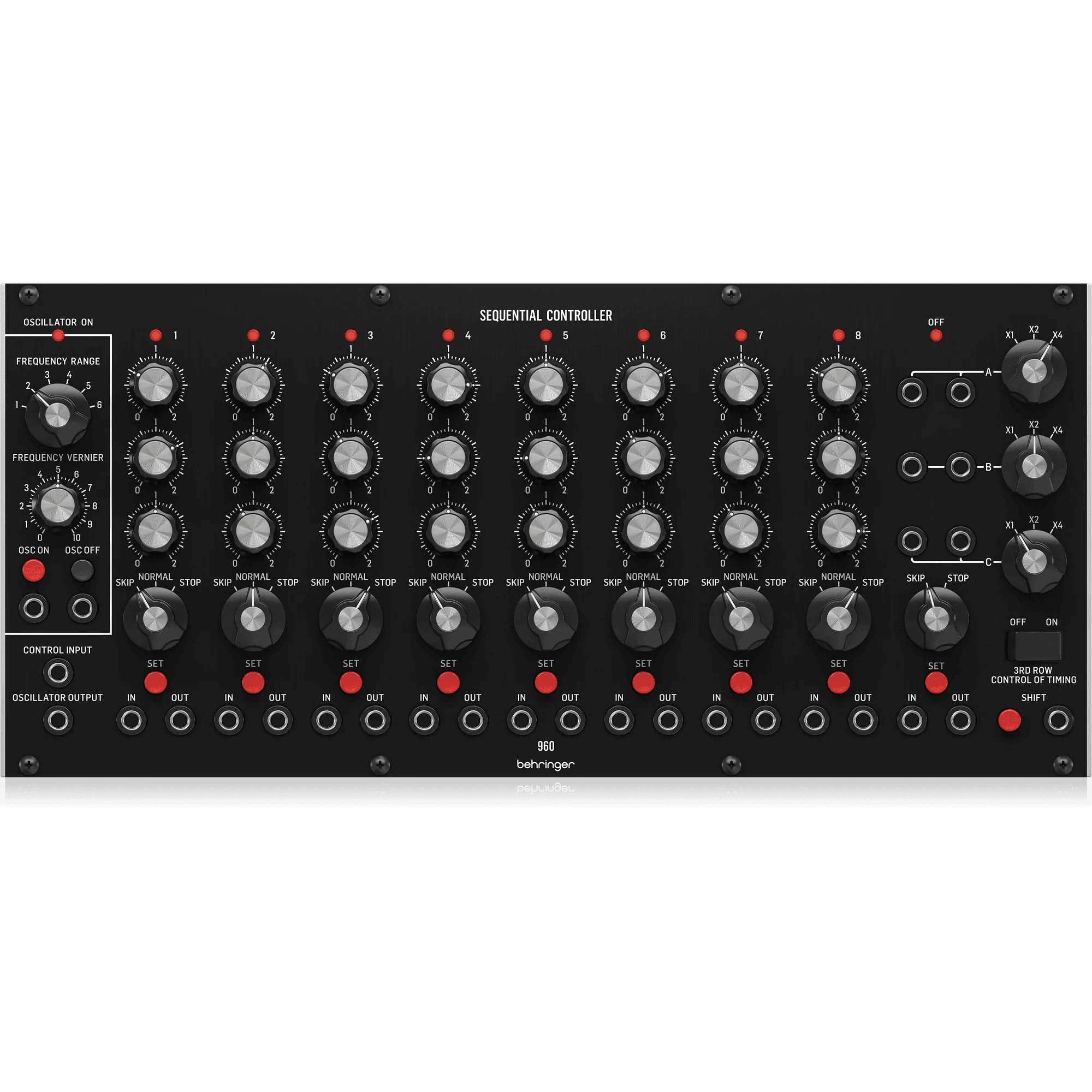

Behringer 960 SEQUENTIAL CONTROLLER
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 176.0\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES-
Authentic reproduction of the discrete circuitry from the Modular 55 Series
-
Artist roster includes world's most famous pop, rock and jazz musicians
-
8 steps with 3 rows of CV controls and 9th step Stop command
-
Provides up to 24-step sequences when used with the 962 SEQUENTIAL SWITCH module
-
Separate CV range switches per row
-
Row 3 CV controls provide step length adjustment
-
Function switches per step for Skip, Normal (play), Stop
-
Pulse oscillator with manual and CV control of frequency, Play and Stop
-
9 buttons for manual triggering of each step
-
2 CV outputs per row with separate gate in and out per step
-
Eurorack specs: 56 HP, 100 mA +12 V, 50 mA -12 V
DESCRIPTION
The first System 55, 35 and 15 synth modules came out in the early 70s and tended to be extremely expensive. They were mainly all discrete transistor designs as op-amps at the time were very high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like Keith Emerson, Stevie Wonder, Tangerine Dream and so many more, giving us some of the greatest records we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.
SPECIFICATIONS
Inputs
| Oscillator on/off | |
| Type |
2 x 3.5 mm TS jacks, AC coupled |
| Impedance |
>3 kΩ, unbalanced |
| Maximum input level |
+5 V |
| Minimum switching threshold | |
| Control input | |
| Type |
3.5 mm TS jack, 1 V/oct |
| Impedance |
100 kΩ, unbalanced |
| Maximum input level |
±2 V, vernier set to 5 |
| Shift input | |
| Type |
3.5 mm TS jack, DC coupled |
| Impedance |
7 kΩ, unbalanced |
| Maximum input level |
±5 V |
| Minimum switching threshold |
+1.5 V |
| Stage triggers | |
| Type |
8 x 3.5 mm TS jacks, AC coupled |
| Impedance |
>3 kΩ, unbalanced |
| Maximum input level |
+5 V |
| Minimum switching threshold |
+3.5 V trigger |
Outputs
| Row outputs | |
| Type |
6 x 3.5 mm TS jacks, DC coupled |
| Impedance |
500 Ω, unbalanced |
| Maximum output level |
+8 V (range X4) |
| Stage trigger outputs | |
| Type |
8 x 3.5 mm TS jacks, DC coupled |
| Impedance |
250 Ω, unbalanced |
| Maximum output level |
+5 V, active high |
| Oscillator output | |
| Type |
3.5 mm TS jack, DC coupled |
| Impedance |
4 kΩ, unbalanced |
| Maximum output level |
+4 dBu |
| Duty cycle |
90% |
Controls
| Frequency range |
1 (0.04 to 0.5 Hz), 2 (2.75 to 30 Hz) 3 (0.17 to 2 Hz), 4 (11 to 130 Hz) 5 (0.7 to 8 Hz), 6 (44 to 500 Hz) |
| Frequency vernier |
Tune the oscillator range, 3 octave range |
| Oscillator on/of |
Manually start or stop the oscillator |
| Voltage knobs |
-∞ to max voltage set by the range switch |
| Mode switch |
Skip stage, play stage, stop sequencer |
| Set |
Manually select stage |
| Range switches |
X1 (+2 V), X2 (+4 V), X4 (+8 V) max. output |
| Timing on/of |
Allows 3rd row knobs to control stage duration |
| Shift button |
Manually skip to next stage |
Power
| Power supply |
Eurorack |
| Current draw |
100 mA (+12 V), 50 mA (-12 V) |
Physical
| Dimensions |
284 x 129 x 47 mm (11.2 x 5.1 x 1.9") |
| Rack units |
56 HP |
| Weight |
0.64 kg (1.41 lbs) |
