Pay as low as Dhs. 121.0\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES-

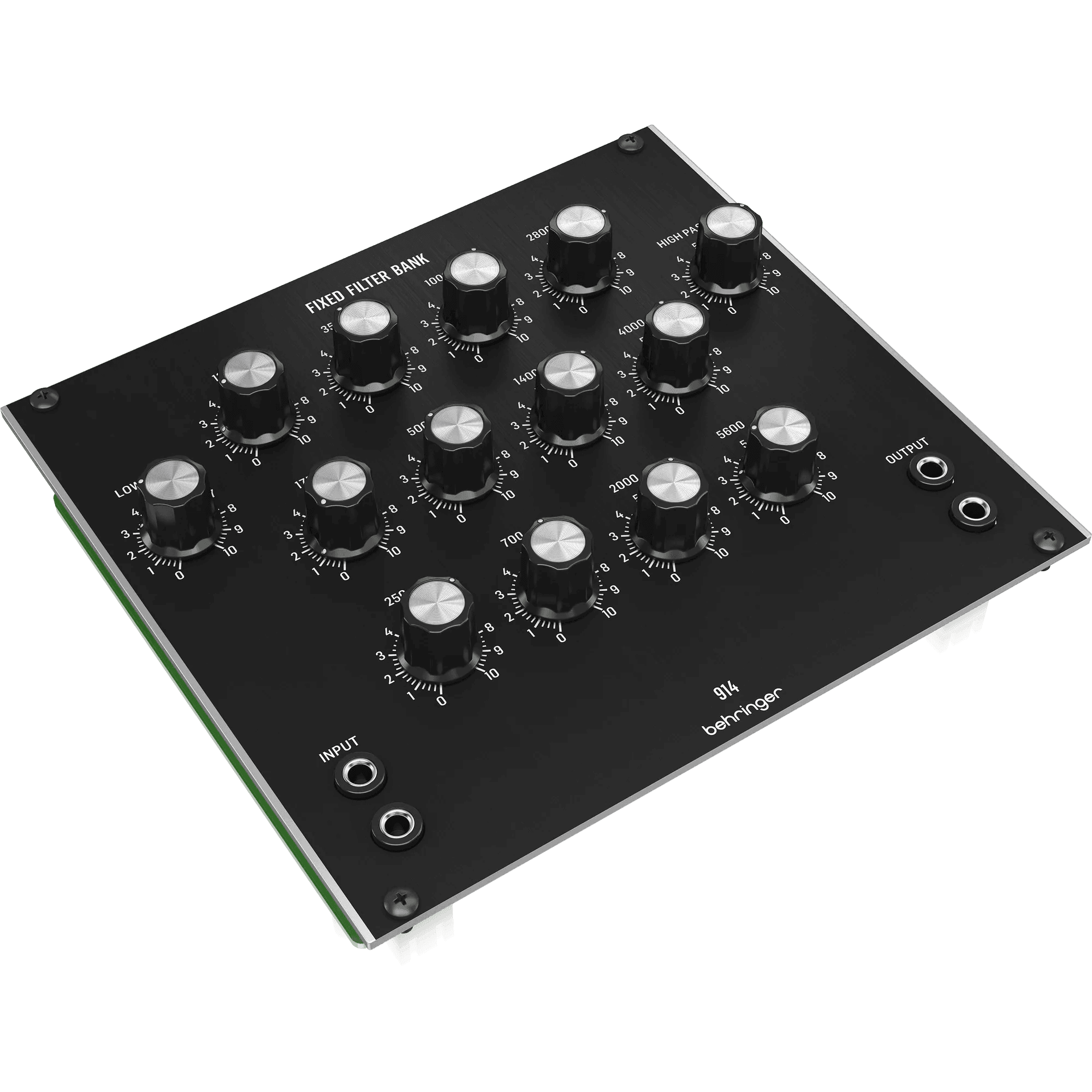

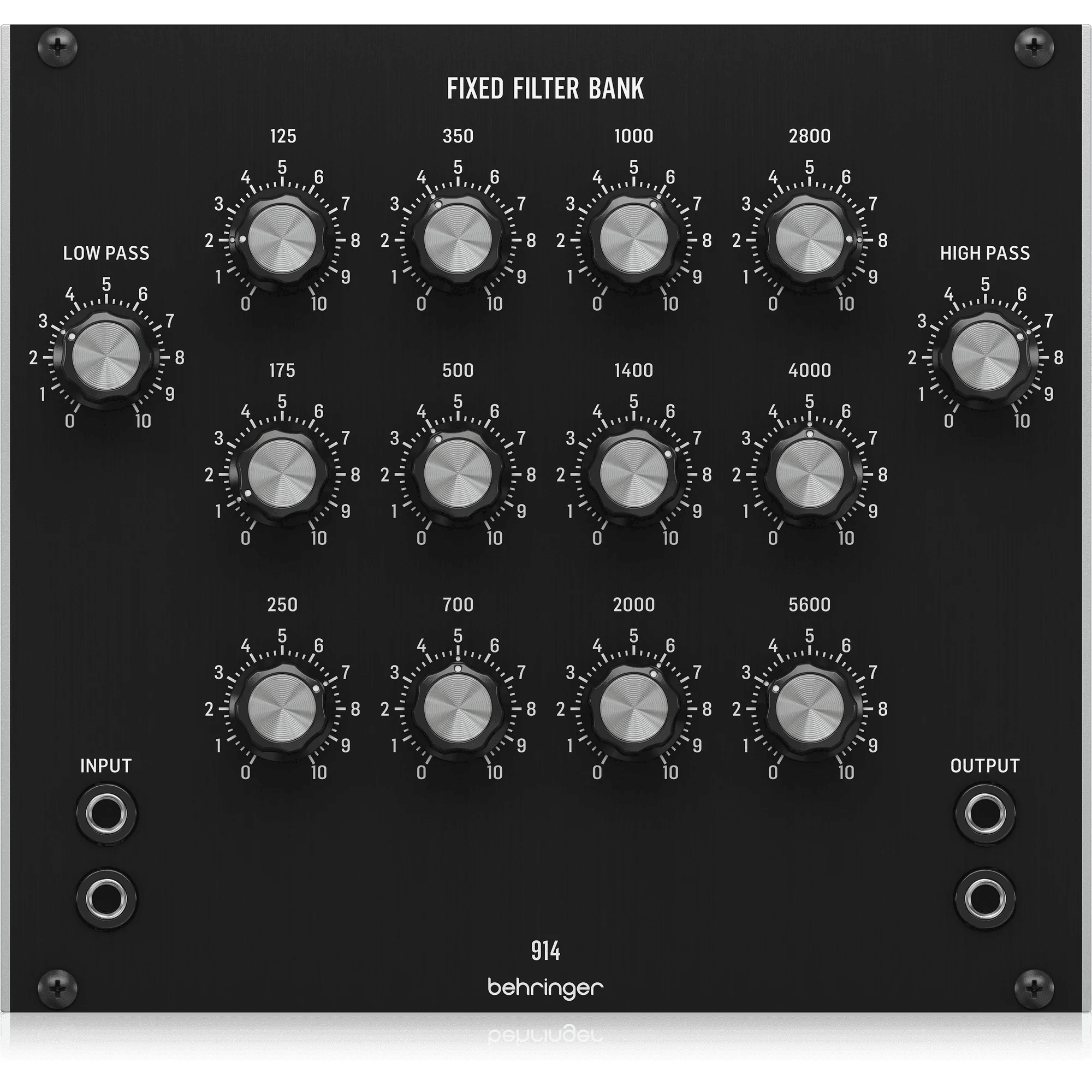

Vintage-sounding 914 fixed filter bank module from the '70s
-
Authentic reproduction of the discrete I/O circuitry from the "Modular 55" Series
-
Artist roster includes world's most famous pop, rock and jazz musicians
-
12 active bandpass filters ranging from 125 Hz - 5.6 kHz
-
Additional lowpass and highpass filters
-
Dual input and output jacks
-
Eurorack specs: 28 HP, 60 mA +12 V, 70 mA -12 V
DESCRIPTION
The first System 55, 35 and 15 synth modules came out in the early 70s and tended to be extremely expensive. They were mainly all discrete transistor designs as op-amps at the time were very high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like Keith Emerson, Stevie Wonder, Tangerine Dream and so many more, giving us some of the greatest records we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.
|
Specifications Signal Connections |
|
|
Input |
2 x 3.5 mm parallel jacks, AC coupled |
|
Impedance |
30 kΩ , unbalanced |
|
Maximum input level |
+20 dBu @ 1 kHz |
|
Output |
2 x 3.5 mm parallel jacks, AC coupled |
|
Impedance |
< 600 Ω, unbalanced |
|
Maximum output level |
+10 dBu |
|
Controls |
|
|
Low pass filter |
1 x rotary knob |
|
Peak frequency |
100 Hz |
|
Slope |
24 dB/oct. |
|
Filter bank |
12 x rotary knob |
|
Type |
Bandpass filter |
|
Frequency bands |
125, 175, 250, 350, 500, 700, 1000, 1400, 2000, 2800, 4000, 5600 Hz |
|
Level reduction |
-3 to -80 dB, adjustable |
|
Q |
7 |
|
High pass filter |
1 x rotary knob |
|
Peak frequency |
7.5 kHz |
|
Slope |
24 dB/oct. |
|
System |
|
|
Distortion |
< 0.1% @ 1 kHz, 0 dBu |
|
Noise |
< -80 dBu, 22 Hz to 22 kHz |
|
Power |
|
|
Power supply |
Eurorack |
|
Current draw |
60 mA (+12 V), 70 mA (-12 V) |
|
Physical |
|
|
Dimensions (H x W x D) |
42 x 142 x 129 mm (1.7 x 5.6 x 5.1") |
|
Rack units |
28 HP |
|
Weight |
0.26 kg (0.57 lbs) |
