KEY FEATURES

• Amazing analog synthesizer with triple VCO design allows for insanely fat music creation

• Authentic reproduction of ultra-rare Arp Blue Marvin circuitry from the '70s with specially selected opamps and transistors

• Semi-modular architecture requires no patching for immediate performance

• 3 VCOs, each with LFO mode, FM inputs and multiple wave-shape outputs for an awe-inspiring palette of tonal possibilities

• Multi-mode VCF with dedicated low-pass output with additional switched high/notch output

• Incredible range of modules including ring modulator, lag processor, sample & hold, Schmitt trigger, and envelope follower

• ADSR and AR Envelope generators with switchable time factor

• Mechanical spring reverb for inspiring sound effects

• Noise Generator with continuously variable color

• 2 dedicated LFOs with pulse and sine wave outputs

• Switched Post Filter Distortion (PFD) / Inverter option on voltage processor

• Differential (+/-) input VCA with both linear and exponential control inputs

• Additional functions include attenuator, mixer, inverter, slew rate limiter and 4-way multiple for creative patching flexibility

• External audio input for processing of external sound sources

• 78 controls give you hands-on direct and real time access to all parameters

• 93 patchable input/outputs for the ultimate in configuration flexibility

• Comprehensive MIDI implementation with MIDI channel and Voice Priority selection

•


DESCRIPTION

Limited-edition 2600 Blue Marvin with True Spring Reverb

Few synthesizers are as celebrated as the original 2600, and now Behringer has brought the venerable semi-modular workhorse to the masses in an affordable 8U rackmountable format. Based on an ultra-rare early 2600 with a bright blue fit, the Behringer 2600 Blue Marvin leans into its normalled signal path and patch-point architecture to provide intrepid synthesists with a powerful sound creation platform. Whether you’re chasing classic synth sounds or concocting future-facing musical manifestations, the Behringer 2600 Blue Marvin arms you with a wealth of audio design tools, including three beefy VCOs, a multimode VCF, mountains of modulation, and inexhaustible routing options. With 78 faders and switches, 93 patch points, and Eurorack compatibility

Packed with three swaggering VCOs

Outfitted with three VCOs, the Behringer 2600 Blue Marvin boasts the signature girthsome tone of its predecessor, which lends itself to brutal bass sounds, gritty leads, and crystalline plucks. VCO1 features independent sawtooth and pulse wave outputs. While VCO2 and VCO3 furnish independent outputs for triangle, sawtooth, sine, and pulse wave (with pulse width modulation), as well as oscillator sync. Additionally, you can set all three oscillators to low-frequency mode for use as LFOs to modulate the 2600 Blue Marvin’s myriad parameters, and they have numerous CV inputs for frequency modulation via LFO, sample & hold, ADSR envelope, and more.

A tale of two filter circuits

The Behringer 2600 Blue Marvin comes with not one but two selectable lowpass voltage-controlled filter circuits: the 4012 and 4072. Though these are both 4-pole resonant filters, they have some significant sonic differences. Featured on all of the 2600 revisions up to 1976, including the 2601 Rev 1, the 4012 filter has a similar disposition to a certain legendary ladder filter. Chock-full of growling attitude with a greasy resonance, it’s an absolute monster.

Myriad modulation sources for serious signal manipulation

One of the aspects of the Behringer 2600 Blue Marvin that makes it such a soundscaping powerhouse is its bevy of modulation sources. These include the usual suspects like sample & hold and ring modulator, as well as more rarefied beasts present in the 2600’s voltage processor section.

Accessible only via patch cables, the voltage processor section comprises two inverters, a lag time control, and an envelope follower, opening up the Behringer 2600 Blue Marvin to possibilities far beyond traditional fixed architecture subtractive synthesizers. Additionally, the Behringer 2600 Blue Marvin boasts four linked parallel connections that function as both inputs and outputs and can be used to duplicate and combine signals.

Modern features make this the most versatile 2600 yet

The Behringer’s 8U rack-mountable form factor is another welcome riff, giving users more flexible mounting options. The unicolor LED faders shine brightly on a darkened stage and serve as a helpful visual aid while shaping patches during a performance.

Stereo output and mechanical spring reverb

On the Behringer 2600 Blue Marvin, all roads eventually lead to the mixer section, which houses the 2600’s voltage-controlled amplifier and stereo output, plus a true mechanical spring reverb — just like the original — to add the final dash of atmosphere to a patch. To its left sit the 2600’s dual envelope generators, a traditional 4-stage ADSR, and a simplified AR with a push-button manual re-trigger and another fun twist — a time factor switch, which allows you to double or halve the envelope’s total duration in an instant.



SPECIFICATIONS

Inputs
Section	Type / Function	Details
VCO 1 / 2 / 3	Frequency Modulation (FM)	11 x 3.5 mm TS jacks, CV range: -10 V to +10 V
	Pulse Width Modulation (PWM)	2 x 3.5 mm TS jacks, CV range: -5 V to +5 V, 1 V/10%
VCF	Audio	5 x 3.5 mm TS jacks, 50 kΩ unbalanced
	Control	3 x 3.5 mm TS jacks, CV range: -10 V to +10 V
ADSR / AR Envelope Gen.	S&H Clock	1 x 3.5 mm TS jack, threshold: > 6 V
	Gate In	1 x 3.5 mm TS jack, threshold: +4 V
	Trig In	1 x 3.5 mm TS jack, threshold: +5 V
VCA	Audio	2 x 3.5 mm TS jacks, 50 kΩ unbalanced
	Control (Linear)	1 x 3.5 mm TS jack, CV range: -10 V to +10 V
	Control (Exponential)	1 x 3.5 mm TS jack, CV range: -10 V to +10 V
Mixer / Reverb	Audio, Left/Right Inputs	4 x 3.5 mm TS jacks, 50 kΩ unbalanced
LFO	External Vibrato In	1 x 3.5 mm TS jack, 50 kΩ unbalanced
Envelope Follower	Input	1 x 3.5 mm TS jack, 100 kΩ unbalanced
Preamp	Input	1 x 3.5 mm TS jack, 100 kΩ unbalanced
Ring Modulator	VCO 1 / VCO 2 Inputs	2 x 3.5 mm TS jacks, 100 kΩ unbalanced
Voltage Processor	Inputs, CV	Multiple 3.5 mm TS jacks, max input: +10 V
Sample & Hold	Noise Gen / Ext Clock In	2 x 3.5 mm TS jacks, unbalanced / threshold > 3 V

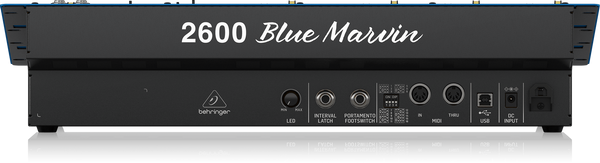

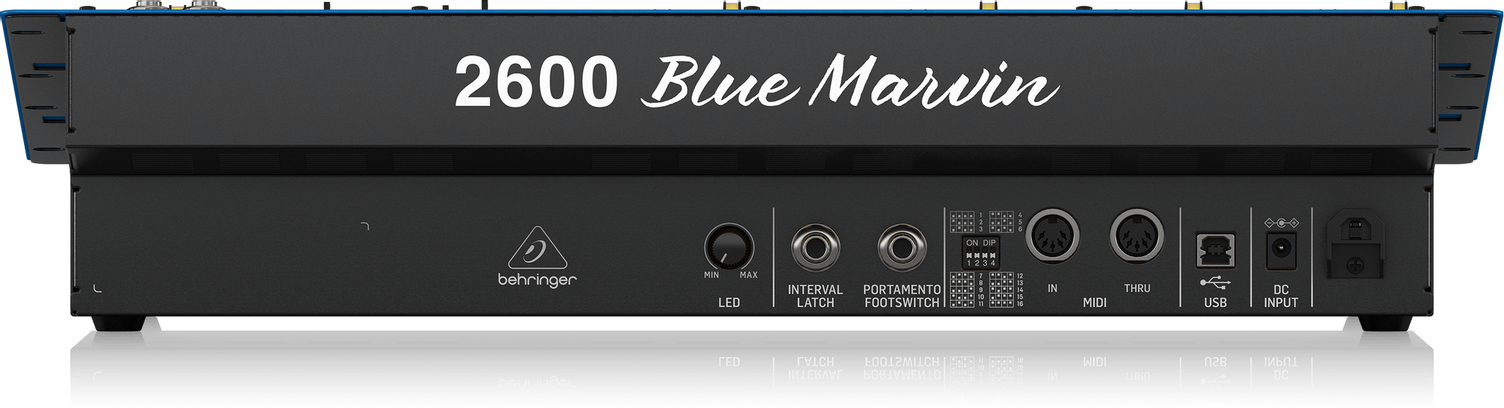

Back Panel	Interval Latch / Portamento Footswitch	2 x ¼" TRS jacks
Outputs
Section	Type / Function	Details
VCO 1 / 2 / 3	Saw / Pulse / Tri / Sine Outputs	Multiple 3.5 mm TS jacks, 800–1000 Ω unbalanced
VCF	Output	1 x 3.5 mm TS jack, 1 kΩ unbalanced
ADSR / AR Envelope Gen.	Output	2 x 3.5 mm TS jacks, CV range: 0 V to +10 V
VCA	Output	1 x 3.5 mm TS jack, 1 kΩ unbalanced
Mixer / Reverb	Post-Attenuator / Post-Mixer / L/R Out	Multiple jacks (3.5 mm & ¼"), 500–1000 Ω unbalanced
LFO	Triangle / Square / Delayed Sine Outputs	3 x 3.5 mm TS jacks, 1–1.8 kΩ unbalanced
Envelope Follower	Output (Preamp x10/x100/x1000/Env)	4 x 3.5 mm TS jacks, max gain: +20 to +60 dBu / +14 V
Ring Modulator	Output	1 x 3.5 mm TS jack, -10 V to +10 V
Noise Generator	Output	1 x 3.5 mm TS jack, -10 V to +10 V
Voltage Processor	Inverter / Lag Outputs	3 x 3.5 mm TS jacks, -10 V to +10 V
Sample & Hold	Internal Clock / S&H Out	2 x 3.5 mm TS jacks, up to +14 V
Portamento / Keyboard	Trig / Gate / CV Out / Upper Voice	4 x 3.5 mm TS jacks, max output: +7 to +14 V
Phones	Stereo Output	1 x 1/8" TRS jack, max output: 5 dBu, 8 Ω output impedance
